Most homeowners think comfort comes from the thermostat setting.
Mike Sanders thinks comfort comes from pressure balance.
In his view, the thermostat is just a blunt trigger.
Pressure is the precision instrument.
“If your house is pressure-neutral, you can set the thermostat higher and still feel cooler. If it’s pressure-imbalanced, no thermostat on earth can fix that.”
This is why Mike designs every HVAC system — especially ducted systems — around something far more foundational than BTUs or tonnage:
The Supply-Return Grid.
A complete airflow layout that ensures every CFM of supply air has a matching, unobstructed pathway back to the air handler.
This article is the full breakdown of how Mike builds pressure-neutral homes, why most duct systems don’t work correctly, and how balancing supply/return airflow can make a home feel 3–5°F cooler without changing the thermostat.

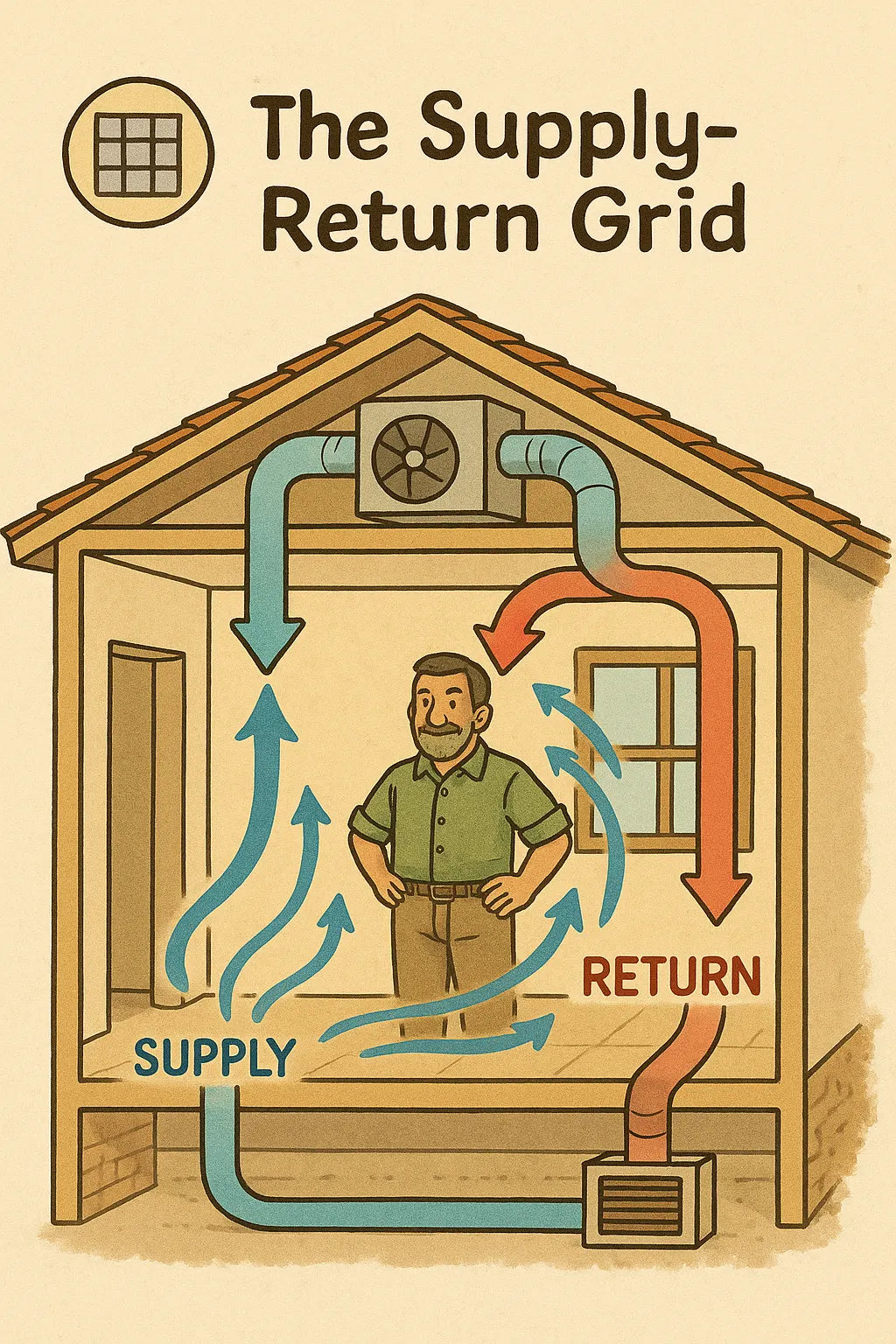

🧭 1. What Is a Supply-Return Grid?
A Supply-Return Grid is Mike’s term for a duct system designed around:
-
equal and opposite airflow
-
balanced room pressure
-
soft circulation loops
-
low static pressure
-
whole-home airflow symmetry
Most HVAC systems only think about supply airflow, assuming return air “finds its way back.”
Mike knows better:
“Air doesn’t magically return. If the return path is bad, the system pulls air from anywhere — attics, crawlspaces, garages, wall cavities.”
A true grid:
-
eliminates pressure buildup
-
stops negative-pressure rooms
-
reduces unconditioned air infiltration
-
enhances thermostat accuracy
-
improves humidity control
-
allows for higher thermostat settings without comfort loss
🧊 2. Why Pressure Neutrality Matters So Much
Pressure neutrality is what separates a high-performance home from a “hot room / cold room” home.
🔥 2.1 Why pressure imbalances destroy comfort
When a room becomes positively pressurized:
-
supply vents push in more air than the return can remove
-
the room heats rapidly
-
the door becomes a pressure dam
-
airflow stalls
-
temperature rises faster
When a room becomes negatively pressurized:
-
air is pulled from the attic, crawlspace, or outdoors
-
humidity spikes
-
allergens enter
-
comfort collapses
Mike sees this in nearly every older home.
💨 2.2 Supply-only thinking = uneven rooms
Traditional installations treat returns as optional.
-
One central return
-
Maybe a second on the main floor
-
Bedrooms starved for return airflow
-
Closed doors = pressure traps
Mike calls this design approach:
“The 1980s HVAC mistake that never died.”
🌫️ 2.3 Why pressure balance makes homes feel cooler
When airflow is balanced:
-
supply air spreads evenly
-
room temps stabilize
-
drafts disappear
-
humidity drops
-
circulation becomes continuous
A pressure-neutral room can feel 3°F–5°F cooler at the same thermostat setting.
🧱 3. How Mike Diagnoses Pressure Problems
He uses three tools:
🌀 3.1 The Door Closure Test (Simple but powerful)
Mike closes a bedroom door and checks the airflow.
If the return path is inadequate:
-
the door “whooshes” when cracked
-
or air hisses through the gap
This indicates pressure trap.
🌡️ 3.2 Differential Room Pressure Meter Readings
Mike measures pressure difference with the HVAC running.
His thresholds:
-
±1 pascal = excellent balance
-
±2–3 pascals = mild imbalance
-
±4+ pascals = severe imbalance
Most homes are ±5–8 pascals off.
External Link: DOE guidance on pressure diagnostics
https://www.energy.gov/energysaver/home-energy-audits/professional-home-energy-audits
🔥 3.3 Temperature Delta Mapping
He checks:
-
ceiling temperatures
-
corner temperatures
-
supply temp drop
-
return temp rise
Uneven deltas = pressure disruptions.
🧩 4. The Three Components of Mike’s Supply-Return Grid
He designs every home using three “pressure modules.”
🔹 4.1 Module 1: Supply Geometry (The Push System)
Supply airflow must:
-
reach the room evenly
-
avoid over-saturating the space
-
avoid supply “dead zones”
-
match the true BTU requirement
Mike sizes supplies the way engineers wish everyone did:
-
6" = 75 CFM
-
7" = 125 CFM
-
8" = 200 CFM
-
9" = 250–300 CFM
No guessing.
No “rule of thumb.”
🔸 4.2 Module 2: Return Geometry (The Pull System)
Returns must equal or exceed supply airflow.
If a room receives 120 CFM of supply air, it must have:
-
a dedicated return,
or -
a jumper duct,
or -
a transfer grille
Otherwise, pressure imbalance is guaranteed.
External Link: EPA return air recommendations
🔷 4.3 Module 3: Circulation Loops (The Flow System)
A circulation loop ensures:
-
continuous temperature mixing
-
low static pressure
-
balanced room pressures
-
improved humidity removal
Mike designs loops using:
-
central returns
-
high-low returns in large rooms
-
hallway pressure relief
-
open-air pathways
-
strategically placed supplies near return paths
The result is a home that circulates as a single pressure zone, not isolated pockets of air.
🧰 5. Mike’s Nine Rules for Building a Pressure-Neutral Home
Here’s the core of Mike’s philosophy.
🟦 Rule 1: Every bedroom needs a return path
Whether:
-
dedicated return,
-
jumper duct,
-
or transfer grille
A bedroom with a closed door can develop 8+ pascals of pressure imbalance.
🟧 Rule 2: Return air must exceed supply CFM by 10–20% at the system level
This protects against:
-
duct leakage
-
filter restriction
-
long duct runs
🟥 Rule 3: Replace restrictive 1" filter racks
They create 0.20–0.25 inWC pressure drop.
Mike switches to:
-
2" media filter cabinets
-
or 4" deep-pleat cabinets
This alone solves 25% of pressure issues.
🟩 Rule 4: Use multiple returns on multi-story homes
Second floors require larger return capacity because heat rises.
External Link: Multi-story home airflow challenges
https://www.energy.gov/energysaver/ductless-mini-split-heat-pumps
🟨 Rule 5: Long duct runs must be upsized
Every 10 feet = pressure drop
Every 90° elbow = pressure drop
Sagging flex duct = massive pressure drop
Upsize early = fewer problems later.
🟫 Rule 6: Seal all return duct leaks first
Return leaks suck attic/crawlspace air into the system.
This causes humidity and heat spikes.
External Link: Duct leakage & sealing
🟪 Rule 7: Remove bottlenecks near the plenum
The first 10 feet of duct leaving the air handler must be smooth.
He replaces:
-
elbow-throttling
-
poorly sized wyes
-
sharp transitions
🟫 Rule 8: Never put a supply vent directly opposite a return grille
This causes short-circuiting, preventing air from fully circulating.
🟦 Rule 9: Balance registers, don’t block them
Homeowners often close vents in unused rooms.
Mike says:
“You don’t block airflow. You redistribute it.”
🔍 6. Why Pressure-Neutral Homes Feel Cooler at Higher Thermostat Settings
Mike’s supply-return grid reduces heat concentration zones, allowing air to mix completely.
This gives three major benefits.
❄️ 6.1 Benefit 1: Even temperatures = higher comfort threshold
When air spreads evenly:
-
fewer hot spots
-
fewer cold corners
-
less stratification
You can set the thermostat at 75°F and feel like it’s 72°F.
💧 6.2 Benefit 2: Improved humidity removal
Balanced airflow:
-
increases coil contact time
-
improves dehumidification
-
reduces moisture load
Humidity has a huge impact on perceived temperature.
🛏️ 6.3 Benefit 3: Better airflow into closed rooms
Rooms no longer “trap air.”
This stabilizes:
-
sleeping comfort
-
upper floor temperatures
-
room-to-room consistency
📘 7. A Complete Example: Mike Fixes a Pressure-Imbalanced Two-Story Home
Home: 3,000 sq ft, built 2004
Symptoms:
-
hot upstairs
-
cold basement
-
bedrooms stuffy with doors closed
-
system loud
-
AC runs excessively
Mike’s diagnostic findings:
-
one central return for entire house
-
6 bedrooms without return pathways
-
restrictive 1" filter rack
-
three long 6” supply runs
-
return duct leaking 20% into attic
-
temperature deltas uneven by 7°F
Mike’s corrections:
-
added 2nd-floor return
-
added 6 jumper ducts
-
upsized two supplies to 8"
-
replaced 1" filter with 4" media cabinet
-
sealed return duct leaks
-
balanced airflow at registers
Results:
-
thermostat increased from 72°F → 75°F
-
comfort increased
-
AC runtime dropped 18%
-
bedroom temp difference: reduced from 7°F → 1.5°F
-
humidity dropped 8–10%
-
blower noise reduced
🎯 8. Mike’s Supply-Return Grid Design Blueprint (Step-by-Step)
Here’s his full process.
📝 Step 1: Calculate CFM per room
He uses:
-
load calculations
-
room size
-
sun exposure
-
ceiling height
-
window area
📐 Step 2: Size supply branches
He chooses 6", 7", 8" or larger depending on CFM requirement.
🔃 Step 3: Create return air strategy
Every room must be able to “exhale” freely.
💨 Step 4: Balance airflow with manometer and temperature checks
He adjusts:
-
damper positions
-
register direction
-
duct transitions
🧊 Step 5: Validate comfort at multiple thermostat settings
A pressure-neutral home feels the same at:
-
72°F
-
74°F
-
or even 76°F
That’s when you know the design is right.
🏁 Final Takeaway
Mike says it best:
“If your supply can push and your return can pull, your home becomes a pressure-neutral comfort machine.”
A proper Supply-Return Grid turns a home into a balanced, efficient, ultra-comfortable environment — one that feels cooler without lowering the thermostat, and heats more evenly without blasting the furnace.
