Best 5 Zone Ductless Mini Split DIY Systems

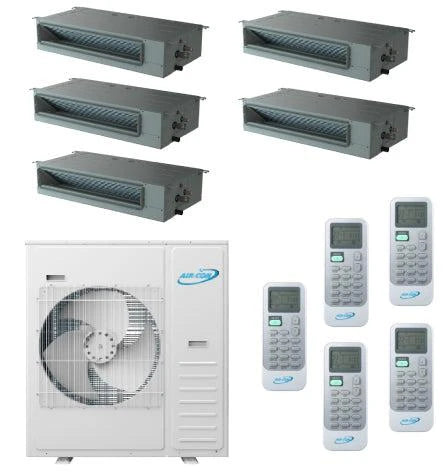

Five-zone ductless mini split systems provide a versatile and efficient solution for heating and cooling multiple areas within a home without the need for extensive ductwork. These systems consist of a single outdoor compressor connected to five indoor air-handling units, allowing for individualized climate control across different zones. For homeowners interested in a hands-on approach, certain models are designed for do-it-yourself (DIY) installation, offering both cost savings and personalized comfort.​

When choosing a 5-zone ductless mini split DIY system, two key performance metrics to consider are SEER (Seasonal Energy Efficiency Ratio) and BTU (British Thermal Unit). These factors determine the system’s energy efficiency and capacity, influencing both operating costs and overall performance.

Advantages of 5-Zone Ductless Mini Split Systems

1. Customized Comfort: Each indoor unit operates independently, enabling occupants to set different temperatures in separate rooms. This zoning capability ensures that individual preferences are met without affecting the entire household.​

2. Energy Efficiency: By conditioning only the occupied spaces, these systems reduce energy consumption compared to traditional HVAC setups that heat or cool the entire home. The absence of ducts also eliminates energy losses associated with ductwork.​ They also are known for their high energy efficiency. According to the U.S. Department of Energy, these systems avoid the energy losses associated with ductwork, which can account for more than 30% of energy consumption for space conditioning. Additionally, ENERGY STAR® certified mini split heat pumps use up to 60% less energy than standard home electric radiators, leading to significant savings on utility bills.

3. Flexible Installation: Designed with ease of installation in mind, many DIY-friendly models come with pre-charged refrigerant lines and detailed instructions, allowing homeowners to undertake the installation process themselves.​

DIY Installation Considerations

Embarking on a DIY installation of a five-zone ductless mini split system requires careful planning and attention to detail. Here are key steps and considerations:

1. Site Assessment: Determine optimal locations for the indoor units, ensuring they are centrally positioned in the respective zones for even air distribution. The outdoor unit should be placed on a stable surface with adequate clearance for airflow and maintenance.​

2. Mounting Indoor Units: Secure the mounting brackets on interior walls, ensuring they are level and can support the unit's weight. Drill holes for the conduit that will house refrigerant lines, electrical wiring, and the condensate drain.​

3. Installing the Outdoor Unit: Position the outdoor compressor on a solid foundation, such as a concrete pad, ensuring it is level and has sufficient clearance from obstructions.​

4. Connecting Components: Run the conduit between indoor and outdoor units, making sure to avoid sharp bends in the refrigerant lines. Secure all connections tightly to prevent leaks.​

5. Electrical Connections: Ensure the system is connected to the appropriate power source, adhering to local electrical codes. Some DIY systems are designed to be plugged into standard outlets, while others may require dedicated circuits.​

6. System Testing: After installation, power on the system to check for proper operation. Monitor for any unusual noises or leaks, and ensure each indoor unit responds correctly to temperature adjustments.​

Potential Challenges

• Technical Expertise: While DIY kits are designed for user-friendly installation, tasks such as handling refrigerants or complex electrical work may require professional assistance.​

• Specialized Tools: Certain steps may necessitate tools not commonly found in household toolkits, such as a vacuum pump or specific gauges.​

• Warranty Considerations: Some manufacturers may require professional installation to maintain warranty coverage. It's essential to review warranty terms before proceeding with a DIY installation.​

Conclusion

Five-zone ductless mini split systems offer an energy-efficient and customizable solution for homeowners seeking to control the climate in multiple areas of their residence. While DIY installation can provide cost savings and a sense of accomplishment, it's crucial to assess one's technical skills and consult professionals when necessary to ensure a safe and effective setup.​
