Ductless Mini Split DIY Systems

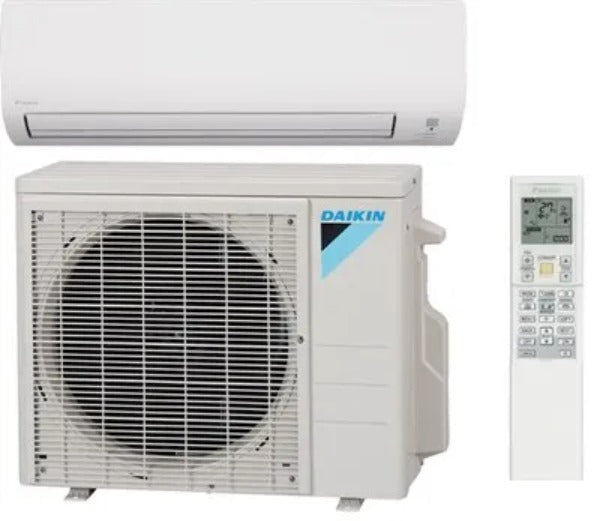

Ductless mini split systems have become increasingly popular among homeowners seeking efficient and customizable heating and cooling solutions. These systems consist of an outdoor compressor connected to one or more indoor air-handling units, providing targeted climate control without the need for extensive ductwork. For those inclined towards do-it-yourself (DIY) projects, certain mini split models are designed for easier installation, allowing homeowners to manage the process independently.➡️ Energy.gov - Ductless Mini-Split Air Conditioners

Advantages of DIY Ductless Mini Split Systems

1. Cost Savings: By undertaking the installation themselves, homeowners can significantly reduce labor costs associated with professional HVAC services. This approach makes climate control more accessible to those on a budget.

2. Energy Efficiency: Ductless mini splits are known for their energy-efficient operation. By eliminating the energy losses associated with ductwork, these systems can lead to lower utility bills and a reduced environmental footprint.

3. Zoning Flexibility: These systems allow for individualized temperature settings in different rooms or zones, catering to personal comfort preferences and optimizing energy usage by conditioning only occupied spaces.

4. Improved Air Quality: Without ducts that can harbor dust and allergens, ductless systems often result in cleaner indoor air. Many units also come equipped with advanced filtration systems to further enhance air quality.

Considerations for DIY Installation

While the prospect of installing a ductless mini split system independently is appealing, it's essential to approach the project with thorough preparation and awareness of potential challenges.

1. Technical Expertise: DIY installation requires a certain level of technical skill, particularly concerning electrical work and refrigerant handling. Some systems come pre-charged with refrigerant to simplify installation, but ensuring proper connections and system integrity is crucial.

2. Specialized Tools: The installation process may necessitate tools not commonly found in a typical household toolkit, such as a vacuum pump, refrigerant gauges, and flaring tools. Acquiring or renting these tools is an important consideration before commencing the project.

3. Warranty Implications: Some manufacturers stipulate professional installation as a condition for warranty validity. It's imperative to review warranty terms to avoid inadvertently voiding coverage by opting for a DIY approach.

Installation Overview

A general outline of the DIY installation process includes:

1. Site Assessment: Determine optimal locations for both indoor and outdoor units, ensuring adequate clearances and accessibility for maintenance.

2. Mounting the Indoor Unit: Secure the mounting bracket on the chosen interior wall, drill a hole for the conduit, and attach the indoor unit, ensuring proper alignment and support.

3. Installing the Outdoor Unit: Place the outdoor compressor on a stable surface, such as a concrete pad or mounting brackets, ensuring it is level and has sufficient clearance for airflow.

4. Connecting Components: Run the conduit containing refrigerant lines, electrical wiring, and the condensate drain between the indoor and outdoor units. Make precise connections, adhering to manufacturer specifications to ensure system efficiency and safety.

5. System Testing: After completing the installation, conduct a thorough test of the system to verify proper operation. This step includes checking for leaks, ensuring electrical connections are secure, and confirming that the unit responds correctly to controls.

Conclusion

DIY ductless mini split systems offer a blend of efficiency, flexibility, and potential cost savings. However, it's essential to assess one's technical abilities, ensure access to necessary tools, and understand the implications for system warranties before proceeding. For those well-prepared, installing a ductless mini split can be a rewarding project that enhances home comfort and energy efficiency.
