Ask any homeowner where their heating and cooling problems come from, and they’ll point to the furnace, the AC unit, or “bad ductwork.”
Ask Mike Sanders, and he’ll point straight to the attic.
Because in Mike’s decades of system design, service calls, and duct rehabilitation, he’s identified one consistent, destructive, and almost always hidden issue:

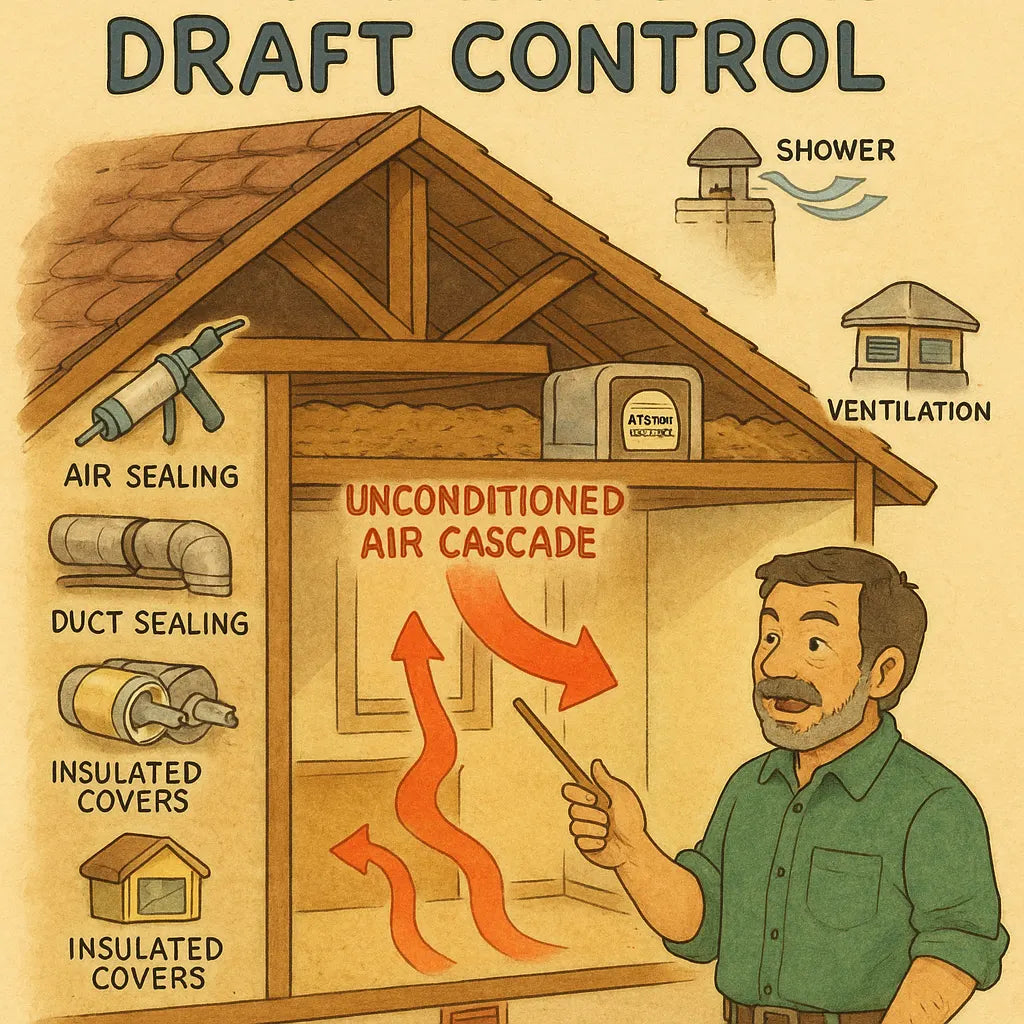

Unconditioned air cascades — massive downward drafts of attic air that leak into the house through gaps, cracks, recessed lights, top plates, duct chases, and ceiling penetrations.
Most homeowners never realize that their attic is dumping 120°F air into the home in summer, or icy 25°F air in winter, affecting:
-
room temperature
-
humidity levels
-
furnace cycles
-
AC load
-
duct performance
-
energy bills
-
comfort
-
equipment life
Mike calls this phenomenon the “thermal waterfall effect.”
Once the cascade starts, no HVAC system can truly keep up — not even a properly sized one.
This is Mike’s complete strategy for identifying, diagnosing, and eliminating unconditioned air cascades from the attic so your HVAC system finally gets a fair playing field.
🏠 1. What Is an Unconditioned Air Cascade?
An unconditioned air cascade happens when large amounts of attic air leak downward into the home due to:
-
pressure imbalances
-
thermal buoyancy
-
duct leakage
-
negative pressure zones
-
poor insulation
-
open framing cavities
It shows up as:
-
rooms that won’t cool
-
furnace short-cycling
-
upstairs areas baking in summer
-
drafty cold rooms in winter
-
humidity trapped indoors
-
wildly uneven temperatures
Mike describes it this way:
“It’s like your attic is breathing into your house, every minute of every day.”
And in most homes older than 20 years, this is happening constantly.
🔥 2. Why Attics Create the Perfect Conditions for Air Cascades
Attics are naturally extreme environments. In fact:
-
Summer attic temps reach 120–160°F
-
Winter attic temps often match outdoor temperatures
-
Attics operate under significant pressure differences
-
Roof decks radiate heat downward
-
Insulation rarely seals perfectly
All of these factors create a “pressure pump” that shoves attic air into the living space.
Mike breaks it down into four core dynamics.
☀️ 2.1 Stack Effect + Reverse Stack Effect
Hot air rises, cold air sinks — that’s the classic stack effect.
But in attics, the effect gets magnified:
-
In winter, warm indoor air rises and pulls icy attic air down to replace it.
-
In summer, the attic superheats and pushes hot air downward into the home.
External Link: How stack effect impacts buildings
https://www.energy.gov/energysaver/weatherize/air-sealing-your-home
📉 2.2 Pressure Imbalance From HVAC Operation
When the HVAC system runs, air gets:
-
sucked into returns
-
pushed through ducts
-
lost into attics through leaks
-
replaced by attic infiltrations
Every CFM of conditioned air lost into the attic pulls a CFM of hot/cold attic air back in.
🌫️ 2.3 Duct Leakage Creates Direct Attic Intake
Duct leaks create suction points where attic air is literally vacuumed into the system.
Studies show:
-
20–30% of conditioned air is lost to duct leakage in older homes
-
attic leakage increases heating/cooling load dramatically
External Link: EPA on duct leakage
🪟 2.4 Thermal Radiation From the Roof Deck
A hot roof radiates significant heat downward.
If insulation gaps exist (and they always do), this radiant heat becomes convective warm air entering the home.
🧰 3. How Mike Detects Unconditioned Air Cascades (His Diagnostic Blueprint)
While most contractors throw in more insulation or tweak the thermostat, Mike uses a thorough detection method.
🔦 3.1 Thermal Imaging for Heat Pathways
Mike scans:
-
ceiling seams
-
recessed lights
-
top plates
-
duct chases
-
wall connections
Hot or cold streaks = direct leakage paths.
💨 3.2 Smoke Pencil Testing
This shows airflow direction:
-
If smoke travels upward → leak out
-
If smoke sucks downward → attic cascade
Most homes show multiple downward pull locations.
📉 3.3 Pressure Mapping
Mike measures:
-
supply pressure
-
return pressure
-
house pressure with blower on/off
-
room pressure differences
Negative pressure rooms are cascade magnets.
External Link: DOE on home pressure testing
https://www.energy.gov/energysaver/home-energy-audits/professional-home-energy-audits
🕳️ 3.4 Hunting for the Attic “Thermal Highway”
Mike identifies major leakage paths, which often include:
-
attic kneewalls
-
open chimney chases
-
plumbing stacks
-
wiring penetrations
-
can lights
-
HVAC chases
-
bathroom exhaust gaps
These are the core leaks that cause most attic cascades.
🧱 4. The Big Six Leak Points Mike Fixes First
After diagnosing, Mike tackles what he calls “the big six.”
🕯️ 4.1 Recessed Lights (the #1 offender)
Old can lights leak warm/cold attic air relentlessly.
Mike fixes them using:
-
airtight retrofit can covers
-
sealed LED replacements
-
fire-rated foam seals
🪜 4.2 Attic Hatches, Pull-Down Stairs, and Knee Wall Doors
These are huge open areas that leak more than windows.
Mike installs:
-
insulated covers
-
weatherstripping
-
rigid-airlock panels
🧱 4.3 Top Plates
Where walls meet the attic floor, hundreds of cracks exist.
Mike seals them with:
-
spray foam
-
caulk
-
rigid insulation inserts
🧲 4.4 Plumbing & Electrical Penetrations
Gaps around pipes, stacks, and wiring are major cascade sources.
He uses:
-
fire-rated foam
-
high-temp silicone
-
metal plates
🌪️ 4.5 HVAC Chases & Duct Drops
Open framing cavities around duct runs are huge leakage pathways.
He seals:
-
vertical duct chases
-
furnace closet gaps
-
return chases
🚿 4.6 Bathroom Exhaust and Dryer Vent Gaps
Warm, humid air rises and drags attic air down behind it.
Mike seals all vent penetrations and checks for backdraft dampers.
🧱 5. Insulation Is NOT the First Fix — Air Sealing Comes First
Homeowners assume insulation solves attic problems.
Mike shakes his head and says:
“Insulation stops heat transfer — not air movement. Seal the attic first.”
If you insulate before sealing, you trap leaks underneath and often make the cascade worse.
🧊 6. Mike’s “Thermal Dam” Air-Sealing Strategy
This is Mike’s signature method — building a “thermal dam” that prevents hot or cold air from pouring into the home like a waterfall.
He does it in four steps.
🧵 Step 1: Create a Continuous Air Barrier
He seals:
-
every seam
-
every hole
-
every gap
-
every top plate
-
every duct chase
Until the ceiling is airtight.
🪵 Step 2: Reinforce the Insulation Layer
Then he:
-
tops up to R-38–R-60 depending on region
-
flattens insulation to eliminate air pockets
-
adds baffles for proper soffit ventilation
External Link: DOE insulation R-value map
https://www.energy.gov/energysaver/weatherize/insulation
🌫️ Step 3: Pressure-Balance the Home
Mike verifies:
-
return air pathways
-
bedroom-to-hall transfer
-
pressure neutrality
A house with good sealing can still fail if pressure is unbalanced.
❄️ Step 4: Control Attic Temperature and Ventilation
Mike optimizes:
-
ridge vents
-
soffit vents
-
attic fans (if needed)
-
roof deck insulation options
-
radiant barriers
This reduces thermal load and slows radiation downward.
🌡️ 7. How Unconditioned Air Cascades Affect HVAC Performance
Stopping cascades helps the HVAC system dramatically.
🧊 7.1 Cooling Performance Improves by 15–25%
Less attic air infiltration means:
-
lower humidity
-
longer coil contact time
-
lower duct losses
🔥 7.2 Heating Becomes Even and Stable
No more:
-
cold bedrooms
-
hot ceilings
-
short-cycling furnaces
🔇 7.3 Airflow Noise Drops
Attic cascades cause pressure spikes that increase vent noise.
Sealing the attic smooths airflow back out.
💸 7.4 Energy Bills Drop
DOE research shows air sealing can reduce heating and cooling bills by 10–20%.
External Link: Energy savings from air sealing
https://www.energy.gov/energysaver/weatherize/air-sealing-your-home
🛠️ 7.5 HVAC Equipment Lasts Longer
Less infiltration = less workload = fewer cycles.
Furnace/AC lifespan increases significantly.
🏡 8. Real-World Example: Mike Fixes a Massive Cascade Problem
Home: 1998 two-story, 2,500 sq ft
Symptoms:
-
2nd floor very hot in summer
-
furnace short cycles in winter
-
upstairs humidity at 65%
-
“windy” feeling near bedroom floors
-
energy bills 28% above area average
Mike’s Findings:
-
Recessed lights leaking attic air
-
Open duct chase behind fireplace
-
Attic hatch unsealed
-
Top plate seams wide open
-
Sagging insulation
-
Return duct leakage in attic
What Mike Did:
-
Sealed 18 recessed lights
-
Installed thermal attic hatch cover
-
Spray-foamed all top plates
-
Rebuilt insulation layer to R-49
-
Repaired return duct leaks
-
Added jumper ducts for pressure balance
Results:
-
Upstairs temperature drop: 9°F improvement
-
Humidity drop: from 65% to 49%
-
Furnace stopped short cycling
-
AC runtime reduced ~22%
-
Energy bill savings ~18%
-
No more “windy floor” feeling
Attic cascades were the entire problem — not the HVAC equipment.
🎯 9. Mike’s Attic Thermal Draft Control Rules (Quick Summary)
✔️ Rule 1: Air seal before adding insulation
✔️ Rule 2: Recessed lights get sealed first
✔️ Rule 3: Every top plate crack must be closed
✔️ Rule 4: HVAC chases must be fully boxed and sealed
✔️ Rule 5: Pull-down stairs require an insulated airlock
✔️ Rule 6: Add baffles before adding insulation
✔️ Rule 7: Duct leakage in the attic must be <10%
✔️ Rule 8: Balance return air to prevent negative pressure
✔️ Rule 9: Add radiant barriers only after sealing
✔️ Rule 10: Verify all work with smoke + pressure tests
Follow these, and you eliminate attic cascades permanently.
🔧 10. Final Takeaway
Mike says it best:
“If your attic isn’t sealed, your HVAC system is fighting gravity, physics, and 150-degree heat. Fix the attic first.”
Stopping unconditioned air cascades is one of the highest-value improvements a homeowner can make — and often the difference between a home that is “sort of comfortable” and one that is perfectly balanced year-round.
