Why your AC works harder—not smarter—when the return path is blocked.

Most homeowners obsess over:

BTUs
Sizing
Location
Sleeve alignment
Exterior slope
Weather Lock sealing

…but overlook the one factor Mike considers absolutely mission-critical for real-world performance:

👉 The return-air pathway.

Your Amana PBE123J35AA (or any through-the-wall AC/heat unit) needs a clean, unrestricted pathway for air to flow back into the unit.

Amana 11,800 BTU 230/208V Through-the-Wall Air Conditioner with Electric Heat and Remote - PBE123J35AA

If you block the return—even partially—the entire system enters a state Mike calls:

“Performance choke: where the unit is running, but the room isn’t breathing.”

This choke is responsible for:

Poor cooling
Weak heating
Short cycling
Noisy operation
High energy consumption
Uneven temperatures
Hot spots / cold spots
Premature coil freeze-ups
Reduced equipment lifespan

Mike has spent decades fixing installations where nothing was wrong with the AC—
the room was the problem.

This guide teaches the Return-Air Guardrail, Mike’s rulebook for protecting the airflow that makes the system actually work.

📚 SECTION 1 — Why Return Air Matters More Than Homeowners Realize

Icon: 🔄

Through-the-wall units are self-contained machines:

They inhale air from the room.
They condition it.
They exhale the treated air back into the room.

If the inhale path is blocked, the entire system collapses.

Blocking return air causes:

❌ Temperature imbalances
❌ Reduced airflow
❌ Coil icing
❌ Higher humidity
❌ Compressor strain
❌ Incorrect thermostat readings
❌ A noisy unit that “sounds like it's working” but isn’t

Mike compares blocked return air to breathing through a pinched straw:

“You can survive, but you can’t perform.”

🧱 SECTION 2 — The Three Killers of Return Air

Icon: ☠️

Mike identifies 3 top threats:

1️⃣ Furniture Too Close to the Unit

Choking the airflow by even 4–6 inches reduces intake by up to 40%.

Worst offenders:

Beds
Sofas
Dressers
Recliners
Entertainment centers
Side tables

These create dead-air pockets, destroying circulation.

2️⃣ Curtains & Drapes

These act like fabric baffles, redirecting airflow or trapping it behind cloth.

Problems caused:

Air cycles only behind the curtain
Room never cools evenly
Unit short-cycles
Hot air rises and stays trapped
Curtains suck into the intake grille and cause noise

3️⃣ Corner Installations

Corners create negative-pressure traps.

Airflow dead-ends and spirals in on itself.

This leads to:

Hot corners
Uneven heating
Return stagnation
Incorrect sensor readings
Greater noise because air is bouncing against walls

Mike calls corner installs “comfort dead zones.”

🧭 SECTION 3 — The Return-Air Guardrail Explained

Icon: 🚧

The Guardrail is a set of clearance rules, geometry checks, and placement guidelines to maintain perfect airflow.

It ensures:

✔ Return air flows straight and smooth

✔ Warm air rises and cycles naturally

✔ Cold air spreads evenly

✔ Thermostat readings match actual room temps

✔ The Amana PBE123J35AA works at peak performance

The Guardrail has five layers:

Return-Air Clearance Zones
Thermal Circulation Envelope
Furniture & Soft Obstruction Rules
Corner Interaction Rules
Curtain / Fabric Safety Offsets

We break down each.

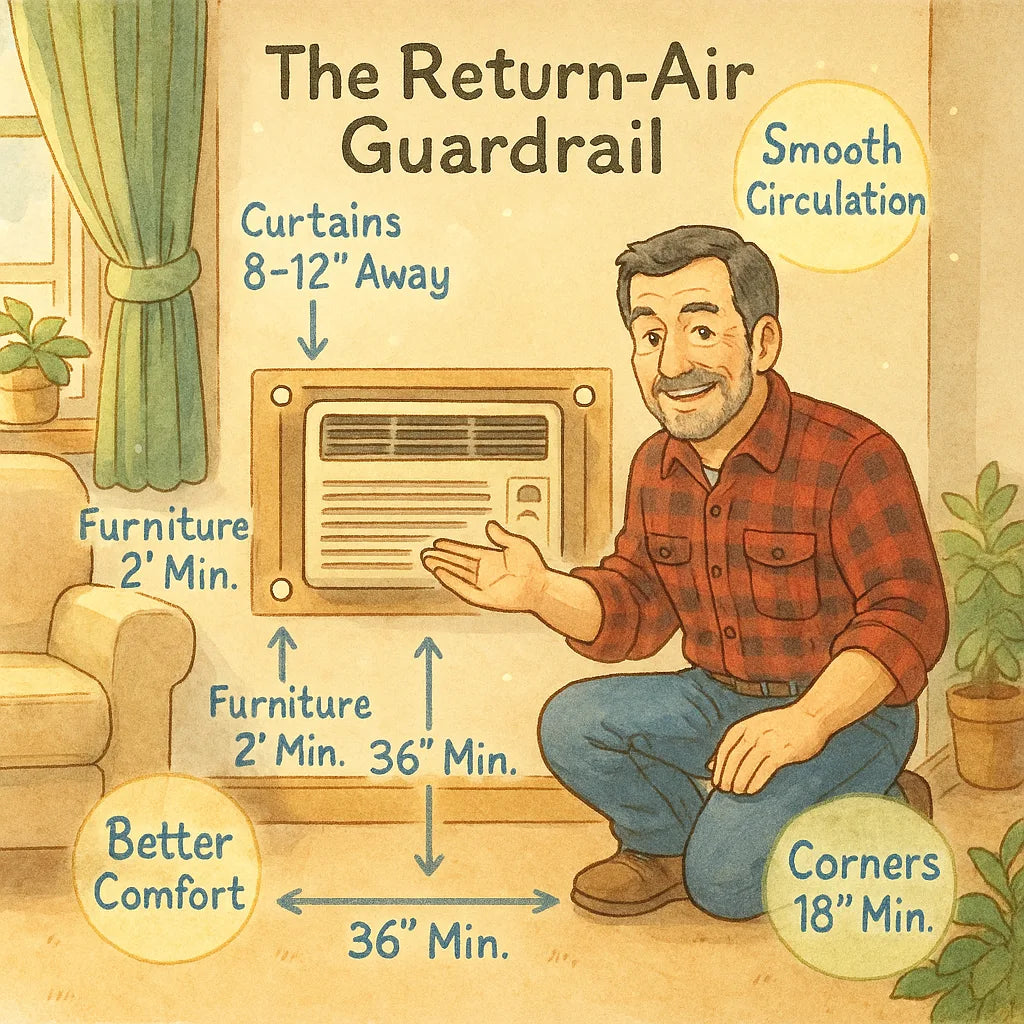

📏 SECTION 4 — Layer 1: Return-Air Clearance Zones

Icon: 📐

Mike uses strict minimum distances.

These are non-negotiable.

Front Clearance (Critical Zone)

📌 Minimum: 36 inches in front of the unit
📌 Ideal: 4–6 feet of open air

This ensures the return intake draws air from the actual room—not just a localized pocket.

Side Clearance

📌 Minimum: 12 inches each side
📌 Ideal: 18–24 inches

Prevents airflow “curling” along the wall.

Vertical Clearance

📌 Minimum: 8 inches above
📌 Minimum: 6 inches below

Because warm air rises and needs uninterrupted movement.

🛋️ SECTION 5 — Layer 2: Furniture Guardrail Rules

Icon: 🪑

Furniture disrupts airflow more than homeowners realize.

Mike organizes furniture threats into categories:

Category A — Hard Barriers (Worst)

Examples:

Dressers
Entertainment centers
Tool cabinets
Bookcases

Hard barriers reflect airflow backward, forcing the unit to re-inhale its own cold air.

Rule: No Category A furniture within 4 feet of the return.

Category B — Semi-Soft Barriers

Examples:

Sofas
Chairs
Ottomans
Benches

These allow some airflow but still block low-to-mid return paths.

Rule: No closer than 3 feet.

Category C — Low-Profile Items

Examples:

Coffee tables
End tables
Footstools

Less harmful but still risk stagnation.

Rule: No closer than 2 feet.

🪟 SECTION 6 — Layer 3: Curtain & Fabric Guardrail

Icon: 🧵

Mike has seen curtains collapse into the return grille because of suction.

This causes:

Buzzing noises
Reduced airflow
Overheating of the fan motor
Incorrect temperature sensing

Mike enforces three rules:

Rule 1 — Never hang curtains over the unit.

Fabric + airflow = immediate stagnation.

Rule 2 — Curtains must be at least 8–12 inches away.

Measured horizontally AND vertically.

Rule 3 — Sheer curtains need the same spacing as thick curtains.

Because return pressure doesn’t care about fabric weight.

🧊 SECTION 7 — Layer 4: The Corner Penalty

Icon: 🧱

Corners are airflow traps.

Cold air blows out and immediately rebounds.
Warm air tries to rise but spirals downward.
Return air stagnates.

This causes:

Temperature oscillation
Extended runtimes
Loud operation
Sensor inaccuracy
Drafts

Mike’s Corner Rules:

✔ Do NOT place a unit within 18 inches of a corner

Unless unavoidable in the room layout.

✔ Increase front clearance by +50%

A 36-inch minimum becomes 54 inches.

✔ Add a “Thermal Escape Path”

A wedge of open space that allows air to exit the corner pocket.

🔁 SECTION 8 — Layer 5: Thermal Circulation Envelope

Icon: 🌡️

This is Mike’s secret weapon:
mapping where warm and cool air want to move in the room.

He checks:

Window heat loads
Doorway locations
Sun exposure
Ceiling height
Room shape
Adjacent room openings
Previous hot/cold complaints

Mike draws an “envelope” that shows:

👉 Where warm air collects
👉 Where cold air drops
👉 Where return air must pass through
👉 Where obstructions ruin performance

This determines the Return-Air Guardrail boundaries.

🧬 SECTION 9 — Return-Air Failure Modes (Real-World Examples Mike Fixes)

Icon: ⚠️

Mike has seen identical Amana units perform completely differently because of return-air blockages.

Failure Mode 1 — The Sofa Block

Homeowner slides a sofa within 12–18 inches of the unit.

Results:

Unit cools behind the sofa
Room temp never drops
Thermostat misreads
Compressor runs too long
Utility bills spike

Failure Mode 2 — Curtain Collapse

Curtains get sucked inward.

Results:

Buzzing and flapping
Coil frost
Short cycling
Room humidity rises

Failure Mode 3 — Corner Trap

Unit installed in a corner pocket.

Results:

One side overheats
One side freezes
Air never crosses the room
“Cold but stuffy” feeling

Failure Mode 4 — Dresser Return Shadow

Tall furniture blocks upper return air.

Results:

Sensor reads incorrectly
Heating mode becomes ineffective
Warm ceiling + cold floor stratification

Failure Mode 5 — Carpet Draft Sink

Thick carpet absorbs and slows return airflow.

Results:

Sluggish circulation
No mixing
Room temperature uneven

🛠️ SECTION 10 — How to Build the Return-Air Guardrail in Any Room

Icon: 🧭

Mike uses a simple 5-step workflow.

Step 1 — Stand 6 Feet Back and Observe Room Geometry

Look for:

Flow paths
Bottlenecks
Heat sources
Furniture clusters

Step 2 — Mark the Minimum Clearance Zones

Using painter’s tape:

36” front
12–24” sides
8” above

Step 3 — Move or Remove Obstructions

Furniture gets repositioned first.

Mike never redesigns airflow around furniture—
he redesigns furniture around airflow.

Step 4 — Install Anti-Suction Curtain Standoffs

If windows are nearby, Mike uses:

Rod extenders
Curtain magnets
Tiebacks
Fabric arcs

Keeping fabric from collapsing inward.

Step 5 — Perform the “Paper Test”

Hold a sheet of printer paper in front of the unit.

If the paper pulls straight toward the return = good.

If it flutters, curves sideways, or dead-zones = bad.

Mike adjusts until airflow is smooth.

📚 SECTION 11 — How the Guardrail Integrates With Mike’s Larger System Design Rules

Icon: 🔗

Return air is one piece of a larger airflow ecosystem.

The Guardrail works together with:

✔ Centerline Thermal Pathing

So treated air and return air follow natural geometric patterns.

✔ Two-Plane Sleeve Alignment

Proper alignment ensures return flow isn’t distorted by sleeve angle.

✔ Compression Zone Mapping

Removes turbulence caused by sleeve warping.

✔ Quiet-Home Bolt Pattern

Reduces vibration noise caused by lower airflow velocities.

✔ Weather Lock Strategy

Ensures the return pathway is thermally neutral.

Together, these create a stable, predictable airflow environment.
