If you’ve ever wondered why one home has low energy bills and stays perfectly comfortable, while another—same size, same system—costs a fortune to heat or cool… the answer is simple:
The first homeowner designed their home using energy zones.
The second homeowner didn’t.
Most people think lowering operating costs means:
-
Buying a high-efficiency unit
-
Upgrading to inverter tech
-
Adding insulation
-
Installing a smart thermostat
All of that helps—but none of it performs to its potential unless your home is designed according to Energy Zones and Smart Placement.
In system design, where you put the equipment matters just as much as what equipment you buy.
This guide shows you exactly how I design a home to run cheaper, cleaner, and more comfortable by understanding how energy zones work—and how to place PTACs, mini splits, air handlers, and thermostats for maximum efficiency and minimum cost.
Amana Distinctions Model 12,000 BTU PTAC Unit with 3.5 kW Electric Heat
Let’s jump in.

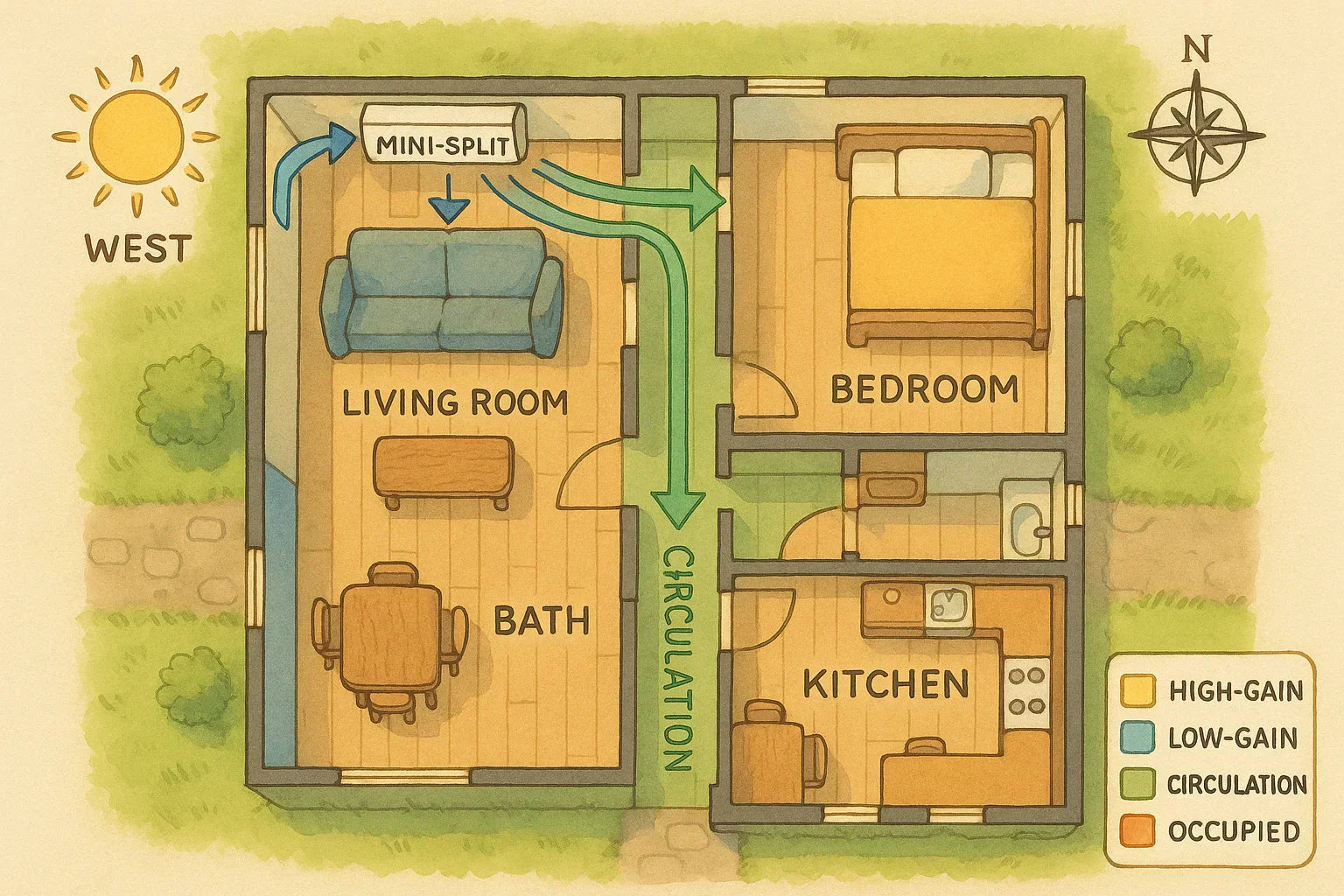

🧭 1. What Are Energy Zones? (The Foundation of Low-Cost Operation)
Every home is divided into zones of energy behavior, whether the homeowner realizes it or not. These zones don’t depend on your HVAC equipment—they depend on:
-
Room usage
-
Insulation levels
-
Direction of sunlight
-
Window placement
-
Airflow paths
-
Heat gain patterns
-
Ceiling height
-
Doors & hallways
-
Return air paths
Most people only recognize “hot rooms” and “cold rooms.”
But in reality, a home contains five types of energy zones:
🔥 1. High-Gain Zones
Rooms facing south/west, sunrooms, kitchens, media rooms.
❄️ 2. Low-Gain Zones
North-facing bedrooms, basements, shaded rooms.
🌀 3. Circulation Zones
Hallways, stairways, open-concept living areas.
🛏️ 4. Occupied Zones
Rooms where people spend the most time—and expect perfect comfort.
🧊 5. Buffer Zones
Closets, laundry rooms, garages, storage areas.
Smart HVAC design = treating each zone differently instead of heating and cooling everything equally.
DOE confirms this strategy: Zoning cuts energy usage significantly by conditioning only the areas that need it.
🏡 2. Step One — Identify Your Home’s Energy Map
Before choosing the wall for a PTAC, the corner for a mini split, or the route for ductless air handlers, Mike maps the house.
You can do it in 10 minutes with:
-
A notebook
-
A compass app
-
A laser thermometer
Map these features:
✔️ Sun-facing walls
South/west walls are expensive to cool.
North walls are expensive to heat.
✔️ Rooms with tall ceilings
Hot air pools, driving up heating costs.
✔️ Rooms with large or old windows
They need more cooling in summer, more warmth in winter.
✔️ Rooms used most often
Master bedroom, living room, office—these deserve prime placement.
✔️ Rooms that leak airflow
Hallways, entryways, staircases.
This is your Energy Zone Map.
🌞 3. Step Two — Place Units Based on Sun Exposure (Not Aesthetics)
Most installers place PTACs and mini splits based on convenience:
-
Under the window
-
On the first open wall
-
Wherever power is easiest
But for low operating costs, you want strategic placement.
☀️ A. High-Gain Zones (West/South walls)
These walls get brutal afternoon sun.
Mike’s Rule:
Never place a PTAC or mini split on a high-gain wall unless you want higher bills.
Units work hardest when exposed to solar heat.
Instead:
-
Place the unit on the opposite wall
-
Or perpendicular to the sun-facing wall
-
Or direct airflow toward that wall, not from it
This keeps the equipment shaded and efficient.
🌬️ 4. Step Three — Use Natural Airflow Corridors to Reduce Runtime
Homes have natural airflow lanes—just like roads—created by:
-
Open floorplans
-
Doorways
-
Hallway funnels
-
Staircase drafts
-
Window alignment
-
Ceiling slope
When you place a PTAC or mini split in one of these lanes, you increase:
-
Air mixing
-
Circulation
-
Comfort coverage
…and drastically reduce runtime and energy usage.
Mike’s Corridor Trick:
Put the unit where the home “wants” to move air—not where the builder left a blank wall.
This alone lowers operating costs by 10–20%.
🧊 5. Step Four — Use Low-Gain Zones to Improve Efficiency (Hidden Optimization)
North-facing or shaded rooms lose heat slowly and cool down evenly.
This is where smart installers place:
-
Primary mini splits
-
Smart thermostats
-
PTAC units
-
Ductless air handlers
Why?
Because these rooms allow units to perform with less strain—and therefore lower cost.
A PTAC placed in a low-gain room maintains stable temperature without cycling hard.
A mini split placed here runs in ultra-low inverter mode more often, saving huge energy.
DOE inverter guidance:
https://www.energy.gov/energysaver/ductless-mini-split-systems
📏 6. Step Five — Match BTUs to Zone Behavior, Not Room Size
This is where most homeowners waste money.
They size a room by square footage only.
But real energy savings come from sizing for:
-
Windows
-
Sun exposure
-
Ceiling height
-
Room shape
-
Occupancy
-
Room purpose
Using the BTU rules from Mike’s Thermal Footprint Planning:
-
Add 10–20% BTU for west-facing rooms
-
Add 10% BTU for every foot above 8 ft ceilings
-
Add 20% BTU for heavy heat-load rooms
-
Subtract 10–15% BTU for insulated low-gain rooms
Correct sizing saves the most energy long-term.
🪟 7. Step Six — Use “Strategic Opposition” to Maximize Coverage
This is one of my favorite tricks.
The idea:
Place HVAC units on the wall opposite the room’s heat source.
Examples:
-
Sun-facing windows → place unit on shaded wall
-
Hot kitchens → place PTAC facing entry
-
Large sliding door → place mini split opposite
-
High ceilings → place unit lower and aim louvers up
This creates balanced cooling/heating and lowers runtime.
🔧 8. Step Seven — Prevent Energy Loss with Structural Positioning
Energy waste happens when:
-
Airflow hits obstacles
-
Units face furniture
-
Air curls into alcoves
-
Rooms lack return paths
-
Doors block circulation
-
Air escapes into hallways
Mike’s structural rules:
✔️ Keep 3 ft in front of unit clear
✔️ Never aim airflow at the ceiling or floor
✔️ Don’t install in alcoves unless airflow can escape
✔️ Always plan for a return pathway
✔️ Avoid walls connected to outdoor hot zones
✔️ Don’t install on hollow or uninsulated walls
Bad structure = high bills.
Good structure = low operating costs.
⚡ 9. Step Eight — Electricity Placement for Energy Efficiency
Even electrical decisions affect operating cost:
✔️ Use dedicated circuits
A PTAC on a shared circuit trips breakers → inefficiency.
✔️ Keep wire runs short
Voltage drop increases energy usage.
Voltage drop calculator:
https://www.calculator.net/voltage-drop-calculator.html
✔️ Hardwire high-load units
Especially heat-strip PTACs (3kW+).
✔️ Avoid placing units near electronics
TVs, gaming PCs, and entertainment systems distort airflow and heat load.
Smart electrical design is energy efficiency design.
🧯 10. Step Nine — Use “Energy Companion Fans” to Reduce HVAC Load
Here’s Mike’s extremely effective but overlooked method:
Add one small oscillating fan
→ Opposite the primary HVAC unit
→ Aimed toward the airflow loop
→ Running at LOW speed
Result?
✔️ Faster temperature balancing
✔️ Less runtime
✔️ Lower bills
✔️ No dead zones
✔️ Better thermostat readings
It uses about 40 watts but saves thousands in runtime hours.
📊 11. Step Ten — Smart Placement for Thermostats & PTAC Controls
Thermostats are the “brain” of your energy system.
Bad placement = bad readings = high energy use.
Don’t place thermostats:
-
In direct airflow
-
Behind doors
-
Near windows
-
On exterior walls
-
Near electronics
-
Near lamps
-
In hallways
Ideal placement:
-
4–5 ft above the floor
-
On an interior wall
-
Near the room’s center
-
Away from airflow blast paths
Energy Star thermostat guidelines:
https://www.energystar.gov/products/smart_thermostats
Smart thermostat placement is worth 10–15% annual energy savings.
📋 12. Mike’s Homewide Energy Zone Checklist
Zoning
-
☐ High-gain zones identified
-
☐ Low-gain zones marked
-
☐ Occupied zones prioritized
Placement
-
☐ Units placed opposite heat sources
-
☐ Clear airflow pathways
-
☐ No major furniture blockages
-
☐ No alcove traps
Geometry
-
☐ Throw distance mapped
-
☐ Air loop established
-
☐ Ceiling height corrected
Energy Behavior
-
☐ Sun exposure factored
-
☐ Insulation analyzed
-
☐ Internal loads included
Electrical
-
☐ Dedicated circuits
-
☐ Correct wire gauge
-
☐ No shared loads
-
☐ Voltage drop checked
Controls
-
☐ Thermostat placed correctly
-
☐ No airflow interference
🎯 Conclusion: Energy Savings Don’t Come From Equipment—They Come From Design
Your home doesn’t need the most expensive PTAC or mini split to run efficiently.
It needs:
✔️ Zone Intelligence
✔️ Smart Placement
✔️ Correct Geometry
✔️ Flow-Friendly Layout
✔️ Proper Electrical Routing
✔️ Balanced Sizing
✔️ Good Thermostat Positioning
That’s the secret to lower operating costs without sacrificing comfort.
Design the home around energy behavior, not square footage, and you’ll save money every single month.
