Designed for hotel and motel operations, residential additions, sunrooms, and small living spaces, this Amana J-Series PTAC offers 9,200 - 9,000 BTU/h of cooling power and a 3.5 kw(12,000 - 9,900 BTU/h) electric heater with a 20 amp power cord. With a 12.1 - 12.2 EER rating, this unit uses 230v / 208-volt electricity and is great for a room of about 300-360 square feet in residential and commercial applications.

This unit slides into a standard, pre-existing 16” x 42” wall sleeve. New installations require a WS900QW wall sleeve and SGK01B rear grille and either a wireless or wired thermostat, each sold sseparately.

Features

• 3-Speed Fan - Provide precise comfort control to your guests.
• 4-Minute Compressor Lock-In – After the compressor cycles off, it will not restart for four minutes to prevent harm to the compressor.
• Automatic Freeze Protection – The fan motor and electric heat strip are turned on if the PTAC unit senses the temperature below 40 degrees.
• Dual Fan Motors - Allows precise independent fan speed operation.
• Easy Pull-Out Filters: Our filters are washable and easy to maintain
• Front Desk Control: Each unit comes equipped with the Eden control and energy management software. Using the Eden software and the PTAC's integrated RF antenna, all units can be wirelessly connected to a central hub for enhanced energy savings and diagnostics
• Integrated Bluetooth® Connectivity - built-in connectivity with the Amana Brand Moblie app available in the IOS and Google Play Store, which allows for unmatched configuration flexibility.
• Integrated RF Communications: Each Amana brand PTAC has an integrated RF antenna to allow out-of-the-box connectivity to the Eden wireless thermostat (DS01G, sold separately) and Eden Concierge energy management system.

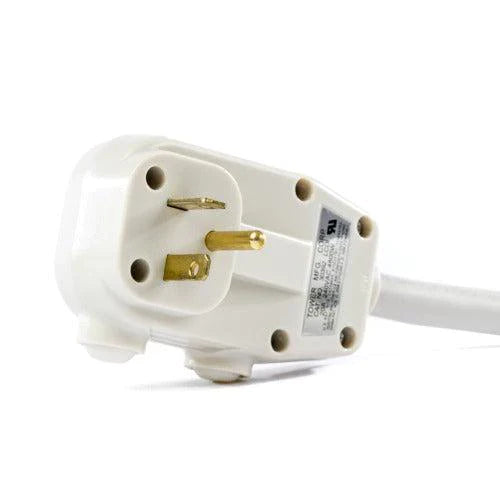

• Power Cord Included - No need to match power cord type to unit size.
• Quiet Operation - With an STC Rating of 29, The J Series is Amana's quietest PTAC.
• R32 Refrigerant: With a GWP (Global Warming Potential) of 677, this unit is California-compliant.
• Zero Floor Clearance: The unit can be installed flush to a finished floor if desired (please note that some accessories do not have zero clearance).

Warranty

• Year One: Parts and Labor
• Years Two through Five: Functional Parts Only and Sealed Refrigeration Parts/Labor
