Description

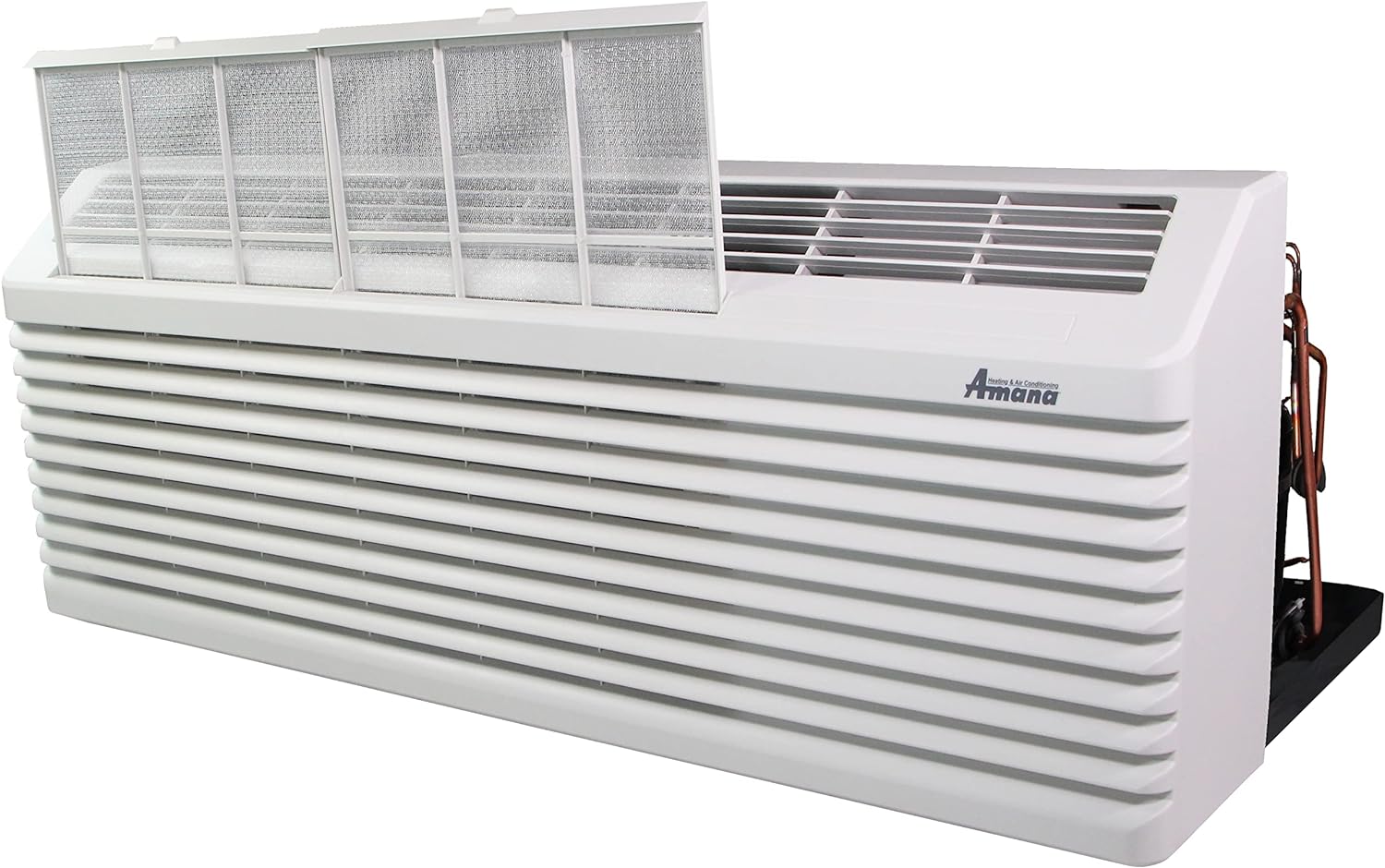

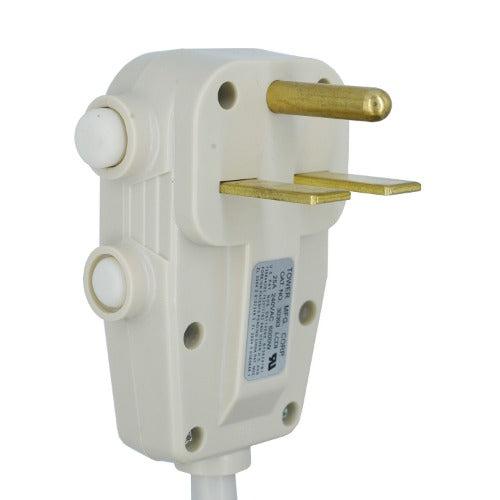

Designed for hotel and motel operations, residential additions, sunrooms, and small living spaces, this Amana J-Series Heat Pump PTAC offers 14,600 - 14,400 BTU/h of cooling power and a 5.0 kw(17,100 - 14,000 BTU/h) electric heater with a 30 amp power cord. With a 10.4 - 10.6 EER rating, this unit uses 230v / 208-volt electricity and is great for a room of about 429-600square feet in residential and commercial applications.
This unit slides into a standard, pre-existing 16” x 42” wall sleeve. New installations require a WS900QW wall sleeve and SGK01B rear grille and either a wireless or wired thermostat, each sold sseparately.
Compatible Thermostats include PHWT-A150H (Wired), PHWT-A200 (Wired programable), DSA02NO (wireless), DS01G ( Wireless Eden Compatible), or DS02G-H (Wireless Hilton Compatible)
Features
- 3-Speed Fan - Provide precise comfort control to your guests.
- 4-Minute Compressor Lock-In – After the compressor cycles off, it will not restart for four minutes to prevent harm to the compressor.
- Automatic Freeze Protection – The fan motor and electric heat strip are turned on if the PTAC unit senses the temperature below 40 degrees.
- Dual Fan Motors - Allows precise independent fan speed operation.
- Easy Pull-Out Filters: Our filters are washable and easy to maintain
- Front Desk Control: Each unit comes equipped with the Eden control and energy management software. Using the Eden software and the PTAC's integrated RF antenna, all units can be wirelessly connected to a central hub for enhanced energy savings and diagnostics
- Integrated Bluetooth® Connectivity - built-in connectivity with the Amana Brand Moblie app available in the IOS and Google Play Store, which allows for unmatched configuration flexibility.
- Integrated RF Communications: Each Amana brand PTAC has an integrated RF antenna to allow out-of-the-box connectivity to the Eden wireless thermostat (DS01G, sold separately) and Eden Concierge energy management system.
- Power Cord Included - No need to match power cord type to unit size.
- Quiet Operation - With an STC Rating of 29, The J Series is Amana's quietest PTAC.
- R32 Refrigerant: With a GWP (Global Warming Potential) of 677, this unit is California-compliant.
- Zero Floor Clearance: The unit can be installed flush to a finished floor if desired (please note that some accessories do not have zero clearance).
Warranty
- Year One: Parts and Labor
- Years Two through Five: Functional Parts Only and Sealed Refrigeration Parts/Labor
Specifications
