Most installers think the job is done the moment the power is turned on and the furnace starts blowing warm air. But that first moment — the first fire — is actually the most critical performance window in the entire life of an electric furnace.
Goodman 68,240 BTU 20 kW Electric Furnace with 2,000 CFM Airflow - MBVK20DP1X00, HKTAD201
The factory calibrates equipment for laboratory conditions.
Homes are not laboratories.
Real homes have:
-
imperfect ductwork
-
different static pressures
-
fluctuating voltage
-
unique airflow paths
-
aging filters
-
unpredictable return geometry
-
noisy architecture
-
thermal loads that vary room to room

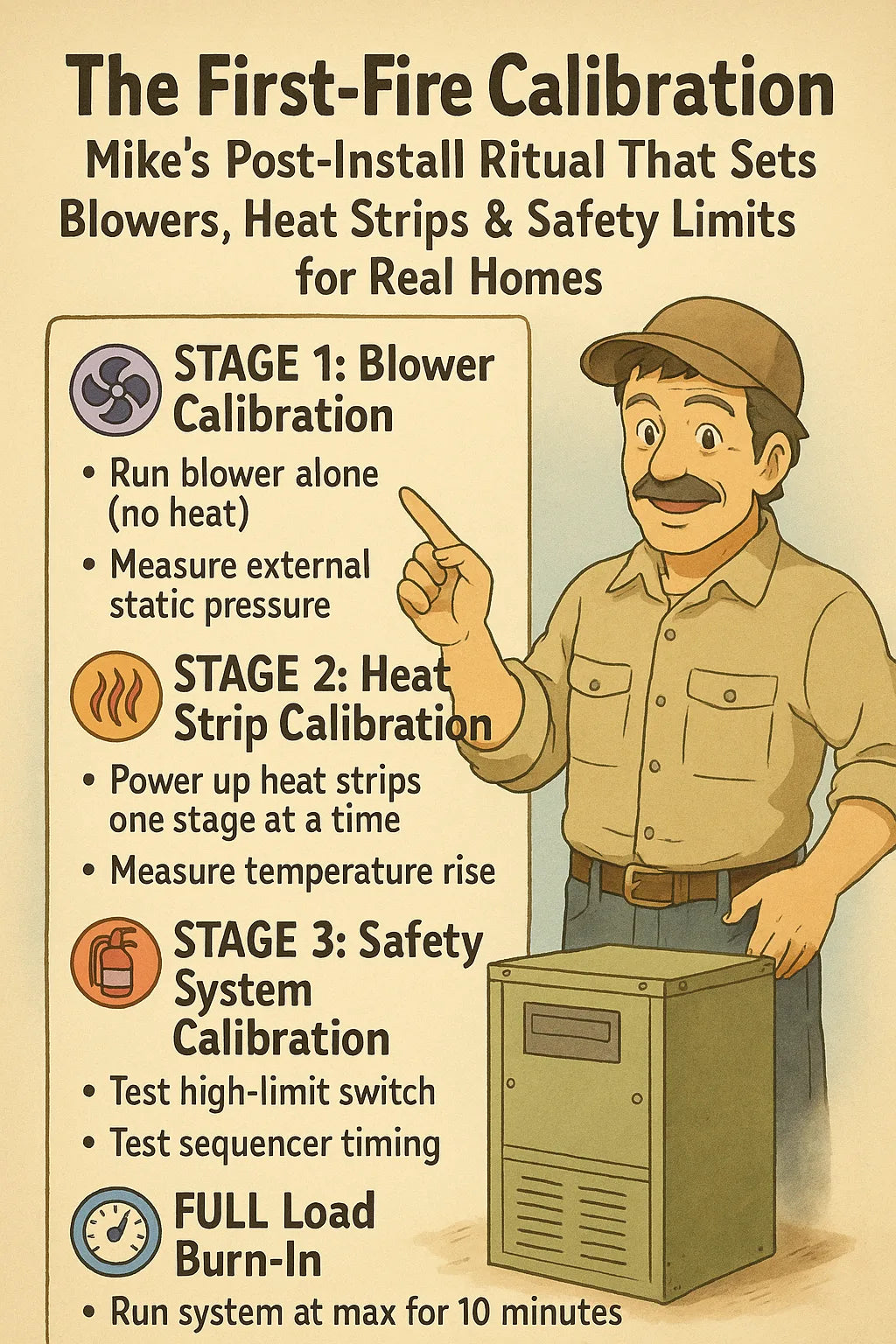

This is why The First-Fire Calibration exists.
It’s my detailed, repeatable, scientifically grounded ritual for tuning a brand-new electric furnace so it functions correctly in the actual house, not the brochure.
If you skip this step, the system may run.
But it won’t run right.
If you follow this plan, it will:
-
heat evenly
-
run quietly
-
avoid nuisance limits
-
protect the elements
-
extend blower lifespan
-
reduce watt draw
-
increase homeowner comfort
Let’s begin.
🧰 1. Pre-Calibration Preparation: What You MUST Set Up Before First Fire
The biggest mistake installers make is rushing into startup without preparing the environment.
Here’s my prep checklist — non-negotiable.
✔️ 1.1 Clear Airflow Path
Before calibration:
-
filter installed
-
return path unobstructed
-
supply vents open
-
no furniture blocking main registers
-
basement/crawl access closed
Even one closed vent falsifies all readings.
✔️ 1.2 Electrical Verification
-
proper breaker sizing
-
correct wire gauge
-
torque-tested lugs
-
correct polarity
-
stable 228–240V feed
Reference — NEC Electrical Safety Standards:
https://www.nfpa.org
✔️ 1.3 Heat Strip Inspection
Before they power up for the first time:
-
check for coil contact or bent coils
-
verify terminal screws are tight
-
test sequencer movement by hand
-
ensure fusible links are intact
✔️ 1.4 Static Pressure Baseline
Take a static reading with blower off and on low speed.
This establishes baseline duct integrity.
🚀 2. Stage One: Blower First-Fire Calibration — Setting Real-World Airflow
The blower dictates everything else: heat rise, amp draw, comfort, and safety.
Here’s how I calibrate it.
🌬️ 2.1 Run Blower Alone (No Heat)
Set thermostat to fan only.
This eliminates heat influence from readings.
Target Readings:
-
ECM blower: smooth ramp to speed, no pulsing
-
PSC blower: stable amperage within nameplate limits
-
Noise floor: no cabinet resonance, no buzzing
-
Return suction: noticeable but not “door-slamming” strong
If the blower already strains here, the duct system is too restrictive.
📊 2.2 Measure External Static Pressure
Use an accurate manometer.
Mike’s Acceptable Range:
-
0.30–0.50 in.wc total external static
-
Up to 0.60 acceptable for some ECMs
-
Anything above 0.70 = airflow crisis
Reference — ACCA Manual D Static Pressure Guidance
ECM motors compensate for duct resistance by drawing more watts — this destroys motors over time.
⚙️ 2.3 Set Blower Speed According to REAL CFM Needs
Factory defaults mean nothing.
Set blower based on:
-
heat strip wattage
-
duct size
-
home size
-
return surface area
The Rule:
Electric heat requires 350–400 CFM per 5 kW.
Example:
20 kW → 20/5 × 350 = 1,400 CFM minimum
If the blower draws too many amps on high static, drop speed — but never below minimum required heat airflow.
🔥 3. Stage Two: Heat Strip First-Fire Calibration — Bringing the Heat Online Safely
After blower calibration comes the main event: heat.
Heat strips must be staged and tested carefully to avoid premature burnout.
🔌 3.1 Power Up the Heat Strips One Stage at a Time
Never energize all strips at once.
I use this sequence:
-
Energize Stage 1 → measure amps
-
Wait for sequencer delay
-
Energize Stage 2 → measure amps
-
Confirm blower ramps accordingly
Amp targets:
-
match unit nameplate within ±5%
-
voltage under load stays above 228V
-
no breaker heating
DOE electrical load guidance:
https://www.energy.gov/energysaver/energy-saver
🌡️ 3.2 Measure Temperature Rise
Place two thermometers:
-
one in supply plenum
-
one in return opening
Record:
Temp Rise = Supply Temp – Return Temp
Target:
-
30°F to 60°F depending on model
-
Never exceed manufacturer’s max rise
Excessive rise = airflow problem → blower speed up
Low rise = oversized ducts or too high blower speed → blower speed down
🛑 3.3 Test Limit Switch Behavior
Cycle heat until the high-limit switch reacts.
Expected:
-
limit must NOT trip during any normal cycle
-
limit must trip if you briefly block return airflow (controlled test)
This verifies:
-
correct blower speed
-
heat strip staging
-
limit switch integrity
If the limit trips under normal operation → STOP. Something is wrong.
🧯 4. Stage Three: Safety System Calibration — The Lifesaving Layer
Electric furnaces contain multiple safety systems that must be confirmed under real conditions.
🧯 4.1 High-Limit Switch Test
Simulate light airflow restriction (e.g., restrict intake 25% for a moment).
The limit should:
-
trip predictably
-
reset automatically after cooling
If not → replace switch.
🔥 4.2 Sequencer Timing Test
Using an ammeter, watch load steps appear:
Proper sequence:
-
Stage 1 → delay → Stage 2
-
Total delay 30–90 seconds
Bad sequence = immediate overload.
🔌 4.3 Voltage Drop Under Heat Load
Measure L1–L2 under full heat.
Acceptable: 228–240V
Below 225V = dangerous voltage drop.
🧲 4.4 Ground Integrity Test
A poor ground can cause:
-
element chatter
-
nuisance trips
-
transformer humming
-
dangerous chassis energization
Use continuity test between cabinet → ground lug.
🎧 5. Stage Four: Acoustic Calibration — Making the Furnace Quiet
A furnace can be “technically correct” and still sound terrible.
That’s why I tune noise on first fire.
🔇 5.1 Cabinet Resonance Scan
Lightly tap cabinet panels while blower is running.
Apply:
-
neoprene washers
-
mass-loaded vinyl
-
brace strips
where resonance is worst.
🔉 5.2 Duct Boom and Whistle Detection
Listen at:
-
first branch takeoff
-
filter door
-
plenum edges
Correct causes:
-
high static
-
leaky filter door
-
sharp plenum transitions
Reference — SMACNA Duct Construction & Sound Control
https://www.smacna.org
🎤 5.3 Blower Ramp Noise Calibration (ECM Only)
Adjust ECM profile:
-
slower start = quieter
-
lower max RPM = reduced squeal
-
longer ramp = less duct boom
This is the “luxury-car tuning” of HVAC.
🧪 6. Stage Five: The 10-Minute Full Load Burn-In
This is where the entire system proves itself.
Run:
-
blower: high heat speed
-
heat: all strips engaged
-
thermostat: calling for max stage
Record:
-
supply temp
-
return temp
-
static pressure
-
blower amps
-
heat strip amps
-
voltage
-
limit behavior
Furnace must:
-
NOT exceed max temperature rise
-
NOT trip high limit
-
NOT drop below 228V
-
remain balanced and quiet
If it passes → it’s ready for real-world operation.
If it fails → we fix it NOW, not after a homeowner lives with the problem.
🧰 7. Mike’s First-Fire Calibration Checklist
AIRFLOW
-
Return path open
-
Static pressure ≤ 0.50 in.wc
-
Blower speed set for heat airflow
HEAT
-
Heat strips staged
-
Amp draw verified
-
Temperature rise in range
SAFETY
-
High-limit verified
-
Sequencer delay correct
-
Ground continuity confirmed
-
Voltage stable under load
PERFORMANCE
-
Quiet operation
-
No vibration or boom
-
No burning smell (after initial element cure)
DOCUMENTED
-
blower amps
-
heat strip amps
-
temperature rise
-
static pressure
-
voltage
This documentation protects both you and the homeowner.
🎉 Conclusion: First-Fire Calibration Turns a Furnace Into a System
Installing a furnace is straightforward.
Calibrating it is an art form.
When you follow Mike’s First-Fire Ritual:
✔ the blower is tuned for THIS home
✔ heat strips run safely under THIS duct system
✔ safety limits respond properly
✔ airflow is stable
✔ temperature rise is perfect
✔ noise is minimized
✔ system lasts longer and runs cheaper
This is how you transform raw equipment into a precision-engineered home comfort system.
