Internal vs. External Drain Setup Which One Is Right for You

Hey folks, Tony here. If you’ve been following along with my guides on PTAC drain kits, you already know how important they are for keeping condensate under control. But once you’ve got the kit in hand—like the GE Zoneline RAD10—you face an important choice:

👉 Should you go with an internal drain setup or an external drain setup?

It’s not just about preference. The decision can affect:

  • How reliable your drainage is

  • Whether your walls and foundation stay dry

  • How much maintenance you’ll need to do

  • Even your heating and cooling performance in the long run

I’ve installed both types in different projects—internal for my own home, external for a couple of hotel rooms and rental units. Each option has its place. In this guide, I’ll break down what they are, their pros and cons, and how to decide which is right for you.


🛠️ Section 1: What Is an Internal Drain Setup?

🔹 Definition

An internal drain setup means your PTAC unit routes condensate into your building’s plumbing or floor drain system.

For example, the RAD10 fitting attaches to the PTAC sleeve, you connect tubing, and that tubing ties into a nearby drainpipe or sump line.

🔹 Advantages of Internal Drains

  1. Cleaner appearance

    • No water dripping down the outside wall.

    • Perfect for hotels, apartments, or condos where appearance matters.

  2. Prevents freezing issues

    • In cold climates, water won’t freeze on the outside of the building because it drains indoors.

  3. Long-term reliability

    • When properly installed, internal drains are less likely to get knocked loose or clogged with outside debris.

  4. Code compliance

    • In multi-story commercial buildings, internal drainage is often required by building codes.

👉 According to PTAC Central, proper drain kits are often mandatory for new PTAC installs, especially when tied into plumbing.

🔹 Disadvantages of Internal Drains

  • More complex installation

    • You’ll need access to plumbing or a floor drain.

    • May require drilling or routing through walls.

  • Risk of clogs inside walls

    • If the tubing isn’t maintained, algae or sediment can clog the line.

  • Costlier upfront

    • Extra labor if you need a plumber to tie into the main system.


🌧️ Section 2: What Is an External Drain Setup?

🔹 Definition

An external drain setup means your PTAC directs condensate straight outside the building, usually onto the ground, into a gutter, or away from the foundation.

The RAD10 fitting still attaches to your sleeve, but instead of routing into plumbing, the line goes outdoors.

🔹 Advantages of External Drains

  1. Easier installation

    • Faster and less invasive than plumbing tie-ins.

    • Perfect for DIYers and retrofits.

  2. Lower upfront cost

    • No need to hire a plumber.

    • Just slope the line correctly and discharge away from the wall.

  3. Quick troubleshooting

    • You can visually confirm water is draining outside.

🔹 Disadvantages of External Drains

  • Exterior staining & dripping

    • Water can discolor siding or brick.

    • Guests in hotels may complain about drips on sidewalks or patios.

  • Winter freezing risk

    • In cold climates, water can freeze in the drain line or at the discharge point.

  • Potential foundation problems

    • If water isn’t routed away properly, it can seep into basements or crawlspaces.


🔧 Section 3: Tony’s Real-World Comparison

I’ll give you two quick stories to highlight the differences.

🏠 My Home – Internal Drain

When I installed a GE Zoneline PTAC in my basement office, I used the internal drain setup. Why?

  • I had a floor drain just 6 feet away.

  • Winters here get below freezing, so external drainage wasn’t an option.

  • Appearance mattered—I didn’t want water dripping down the brick.

The result? Smooth drainage, no exterior stains, and no worries about ice in winter.

🏨 Hotel Project – External Drain

I also worked on a small motel where each PTAC unit discharged water externally. The owner wanted fast installs without plumbing work.

  • Easy to set up—each RAD10 kit drained outside.

  • In summer, you could literally see the condensate dripping.

  • The downside? After a few years, there were streaks on the siding.

Both worked—but the choice depended on the setting.


✅ Section 4: Factors to Consider Before Choosing

Here are the big questions I ask before recommending internal vs external:

  1. What’s your climate?

    • Freezing winters → go internal.

    • Hot, humid climate → either works, but internal looks cleaner.

  2. What’s your building type?

    • Multi-story commercial → internal almost always required.

    • Single-family homes or ground floor → external is easier.

  3. Do you have access to plumbing?

    • If yes, internal is worth it.

    • If not, external may be the only option.

  4. What’s your budget?

    • External = cheaper upfront.

    • Internal = more investment, but cleaner long-term.

  5. Maintenance capacity

    • Internal requires occasional flushing of the line.

    • External requires clearing leaves, dirt, or ice near the discharge.

👉 Beckett points out that all condensate lines need regular maintenance—so factor that into your decision.


⚠️ Section 5: Mistakes to Avoid

I’ve seen my fair share of mistakes in both setups. Here’s what you should avoid:

  • External drains discharging near the foundation → invites water seepage.

  • Internal drains without traps → can lead to foul odors from the plumbing.

  • Not checking slope → gravity is your best friend, but only if you let it work.

  • Using undersized tubing → clogs faster, especially with algae.

👉 Quality Home Air Care stresses that slope and proper sizing are the two biggest keys to avoiding clogs.

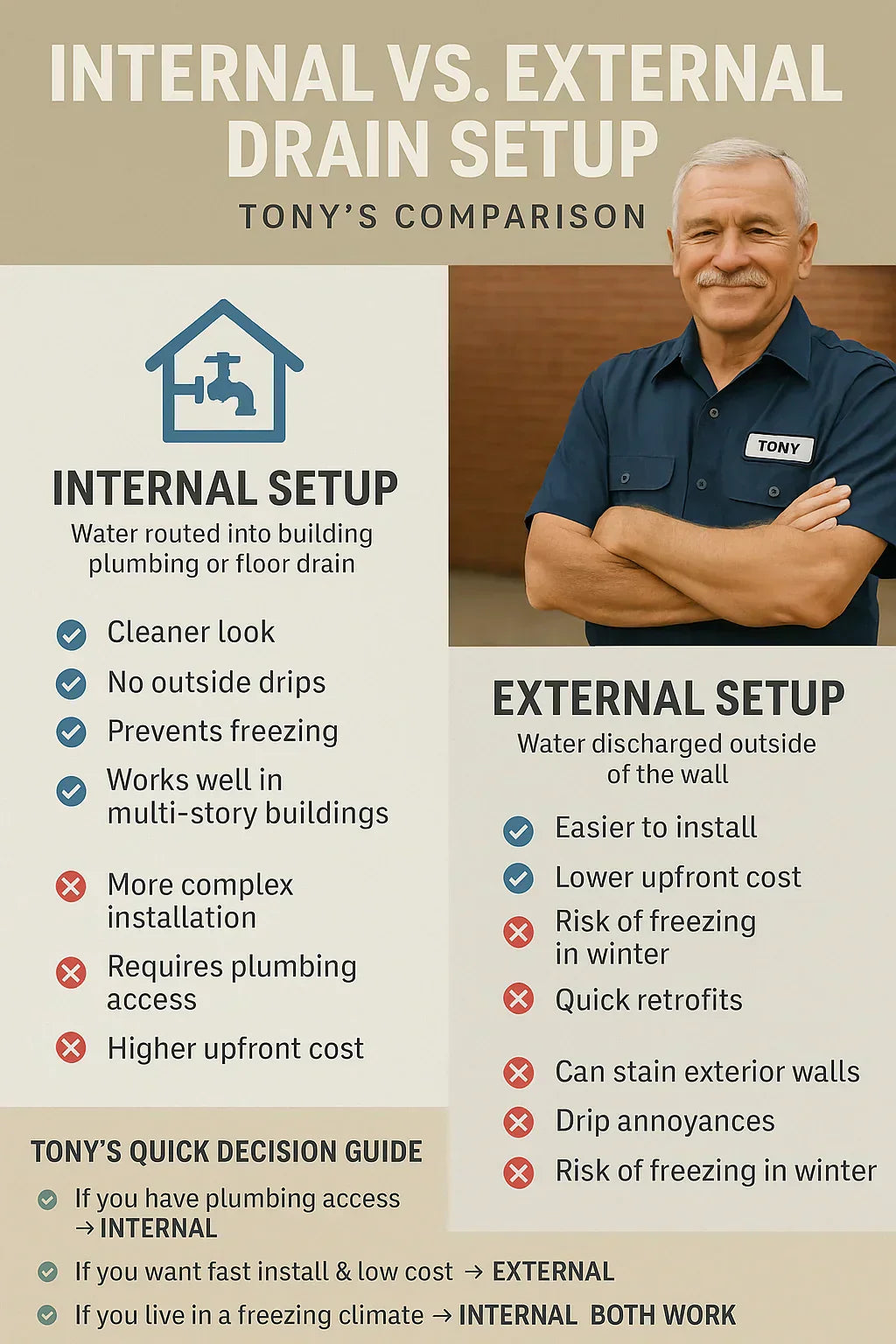

📊 Section 6: Tony’s Quick Decision Guide

Here’s the way I simplify it for customers:

  • If you have plumbing access → Go Internal

  • If you want fast, low-cost setup → Go External

  • If you live where it freezes → Go Internal

  • If you’re in a humid southern climate → Either works, but internal looks cleaner


🔄 Section 7: Maintenance Tips for Both

No matter which setup you choose, don’t ignore maintenance:

  • Monthly: Test drainage with a cup of water in the pan.

  • Every 3–6 months: Flush with a vinegar + water mix (internal) or clear debris near discharge (external).

  • Yearly: Check gaskets on the RAD10 kit for wear.

👉 The Furnace Outlet notes that most PTAC service calls are due to poor drainage—a little maintenance goes a long way.


🏁 Conclusion: Which Setup Is Right for You?

Here’s Tony’s bottom line:

  • Both internal and external drains work great with the GE RAD10 kit.

  • The best choice depends on your climate, building type, plumbing access, and budget.

  • If you can afford the plumbing tie-in, I lean toward internal drainage—it’s cleaner, safer, and better in freezing climates.

  • But if you’re on a budget, in a warm area, or doing a DIY retrofit, external drainage is perfectly fine.

Either way, don’t skip the drain kit. It’s the cheapest insurance you can buy against water damage and mold.


In the next topic we will know more about: Do You Really Need a Drain Kit? Signs Your PTAC Needs One
