Key takeaways
-
Wobbly unit: Add support bracket and shims — prevents falls and injuries.
-
Air leaks/drafts: Seal gaps with foam/weatherstrip — saves energy, blocks dust/bugs.
-
Water inside: Tilt unit outward — drains water outdoors.
-
Weak security: Add screws, brackets, locks, dowel — deters intruders.
-
Noisy vibration: Level and tighten — quieter and longer-lasting.
A sturdy install = safe, quiet, and efficient
A window or through-the-wall AC cools great only when it’s mounted solid and sealed. A loose unit rattles, leaks hot air, drips water indoors, and can be a safety risk. This guide focuses on securing the unit so it stays put through storms, daily use, and seasonal temperature swings. You’ll learn how to support the weight correctly, lock the sash, seal every gap, set the right tilt for drainage, confirm safe power, and run smart final checks.
Problem statement: the most common mistakes (and why they matter)
Homeowners often skip support brackets, rely only on the window sash, or forget the outward tilt. Others leave small gaps around the frame, assume the side panels are “good enough,” or plug the unit into a shared, overloaded outlet. These misses look minor but cause real issues: drafts and higher bills, mold from moisture, rusted parts, buzzing vibration, or even a unit shifting in the opening. Security can suffer too—an unsecured sash can be lifted from outside.
Fixing these problems now is cheaper and safer than fixing damage later. If your space or rules make window installs tricky, consider a wall sleeve option instead; they’re quieter, more secure, and don’t block daylight. See this plain-English breakdown: Through-the-Wall vs. Window AC—Which Is Right for Your Space? (The Furnace Outlet)
Tools, hardware, and safety prep
Have a second person for lifting. Gather: support bracket kit, corrosion-resistant screws, drill/driver, L-brackets, window sash locks, wood dowel or metal bar, level, tape measure, plastic shims, foam weatherstripping or foam tape, rigid foam panel (for big gaps), and exterior-grade caulk. Wear gloves and eye protection.
Check the window: the sill must be sound, square, and not spongy. Measure the opening and compare to your unit’s spec tag. If the opening is out-of-square, plan to shim so the unit sits level side-to-side. Choose a dedicated outlet that matches the unit’s voltage and amperage (common window units use 115/120V; larger units may need 208/230V). Never use an extension cord.
Helpful resources: The Furnace Outlet’s Sizing Guide, Accessories (for brackets and weatherstripping), and Help Center for quick answers.

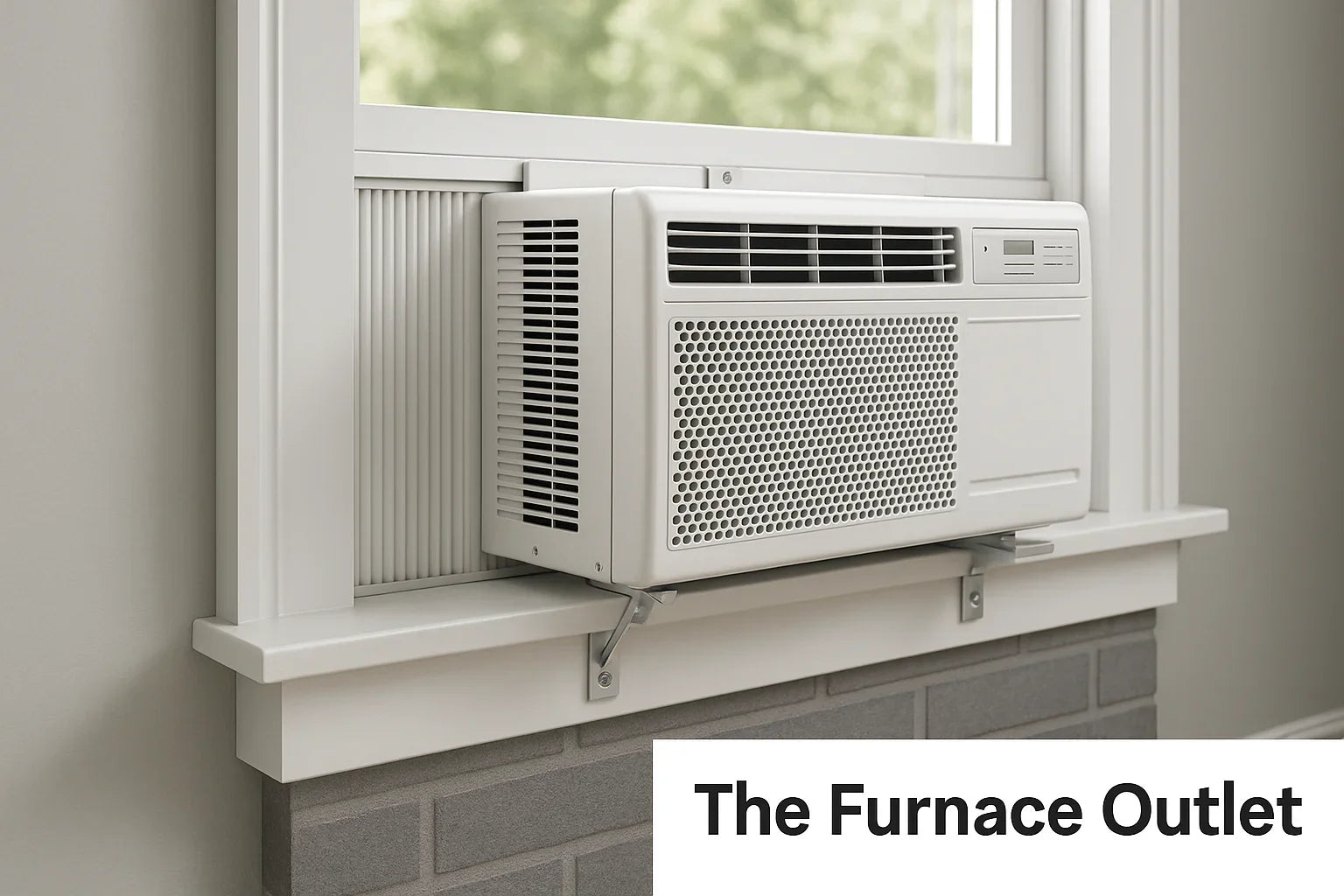

Step 1 Support the weight: brackets, rails, and tilt
A window sash is not a shelf. Install a load-rated support bracket under the unit so the weight transfers into the wall/exterior—not just the glass and sash. Follow the bracket kit’s template, pre-drill pilot holes, and drive the included screws fully. Set your outward tilt now: about ¼ inch per foot of chassis depth is a good rule of thumb so condensate drains outdoors, not into the room. Use plastic shims on the bracket or sill to fine-tune level left-to-right while keeping that slight outward pitch front-to-back.
Slide the unit into its sleeve or chassis per the manual. Keep fingers clear of sharp fins and chassis edges. Confirm the center of gravity sits on the bracket, not hanging from the sash. If your opening is weak or you prefer a permanent option, review Through-the-Wall Air Conditioners and sleeves for a more secure, quiet setup long-term.
Step 2 Anchor and lock: sash screws, L-brackets, and window stops
Lower the window sash onto the unit’s top flange. Pre-drill small pilot holes through the unit’s upper casing tabs into the sash and drive the provided screws. Add L-brackets (or corner braces) to tie the unit to the sill/frame—one at each corner is common. Install sliding window locks on the upper track so the sash can’t be lifted. Finally, drop a wooden dowel or metal bar in the track as a positive stop.
These layers make the install stable and discourage tampering. If you live where HOAs or landlords restrict window units for security or appearance, a through-the-wall unit inside a wall sleeve is often allowed and is harder to dislodge. For a homeowner-friendly comparison of space, sound, and rules, see Through-the-Wall vs. Window AC: Which Is Right for Your Small Space? (The Furnace Outlet)
Step 3 Weatherproof: seal panels, frame, and sill
Extend the unit’s accordion side panels so they meet the frame snugly; screw through the panel flanges into the jambs. For hairline gaps, press foam weatherstripping where the unit meets the frame and under the sash. For larger openings, cut rigid foam panels to size or use low-expansion spray foam around the sleeve (avoid blocking drain paths). Weatherstrip the sill where the unit rests to stop wind-driven rain and drafts.
Work slowly: small leaks add up to bigger bills. After sealing, turn the fan on and feel for drafts. If you sized the unit for a large room and want brand/BTU guidance, skim Highest BTU Window Air Conditioner: A Quick Guide before buying or upgrading; it lays out strong options and sizing notes in one place. (The Furnace Outlet)
Power and drainage: safe electrical and clean condensate path
Plug the unit into a properly grounded, dedicated outlet that matches the unit’s nameplate voltage and amperage. Do not use a light-duty extension cord or power strip; heat and voltage drop can damage motors and start capacitors. Make sure the cord has slack and won’t be pinched by the sash.
Recheck your outward tilt so condensate flows outside. Confirm the exterior drip path is clear of trim lips, shutters, or debris that could back water toward the wall. In heavy rain areas, a simple drip edge or deflector above the unit can reduce wind-blown water. Keep shrubbery and screens at least a few inches away so the condenser breathes.
Final checks, test run, and yearly upkeep
Before first use, tug the unit gently—there should be zero play. Try to lift the sash; the locks and dowel should block movement. Power up: the fan should spin freely, with no scraping. A slight hum on compressor start is normal; grinding isn’t. Step outside and verify strong airflow from the back and steady dripping from the drain edge once humidity rises.
For quieter, longer life: keep coils and filters clean (every 30–60 days in summer), trim plants around the exterior, and tighten any fasteners that work loose over time. At season’s end, clean, dry, and cover the unit or remove and store it per the manual. If you’re considering a wall-built unit for better noise control and security, read Installing a Through-the-Wall AC: DIY Steps vs. Hiring a Pro for what changes in tools and planning. (The Furnace Outlet)
Need help? Visit the Help Center or browse Accessories for brackets, weatherstrip, and locks.
Quick FAQ
How much should I tilt a window AC?
About ¼ inch per foot toward the outdoors. This keeps water from spilling indoors.
Do I really need a support bracket?
Yes for most installs. The sash isn’t designed to carry a heavy, vibrating load. A load-rated bracket prevents sagging and accidents.
What if my window frame is a little crooked?
Use plastic shims to level the unit left-to-right while keeping the outward tilt. If the sill is soft or damaged, repair it first.
How do I stop drafts around the unit?
Seal the sides, top, and sill with foam weatherstripping. For bigger gaps, cut rigid foam and caulk the edges. Check again after 24 hours.
Is a through-the-wall unit better for security and noise?
Often yes. A wall sleeve creates a rigid mount and better seal, which helps with sound and security. Compare options here: Through-the-Wall Air Conditioner
