When you think about HVAC sizing, your first thought is usually heating and cooling capacity. But here’s the truth: comfort isn’t just about temperature—it’s also about humidity.
If your HVAC system is the wrong size, it won’t manage moisture properly. An oversized system cools too quickly and shuts off before removing humidity. An undersized system runs constantly but still struggles to bring moisture down. The result? Sticky air, mold risk, higher bills, and lower comfort.
Humidity control is one of the most overlooked aspects of HVAC design. In this guide, I’ll show you how proper sizing keeps humidity balanced, why it matters for health and efficiency, and what steps you can take to protect your home.
For a refresher on the fundamentals, see the main guide: How to Size an HVAC System for Your Home.
Why Humidity Control Matters
Humidity plays a big role in how comfortable your home feels—and how safe it is.
-
High humidity leads to sticky air, condensation on windows, mold growth, and musty odors. It also makes cooling less effective.
-
Low humidity dries out skin, irritates airways, and can even cause wood flooring or furniture to crack.
The EPA recommends keeping indoor humidity between 30% and 50% for healthy, comfortable living. Anything outside this range increases health risks and energy costs.
The Role of HVAC in Humidity Control
Air Conditioners and Humidity
Air conditioners remove humidity as a byproduct of cooling. Warm air passes over cold evaporator coils, and moisture condenses out. But if the system is oversized, it cools too fast and shuts off before enough moisture is removed.
The U.S. Department of Energy (DOE) notes that proper AC sizing is critical for effective dehumidification.
Heat Pumps and Humidity
Heat pumps work like air conditioners in cooling mode—they dehumidify as they run. In heating mode, however, they don’t remove moisture, so sizing must account for both seasonal demands.
Furnaces and Humidity
Furnaces don’t actively control humidity. However, if the system is improperly sized, airflow imbalances can cause dry winter air or allow excess moisture to build up in ducts. This is why whole-house humidifiers or dehumidifiers are often paired with furnace systems.
How Improper Sizing Affects Humidity

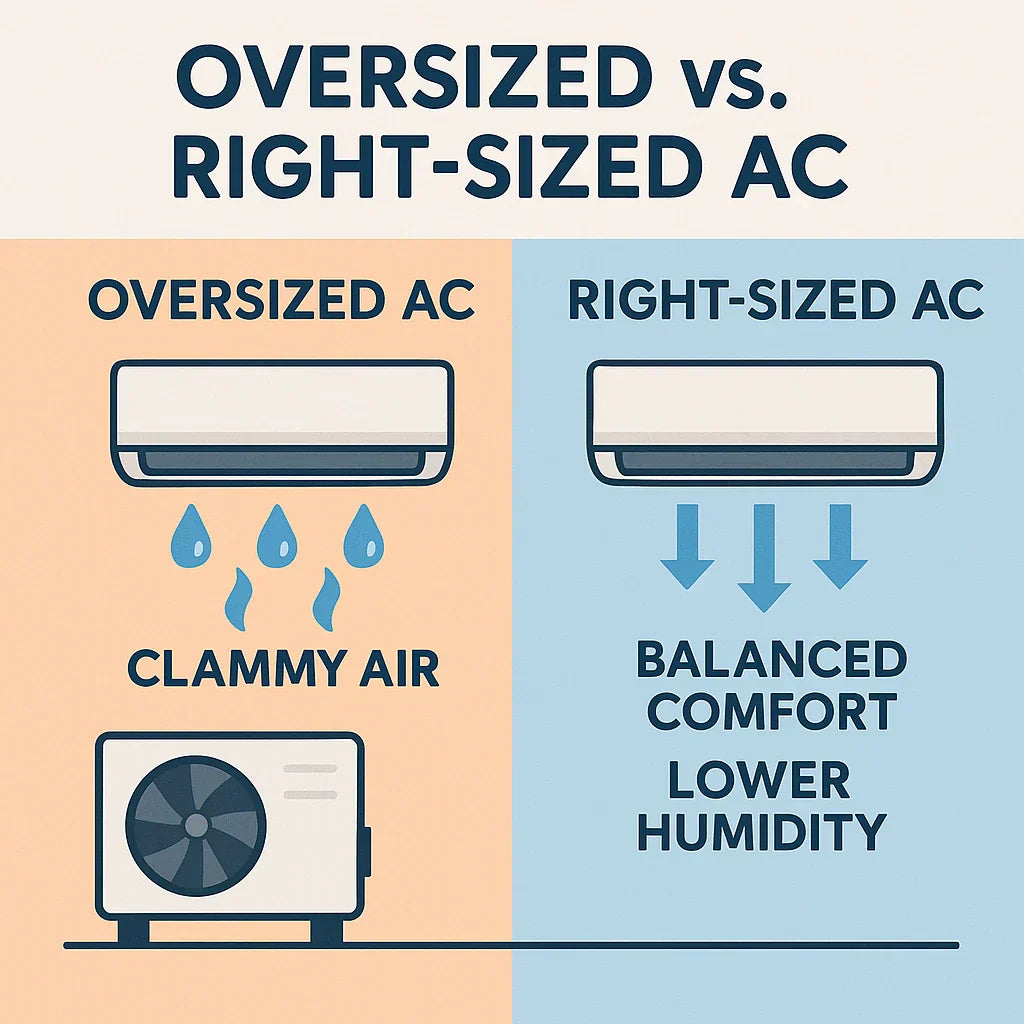

Oversized Systems: Quick Cooling, Poor Dehumidification
Bigger isn’t better. An oversized unit cools air in minutes but doesn’t run long enough to remove moisture. You end up with:
-
Clammy air even when the thermostat reads “comfortable.”
-
Condensation on windows and walls.
-
Higher risk of mold growth in ductwork.
Undersized Systems: Constant Running, Uneven Comfort
A unit that’s too small will run nonstop trying to keep up. That constant strain doesn’t guarantee proper dehumidification—it just drives up bills.
According to ASHRAE comfort standards, both oversized and undersized systems fall outside the humidity range needed for true indoor comfort.
How to Size HVAC Systems for Humidity Control
Manual J Calculations
The foundation of proper HVAC sizing is Manual J, the industry-standard load calculation. This process considers:
-
Square footage and ceiling height
-
Window orientation and solar gain
-
Insulation and air sealing
-
Number of occupants
-
Climate data
The ACCA Manual J standards include humidity load factors, ensuring your system is sized not only for temperature but also for moisture removal.
Airflow and Static Pressure
Even a perfectly sized system won’t control humidity if airflow is off. Undersized ducts create high static pressure, limiting air movement. Oversized ducts slow airflow, reducing dehumidification.
The DOE’s guide to minimizing duct energy losses explains that sealing, insulating, and properly sizing ducts improves both efficiency and humidity control.
Supplemental Solutions for Extreme Conditions
In very humid climates, even the best HVAC sizing may need backup. Whole-home dehumidifiers or ENERGY STAR-certified portable units can maintain balanced moisture when AC alone can’t.
The ENERGY STAR dehumidifier guide shows that certified models remove moisture more efficiently, saving energy while improving comfort.
Best Practices for Homeowners
Here are practical steps to ensure your HVAC system keeps humidity in check:
1. Demand Manual J Before Replacement
Never let a contractor size your system based on square footage or “rule of thumb.” Insist on a full Manual J calculation that factors in humidity.
2. Ask About Run Times, Not Just Efficiency
High-SEER equipment isn’t automatically better if it’s oversized. Proper run time is key to removing moisture.
3. Seal and Balance Ducts
Leaky or mis-sized ducts cancel out humidity control. Schedule duct testing and sealing with a qualified contractor.
4. Upgrade Insulation and Windows
Better insulation and efficient windows reduce both temperature and humidity loads. Less load = smaller, more efficient HVAC.
5. Consider Supplemental Dehumidification
If you live in a high-humidity climate (like the Southeast), pair your HVAC with a dehumidifier to prevent mold and keep comfort levels steady.
For more on avoiding sizing mistakes, read the next article in this series: What Contractors Get Wrong About HVAC Sizing (And How to Spot It).
Final Thoughts
Humidity control is one of the most important—and most misunderstood—parts of HVAC design. If your system is the wrong size, you’ll feel the effects: clammy air, high bills, health risks, and discomfort.
The good news? With a properly sized system, sealed ducts, and smart design choices, you can keep humidity balanced year-round.
Remember:
-
Oversized systems cool but don’t dehumidify.
-
Undersized systems run constantly but still fail at moisture control.
-
The right size means balanced comfort, safety, and savings.
Sizing your HVAC system for humidity control isn’t just about comfort—it’s about protecting your home and your health.
