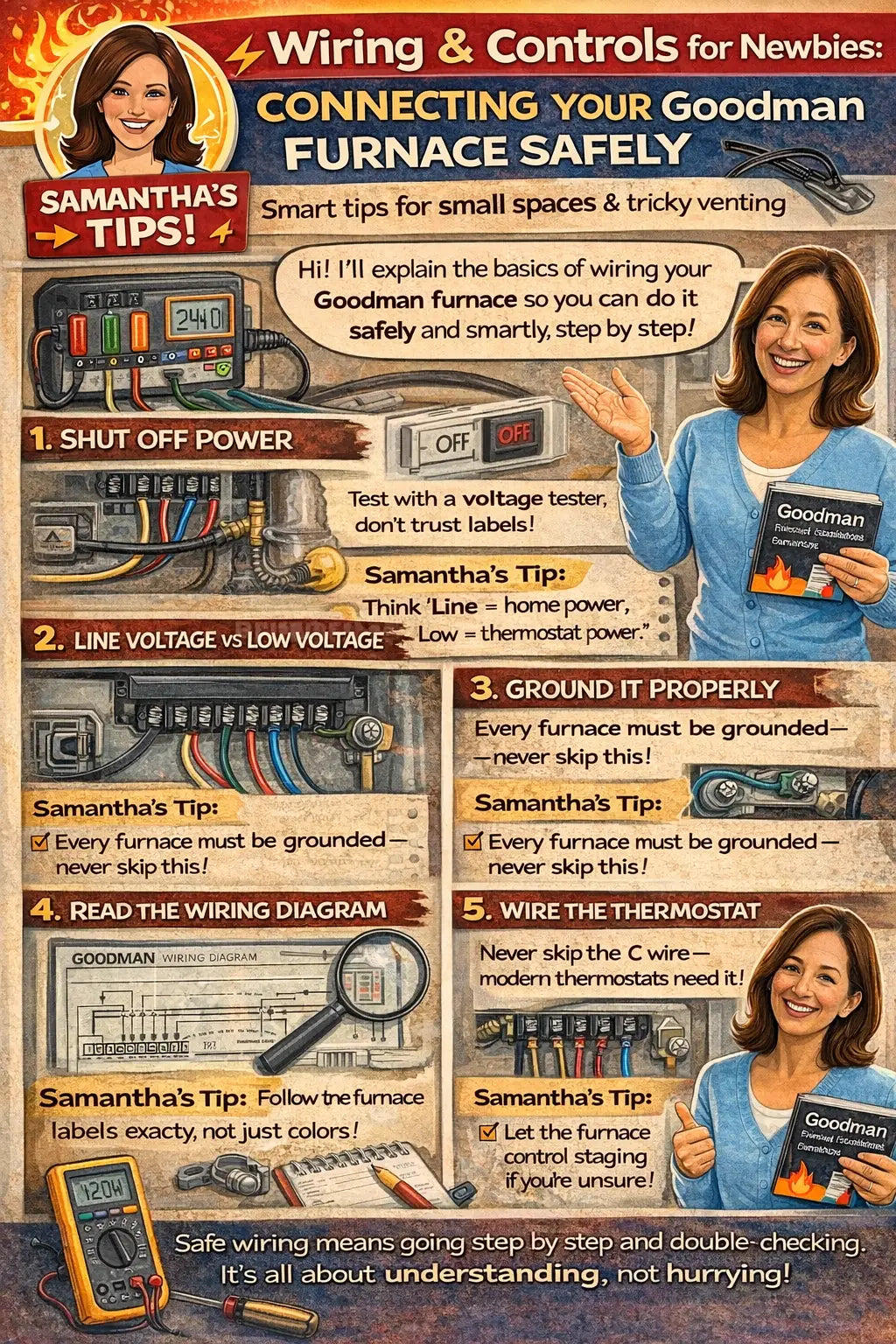

Wiring & Controls for Newbies: Connecting Your Goodman Furnace Safely

0 comments

— Samantha’s Calm, Step-by-Step Guide to Furnace Wiring Without the Fear Factor

When homeowners hear “furnace wiring,” the reaction is almost universal:
👉 “That’s where I stop.”

And honestly? That hesitation is healthy.

A gas furnace may burn fuel, but electricity is what controls everything—ignition, safety checks, blower speeds, staging, and shutdown. Wiring mistakes don’t usually cause dramatic sparks; they cause mysterious lockouts, comfort issues, or damage that shows up weeks later.

80,000 BTU 96% AFUE Upflow/Horizontal Two Stage Goodman Gas Furnace - GR9T960804CN

This guide is written for newbies—DIYers, smart homeowners, and anyone who wants to understand furnace wiring well enough to do it safely, supervise it confidently, or know when to stop and call a pro.

🧠 First Things First: What Furnace Wiring Actually Does

A Goodman gas furnace uses electricity to manage five core jobs:

Receive commands (from the thermostat)
Verify safety conditions (pressure switches, limits)
Ignite burners (hot surface igniter or spark)
Move air (blower motor control)
Shut everything down safely if something goes wrong

The wiring doesn’t “power heat”—it decides whether heat is allowed to happen.

👉 Samantha tip:
If wiring is wrong, the furnace won’t run unsafely—it just won’t run at all. That’s the system protecting you.

⚠️🔌 Safety Rules Before You Touch a Single Wire

Before opening the furnace cabinet, follow these non-negotiables:

Turn OFF power at the breaker
Verify power is off with a tester (don’t trust labels)
Never work on wiring with gas flowing
Keep the installation manual open beside you

Goodman manuals clearly state that wiring must be done with power disconnected and grounded correctly.
🔗 https://hvacdirect.com/media/pdf/GR9T96-GD9T96-Install-Manual.pdf

👉 Samantha tip:
If you’re uncomfortable using a multimeter or voltage tester, pause here—that’s a clear sign to bring in help.

⚡🏠 Step 1: Line Voltage vs Low Voltage (Know the Difference)

This is where most newbies get confused—but it’s simpler than it sounds.

🔌 Line voltage (120V)

Powers the furnace itself
Feeds the control board and blower motor
Typically black (hot), white (neutral), green (ground)

Mistakes here can cause:

Shock hazards
Control board damage
Tripped breakers

🔋 Low voltage (24V)

Runs thermostat and safety circuits
Color-coded control wiring (R, W, C, Y, G)
Much safer—but still critical

👉 Samantha tip:
Line voltage can hurt you. Low voltage can hurt the furnace. Respect both.

🧭 Step 2: Grounding—The Most Skipped Safety Step

Every Goodman furnace must be properly grounded.

Why grounding matters

Protects you from shock
Protects the control board from voltage spikes
Ensures safety circuits function correctly

Grounding errors often cause:

Random lockouts
Fried boards
Hard-to-diagnose failures

👉 Samantha tip:
If the ground wire is “optional” or loosely attached, the job isn’t finished.

🧩 Step 3: Reading the Wiring Diagram Like a Map (Not a Puzzle)

Goodman furnaces include a wiring diagram inside the cabinet or manual.

How technicians read it

They follow paths, not colors
They look for sequence (what happens first, second, third)
They identify safety loops

Key components you’ll see:

Control board
Pressure switches
Limit switches
Igniter
Gas valve
Blower motor

👉 Samantha tip:
Never assume wire colors match your old furnace. Always wire by terminal labels, not memory.

🌡️📟 Step 4: Thermostat Wiring Basics (What Each Wire Really Does)

Most Goodman furnaces use standard thermostat terminals:

R – 24V power supply
C – Common (return path for power)
W – Heat call
Y – Cooling (if AC is connected)
G – Fan

Common newbie mistakes

Forgetting the C wire (causes smart thermostat issues)
Mixing W and Y
Loose thermostat connections

ENERGY STAR notes that incorrect control wiring is a common cause of comfort and efficiency issues.

👉 Samantha tip:
Smart thermostats require a C wire—no shortcuts here.

🔄🔥 Step 5: Two-Stage Furnaces & Control Logic (What Changes)

Many Goodman furnaces are two-stage, meaning they can run at:

Lower output for efficiency
Higher output for cold extremes

Wiring considerations:

Some thermostats control staging
Others let the furnace decide automatically
Wiring must match the control strategy

Improper staging wiring leads to:

Furnace stuck in high fire
Reduced efficiency
Increased noise

👉 Samantha tip:
If you don’t fully understand staging logic, let the furnace control it—don’t force it with guesswork.

🌬️⚙️ Step 6: Blower Motor Wiring & Speed Settings

Modern Goodman furnaces often use ECM or multi-speed blowers.

The wiring and board settings determine:

Heating airflow
Cooling airflow
Fan-only airflow

Wrong settings can cause:

Overheating
Noise
Poor comfort

Goodman manuals specify airflow ranges based on BTUs and duct design.

👉 Samantha tip:
A furnace that “runs” but overheats is often wired correctly—but configured incorrectly.

🚨 Step 7: Safety Switches—Why Bypassing Them Is Never Okay

Goodman furnaces include multiple safety switches:

Pressure switches
High-limit switches
Rollout switches

These are wired in series, meaning one open switch stops everything.

Bypassing a safety switch:

Violates code
Voids warranty
Creates real danger

The CDC warns that fuel-burning appliance safety controls are critical in preventing carbon monoxide exposure.
🔗 https://www.cdc.gov/carbon-monoxide/factsheets/furnace-safety-fact-sheet.html

👉 Samantha tip:
If a safety switch trips, it’s asking a question—not causing a problem.
