❄️ 1. Introduction: Why A-Coil Problems Are So Common
Your A-Coil (evaporator coil) is the heart of your cooling system. It’s where refrigerant absorbs heat and removes humidity from your air. Because it’s constantly in contact with air, condensation, and refrigerant, it’s prone to two common issues:
-
Freezing up (coils turn into a block of ice).
-
Leaking water (condensation ends up on the floor instead of the drain).
The good news? Most causes are simple and preventable. Let’s dive into the “why” and the “what to do.”
3 Ton Horizontal Goodman Cased Coil with Built-in TXV - CHPTA3630B3
🧊 2. Why A-Coils Freeze Up
When you see ice on your coil, it means something is disrupting airflow or refrigerant balance.
2.1 Dirty Air Filter
-
Restricts airflow → coil can’t absorb enough heat → frost builds up.
-
Fix: Replace filter monthly (or clean if washable).
📖 Energy Star recommends checking filters monthly.
2.2 Dirty or Blocked Coil Fins
-
Dust and pet hair cling to fins, reducing airflow.
-
Fix: Gently vacuum or use a foaming coil cleaner.
📖 DOE highlights coil cleaning as a critical step for efficiency
2.3 Low Refrigerant Charge
-
Low refrigerant = low pressure inside coil → coil temp drops below freezing → ice forms.
-
Usually caused by a refrigerant leak.
-
Fix: Requires a licensed HVAC tech to repair and recharge.
2.4 Blower Motor or Duct Problems
-
Weak airflow = poor heat absorption.
-
Undersized ducts can choke airflow.
-
Fix: Inspect blower operation and duct sizing.
📖 ACCA warns that improper duct design is a top cause of coil problems (ACCA).
2.5 Thermostat Settings
-
Running fan continuously in “ON” mode can re-freeze coils during humid days.
-
Fix: Set fan to “AUTO.”
💧 3. Why A-Coils Leak Water
Water around your furnace or air handler isn’t always a broken system — it’s usually a drainage issue.
3.1 Clogged Condensate Drain Line
-
Algae, dirt, or debris block the line.
-
Water backs up and spills into the pan.
-
Fix: Flush with vinegar or compressed air.
📖 The EPA recommends keeping drains clear to avoid mold growth
3.2 Cracked or Rusted Drain Pan
-
Older pans can corrode or crack.
-
Water escapes instead of draining.
-
Fix: Replace the pan (DIY possible, but pro often needed).
3.3 Excess Humidity
-
In humid climates, coils generate more condensation.
-
If drain is undersized or clogged, water will overflow.
3.4 Improper Installation or Slope
-
Coil must be slightly sloped toward the drain.
-
If not, water pools inside the pan and leaks out.
📖 Goodman installation manuals stress proper slope for drainage
🧰 4. DIY Troubleshooting Steps
If you notice ice or leaks, don’t panic. Here’s what I do first.
Step 1: Shut Down the System
-
Turn off AC immediately if coil is frozen.
-
Running it only makes the ice worse.
Step 2: Thaw the Coil
-
Let ice melt naturally.
-
Do not use sharp tools or hair dryers — you’ll damage fins.
Step 3: Replace or Clean Filter
-
Cheap, easy, and often the fix.
Step 4: Inspect Coil Surface
-
Check for visible dirt, dust, or debris.
-
Clean with a soft brush or foaming coil cleaner.
Step 5: Flush Drain Line
-
Pour vinegar or warm water into the drain port.
-
Use a wet/dry vac outside to suck out clogs.
📖 HVAC.com gives a simple homeowner guide for cleaning AC drains
Step 6: Check Thermostat
-
Set fan to AUTO, not ON.
-
Make sure cooling temp isn’t set unrealistically low.
📞 5. When to Call a Pro
Some problems are beyond the DIY scope.
-
Refrigerant issues (oil stains, repeated freezing, hissing sounds).
-
Electrical faults (blower not running, thermostat miscommunication).
-
Severe leaks (rusted drain pan, refrigerant leaks).
-
Repeat problems (if coil freezes again within weeks).
📖 Only EPA-certified techs can handle refrigerant legally (EPA Section 608).
Mike’s Rule: “If I need gauges, refrigerant, or wiring knowledge, I make the call. Cheaper to pay a pro once than to wreck my system and pay twice.”
🔄 6. Preventing Future Freezing & Leaks
The best fix is prevention.
-
🧼 Clean coil surfaces twice a year.
-
🪣 Flush condensate drain every spring.
-
🌀 Check airflow by monitoring vents — weak air = problem.
-
🧰 Inspect ducts for leaks and restrictions.
-
📆 Schedule annual tune-ups with a pro.
📖 ASHRAE emphasizes preventive maintenance as the key to coil longevity (ASHRAE).

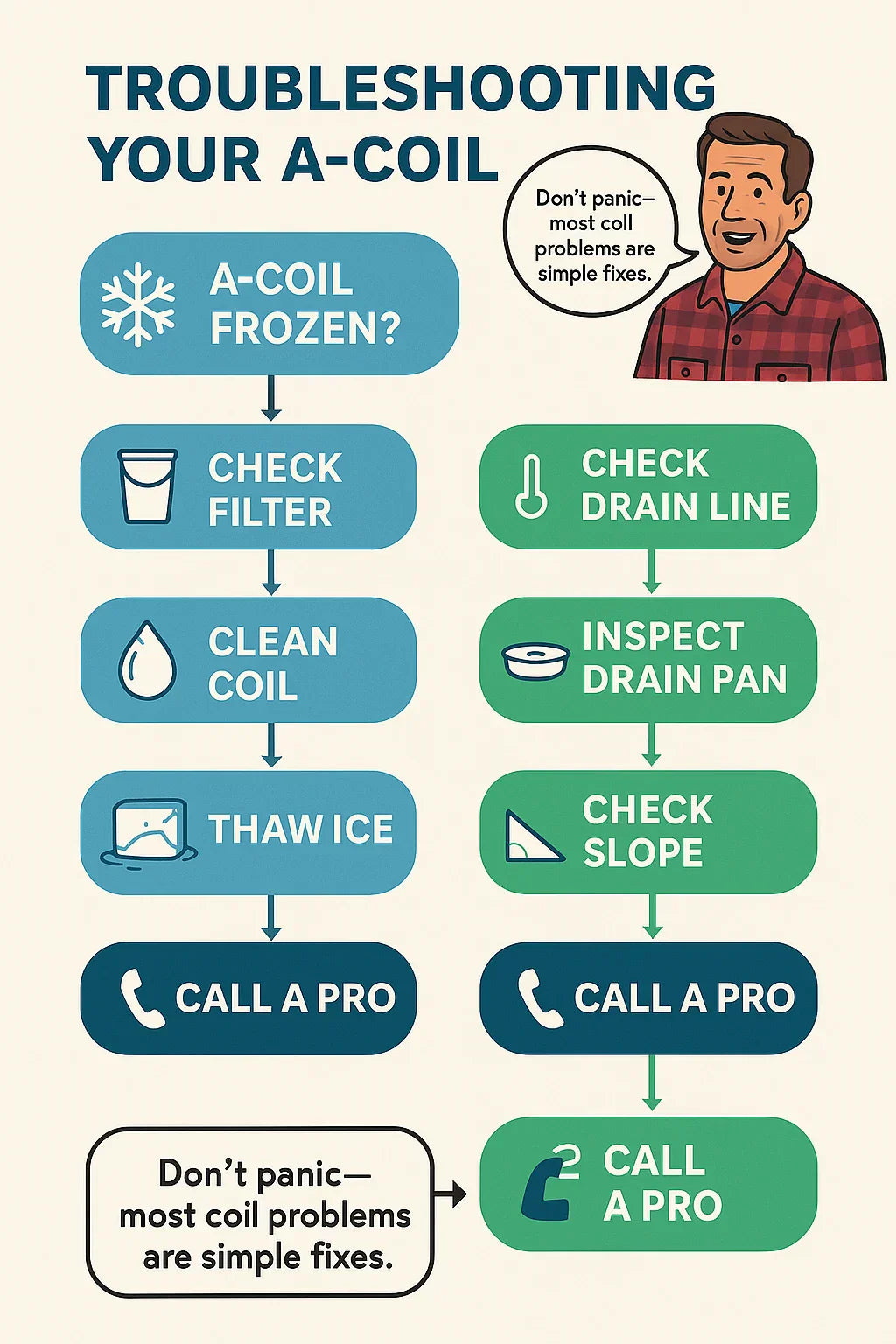

✅ 7. Mike’s Quick Troubleshooting Checklist
Frozen Coil?
-
Turn off system and thaw.
-
Replace filter.
-
Clean coil surface.
-
Check airflow.
-
Call pro if refrigerant suspected.
Leaking Coil?
-
Inspect and flush drain line.
-
Check drain pan for cracks.
-
Ensure proper slope.
-
Call pro if pan or coil needs replacement.
🏠 8. Conclusion: Mike’s Final Advice
A frozen or leaking coil isn’t the end of the world. In fact, it’s often your system’s way of saying: “I need attention.”
“I used to think a frozen coil meant the AC was done for. Now I know it’s usually a filter, drain, or airflow issue. If you act fast and keep up with maintenance, your Goodman coil will serve you for years.” – Mike
