🔧 1. Introduction: Mike’s Utility Room Reality Check
A lot of homeowners get excited about upgrading to a new coil or system — but forget one basic thing: will it fit in the space you’ve got?
When I replaced my coil, I had to deal with:
-
A narrow utility closet.
-
Limited access for cleaning.
-
Noise echoing through the basement.
If you’re looking at a Goodman 3 Ton Horizontal Cased Painted A-Coil (CHPTA3630B3), here’s how to make sure it works for your home’s layout.

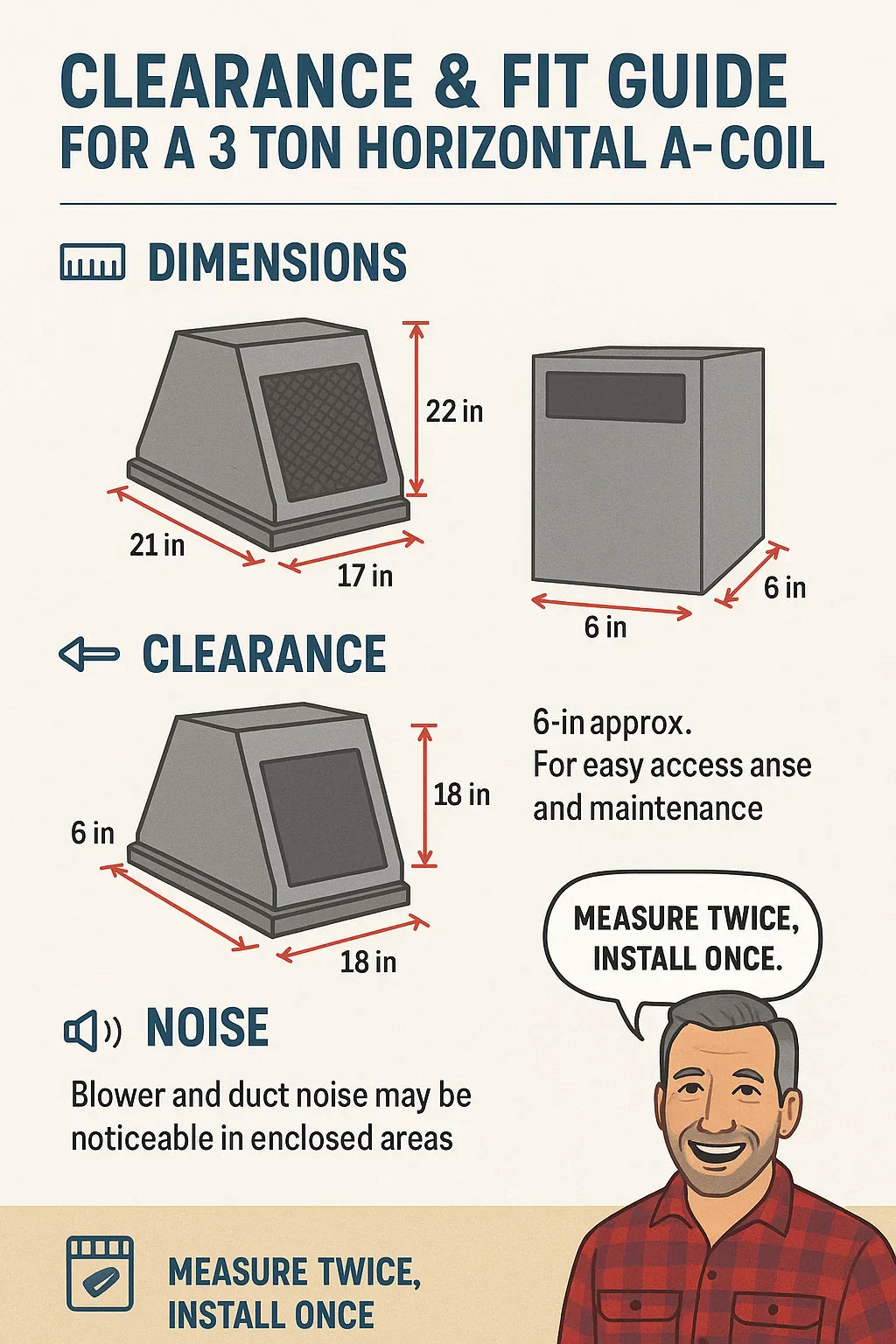

📐 2. Physical Dimensions of a 3 Ton Horizontal Coil
Every A-Coil has a cabinet size that needs to fit your space. For a 3 Ton Goodman horizontal coil:
-
Width: ~17.5–21 inches (varies by exact model).
-
Height: ~22–25 inches.
-
Depth: ~21–26 inches.
(Always confirm with Goodman’s spec sheet before ordering.)
Why Painted Casing Matters
-
Protects against corrosion in damp spaces like basements and crawlspaces.
-
Easier to clean and wipe down during maintenance.
-
More durable than bare sheet metal in tight installs.
Horizontal Design Advantage
Unlike vertical coils that stand upright:
-
Horizontal coils are laid on their side.
-
Perfect for attics, crawlspaces, and utility closets where vertical clearance is limited.
📖 You can review Goodman’s coil dimensions directly on their official product catalog.
↔️ 3. Clearance Requirements
It’s not enough to squeeze the coil into a tight spot — you need clearance for airflow and maintenance.
General Guidelines
-
Front clearance (access side): 18–24 inches.
-
Sides and back: At least 3–6 inches for airflow.
-
Above coil: 6–12 inches minimum to avoid duct restriction.
Why Clearance Matters
-
Filters need to slide in and out.
-
Coils need to be accessible for cleaning.
-
Drain lines and TXV valves need inspection space.
-
Techs need enough room to connect gauges and tools.
Mike’s Tip: “Don’t cram it in and think you’ll deal with it later. You won’t. Leave room for future you — or the HVAC tech you’ll be paying by the hour.”
📖 The Air Conditioning Contractors of America (ACCA) provides clearance and installation guidelines
🌬️ 4. Airflow Direction Considerations
Horizontal coils can usually be installed in either left-to-right or right-to-left airflow configurations.
Why It Matters
-
If your ductwork feeds from the left but your coil is set for right-hand airflow, you’ll need modifications.
-
Misaligned airflow reduces efficiency and increases static pressure.
Coil Slope for Drainage
-
The coil must slope slightly (about ½ inch per foot) toward the drain pan.
-
If sloped the wrong way, condensation won’t drain properly → leaks.
📖 Goodman’s install guides detail airflow and slope requirements (Goodman Install Manual).
🔊 5. Noise Factors in Tight Spaces
One thing many homeowners overlook: noise.
What Makes Noise
-
The coil itself is quiet.
-
But when paired with the blower, ductwork, and drain vibrations, noise can be amplified in tight spaces.
Solutions Mike Tried
-
Added duct insulation around thin sheet metal runs.
-
Sealed leaky duct joints with mastic (cut down on whistling).
-
Placed rubber pads under the furnace to reduce vibration transfer.
📖 The U.S. Department of Energy notes that sealing ducts reduces both noise and energy loss (DOE – Duct Sealing).
🧰 6. Mike’s Tips for Homeowners
Here are my go-to checks before you commit to a coil:
-
Measure Doorways – Make sure the coil can actually fit through your utility room door or attic hatch.
-
Check Specs Twice – Always compare your coil’s spec sheet with your available clearance.
-
Plan for Maintenance – Leave space in front for filters, drains, and cleaning access.
-
Think About Noise – Use duct insulation and pads if your utility room echoes.
-
Future-Proof – If you ever need to upgrade to a higher-SEER system, make sure your ductwork and space can handle it.
✅ 7. Conclusion: Will It Fit?
In most average homes, a 3 Ton Goodman Horizontal A-Coil will fit utility closets, basements, and crawlspaces — as long as you measure and plan for clearance.
-
📐 Dimension check = no surprises on delivery day.
-
↔️ Clearance = easier maintenance, longer system life.
-
🔊 Noise control = a quieter, more comfortable home.
“Measure twice, install once. That’s my motto for coils. Get the fit right, and you’ll have a smooth-running system for years.” – Mike
In the next topic we will know more about: How Much Does a 3 Ton A-Coil Cost in 2025? Equipment, Labor & Energy Use Explained
