🏡 Introduction: When Comfort Suddenly Fails
I’ll never forget the night my brand-new 60,000 BTU furnace + AC system stopped working. It was late January, the temperature had dipped into the teens, and my house felt colder by the hour. I panicked—hadn’t I just spent thousands on this equipment?
What I learned, after a long night of Googling and talking to an HVAC tech the next morning, is that most heating and cooling failures aren’t catastrophic. Many are caused by small, fixable issues: a dirty filter, a tripped breaker, or even something as simple as the wrong thermostat setting.
In this guide, I’ll walk you through a step-by-step troubleshooting process for when your 60,000 BTU system isn’t heating or cooling properly. I’ll share the exact checklist I now keep on my fridge—plus when it’s safe to try fixes yourself and when to call in a professional.
📋 Step 1: Check the Thermostat
The thermostat is the brain of your HVAC system, and sometimes the “problem” is just a setting.
-
Mode check: Is it set to heat when you want heat, or cool when you want AC?
-
Temperature setting: Try adjusting a few degrees to see if the system kicks on.
-
Battery check: Low batteries can prevent the thermostat from sending signals.
-
Wi-Fi/smart controls: For smart thermostats, make sure schedules or eco-modes aren’t overriding your comfort settings.
💡 Samantha’s tip: I once spent hours thinking my furnace had failed—only to realize I’d accidentally set my Nest thermostat to eco mode.
For more thermostat troubleshooting, see ENERGY STAR’s smart thermostat guide.
🧊 Step 2: Airflow Issues
Your system needs steady airflow to function. If airflow is blocked, you’ll feel uneven temperatures or weak output.
Common airflow problems:
-
Dirty air filter: Replace every 1–3 months. A clogged filter suffocates your system and can even freeze coils.
-
Closed or blocked vents: Furniture, rugs, or curtains can block airflow.
-
Leaky ducts: According to ENERGY STAR, up to 30% of conditioned air can escape through leaks.
👉 Quick test: Place your hand over a vent. If airflow feels weak, start with the filter.
💡 Samantha’s story: Once, my AC kept shutting off on hot days. The culprit? A filter so dirty it looked like a lint trap.
🔥 Step 3: Furnace-Specific Problems
If your 60,000 BTU furnace isn’t heating, here’s what to check:
-
Pilot light or electronic ignition: Older furnaces may have pilot lights that blow out. Newer models use electronic ignitions that sometimes fail.
-
Tripped limit switch: This safety switch shuts down the furnace if it overheats—often caused by a dirty filter.
-
Gas supply: Check that your gas valve is open. If you smell gas, shut off immediately and call a pro.
👉 If your furnace is clicking but won’t ignite, it could be an ignition failure—this is usually a technician fix.
For more, see Energy.gov – Furnaces and Boilers.
❄️ Step 4: AC-Specific Problems
When cooling fails, these are the most common issues:
-
Low refrigerant: If levels are low, you likely have a leak. Refrigerant requires EPA-certified handling.
-
Frozen evaporator coil: Can happen if airflow is restricted (dirty filter, blocked ducts). You may see ice on the indoor coil.
-
Dirty condenser coil: Located outside, this coil can clog with leaves, dirt, and grass clippings.
💡 Samantha’s experience: My AC once blew warm air because the outdoor condenser was choked with cottonwood fluff. A garden hose rinse fixed it.
For coil cleaning tips, see Consumer Reports – Air Conditioner Maintenance.
⚡ Step 5: Electrical Checks
Your 60,000 BTU system depends on electrical components. If it won’t start at all:
-
Check the breaker panel: HVAC breakers may trip after power surges. Reset if needed.
-
Look for blown fuses: Some systems have fuses inside the furnace cabinet.
-
Inspect wiring: Loose or damaged wires are a job for a licensed electrician.
👉 Reminder: If you’re not comfortable working around live electricity, stop here and call a pro.
For electrical safety, visit Electrical Safety Foundation International (ESFI).
🧪 Step 6: When to Call a Professional
Some issues require more than DIY. Call an HVAC technician if:
-
You smell gas or see signs of a carbon monoxide leak.
-
Refrigerant levels are low (EPA law requires certification to handle refrigerants).
-
Your furnace cycles on and off rapidly (short-cycling).
-
The system runs but can’t maintain temperature after basic fixes.
💡 Samantha’s lesson: I once ignored a refrigerant leak because the system “sort of worked.” Two months later, the compressor burned out—costing me over $1,200.
📊 Preventing Future Problems
The best troubleshooting is prevention. Here’s what I now do regularly:
-
Monthly: Check and replace filters.
-
Quarterly: Walk around vents and condenser to ensure airflow isn’t blocked.
-
Annually: Schedule a professional tune-up.
-
Every 2–3 years: Have ducts inspected and sealed if needed.
According to HomeAdvisor, annual maintenance costs $100–$200 but can prevent thousands in repairs.

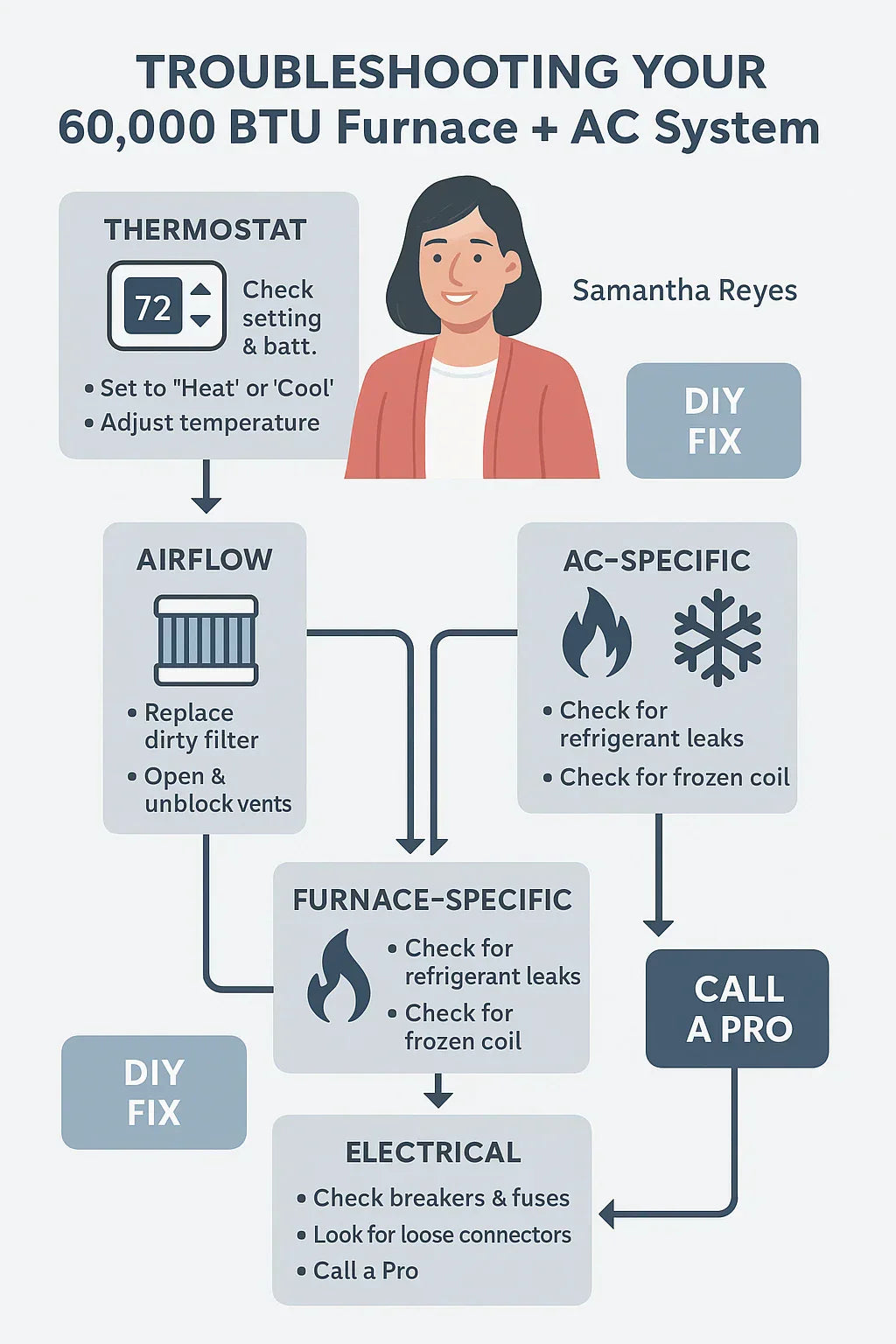

✅ Samantha’s Troubleshooting Checklist
Here’s the quick version of what I keep on my fridge:
-
Thermostat – Correct mode, temp setting, and batteries.
-
Airflow – Clean filter, open vents, no blockages.
-
Furnace – Pilot/ignition, limit switch, gas supply.
-
AC – Refrigerant level, coils clean, no ice.
-
Electrical – Breakers, fuses, wiring.
-
Call a pro – If problems persist or safety risks appear.
📝 Conclusion: Don’t Panic—Check the Basics First
When your 60,000 BTU furnace + AC system stops heating or cooling, it feels like a disaster. But most issues boil down to filters, settings, or airflow. By following a systematic troubleshooting process, you can often fix the problem—or at least know what to tell the technician.
My advice? Start with the basics, stay safe, and don’t be afraid to call a pro when needed. Your comfort—and your system’s lifespan—depend on it.
In the next topic we will know more about: Maintenance Checklist: Filters, Coils, Drains & Seasonal Care for Your 60,000 BTU System
