Installation Guide: What Samantha Learned Putting in Her 60,000 BTU Sy

0 comments

🏡 Why Installation Is Just as Important as Sizing

When I started shopping for my 60,000 BTU furnace + AC system, I thought the hardest part would be choosing the right size. After all, that’s what every guide online talks about—square footage, BTUs per room, SEER2 ratings, and AFUE efficiency.

But once I bought my system, I realized something far more important: the way your system is installed can make or break its performance. Even the most efficient unit will waste energy, short-cycle, or wear out early if it isn’t installed properly.

This guide is my step-by-step breakdown of what I learned along the way, so you’ll know what to expect if you’re planning a 60,000 BTU system install in 2025.

🧰 Tools & Materials Checklist

Before the installers showed up at my house, I researched what tools were involved. I wasn’t planning to do it all myself (more on that later), but understanding the process helped me follow along and avoid surprises.

Here’s what’s usually needed:

Basic tools: cordless drill, wrenches, pliers, screwdrivers, socket set, tape measure, level.
HVAC-specific tools: refrigerant gauges, vacuum pump, multimeter, combustion analyzer.
Safety gear: gloves, safety glasses, respirator mask.
Materials: foil-backed tape, duct mastic, PVC pipe, mounting brackets, insulation, sealant.

👉 Pro tip: A lot of these tools—especially refrigerant gauges—aren’t something most homeowners keep in their garage. That’s a big reason professional help is often worth the cost.

Check out this HVAC.com tool guide for a more detailed breakdown.

📜 Permits, Codes & Prep Work

One of my biggest surprises? You can’t just buy a system and install it without permission. Most municipalities require permits for HVAC work, and inspectors will want to make sure everything meets code.

Here’s what I learned:

Permits: My local building department charged $250 for the furnace + AC combo.
Codes: Electrical wiring had to be on a dedicated breaker. Gas lines needed shutoff valves within 6 feet of the furnace.
Inspections: I had to schedule both rough-in (ducts, wiring, and gas lines) and final inspections.

💡 Samantha’s lesson: Don’t underestimate the time it takes to get permits approved. My project was delayed a week because of paperwork!

For more info, see Energy.gov’s HVAC installation guidelines.

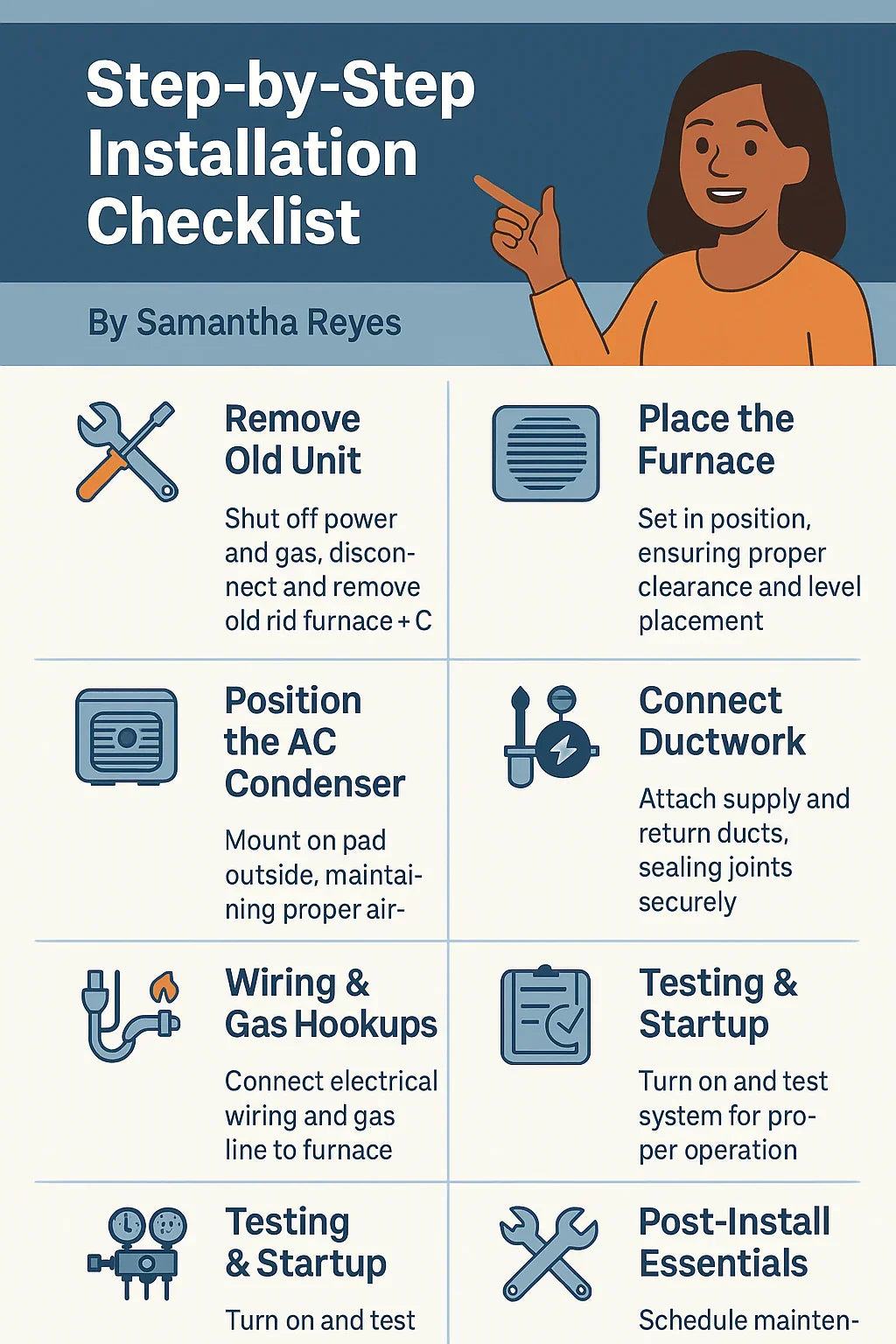

🔩 Step-by-Step Installation Process

Here’s the basic flow I observed during my install. Your details may vary, but this is the typical order:

1. Removing the Old Unit

Shut off power and gas.
Disconnect old furnace and AC lines.
Haul out the equipment (sometimes requiring multiple people or a dolly).

2. Placing the Furnace

Install the furnace on level ground or a mounting pad.
Check clearance around the unit (minimum 30" recommended for service).
Anchor the furnace to reduce vibration.

3. Positioning the AC Condenser

Place on a concrete or composite pad outdoors.
Ensure at least 2–3 feet of clearance for airflow.
Elevate slightly if flooding or snow is an issue.

4. Connecting Ductwork

Attach supply and return plenums.
Seal all joints with mastic or foil tape (not cloth duct tape).
Test airflow before moving on.

5. Wiring & Gas Hookups

Connect thermostat wiring.
Run electrical lines from the breaker panel.
Attach and test gas line connections with a leak detector.

6. Charging the Refrigerant

Connect refrigerant lines.
Evacuate air and moisture with a vacuum pump.
Charge system with R-32 or R-410A refrigerant (licensed techs only).

For a technical deep dive, check ACHR News – Installation Tips .

👷 DIY vs. Professional: Where to Draw the Line

I seriously considered DIY to save money. But here’s what I learned:

Reasonable DIY tasks:
- Site prep (clearing space for the condenser).
- Duct sealing or replacing registers.
- Installing a smart thermostat.
Pro-only tasks:
- Running gas lines (fire hazard risk).
- Refrigerant charging (EPA requires certification).
- High-voltage wiring.

💡 Samantha’s choice: I handled some prep work—like clearing my utility closet and sealing ducts—but left the critical hookups to the professionals. It cost me more up front but gave me peace of mind.

🧪 Testing & First Startup

Once everything was hooked up, the contractors tested the system:

Furnace test: Checked ignition sequence, measured CO output, verified venting.
AC test: Measured temperature differential between supply and return air (should be ~15–20°F).
Airflow balance: Adjusted dampers to even out airflow across rooms.

Samantha’s tip: Be present during startup testing. I caught a duct leak that would have wasted airflow into my crawl space!

For a checklist of what techs should do, see ENERGY STAR – HVAC Quality Installation.

🔧 Post-Install Essentials

The job isn’t finished once the system is running. I learned that a few final steps are key:

Register your warranty: Many brands require online registration within 60–90 days.
Schedule seasonal maintenance: Change filters every 1–3 months, and book annual tune-ups.
Program your thermostat: Smart thermostats can cut 10–15% off your bills (ENERGY STAR Thermostat Guide).

✅ Samantha’s Key Lessons Learned

Looking back, here’s what I wish I’d known from the start:

Budget for permits and inspections—they’re non-negotiable.
Duct sealing matters—it boosted my system’s efficiency more than I expected.
Don’t assume all contractors include extras—always ask what’s covered.
A professional finish is worth it—especially for gas and refrigerant.
Stay involved—being present during installation helps catch mistakes early.

📝 Conclusion: My Advice to Other Homeowners

If you’re considering a 60,000 BTU furnace + AC system, here’s my advice:

Don’t underestimate installation. It’s just as important as picking the right size or brand.
DIY what you can safely do, but don’t be afraid to call in pros.
Be proactive about efficiency. Seal ducts, insulate, and use a smart thermostat.

In my case, choosing the right system was only half the battle. Getting it installed correctly turned out to be the real key to comfort, efficiency, and peace of mind.

In the next topic we will know more about: Troubleshooting Guide: What to Do If Your 60,000 BTU System Isn’t Heating or Cooling Properly
