Maintenance Checklist: Filters, Coils, Drains & Seasonal Care for Your 60,000 BTU System

🏡 Why Maintenance Matters

When I first installed my 60,000 BTU furnace + AC system, I assumed it would run smoothly for years without me lifting a finger. After all, it was brand new. But by the end of my first summer, the AC wasn’t cooling properly, and water was pooling near my furnace.

A quick service call later, the technician showed me the problem: a clogged drain line and a filter that looked like it had been through a dust storm. The bill? $180—money I could have saved if I’d spent 10 minutes on routine maintenance.

That’s when I realized: regular care isn’t optional—it’s essential.

Not only does maintenance keep your home comfortable, it also:

• Extends the life of your equipment.

• Lowers monthly energy bills.

• Prevents costly emergency repairs.

According to ENERGY STAR, properly maintained HVAC systems can last 40% longer and run up to 20% more efficiently.

So let’s break down what to do—and when—to keep your 60,000 BTU system in top shape.

---

🧽 Filter Maintenance: The First Line of Defense

Your air filter is like your system’s lungs. When it’s clogged, everything else suffers.

🔄 How Often to Change

• Every 1–3 months: Standard homes with average air quality.

• Monthly: If you have pets, allergies, or live in a dusty area.

• Quarterly: If your home is sealed tightly and air quality is good.

📦 Filter Types

• Disposable fiberglass filters: Cheap but less effective.

• Pleated filters: Better at capturing dust and allergens.

• Reusable/washable filters: Eco-friendly but require cleaning.

⚠️ Signs It’s Time to Replace

• Dust buildup around vents.

• Higher energy bills without changing thermostat settings.

• AC or furnace running constantly but uneven comfort.

💡 Samantha’s lesson: I once ignored my filter for four months. The airflow dropped so much that ice formed on my AC coil. Now I keep a reminder on my phone to change it every 60 days.

For more info, see Consumer Reports – Air Filters Guide.

---

❄️ Coil Care: Evaporator & Condenser

Your system has two major coils:

• Evaporator coil (inside): Absorbs heat from your home’s air.

• Condenser coil (outside): Releases that heat outside.

When either gets dirty, efficiency plummets.

🧼 DIY Cleaning Tips

• Evaporator coil:

  • Turn off power.

  • Access panel may need a screwdriver.

  • Gently vacuum with a soft brush.

  • Spray with coil cleaner if needed.

• Condenser coil:

  • Turn off power.

  • Remove debris (leaves, grass clippings).

  • Rinse gently with a garden hose.

👉 Do this at least once a year, ideally in spring before cooling season.

💡 Samantha’s story: One July, my AC blew warm air during a heatwave. The cause? My outdoor condenser was caked with cottonwood fluff. Ten minutes with a hose saved me a $300 service call.

Check Energy.gov – Air Conditioner Maintenance for more coil cleaning guidance.

---

💧 Drain Line & Pan Cleaning

Every cooling cycle creates condensation. That water flows into a drain pan and line. If they clog, you get leaks, mold, and even water damage.

🧪 How to Keep It Clear

1. Turn off power.

2. Locate the drain line near the indoor unit.

3. Flush with vinegar or warm water every 1–2 months.

4. Use a wet/dry vac outside to clear blockages if needed.

👉 Warning signs:

• Water pooling near your furnace.

• Musty or moldy smells near vents.

💡 Samantha’s experience: My first summer, I didn’t even know the drain line existed. It clogged, overflowed, and I had to pay $150 for a cleanup I could have prevented with a $3 bottle of vinegar.

For a guide, see AC Drain Line Maintenance.

---

🔥 Furnace-Specific Seasonal Care

Your furnace deserves attention too—especially before winter hits.

🛠️ What to Check

• Burners: Should be clean with a steady blue flame.

• Flame sensor: Wipe with fine sandpaper if dirty.

• Blower compartment: Vacuum dust buildup.

• Venting: Inspect for blockages, corrosion, or disconnected pipes.

👉 Annual tune-ups by a licensed pro can catch carbon monoxide risks early.

See Energy.gov – Furnaces and Boilers for more on furnace care.

---

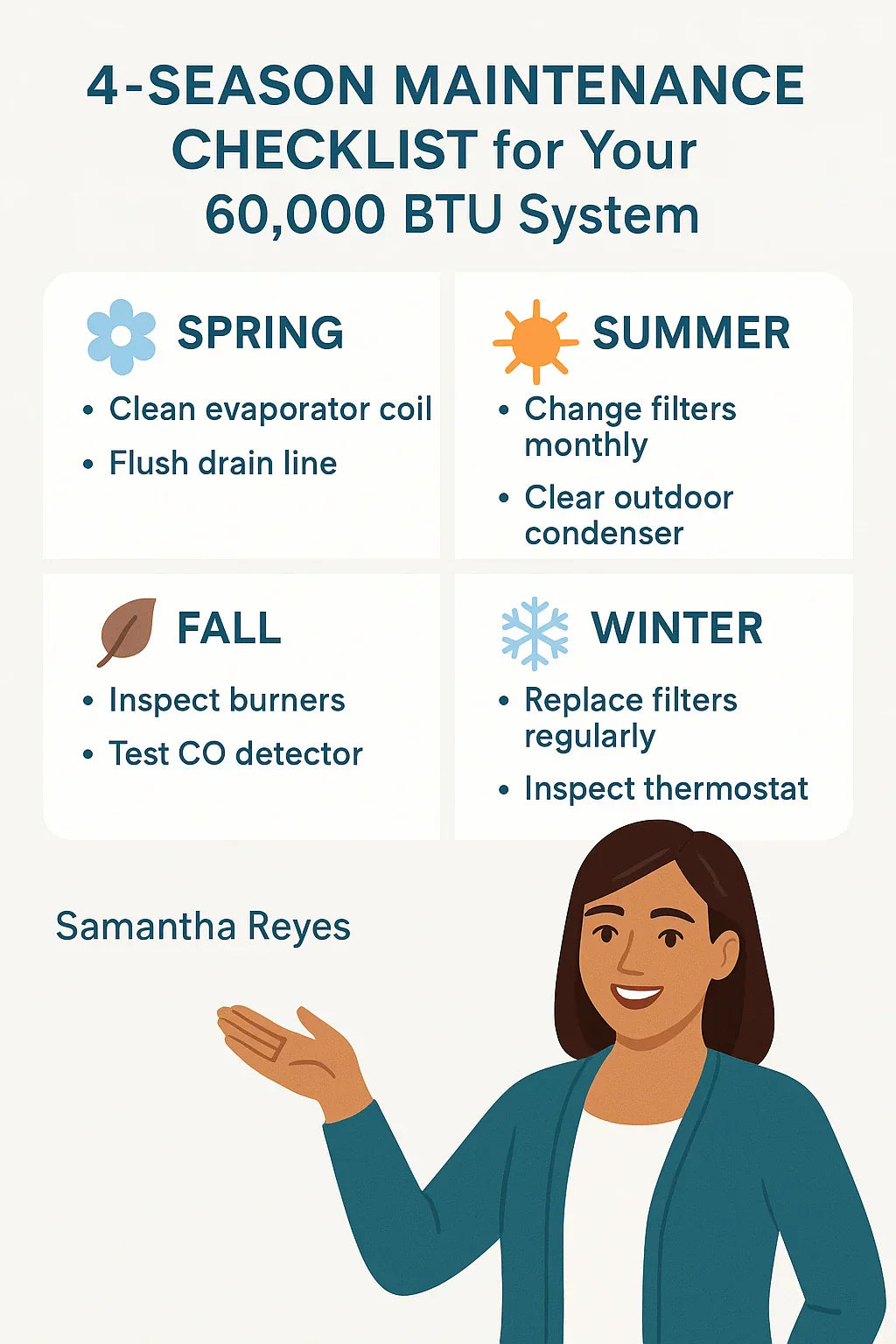

🗓️ Seasonal Maintenance Checklist

I keep a simple 4-season schedule to stay on track.

🌸 Spring

• Clean evaporator coil.

• Flush drain line.

• Check thermostat calibration.

☀️ Summer

• Change filters monthly.

• Rinse outdoor condenser.

• Clear vegetation 2–3 feet around the unit.

🍂 Fall

• Inspect furnace burners.

• Replace or clean filters.

• Test carbon monoxide detectors.

❄️ Winter

• Replace filters regularly.

• Inspect gas line and venting.

• Monitor thermostat and comfort levels.

💡 Samantha’s tip: I made a laminated version of this checklist and taped it inside my utility closet.

For official checklists, see ENERGY STAR – HVAC Maintenance.

---

👷 DIY vs. Professional Maintenance

Not everything needs a technician, but not everything should be DIY either.

✅ Safe DIY Tasks

• Filter changes.

• Flushing the drain line.

• Cleaning condenser with a hose.

• Checking thermostat settings.

🚫 Pro-Only Tasks

• Refrigerant level checks.

• Electrical inspections.

• Combustion analysis on furnaces.

💡 Samantha’s approach: I handle monthly basics but always book an annual professional tune-up in spring. My $120 investment saves me peace of mind—and I know I’m not voiding my warranty.

Check ACHR News – HVAC Service Importance for why pro maintenance matters.

---

✅ Samantha’s Top Maintenance Lessons

Here’s what I’ve learned the hard way:

1. Filters first: They’re cheap, quick, and prevent bigger problems.

2. Outdoor clearance: Keep at least 2 feet around the condenser.

3. Drain vigilance: Flush monthly to prevent leaks.

4. Seasonal mindset: Break tasks into spring, summer, fall, and winter.

5. Pro partnership: Annual tune-ups catch what I can’t see.

---

📝 Conclusion: Consistency Is Key

A 60,000 BTU furnace + AC system is a serious investment—often $9,000 to $12,000 installed. Protecting that investment means giving it the care it deserves.

Routine maintenance isn’t glamorous, but it pays off in comfort, lower bills, and peace of mind.

As I learned after my first costly repair, the difference between a reliable system and a headache often comes down to 15 minutes of maintenance each month.

So grab your checklist, set a few reminders, and keep your system humming year-round.

---

In the next topic we will know more about: Do 60,000 BTU Furnace + AC Systems Qualify for Energy Rebates or Tax Credits in 2025?
