🏠 Introduction: The Day the Cooling Stopped
It was a humid July afternoon — the kind where even sitting still feels like work. I’d just installed my Goodman 3 Ton 15.2 SEER2 R-32 Dual-Fuel System a few months earlier, and everything had been running like clockwork.
Then suddenly, my home wasn’t cooling. The thermostat read 72°F, but warm, muggy air was blowing through the vents. I walked outside to check the condenser, and that’s when I realized — it wasn’t running.
Panic kicked in for a moment. But instead of calling a technician right away, I decided to slow down, stay safe, and troubleshoot systematically.
By the end of the day, I found the problem — a dirty, clogged air filter that caused my system to freeze up. A $12 part nearly made me schedule a $200 service call.
This guide walks you through the exact step-by-step process I used to troubleshoot my Goodman R-32 system — safely, confidently, and without guesswork.
⚡ 1. Step One: Check the Power and Thermostat
Sometimes the simplest answer really is the right one.
When your Goodman system suddenly stops cooling, start by checking the power and thermostat.
🧭 Here’s what I did:
-
Thermostat Mode: Make sure it’s set to Cool and the fan to Auto.
-
Battery Check: Replace thermostat batteries, especially if the screen is dim or blank.
-
Breaker Panel: Go to your electrical panel and look for any tripped breakers. Reset them by turning them OFF, then back ON.
-
Outdoor Disconnect Switch: Verify the small gray box near your condenser is ON and securely closed.
If everything looks fine and the condenser still doesn’t start, wait five minutes. Some smart thermostats and compressors have a built-in restart delay after power loss.
🌬️ 2. Step Two: Verify Airflow and Filter Condition
Low airflow is the most common cause of poor cooling. When air can’t move freely, coils freeze, refrigerant pressure drops, and your system stops cooling properly.
🔍 What to Check:
-
Return Filter: Remove your main air filter and check for dirt buildup. If light can’t pass through it, replace it immediately.
-
Vent Obstructions: Walk around your home and make sure all supply and return vents are open — even in unused rooms.
-
Duct Flexibility: Inspect visible duct runs for crushed or disconnected sections.
I pulled out my return filter and was embarrassed by how filthy it was — dust, pet hair, and even pollen caked the surface. The moment I replaced it, airflow increased dramatically.
It’s amazing how such a small task can make such a big difference.
❄️ 3. Step Three: Inspect the Outdoor Condenser
The outdoor unit — or condenser — is the part that releases heat from your home. When it fails, your system can’t remove warm air, leading to lukewarm airflow indoors.
🧰 My Checklist:
-
Fan Operation: Is the fan spinning? If not, the capacitor or contactor might have failed.
-
Debris and Dust: Clear away leaves, weeds, and dirt. Maintain at least 2 feet of clearance around the unit.
-
Air Temperature: Place your hand above the fan. The air should feel warm — that’s heat being released.
-
Refrigerant Lines: The larger copper line should feel cold and have condensation. If it’s dry and warm, refrigerant might be low.
I used a garden hose to gently rinse the coil fins from top to bottom. Within minutes, the condenser ran quieter and the air from the vents felt cooler.
👂 4. Step Four: Listen for Warning Sounds
Air conditioners are great communicators — you just have to listen.
Common Sounds and What They Mean:
-
Clicking, but no start: Bad contactor or capacitor.
-
Buzzing: Loose electrical connection or relay issue.
-
Hissing or bubbling: Possible refrigerant leak in the copper lines.
-
Rattling: Loose panel or compressor mounting bolts.
-
Silence: Tripped breaker, blown fuse, or failed control board.
When I opened the condenser cover, I could hear a faint click-click but no startup. That’s a telltale sign of a capacitor starting to fail — though in my case, airflow blockage was the main culprit.
⚠️ Safety Tip: Never stick tools or hands into an operating unit. Turn off power before inspecting.
🔗 ACHR News – HVAC Electrical Safety Best Practices
💧 5. Step Five: Check for Frozen Coils or Water Leaks
One of the sneakiest signs of a cooling problem is frost buildup on the refrigerant lines or evaporator coil.
When airflow drops or refrigerant runs low, the coil temperature falls below freezing, creating ice.
🧊 Here’s what to do:
-
Turn the thermostat OFF and the fan ON.
-
Leave the system off for at least 2–3 hours to thaw.
-
Check the drain pan and condensate line for water overflow.
-
Once thawed, restart and observe — if it freezes again, you might have low refrigerant or poor airflow.
I discovered ice buildup on the copper lines outside my air handler. Once thawed and the filter replaced, my Goodman system started cooling normally again.
🔧 6. Step Six: Inspect the R-32 Refrigerant Lines
The R-32 refrigerant inside your Goodman system runs under high pressure and offers better energy transfer efficiency than R-410A.
But any leak — even a small one — will hurt cooling performance.
🚨 Warning Signs of Low Refrigerant:
-
Hissing or bubbling near fittings.
-
Oil residue or wet spots on line connections.
-
Compressor short-cycling (turning on and off rapidly).
-
Weak airflow with warm air output.
Do not attempt to refill refrigerant yourself.
Handling refrigerants requires EPA Section 608 certification.
🔄 7. Step Seven: Check the Dual-Fuel System Controls
Because the Goodman system uses both electric cooling (via R-32 refrigerant) and gas heating, the system automatically switches between modes depending on outdoor temperature.
🔍 What Can Go Wrong:
-
The control board fails to switch properly.
-
The furnace blower runs but the compressor doesn’t engage.
-
A thermostat miscommunication sends mixed signals.
Mike’s Tip:
“Turn off both the furnace and condenser breakers for 10 minutes, then power back on. Sometimes a reset clears a temporary control fault.”
If that doesn’t work, the control board or thermostat relay may need professional testing.
🧯 8. Step Eight: Check for Condensate Drain Clogs
If your system is running but you notice water pooling around the indoor air handler, the condensate line might be clogged.
When this drain backs up, it can trigger a safety switch that shuts off cooling to prevent overflow.
🧰 Fix:
-
Turn system OFF.
-
Locate the white PVC drain pipe near your coil.
-
Remove the cap and pour a cup of white vinegar or diluted bleach.
-
Wait 15 minutes, then flush with water.
You’ll often hear gurgling as the clog clears — that’s a good sign.
☎️ 9. Step Nine: Know When to Call a Professional
Not every problem is DIY-friendly.
Here’s when I knew it was time to call in the experts:
🔧 Professional Service Is Needed When:
-
Compressor doesn’t start, even with proper power.
-
Refrigerant lines are leaking or frozen repeatedly.
-
You smell burning plastic or electrical odor.
-
The breaker keeps tripping after resets.
-
Airflow is normal, but air stays warm.
A licensed HVAC tech can use gauges and meters to check refrigerant pressure, amperage draw, and voltage drops — things homeowners can’t measure safely.
🧠 10. Mike’s Takeaway: Stay Calm, Stay Safe, Stay Curious
When my Goodman R-32 Dual-Fuel System stopped cooling, I was tempted to assume the worst.
But slowing down and following a methodical process not only fixed the issue — it taught me how to understand my system better.
Here’s what I learned that day:
-
Most cooling failures are simple: dirty filters, clogged drains, or power interruptions.
-
Safety should always come first. Turn off power before touching anything.
-
And if it’s refrigerant or wiring-related, call a pro.
“The trick isn’t knowing how to fix everything — it’s knowing what to check before you need help.”
Now, I follow a personal rule: before every summer, I clean my coils, replace my filter, and double-check that condensate drain. That’s 90% of preventive troubleshooting right there.
🧾 11. Quick Troubleshooting Summary
| Problem | Likely Cause | Homeowner Fix | Call a Pro? |
|---|---|---|---|
| System won’t turn on | Power or thermostat issue | Reset breakers, replace batteries | Only if unresponsive |
| Weak airflow | Dirty filter or blocked vents | Replace filter, open vents | If problem persists |
| Blowing warm air | Dirty coils or low refrigerant | Clean coils | ✅ Yes, for refrigerant |
| System runs constantly | Frozen coil or control issue | Turn off, thaw coil | ✅ Yes, if recurring |
| Water leaking | Clogged condensate drain | Flush with vinegar | If leak persists |
| Loud buzzing or clicking | Electrical or compressor fault | Turn off system | ✅ Yes, immediately |

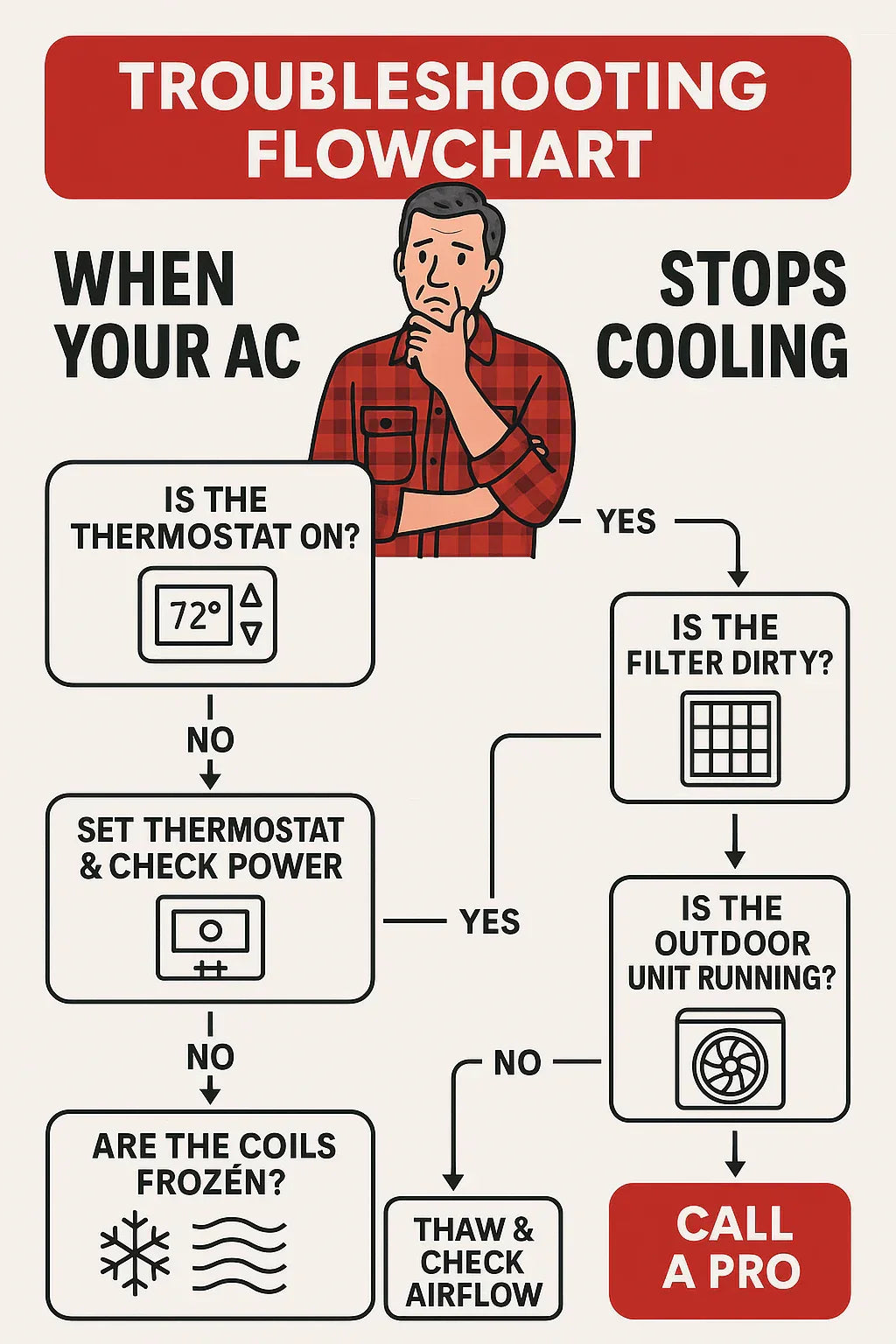

🖼️ Infographic: Troubleshooting Flowchart
Title: When Your AC Stops Cooling: Mike’s Step-by-Step Flowchart
Design:
-
Goodman red-gray-white color scheme.
-
Icons for thermostat, filter, coil, condenser, and phone call.
-
Yes/No arrows leading from “Is the thermostat on?” to “Call a Pro.”
Sections:
-
Check power → 2. Check filter → 3. Check outdoor unit → 4. Check coils → 5. Call technician.
🧩 Internal Linking Suggestions
-
Maintenance Checklist: Reinforces the importance of preventive care.
-
SEER2 Simplified: Explains how efficiency relates to performance.
-
Installation Guide: Helps new homeowners understand setup and wiring basics.
In the next topic we will know more about: R-32 vs. R-410A — Why the Switch Matters for Homeowners
