Troubleshooting Guide: What Mike Did When His Mini Split Stopped Cooli

0 comments

There’s nothing worse than walking into your house on a hot summer day and realizing your mini split isn’t cooling. I’ve been there. One afternoon last July, instead of a refreshing blast of cold air, I got nothing but lukewarm breeze.

At first, I panicked—was my DIY MiniSplit system already failing after just a couple of years? But after some detective work, I figured out the problem, fixed it, and got my comfort back without calling in a pro.

In this guide, I’ll walk you through the step-by-step troubleshooting process I used when my mini split stopped cooling. These steps can save you time, money, and stress—and help you know when it’s time to call in a professional.

❓ Why Mini Splits Sometimes Stop Cooling

Mini splits are reliable systems, but like any HVAC equipment, they can run into issues. Some common reasons they stop cooling include:

Dirty air filters restricting airflow.
Blocked outdoor condenser from leaves or debris.
Clogged drain lines causing the system to shut down.
Electrical issues such as loose wires or tripped breakers.
Refrigerant leaks (rare on DIY systems but possible).

👉 According to Energy.gov, clogged filters and dirty coils are the most frequent causes of reduced cooling performance in ductless systems.

For me, the culprit turned out to be simple—but I only knew that after working through the basics first.

🧰 Step 1: Check the Basics

It sounds obvious, but before tearing into your system, make sure the basics are covered.

✅ Remote in Cool Mode: Ensure your remote or wall controller is set to cooling and not fan-only or dry mode.
✅ Temperature Setting: Set the thermostat at least 3–5°F lower than room temperature.
✅ Remote Batteries: Swap them out if they’re weak.
✅ Breaker Reset: Turn off the breaker for 5 minutes, then restore power to reset the system.

💡 Mike’s tip: “The first time my unit stopped cooling, I almost called a pro—turns out my teenage son had set it to fan mode. Don’t overlook the easy fixes.”

🧼 Step 2: Inspect the Indoor Unit

Once the basics are checked, move on to the indoor air handler.

🔹 Clean or Replace Filters

Remove filters and wash them with warm soapy water.
Let them dry fully before reinstalling.
Replace if they’re worn or torn.

👉 Energy.gov notes that dirty filters alone can reduce system efficiency by 15% or more.

🔹 Check the Coils

Look for dust, mold, or frost on the evaporator coil.
Clean with coil cleaner spray if necessary.

🔹 Confirm Airflow

Make sure the fan is running and air is flowing through vents.
Weak airflow often points to dirty filters, blower issues, or blocked coils.

For me, this was the fix—my filters were clogged after a month of summer pollen. Once I rinsed them out, cooling came right back.

🌬️ Step 3: Check the Outdoor Condenser

If cleaning filters doesn’t fix the issue, head outside.

🔹 Clear Debris

Remove leaves, grass, or dirt around the unit.
Maintain at least 2 feet of clearance for proper airflow.

🔹 Check the Fan

Make sure the outdoor fan is spinning when cooling mode is active.
If not, check breaker or look for error codes.

🔹 Listen for Noises

Grinding or rattling could mean loose fan blades or debris stuck inside.

💧 Step 4: Inspect the Drain Line

Mini splits remove humidity as they cool, and that moisture needs to drain outside. A clogged drain line can cause the system to shut down or blow warm air.

🔹 What to Check

Look for standing water near the indoor unit.
Inspect the condensate drain line for clogs.

🔹 Fix

Flush the line with a vinegar solution or a wet/dry vacuum to remove blockages.

💡 Mike’s note: “I had a warm-air issue one summer—it turned out the drain line was clogged with algae. After flushing with vinegar, the system cooled like new.”

⚡ Step 5: Electrical Checks & Error Codes

Modern mini splits are smart—they’ll often tell you what’s wrong.

🔹 Look for Error Codes

Check the indoor display for flashing lights or codes.
Reference the manual or manufacturer’s site for meaning.

👉 Fujitsu General and Mitsubishi Electric both provide online code charts.

🔹 Inspect Electrical Connections

Look for loose wires or corroded terminals in the outdoor unit.
Tighten if needed (with breaker off).

For me, a loose wire once caused an E1 error code. A quick tighten with a screwdriver got the system back online.

🛠️ Step 6: When It Might Be Refrigerant

DIY systems like MRCOOL use pre-charged sealed line sets, so refrigerant leaks are less common. But they can still happen.

Signs of Low Refrigerant

Ice forming on coils.
Weak airflow even with clean filters.
Persistent warm air.

If you suspect a leak, it’s time to call a pro.

📞 Step 7: When to Call a Professional

Sometimes, DIY troubleshooting isn’t enough. Call a professional if:

The system won’t power on at all.
You suspect a refrigerant leak.
You smell burning or see sparks.
Multiple error codes appear.
None of the basic steps restore cooling.

👉 According to HomeAdvisor, the average mini split repair costs $200–$700, depending on the issue. Catching problems early with troubleshooting can reduce those costs.

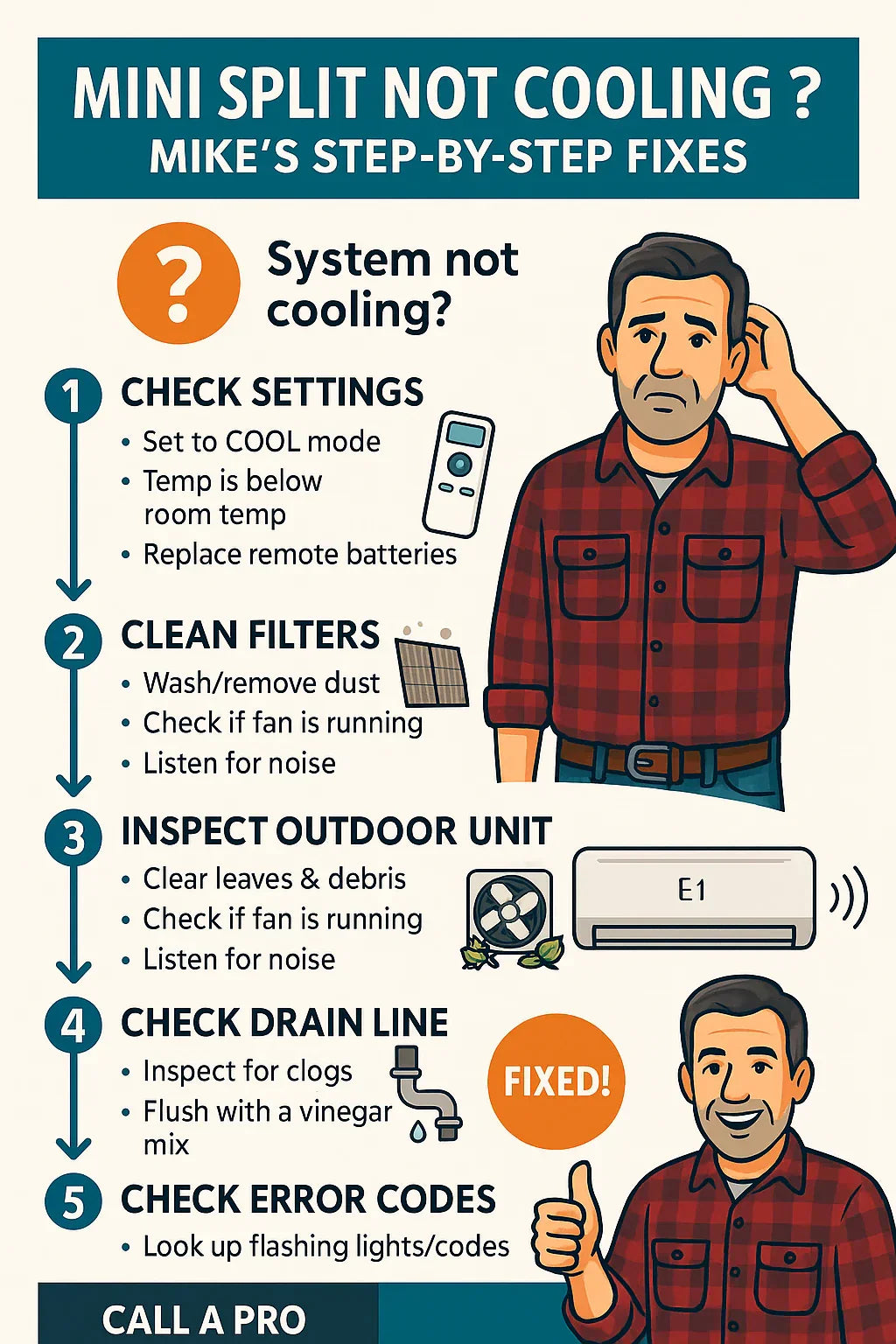

✅ Mike’s Troubleshooting Checklist

Here’s my go-to checklist when my mini split isn’t cooling:

Most of the time, the fix is one of these simple steps. And even if it isn’t, you’ll have solid info to give an HVAC tech.

📊 Final Thoughts

When my mini split stopped cooling, I thought I was in for a major repair bill. Instead, it took 15 minutes and a filter cleaning to get things back on track.

The key is knowing how to troubleshoot. With a systematic approach—starting from the simple stuff and working your way up—you can solve most problems yourself.

And when it does turn out to be something bigger, you’ll know exactly when to call in a professional.

Keep this guide handy, and you’ll never feel helpless when your DIY mini split stops cooling.
