hen I first decided to install a DIY mini split, I figured the toughest part would be drilling the wall hole or hooking up the line sets. But the challenge that almost tripped me up was something simpler: space and noise planning.
If you don’t think about where your indoor and outdoor units will fit—and how loud they’ll be—you might end up with airflow problems, rattling vibrations, or worse, a system that doesn’t run efficiently.
In this guide, I’ll walk you through everything I learned about clearance requirements, placement tips, and noise levels before I installed my system. That way, you can avoid mistakes and make sure your mini split fits your space and your lifestyle.
❓ Why Space & Noise Planning Matters
A mini split is more flexible than central HVAC, but it’s not a magic box you can stick anywhere. Both the indoor air handler and the outdoor condenser need breathing room to perform well.
-
Too little clearance = blocked airflow and inefficient cooling.
-
Poor placement = louder operation, hot/cold spots, or maintenance headaches.
-
Ignoring noise = sleepless nights if the outdoor unit hums under your bedroom window.
According to the U.S. Department of Energy, placement of indoor and outdoor components is one of the most important factors for system efficiency and comfort.
💡 Mike’s Story: “I almost mounted my indoor unit right above my couch, but the ceiling clearance would’ve blocked airflow. Glad I measured first—I shifted it 6 inches higher and it runs perfectly now.”
🖼️ Indoor Unit Space Needs
The indoor air handler is that sleek, wall-mounted unit most people think of when they picture a mini split. It doesn’t take up much room, but you can’t just stick it anywhere.

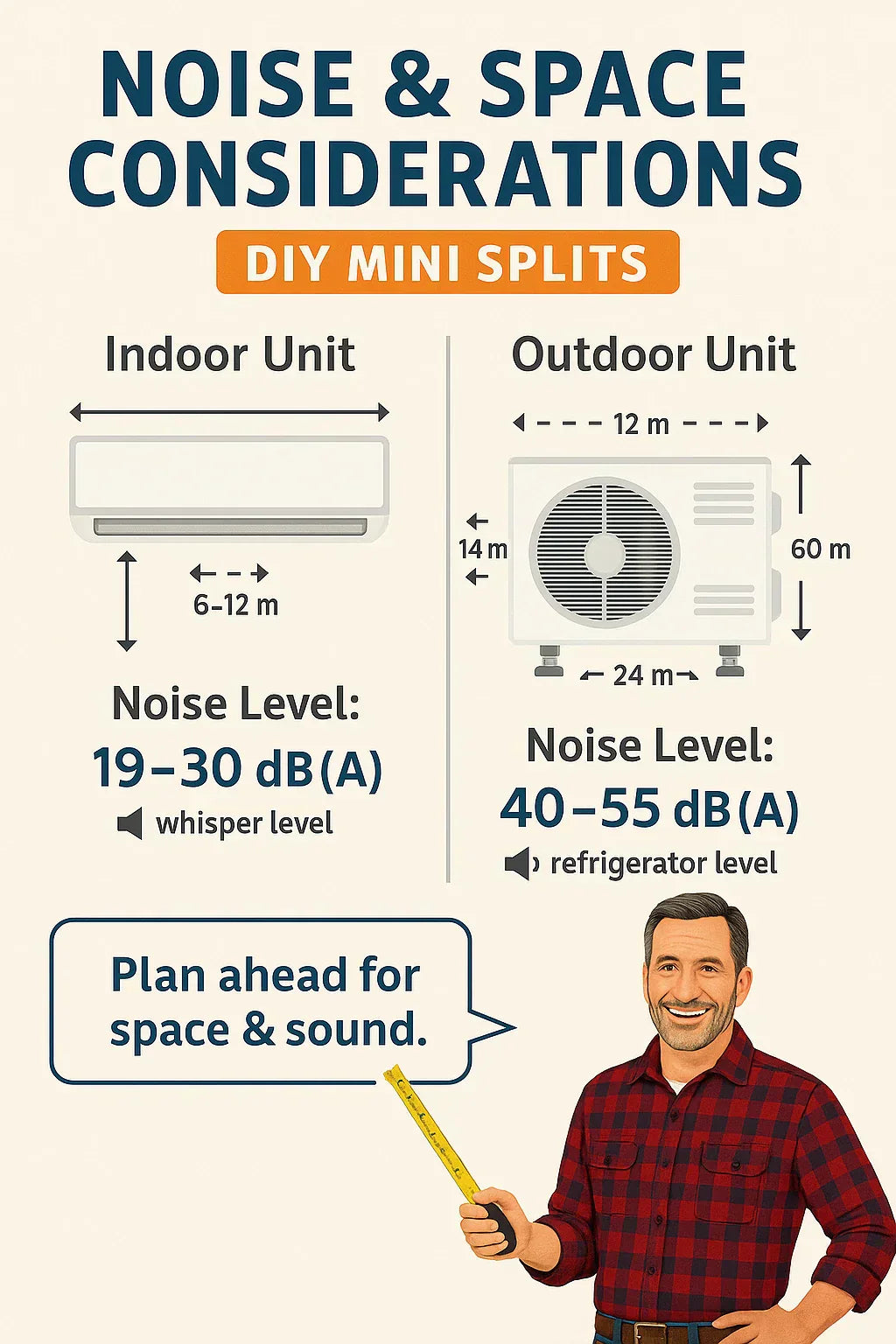

📏 Clearance Guidelines
Most manufacturers recommend:
-
At least 6 inches below the ceiling.
-
At least 6–12 inches clearance on each side.
-
7 feet above the floor for best airflow.
-
Away from direct sunlight or heat sources.
🛋️ Placement Tips
-
Mount high on the wall for better circulation.
-
Don’t place above large furniture (like a tall bookcase or cabinet).
-
Avoid spots where airflow blows directly onto people’s faces in bed or at a desk.
💡 Mike’s Tip
“I had to shift my unit a foot to the left because of a stud and window trim. Measure twice before you drill your wall hole—it saves headaches later.”
🌬️ Outdoor Unit Space Needs
The outdoor condenser is where most people run into trouble. It’s bigger than they expect, and it needs airflow to survive hot summers and cold winters.
📏 Clearance Guidelines
From Mitsubishi Electric:
-
At least 12 inches clearance from the back wall.
-
At least 24 inches clearance in the front.
-
At least 60 inches clearance above.
-
2–3 feet clearance on the sides.
🧱 Mounting Options
-
Concrete pad: Best for ground installs, keeps stable.
-
Wall brackets: Saves yard space, good for snowy climates.
-
Rooftop mount: Works for flat roofs if reinforced.
🌀 Why Clearance Matters
If you crowd your condenser:
-
Airflow gets blocked, reducing cooling efficiency.
-
Heat can’t disperse, causing higher pressures.
-
The compressor works harder, shortening lifespan.
👉 Energy.gov warns that blocked condensers are one of the top causes of HVAC inefficiency.
🔊 Indoor Noise Levels
One of the biggest surprises for me was how quiet mini splits are indoors.
📊 Average Indoor Noise Levels
-
19–30 dB(A), depending on fan speed.
-
For comparison:
-
Whisper: 20 dB(A)
-
Rustling leaves: 25 dB(A)
-
Library: 30 dB(A)
-
That means even in a bedroom or nursery, the indoor unit is quieter than most background noises.
👉 ENERGY STAR highlights this as a major advantage over noisy window units or portable ACs.
💡 Mike’s Experience
“Mine runs so quietly in the bedroom, I often forget it’s even on. The only time I notice it is if I crank the fan to high, and even then it’s less noise than a box fan.”
🔊 Outdoor Noise Levels
Outdoor condensers are louder than indoor heads, but still much quieter than central AC systems.
📊 Average Outdoor Noise Levels
-
40–55 dB(A) depending on brand and size.
-
For comparison:
-
Refrigerator: 40 dB(A)
-
Quiet conversation: 50 dB(A)
-
Normal central AC: 60–70 dB(A)
-
🔧 Ways to Reduce Outdoor Noise
-
Placement: Keep away from bedroom windows.
-
Vibration pads: Rubber pads reduce humming on concrete pads.
-
Line set covers: Prevent rattling where lines enter the wall.
👉 HomeAdvisor notes that outdoor noise is rarely a dealbreaker, but smart placement matters for comfort.
💡 Mike’s Story
“I almost put my condenser right under our bedroom window—thankfully I moved it 10 feet over. Now it’s just a faint hum I barely notice when outside.”
⚠️ Common Mistakes to Avoid
From what I’ve seen (and almost done myself), here are the biggest placement and noise mistakes with DIY mini splits:
-
Mounting indoor unit too close to the ceiling → restricts airflow.
-
Installing outdoor condenser in tight corners or sheds → overheats, reduces lifespan.
-
Skipping vibration pads → adds annoying hum to walls and floors.
-
Not planning line set routes → awkward bends create noise and stress points.
-
Outdoor unit under a deck with poor ventilation → airflow blocked, noise echoes.
👉 Fujitsu General emphasizes that poor placement is one of the leading causes of customer complaints—not the equipment itself.
✅ Mike’s Final Verdict
So, will a DIY mini split fit in your room or utility area? The answer is almost always yes—as long as you plan ahead.
Here’s my summary:
-
Indoor units: Need 6 inches clearance from ceiling and sides. Expect whisper-quiet operation.
-
Outdoor units: Need 2–3 feet of breathing space, and noise levels like a fridge or quiet conversation.
-
Noise control: Indoors = nearly silent. Outdoors = faint hum, easy to manage with placement.
-
Plan before you drill: Measure twice, mount once.
For me, planning space and noise made all the difference. My system is quiet, efficient, and perfectly placed. If you’re thinking DIY, just measure your spaces carefully—and you’ll be fine.
