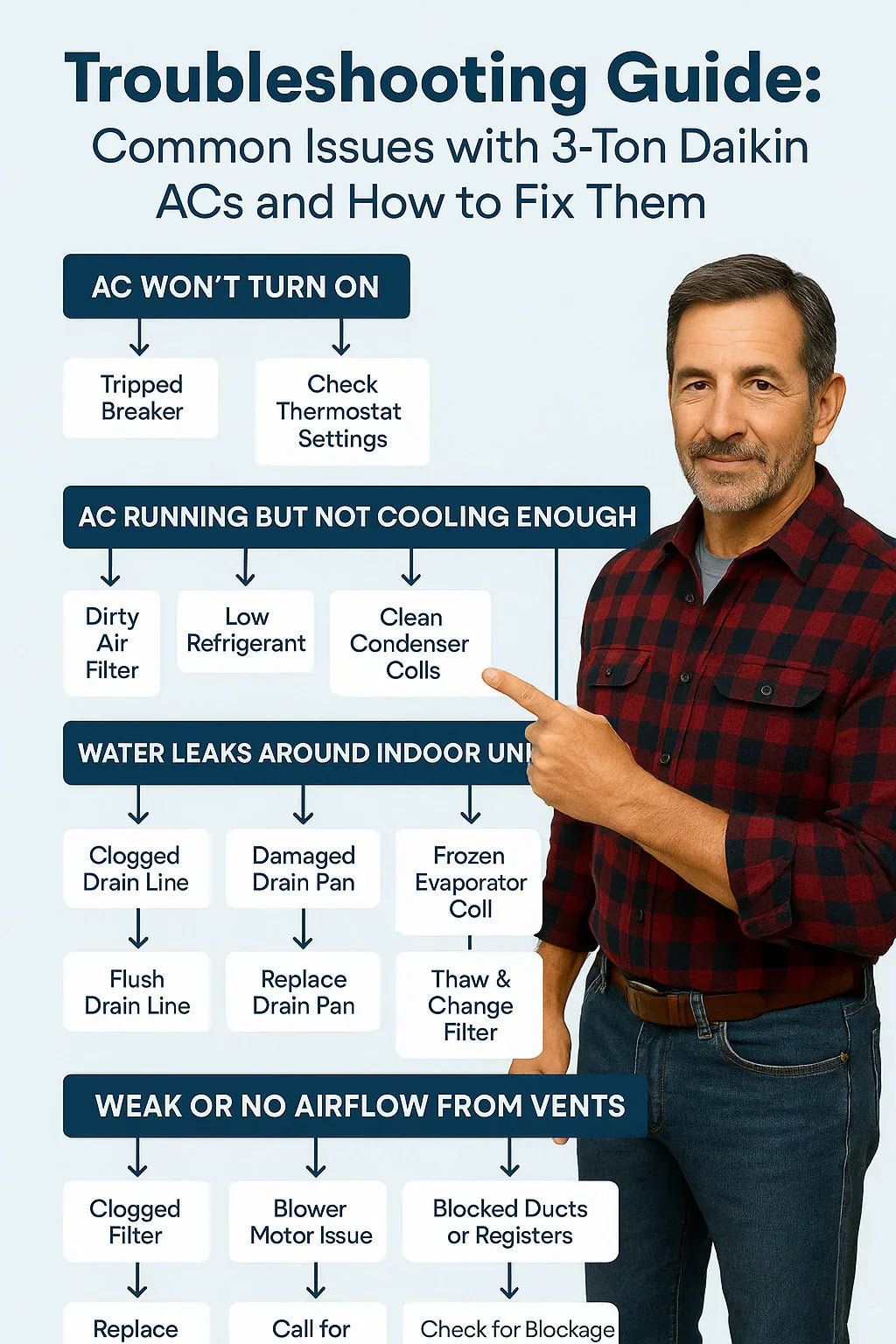

Troubleshooting Guide: Common Issues with 3-Ton Daikin ACs and How to

0 comments

👋 Introduction – Mike’s Troubleshooting Story

Hey folks, Mike here.

I’ll let you in on a secret: half of the AC “emergencies” I get called for could’ve been solved without me even getting in the truck.

System won’t turn on? Usually a tripped breaker.
Unit leaking water? Nine times out of ten, it’s a clogged drain line.
No cold air? Dirty filter.

Don’t get me wrong — I love helping people. But I’d rather save you the service call if it’s something simple. And when it’s not simple, I’ll show you where the line is between a DIY fix and when to call in a pro.

So let’s dive into the most common problems with 3-ton Daikin light commercial split systems — and how to fix them.

Daikin Light Commercial 3 Ton Multi-Positional Air Conditioning Split System with 13.8 SEER2 - DX3SEA3630,AMST36CU1400

⚡ 1. AC Won’t Turn On

Nothing’s worse than hitting the thermostat and… nothing.

Possible Causes

Tripped breaker or blown fuse.
Thermostat not set correctly.
Loose wiring or bad control board.

Step-by-Step Fixes

Check the breaker panel
- If the breaker is tripped, reset it once.
- If it keeps tripping, call a pro — that’s a bigger electrical issue.
Verify thermostat settings
- Make sure it’s on cool and the temperature is below room temp.
- Replace batteries if it’s a battery-powered thermostat.
Inspect disconnect switch
- Outdoor units often have a safety disconnect. Make sure it’s engaged.

👉 Cost if you call a pro: $150–$300 service call if it’s just electrical reset, $500–$800 if a control board needs replacing.

👉 Mike’s Note: “I’ve driven an hour just to flip a breaker back on. Always check your panel before calling me — you’ll save yourself $200.”

❄️ 2. AC Running But Not Cooling Enough

The fan is blowing, but the air isn’t cold.

Possible Causes

Dirty air filter.
Low refrigerant charge.
Dirty condenser coils.
Leaky ductwork.

Step-by-Step Fixes

Replace the filter
- Should be done every 1–3 months for commercial systems.
- Dirty filters choke airflow and cause frozen coils.
Clean outdoor condenser
- Hose off dust, dirt, or debris from the fins.
- For heavy dirt, use a coil cleaner spray.
Check supply vents
- Make sure nothing is blocking airflow inside.
Call a pro for refrigerant check
- If cleaning and filters don’t help, refrigerant may be low.

👉 Cost if you call a pro: Filter change = free DIY. Coil cleaning = $100–$250. Refrigerant recharge = $200–$600.

📚 Reference: Energy.gov – Common AC Problems

👉 Mike’s Note: “If it’s weak cooling, 8 times out of 10 it’s airflow. Don’t jump straight to ‘low Freon’ — that’s usually not it.”

💧 3. Water Leaks Around Indoor Unit

You walk into the mechanical room and see water puddling.

Possible Causes

Clogged condensate drain line.
Cracked or rusted drain pan.
Frozen evaporator coil.

Step-by-Step Fixes

Unclog the drain line
- Use a wet/dry vacuum on the outdoor drain pipe.
- Flush with vinegar or bleach to kill algae.
Inspect the drain pan
- If cracked or rusted, replace (usually $150–$400).
Check the coil
- If iced over, turn off system, replace filter, and let it thaw.

👉 Cost if you call a pro: $150–$250 for drain cleaning, $300–$500 for pan replacement, $800–$1,200 if coil damage caused the leak.

👉 Mike’s Note: “Most leaks I see are nothing but a clogged drain line. A $5 wet/dry vac attachment can save you hundreds.”

🌀 4. Weak or No Airflow from Vents

The system is running, but barely any air is coming out.

Possible Causes

Clogged filter.
Blower motor failure.
Blocked ducts or closed registers.

Step-by-Step Fixes

Check and replace filter (again, always start here).
Inspect registers inside — make sure they’re open.
Look at ducts for collapsed sections or leaks.
If blower isn’t spinning, call a pro.

👉 Cost if you call a pro: Blower motor replacement = $400–$900 depending on type.

👉 Mike’s Note: “If you’re hearing the unit hum but no air blows, odds are the blower’s shot. Don’t run it — you’ll overheat the motor.”

🔊 5. Strange Noises (Buzzing, Grinding, Hissing)

Noises are your system crying for help.

What the Noises Mean

Buzzing: Loose parts, electrical issues.
Grinding/Squealing: Failing blower motor or bearings.
Hissing: Refrigerant leak.

Step-by-Step Fixes

Tighten access panels and screws.
Shut system down if grinding. Running it could fry the motor.
Call a pro for hissing or buzzing. That’s refrigerant or electrical.

👉 Cost if you call a pro: Electrical fix = $150–$400. Motor replacement = $500–$900. Refrigerant leak repair = $200–$1,000 depending on location.

👉 Mike’s Note: “If you hear grinding, turn it off immediately. I’ve seen motors cook themselves because folks let it ride.”

🌡️ 6. Short Cycling (Turns On/Off Too Often)

System keeps turning on and off without completing full cycles.

Possible Causes

Oversized system.
Thermostat placement near heat source.
Dirty filters or coils.

Step-by-Step Fixes

Clean or replace filter.
Check thermostat location. If near sunlight or appliances, it may need moving.
Clean condenser and evaporator coils.
If oversized unit, discuss zoning or controls with contractor.

📚 Reference: Daikin Troubleshooting Manual

👉 Cost if you call a pro: Thermostat relocation = $150–$400. Coil cleaning = $150–$300.

👉 Mike’s Note: “Short cycling is like stop-and-go traffic for your AC. It wears the system down fast.”
