Ask any pro HVAC installer what causes most botched PTAC and through-the-wall AC installations, and they’ll give you the same answer:
“Wrong wall, wrong place, wrong prep.”
Homeowners often pick a wall because it looks right. It’s near an outlet. It’s centered. It’s convenient.
But PTACs don’t care about aesthetics — they care about airflow clearance, electrical access, and drainage slope.
Amana Distinctions Model 12,000 BTU PTAC Unit with 3.5 kW Electric Heat
So years ago, after fixing hundreds of bad installs, I created something I call The Install Triangle — a simple, three-point precheck that determines exactly which wall is viable before you ever cut the first stud or buy the sleeve.
If a wall fails even one point of the Install Triangle, I don’t use it.
If it passes all three, that’s your perfect wall — guaranteed.
Let’s break it down.

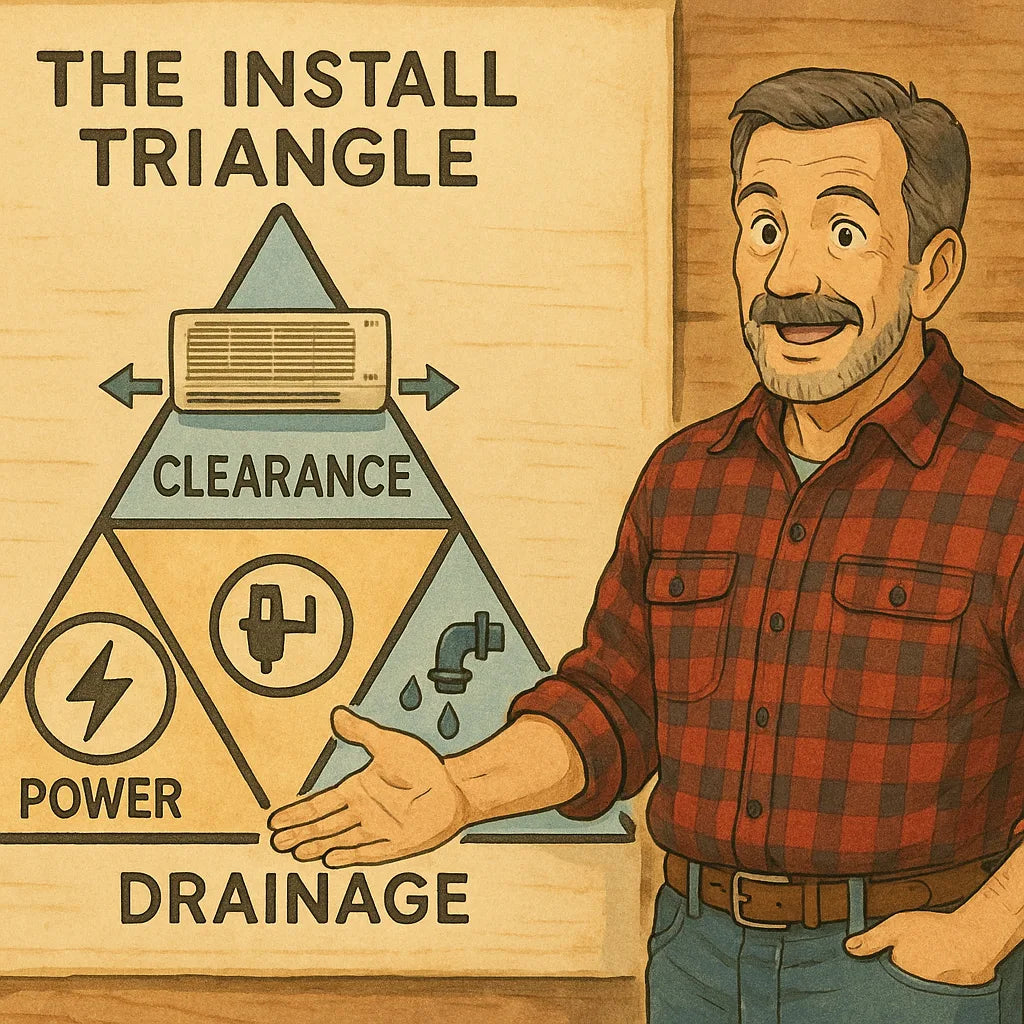

🔺 1. What Is the Install Triangle? (Mike’s Golden Rule #1)
Before selecting the wall for a PTAC, heat pump, or through-the-wall AC, ask:
Does this wall give me:
-
Clearance
-
Power
-
Drainage
If all three sides of the triangle are solid, the installation will last for decades.
If even one fails, you’re signing up for noise, leaks, breaker trips, heat loss, airflow restrictions, and long-term repair headaches.
The Install Triangle is simple, but it prevents:
-
Overheating
-
Vibration transfer
-
Water intrusion
-
Breaker overload
-
Short cycling
-
Mold around the sleeve
-
Airflow bottlenecking
-
Dead spots inside the room
-
Structural damage
Let’s go through each point.
📏 2. Point One: Clearance — The Space for Air to Do Its Job
Airflow clearance is the first and most important rule in the Install Triangle.
PTACs and wall units don’t just condition air — they move a massive amount of it.
If airflow hits:
-
furniture
-
curtains
-
walls
-
ceiling beams
-
closet doors
-
TV stands
-
bed frames
…it dies right there, causing uneven temperatures in the room.
✔️ A. Mike’s Minimum Clearance Requirements
Inside Clearance (Room Side)
-
3 feet of open space directly in front
-
1 foot on each side
-
2 feet upward before any shelf or window sill
-
No soft materials (like curtains) within 18 inches
Outside Clearance
(If the sleeve goes through to exterior air)
-
12 inches of free space behind the vent
-
No shrubs, fences, or decks blocking exhaust
-
Exterior airflow MUST be unchoked
Reference: DOE airflow recommendations
https://www.energy.gov/energysaver/room-air-conditioners
Good airflow = quiet, efficient, powerful cooling.
✔️ B. Clearance for Furniture Layout
A common mistake:
“Let’s put the PTAC under the window because that’s where hotels put them.”
But your furniture isn’t placed like a hotel’s.
Mike checks:
-
Bed placement
-
Desk placement
-
TV locations
-
Dressers
-
Side tables
-
Kids’ bunkbeds
-
Door swing
If airflow is blocked by furniture, pick another wall.
✔️ C. Clearance for Service Access
I always tell homeowners:
“If I can’t remove the unit without moving furniture, it’s the wrong wall.”
There must be enough room to slide the PTAC out of the sleeve for maintenance.
⚡ 3. Point Two: Power — The Electrical Backbone of a Safe Install
If the wall passes clearance, you move to the next point of the triangle:
Can this wall safely supply the power required?
A PTAC’s electrical draw includes:
-
Cooling amperage
-
Heat kit amperage
-
Start-up surge
-
Fan draw
-
Defrost cycle (if heat pump)
-
Auxiliary heater (if installed)
Choose the wrong wall — one too far from the panel or sharing the wrong circuit — and you’ll face:
❌ Constant breaker tripping
❌ Electrical overheating
❌ Poor thermostat performance
❌ Voltage drop
❌ Burnt wiring
Let’s break it down.
✔️ A. Voltage Requirements (115V vs 230V)
Most PTACs with robust heat kits require 230/208V, not standard 115V.
If the chosen wall only has standard outlets, you must:
-
Run a new high-voltage circuit
-
Install the correct receptacle
-
Possibly install a disconnect
✔️ B. Circuit Amperage Requirements
A typical 12k PTAC with a 3.5 kW heater requires:
-
Cooling draw: ~7 amps
-
Heating draw: ~16–17 amps
-
Startup: 2–4 amps
-
Total: ~25–27 amps
-
Circuit required: 30A dedicated
Reference for electrical code compliance
If the wall is too far from the panel → voltage drop
If the wall shares a circuit → guaranteed tripping
If the panel lacks space → choose another wall or upgrade service
✔️ C. Wire Routing Feasibility
Even if power exists, the question becomes:
Can wiring reach the cavity cleanly and safely?
Your route should avoid:
-
Plumbing lines
-
Fire blocks
-
Metal studs
-
Brick cavities
-
Structural beams
-
Ductwork
If routing requires unsafe drilling or structural modification, the wall fails the test.
✔️ D. Power Placement Relative to the Sleeve
Your outlet or hardwire connection must:
-
Be reachable from the PTAC cord
-
Not require bending the cord into the sleeve
-
Avoid crossing drain paths
-
Meet code for outlet height
-
Sit on the correct side of the unit
💧 4. Point Three: Drainage — The Most Overlooked Part of Every Install
Clearance and power make sense to most people.
But drainage? That’s the silent destroyer.
Every PTAC generates gallons of condensation during peak cooling.
If the water doesn’t drain properly:
❌ Walls rot
❌ Mold forms
❌ Studs weaken
❌ Bugs breed
❌ Rust forms inside the sleeve
❌ Exterior siding gets water-damaged
Most homeowners think drainage is “just tilt it outside.”
Nope. There’s more to it.
✔️ A. The Sleeve Pitch Rule (Mike’s Standard)
The sleeve must be pitched:
-
¼ inch downward toward the exterior
Not up.
Not level.
Not “slightly off.”
Exactly ¼ inch is the engineering sweet spot.
Too much pitch = noise + backflow
Too little pitch = pooled water + mold
✔️ B. Confirm Exterior Drain Path
Look at what’s outside the wall:
-
Does water drip safely to ground?
-
Is there a deck or walkway under it?
-
Are shrubs blocking airflow or drip lines?
-
Is siding angled to deflect water?
-
Is there a risk of freezing in winter climate?
If water has no place to go → pick another wall.
Reference for best drainage practices:
https://www.energy.gov/energysaver/weatherize
✔️ C. Flashing & Waterproofing Compatibility
Your wall must allow:
-
Exterior flashing
-
Drip edge
-
Sealant application
-
Waterproof membrane or sealing tape
If siding or wall texture prevents waterproofing, it fails the triangle.
✔️ D. Interior Moisture Control
Check the interior:
-
Does drainage interfere with electrical lines?
-
Will water run back into the wall in high humidity?
-
Is insulation water-resistant (closed-cell foam)?
If not → wrong wall.
🧭 5. Choosing the Wall: How Mike Uses the Install Triangle in Real Homes
Here’s how I walk through a home using the triangle.
Room #1: Bedroom
-
Clearance: FAIL (bed blocks airflow)
-
Power: PASS
-
Drainage: PASS
→ Result: Choose another wall.
Room #2: Living Room
-
Clearance: PASS
-
Power: FAIL (shared with TV + fireplace blower)
-
Drainage: PASS
→ Result: I can add a new circuit if homeowner agrees, or pick another wall.
Room #3: Office
-
Clearance: PASS
-
Power: PASS
-
Drainage: FAIL (backyard deck blocks runoff)
→ Result: Choose a different exterior-facing wall.
Room #4: Guest Room
-
Clearance: PASS
-
Power: PASS
-
Drainage: PASS
→ This is the final winner.
The Install Triangle always reveals the truth.
📋 6. Mike’s Install Triangle Checklist (Print This Before Cutting Anything)
Clearance
-
☐ 3 ft in front
-
☐ 1 ft on sides
-
☐ Safe from curtains & furniture
-
☐ Exterior airflow unobstructed
-
☐ Service access available
Power
-
☐ Correct voltage (115 or 230)
-
☐ Correct circuit amperage
-
☐ No shared circuits
-
☐ Clean wire routing path
-
☐ Outlet positioned correctly
Drainage
-
☐ ¼ inch outward pitch
-
☐ Exterior drip path clear
-
☐ Water won’t hit decks or siding
-
☐ Wall can accept flashing & sealant
-
☐ Interior moisture protected
If all three are checked → install here.
If even one fails → pick another wall or redesign.
🎯 Conclusion: Picking the Right Wall Is 80% of the Job
The most expensive PTAC in the world cannot fix:
-
Bad airflow
-
Lack of power
-
Poor drainage
-
Rotting studs
-
Blocked vents
-
No exterior clearance
-
Humidity creeping inside the wall
The right wall gives you:
✔️ Better comfort
✔️ Longer unit lifespan
✔️ Energy efficiency
✔️ Quieter operation
✔️ No mold or leaks
✔️ Easier servicing
✔️ Perfect airflow patterns
That’s the power of Mike’s Install Triangle —
smart decisions before the saw ever touches the wall.
