Space & Noise Considerations: Will a 4-Ton Heat Pump Fit in Your Utility Area?

🏠 Introduction: Mike’s Practical Concern

When Mike decided to upgrade to a Goodman 4 Ton 15.2 SEER2 heat pump, he thought the toughest part would be choosing between single-stage and two-stage models. But as soon as he started planning the installation, another question popped up:

“Where is this thing going to fit—and how loud will it be once it’s running?”

Many homeowners focus on efficiency ratings, costs, and rebates, but forget about the physical size and noise of their new system until installation day. That can lead to problems: outdoor units too close to windows, air handlers that won’t fit through doors, or noisy equipment ruining a quiet patio.

Mike decided to get ahead of the problem. He measured, planned, and researched before the installer arrived. In this guide, we’ll walk through what he learned—so you’ll know exactly what to expect when bringing home a 4-ton Goodman system.

---

📏 Physical Size of a 4-Ton Goodman Heat Pump

Before you plan where to put it, you need to know what you’re working with.

Outdoor Unit (Condenser) Dimensions

The Goodman GLZS4BA4810 (4-ton condenser) has approximate dimensions:

• Width: 35–38 inches

• Depth: 35–38 inches

• Height: 40–45 inches

• Weight: 200–250 lbs

Think of it as roughly the footprint of a washer or dryer, but taller.

Indoor Air Handler (AMST48CU1300)

• Width: 21–24 inches

• Depth: 22–28 inches

• Height: 55–60 inches

• Weight: ~150–200 lbs

This is the part that typically goes in a utility closet, basement, attic, or garage.

Mike was relieved to find that the indoor unit would fit easily in his basement utility area—but the outdoor condenser was bulkier than he expected.

---

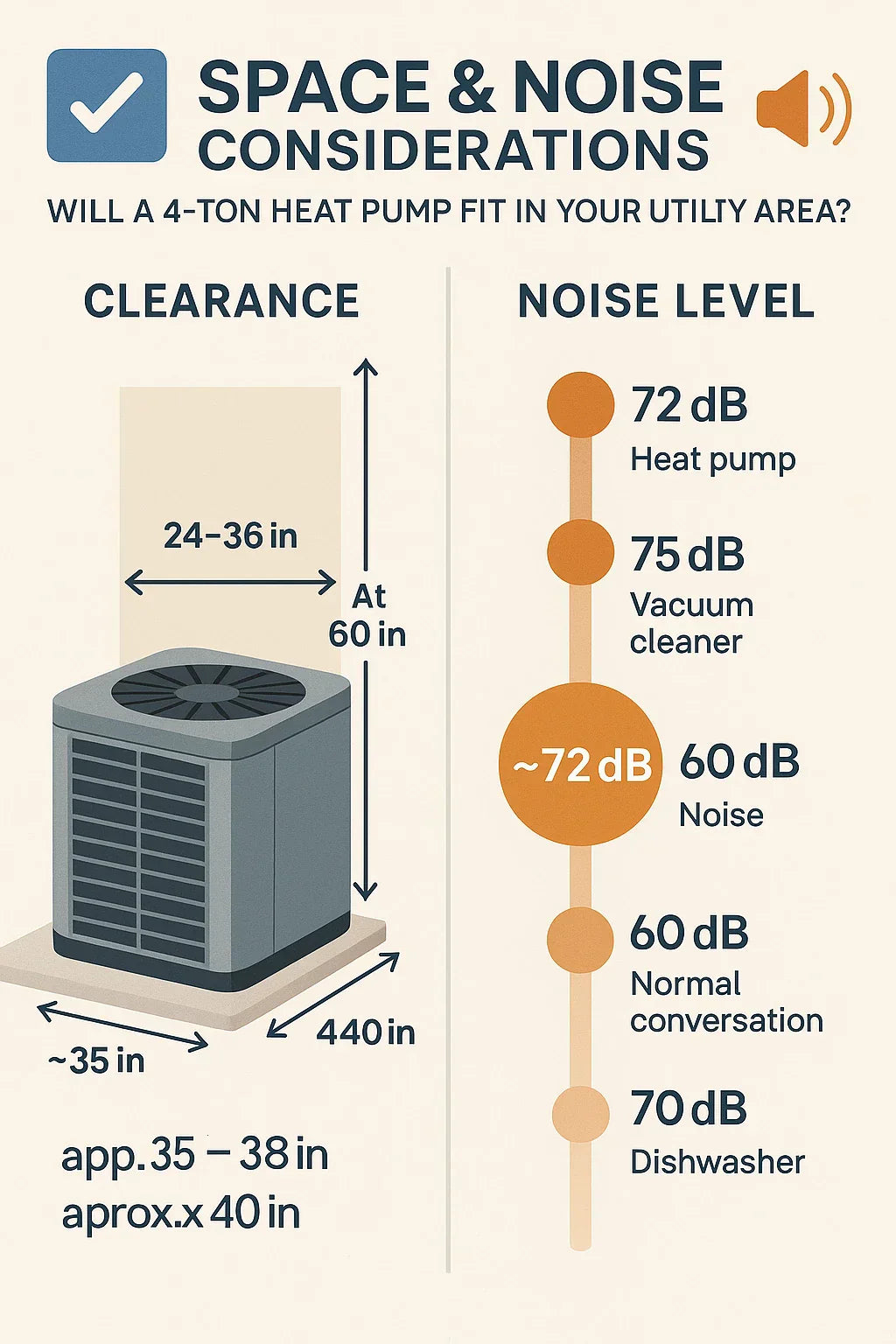

📐 Clearance Requirements

A heat pump doesn’t just need enough room to sit in place—it also needs clearance for airflow and service.

Outdoor Unit Clearance

Goodman recommends:

• 24–36 inches of clear space on all sides.

• 60 inches of clearance above.

• Keep at least 5 feet from dryer vents, exhausts, or gas meters.

Why so much room?

• The fan pulls air in from the sides and exhausts it out the top. Block airflow, and the system loses efficiency.

• Technicians need space to access panels and connections.

👉 Mike initially wanted to tuck the condenser behind a bush, but his installer reminded him: plants too close would block airflow. He ended up leaving 3 feet clearance and trimming back shrubs.

Indoor Air Handler Clearance

• Allow 24 inches in front for service access.

• Ensure doors and panels can swing open fully.

• Keep drain lines sloped correctly for proper condensation removal.

If the indoor unit is going in a closet, measure doorways and hallways to confirm the unit can be brought in without issue.

---

🛋️ Indoor Utility Area Considerations

Mike considered installing his Goodman air handler in the garage, but ultimately chose his basement utility room. Here’s what he learned about indoor placement:

Floor Space

• Air handlers take up about 2 ft × 2 ft of floor space.

• But service clearance increases the effective footprint to ~3 ft × 3 ft.

Ceiling Height

• At 55–60 inches tall, most air handlers fit easily under standard 8-ft ceilings.

• If you have a low basement ceiling (6–7 ft), double-check before ordering.

Drainage

• Heat pumps generate condensation in cooling mode.

• You’ll need a condensate drain line or pump.

Accessibility

• Don’t bury the air handler behind walls or storage.

• Technicians need access to change coils, strip heaters, and control boards.

Mike cleared out a corner of his basement utility room, leaving plenty of space around the unit. He also made sure the drain line had a straight path to his basement floor drain.

---

🔊 Noise Levels: What to Expect

Even efficient systems like Goodman’s 15.2 SEER2 models produce some noise. Knowing what to expect helps you plan placement.

Outdoor Noise

• Goodman 4-ton units produce 70–74 decibels (dB).

• For comparison:

  • Normal conversation = 60 dB

  • Dishwasher = 70 dB

  • Vacuum cleaner = 75 dB

So, the condenser is about as loud as a dishwasher running in another room.

Indoor Noise

• The air handler produces fan noise, typically 40–55 dB, similar to background chatter.

• With two-stage or variable-speed blowers, sound levels are lower most of the time.

Placement Tips for Noise Control

• Avoid placing the outdoor unit directly under bedroom windows.

• Keep it away from patios, decks, or areas where you relax.

• A vibration pad reduces rattling.

• Landscaping screens (with clearance) help diffuse sound.

👉 Mike’s outdoor unit ended up on the side yard—far enough from his family’s bedroom windows, but close enough for easy service. With landscaping added, the noise is barely noticeable.

---

🌍 Mike’s Case Study: Finding the Right Spot

When Mike planned his installation, he had three possible locations:

1. Backyard near the patio

   • Pros: Easy to hide behind shrubs.

   • Cons: Too close to outdoor seating → potential noise problem.

2. Side yard by garage

   • Pros: Plenty of clearance, not near bedrooms.

   • Cons: Visible from driveway.

3. Behind the house near bedrooms

   • Pros: Hidden from street view.

   • Cons: Directly under his kids’ windows—bad for noise.

Mike chose option 2, the side yard. To address visibility, he planted boxwoods around the condenser, leaving the required clearance. It ended up being the perfect balance of space, noise, and service access.

---

🛠️ Tips for Reducing Noise & Space Issues

Mike also picked up some pro tips along the way:

For Space

• Measure twice, install once. Use actual manufacturer specs, not just estimates.

• Plan for service clearance—installers need room to work.

• Consider airflow direction; don’t block intake or exhaust.

For Noise

• Install the condenser on a vibration-absorbing pad.

• Use landscaping screens or fences (with at least 3 ft clearance).

• Upgrade to a two-stage model for quieter operation most of the time.

• Inside, add duct insulation to reduce air noise.

---

📊 Comparing Goodman to Competitors on Noise & Size

Mike compared Goodman’s specs to other brands before deciding:

Takeaway: Goodman’s size and noise are competitive—slightly louder than Lennox, but at a fraction of the cost.

---

💡 Extra Considerations Homeowners Forget

Mike also learned a few overlooked details:

• Snow & Ice Clearance: In snowy regions, outdoor units should be elevated on a stand to prevent ice buildup.

• Sun Exposure: Units placed in full sun may run hotter. Shade helps efficiency, but airflow clearance comes first.

• Future Access: Leave room for technicians to roll in a dolly if the unit ever needs replacement.

---

✅ Conclusion: Mike’s Takeaway

Mike’s Goodman heat pump ended up fitting perfectly in his utility space—because he planned ahead.

“My Goodman fit easily, but only because I measured clearances first. It’s quieter than I expected, and once the landscaping grew in, we hardly notice it.”

For homeowners, the lesson is clear:

• Measure your space carefully before buying.

• Plan for both airflow and service clearance.

• Consider noise placement for indoor and outdoor comfort.

A 4-ton Goodman heat pump will fit in most homes’ utility areas—but only if you do the planning up front.

In the next topic we will know more about: How Long Will a Goodman 4-Ton Heat Pump Last? Mike’s Longevity Guide

---
