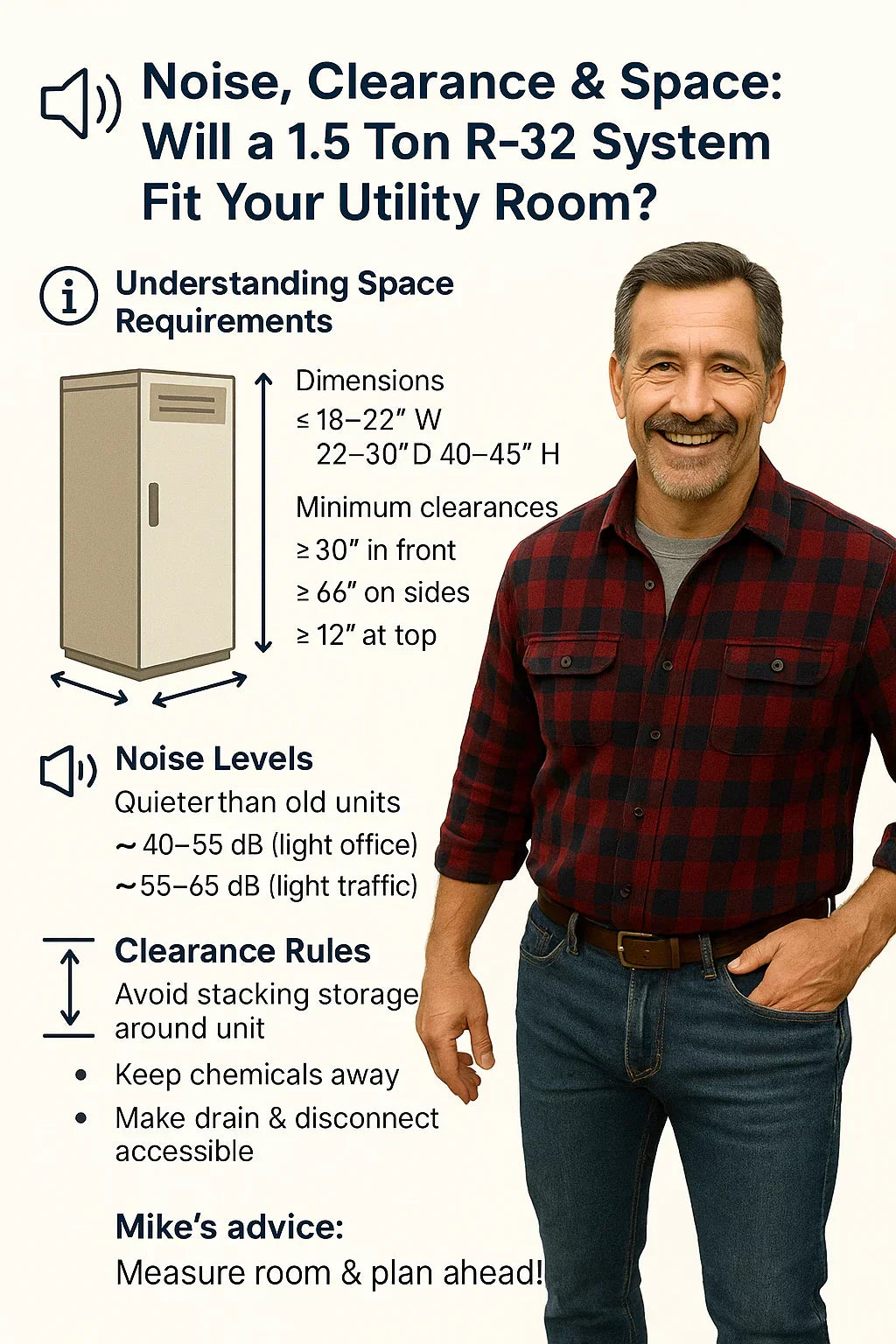

📏 Noise, Clearance & Space: Will a 1.5 Ton R‑32 System Fit Your Utility Room?

🔎 Introduction: Mike’s Big Question

Mike Sanders thought he had everything figured out when he ordered his 1.5 ton R‑32 AC system. The price was right, the SEER2 rating was efficient, and he was ready for a summer of cool comfort.

Then reality hit:

“I measured the utility room and wondered, will this thing even fit? And if it does, will it sound like a jet engine every time it kicks on?”

This guide unpacks the noise levels, clearance needs, and space requirements you must consider before installing a 1.5‑ton R‑32 AC system. Mike’s real-world experience makes it clear: measure twice, install once.

📐 1. Space Requirements: Will It Fit?

🔎 Typical Dimensions

A 1.5‑ton R‑32 indoor air handler usually measures:

Width: 18–22 inches
Depth: 22–30 inches
Height: 40–45 inches

Outdoor condensers are typically:

Width/Depth: 24–30 inches
Height: 24–36 inches

📦 Minimum Utility Room Size

For comfort and serviceability, Mike recommends:

Room width: 6–7 feet
Room depth: 6–8 feet
Ceiling height: At least 7 feet

🚪 Clearance for Installation & Service

ASHRAE and EnergyStar guidelines recommend:

Front: 24–36 inches clear for technician access
Sides: 6–12 inches
Top: 12–18 inches
Back: Flush to wall if designed for it

Mike’s tip:

“Don’t forget to measure the doorway! My unit was 28 inches wide, and my utility room door was only 30 inches. Tight squeeze.”

🔊 2. Noise Levels: What to Expect

Mike worried most about noise, since his utility room shares a wall with his living room.

📊 Typical Noise Ratings

Indoor Air Handler: 40–55 dB
- Comparable to a quiet conversation or office noise.
Outdoor Condenser: 55–65 dB
- About the same as light traffic or a dishwasher.

📉 Factors That Affect Noise

Unit quality: Inverter compressors and R‑32 refrigerant typically reduce sound.
Room acoustics: Tile floors or bare walls amplify sound.
Insulation: Adding weather stripping to the utility room door can cut noise transfer.

🔧 Mike’s Noise Fixes

Installed rubber isolation pads under the air handler.
Added a solid-core door with weather stripping.
End result: ~48 dB in the utility room, barely noticeable in the living room.

🌬️ 3. Clearance Rules You Can’t Ignore

Clearance isn’t just about fitting the box into the space—it’s about letting it breathe.

🌀 Why Clearance Matters

Prevents overheating by allowing airflow.
Gives technicians room to service parts.
Extends equipment lifespan.

📋 Recommended Clearances

Location	Minimum Clearance	Why It Matters
Front	24–36 inches	Service access & filter changes
Sides	6–12 inches	Duct & electrical connections
Top	12–18 inches	Prevents overheating
Outdoor Unit	12–24 inches	Air circulation & heat release

❌ Common Mistakes

Stacking storage boxes against the unit.
Pushing the condenser under a deck with no airflow.
Forgetting to leave room for condensate drain cleaning.

Mike’s lesson:

“At first, I wanted to tuck the unit into the corner to save space. Glad I didn’t—my installer showed me it would have cut airflow in half.”

🏠 4. Utility Room Layout Tips

Mike’s utility room was just 7x8 feet—tight but workable. Here’s what he learned:

🚫 Keep It Clear

No storage boxes, holiday decorations, or paint cans around the unit.
Avoid keeping chemicals or flammables near R‑32 systems

💡 Lighting Matters

Mike added LED strip lighting above the unit.
Makes filter changes and inspections easier.

🔌 Easy Access

Ensure the electrical disconnect is within reach.
Leave space to inspect the condensate drain line.

🧾 Future-Proofing

Mike left extra space to upgrade to a 2‑ton unit if needed later.

🔧 5. Outdoor Condenser Placement

While the indoor unit lives in the utility room, the outdoor condenser needs just as much thought.

📍 Best Practices

Distance from Wall: 12–24 inches
Distance from Shrubs: Keep trimmed for airflow
Avoid Traps: Don’t place under low decks or in tight enclosures

🌡️ Sun & Shade

Placing the condenser on the north or east side can improve efficiency.
Shade from landscaping helps, but always allow airflow.

Mike’s setup:

Installed his condenser 18 inches from the house.
Planted low bushes nearby but left 2 feet clearance on all sides.

📊 6. Real-World Example: Mike’s Utility Room

Room Size: 7x8 feet
Unit Footprint: 21x28 inches
Clearances:
- 30 inches in front
- 12 inches on each side
- 14 inches above
Noise Reading: ~48 dB in room, ~38 dB in adjacent living room
Outcome: Comfortable, quiet, and code-compliant install

🧰 7. Pre-Install Checklist for Homeowners

📐 Measure Twice

Doorway width
Utility room size
Clearance space

🔊 Plan for Noise

Consider soundproofing measures
Ask installer about inverter technology

🛑 Safety First

Keep flammable items out of the utility room
Ensure condensate drain and electrical disconnect are accessible

📝 Confirm Code Requirements

Local building codes may set specific clearance or venting rules (ASHRAE).
Permits may be required in some municipalities.

✅ Conclusion: Mike’s Final Word

A 1.5‑ton R‑32 AC system can absolutely fit into most utility rooms—as long as you plan ahead.

“At first, I worried about noise and space. But once I followed the clearance guidelines and added a few small upgrades, it fit like a glove—and I barely notice when it’s running,” Mike says.

Key Takeaways:
