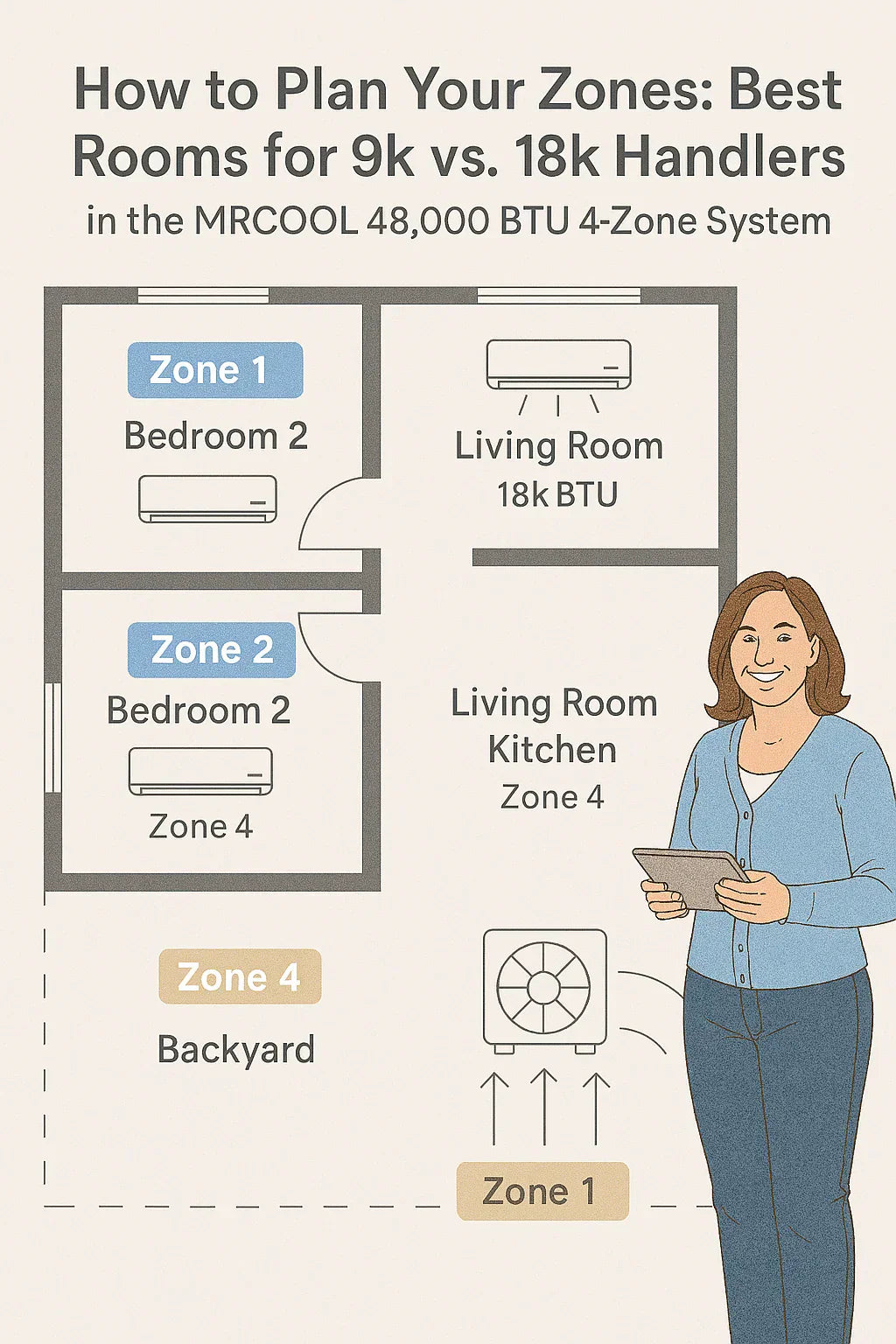

How to Plan Your Zones: Best Rooms for 9k vs. 18k Handlers in the MRCOOL 48,000 BTU 4-Zone System

When you're investing in the MRCOOL DIY Mini Split 5th Gen 48,000 BTU 4-Zone System, success comes down to one critical factor: correct zone planning.

With three 9,000 BTU air handlers and one 18,000 BTU handler, this system gives you zoning flexibility—but only if each unit is matched correctly to the rooms in your home. In this guide, we’ll break down how to assign zones for maximum comfort and efficiency, including:

• 📐 Room size and BTU matching

• 🌡️ Climate & sun exposure

• 🛏️ Room usage and occupancy

• 🧰 Installation feasibility

• 💡 Smart tips for DIY success

---

🧊 Understanding the 9k vs. 18k Air Handlers

Each indoor unit works independently via its remote or smart app, giving you temperature control per zone.

📘 Need help understanding BTU per square foot? Check out this ENERGY STAR room sizing guide.

---

🏠 Smart Zone Planning for Common Home Layouts

🛏️ Option 1: 3-Bedroom Ranch Style (1,800 sq ft)

• Zone 1 – Master Bedroom: 9k BTU

• Zone 2 – Bedroom 2: 9k BTU

• Zone 3 – Bedroom 3 or Office: 9k BTU

• Zone 4 – Open Living/Dining/Kitchen: 18k BTU

📌 Why it works: Bedrooms are typically 300–400 sq ft, ideal for the 9k units. The 18k BTU unit comfortably handles open-concept spaces up to 1,000 sq ft with moderate insulation.

---

🧳 Option 2: Multi-Level Home (2,200 sq ft)

• Zone 1 – Upstairs Bedroom 1: 9k BTU

• Zone 2 – Upstairs Bedroom 2: 9k BTU

• Zone 3 – Home Office or Den: 9k BTU

• Zone 4 – Downstairs Living Room: 18k BTU

💡 Tip: Keep ceiling height in mind. Rooms with vaulted ceilings or poor insulation may require a size bump—use ASHRAE Manual J guidance for precise load calculation.

---

🛋️ Option 3: Basement + Upstairs Layout

• Zone 1 – Finished Basement Family Room: 18k BTU

• Zone 2 – Guest Bedroom: 9k BTU

• Zone 3 – Office or Game Room: 9k BTU

• Zone 4 – Master Bedroom: 9k BTU

🧠 Why it works: Basements are cooler year-round but often larger. The 18k BTU unit handles the square footage and helps reduce damp air via dehumidification.

---

🌞 Factors That Affect Handler Selection

🌤️ Sun Exposure

South-facing rooms receive more sun and may need a bump in capacity.
Solution: Use 9k BTU handlers only in shaded or north-facing rooms if the square footage is close to the upper range.

🏚️ Insulation Quality

Poor insulation = more thermal gain/loss.
Solution: Upgrade insulation or oversize by 10–15% when placing in uninsulated areas.

📏 Ceiling Height

BTU rules assume standard 8' ceilings.
For 10'+ or vaulted ceilings, increase BTU by 10–20%.

🚪 Open vs. Closed Rooms

Handlers in closed rooms (bedrooms, offices) retain temperature better.
Avoid using 9k BTU units in open floor plans over 500 sq ft.

🔗 U.S. DOE Room Air Conditioner Guide expands on how room shape impacts effectiveness.

---

🛠️ Zoning Mistakes to Avoid

❌ Installing a 9k BTU Handler in a 600 sq ft Loft

➡️ Result: Poor temperature control, short cycling
✅ Fix: Use the 18k unit or split into 2 smaller zones if possible

❌ Using 18k in a 250 sq ft Room

➡️ Result: High humidity, system runs inefficiently
✅ Fix: Use a 9k BTU unit with a dehumidifier for small, enclosed spaces

❌ Placing a 9k Unit in a High-Heat Kitchen

➡️ Result: Heat from appliances overwhelms cooling
✅ Fix: Move 9k to dining room and use 18k in kitchen/living combo

---

🗂️ Room-by-Room BTU Match Guide

💬 Still unsure? Try this BTU Calculator from Mitsubishi Electric for more accuracy.

---

📐 Visualizing a 4-Zone Layout

Use your home’s floor plan to sketch potential zones. You can:

• Label each room’s square footage

• Use arrows to show sun exposure

• Mark walls with insulation vs. no insulation

• Identify external wall access for line sets

📦 Need help visualizing? Check MRCOOL’s DIY Layout Planner Tool for virtual simulations.

---

⚡ Electrical Panel Considerations

Each handler connects to the condenser with a Quick Connect® line set.
However, your breaker panel must support the total load. Typical setups need:

• Dedicated 240V breaker (30–40 amps)

• Accessible wall outlet near condenser

• Breaker label & GFCI protection

---

📶 Controlling Zones Independently

Each indoor unit comes with:

• A wireless remote

• Smart functionality via MRCOOL SmartHVAC™ app

• Voice control via Amazon Alexa or Google Assistant

💡 Set individual schedules per zone. For example:

• Bedroom = cool overnight

• Office = cool only during work hours

• Living Room = maintain temp during family hours

🔗 Learn how to use the MRCOOL app here

---

🛡️ Backup Heat for Cold Climates

If you live in Zones 5–7 (Midwest, Northeast), consider backup heat for:

• Basement zones

• Bedrooms with poor insulation

• Garage offices or workshops

💡 A small electric space heater or baseboard unit paired with your MRCOOL handler ensures coverage on subzero nights.

For colder climates, the MRCOOL Hyper Heat series may be a better choice:
🔗 MRCOOL Hyper Heat Specs

---

💵 Do Zone Choices Affect Rebates?

Yes. If your layout improves efficiency, you may qualify for higher rebate tiers from:

• Federal tax credits (IRA)

• ENERGY STAR appliance incentives

• Local utility rebate programs

📌 Check your local programs using DSIREUSA.org

---

✅ Recap: Best Rooms for Each Handler

Use 9k BTU For:

✔ Bedrooms
✔ Offices
✔ Guest rooms
✔ Enclosed nurseries

Use 18k BTU For:

✔ Open-plan family areas
✔ Finished basements
✔ Kitchen/living room combos
✔ Converted garages

---

🧩 Final Thoughts: How to Plan Zones That Work

✔ Match handler capacity to room size
✔ Consider insulation, sun exposure, ceiling height
✔ Use enclosed rooms for 9k handlers
✔ Reserve 18k handler for the largest shared zone
✔ Sketch it out first—then measure twice!

This system isn’t just efficient—it’s flexible. With the right zoning strategy, you’ll get whisper-quiet comfort, lower utility bills, and a fully DIY-friendly setup.

---

In the next topic we will read about: DIY Installation Tips for the MRCOOL 5th Gen 4-Zone System (48,000 BTU)
