Is the MRCOOL 48,000 BTU 4-Zone System Right for Your Home Layout?

0 comments

Thinking about upgrading to a ductless mini split system and eyeing the MRCOOL DIY Mini Split Series 5th Gen 48,000 BTU 4-Zone Heat Pump? You're not alone.

With its 3x9k BTU and 1x18k BTU zone configuration, this MRCOOL system gives homeowners incredible flexibility—but only if it's matched correctly to your home's layout. In this guide, we’ll explore the ins and outs of BTU sizing, zoning strategy, layout planning, and real-world applications to help you decide if this setup is the right fit for your space.

📏 Understanding BTUs and What 48,000 Means

BTU stands for British Thermal Unit—a measurement of heat energy. When you see a 48,000 BTU system, that means the system is capable of transferring 48,000 BTUs of heat per hour for cooling or heating.

9,000 BTUs typically cools: 350–450 sq ft
18,000 BTUs typically cools: 700–1,000 sq ft

This setup is ideal for homes that:

Have multiple small bedrooms or offices
Need powerful cooling in one large living area
Want to eliminate ductwork for energy savings

🧠 Quick Rule of Thumb: 20 BTUs per square foot is a general starting point, but insulation, ceiling height, and sunlight exposure play a major role.

U.S. Department of Energy on BTU sizing

🧭 What Kind of Home Layout Is This System Best For?

The 3x9k + 1x18k zone configuration lends itself well to certain home designs, such as:

✅ Single-Story Ranch Homes

Application: Each 9k handler cools a bedroom; 18k for living/dining/kitchen
Ideal size: 1,500–2,000 sq ft
Layout notes: Works best with central living space and bedrooms aligned on one end

✅ Two-Story Homes with Zoning by Floor

Application: 9k units on second-floor bedrooms, 18k on main-level living
Ideal size: 1,800–2,500 sq ft
Layout notes: Can be zoned per floor with strategic handler placement and return airflow consideration

✅ Split-Level or L-Shaped Homes

Application: 9k for office, guest room, bedroom; 18k for great room
Ideal size: 1,700–2,400 sq ft
Layout notes: Great for homes with defined, enclosed rooms

🛏️ Where Should Each Air Handler Go?

🧊 9k BTU Units (x3): Best Room Types

Bedrooms
Home offices
Nursery
Small dens
Finished attic/loft

🔥 18k BTU Unit (x1): Best Room Types

Open-plan kitchen + living room
Master bedroom with ensuite
Finished basement
Main-floor great room with vaulted ceiling

❗ Avoid placing a 9k unit in:

Spaces over 500 sq ft
Open-concept areas
Sunrooms or poorly insulated rooms

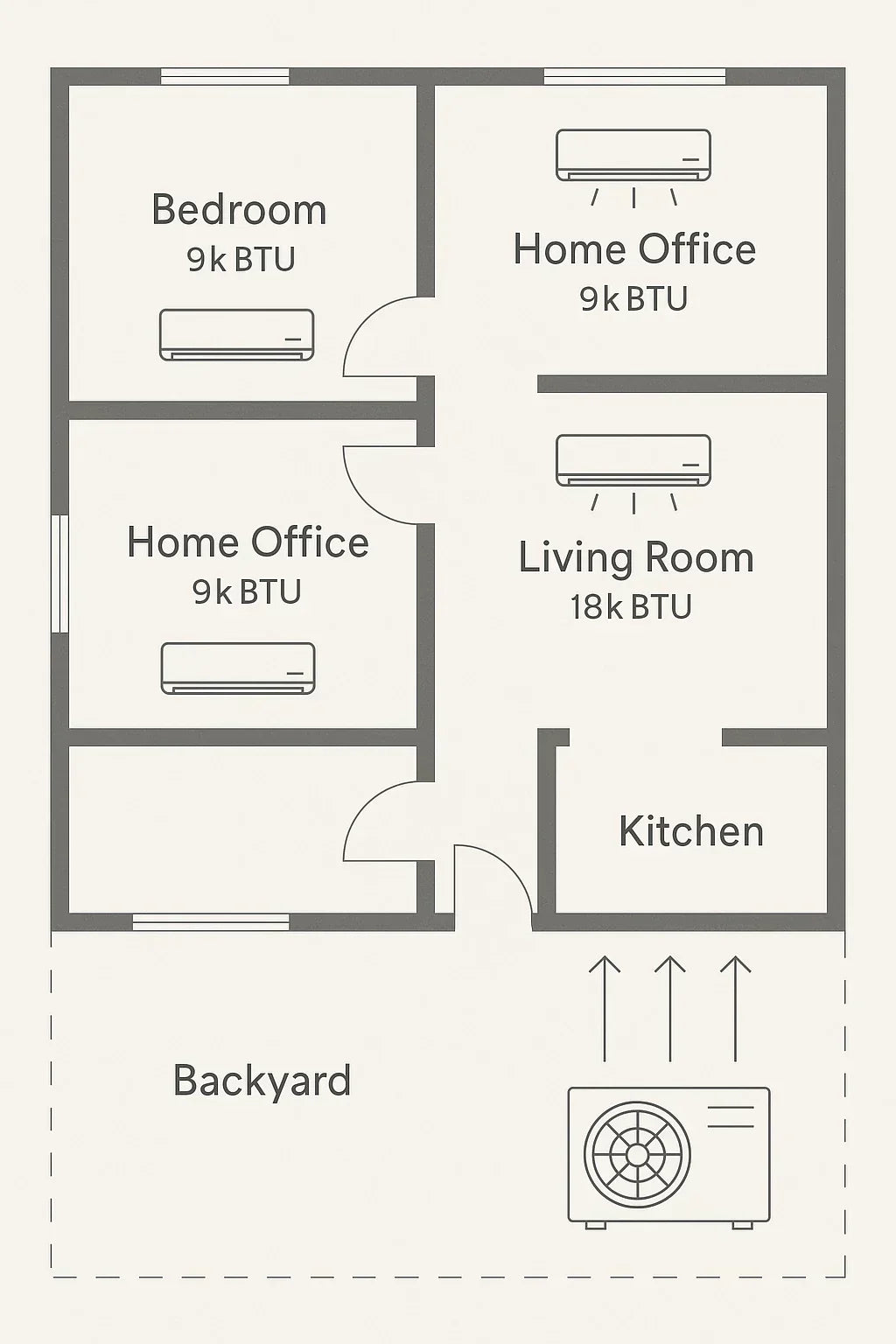

🧮 MRCOOL Zone Planning: A Sample Floor Plan

Example Home (2,200 sq ft):

Master Bedroom: 350 sq ft → 9k handler
Bedroom 2: 300 sq ft → 9k handler
Home Office: 250 sq ft → 9k handler
Living/Dining/Kitchen Combo: 800 sq ft → 18k handler

Insulation: Average
Climate Zone: 5A (Midwest)
Windows: Double-pane

✅ This layout is ideal. Each zone is well-matched by square footage and occupancy.

For deeper planning, check ASHRAE Manual J guidelines on heat gain/loss calculations.

🌡️ Climate Zone Considerations

Different climates put different demands on your mini split.

☀️ Hot & Humid (Florida, Texas, Georgia)

Use 9k units in north-facing bedrooms
Oversize slightly in sun-soaked rooms
Install reflective window film or shades

❄️ Cold Climate (Northeast, Midwest, Northern Rockies)

Consider baseboard or gas backup in sub-zero winters
Use the MRCOOL Hyper Heat Series if extended heating is needed below 5°F
Insulate around mini split lines through walls to reduce thermal loss

📌 The 5th Gen system includes a variable-speed compressor with HSPF2 rating up to 9.5, making it cold-climate capable when installed properly.

🔌 Electrical Requirements and Indoor Placement Tips

Each air handler needs:

A mounting wall
Line set access
Drainage path (gravity or pump)

4-Zone Notes:

Combine multiple zones into one wall cavity to simplify routing
Use line set covers or raceways for aesthetics
Avoid placing above TVs or shelves (condensate risk)

MRCOOL line set routing guide

📉 Common Mistakes Homeowners Make (And How to Avoid Them)

❌ Oversizing the 18k Unit for a Poorly Insulated Living Room

Solution: Add insulation or use a ceiling fan to distribute air

❌ Putting All 3x9k Units on One Circuit

Solution: Ensure dedicated circuits as per NEC guidelines

❌ Mounting Handlers Too High

Solution: Place air handlers 7–8 feet high for proper airflow (not directly on ceiling)

🛠️ Tools & Accessories You’ll Likely Need

Hole saw (3.5") for wall penetrations
Torque wrench for flare connections
Line set cover kit
MRCOOL Wi-Fi remote and app
Extra drain line and condensate pump if running upward

MRCOOL DIY Accessories page has everything you’ll need.

💸 Cost Considerations for a 4-Zone DIY Mini Split Setup

Expense	Average Cost
MRCOOL 4-Zone Kit	$4,700 – $5,500
Electrical upgrades	$500 – $1,200
Mounting brackets, tools, sealants	$150 – $300
Optional pro assistance	$500 – $1,000
Total Range	$5,800 – $8,000
