Comfort in Every Room: Air Handler Placement & Airflow Tips

0 comments

🏠 Introduction: The Secret to Year-Round Comfort

When I installed my new Goodman 3 Ton 15.2 SEER2 R-32 Dual-Fuel System, I thought efficiency alone would solve my comfort issues. I was wrong.

Even with a brand-new system, I noticed something frustrating — my living room felt cool, but my upstairs bedroom was always warm. The thermostat said 72°F, but it sure didn’t feel like it.

After weeks of digging, I learned that efficiency ratings like SEER2 and AFUE are just part of the equation. The real key to home comfort is airflow balance — how well your air handler, ducts, and vents distribute air through every room.

So, I rolled up my sleeves, studied airflow science, and made some adjustments that completely changed my comfort level.

This guide shares what I learned — how air handler placement, duct design, and simple DIY balancing tricks can help you get the most out of your Goodman system.

⚙️ 1. Understanding the Role of the Air Handler

Your air handler is the heart of your HVAC system. It doesn’t heat or cool air directly — it moves it.

It’s where cooled or heated air from the R-32 coil and furnace is pushed through ducts and into every vent in your home.

Here’s how it works:

The blower motor inside the air handler creates airflow.
The evaporator coil (filled with R-32 refrigerant) absorbs or releases heat.
The system circulates conditioned air through ducts, reaching each room.

When that airflow is unbalanced — too much in one room, too little in another — you get uneven temperatures, wasted energy, and short cycling.

There are two main types of blower motors:

PSC (Permanent Split Capacitor): Older, single-speed motors that run at full blast or not at all.
ECM (Electronically Commutated Motor): Modern, variable-speed motors that adjust airflow smoothly.

Goodman’s R-32 systems often include ECM motors, which automatically adapt to duct pressure changes — a big upgrade in comfort and quiet operation.

🔗 Goodman Manufacturing: How Air Handlers Work

📍 2. Why Placement Matters More Than You Think

I used to believe that an air handler could go “wherever it fits.” But placement affects everything — noise, airflow balance, efficiency, and even how long your system lasts.

Here’s what I found out:

💨 Ideal Locations

Basement or Utility Closet (Upflow): Best for dual-fuel systems like Goodman’s 96% AFUE furnaces. Easy service access and quiet operation.
Attic (Downflow): Common in southern homes, but insulation and condensation control are critical.
Crawlspace (Horizontal): Works well if sealed and ventilated, but watch for humidity.

⚠️ What to Avoid

Long, bending duct runs (increase static pressure).
Cramped spaces that limit filter changes or service access.
Shared walls near bedrooms (noise transfer).

A well-placed air handler should have 24” of service clearance, good ventilation, and short, direct duct connections.

🔗 Energy.gov – Ductwork and Air Distribution Basics

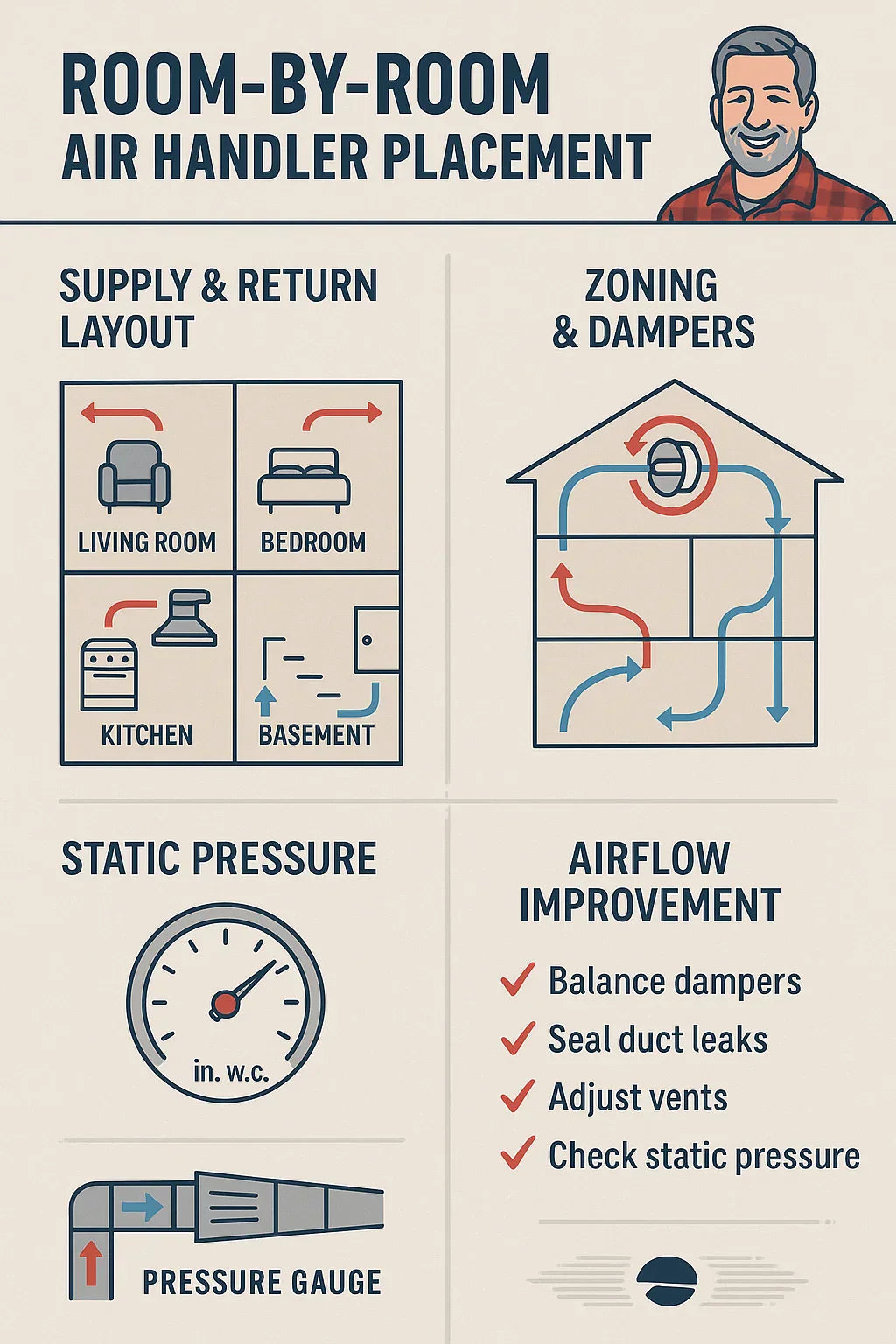

🏡 3. Room-by-Room Placement Tips

Once your air handler is set, it’s time to think about airflow in each room.

Every space in your home has different heating and cooling needs — based on size, sunlight, insulation, and ceiling height.

Here’s what I’ve learned works best:

Room	Placement Tips	Why It Works
Living Room	Supply above seating area, return on opposite wall	Promotes even air mixing and faster cooling
Bedrooms	Supply near door or center of ceiling; avoid blowing directly on bed	Reduces drafts for better sleep
Kitchen	Keep vents away from oven or stove area	Prevents overheating and cycling
Basement	Use low-wall supplies and high-wall returns	Pushes warm air up through cold zones
Upstairs Rooms	Install dedicated dampers or zone control	Manages natural heat rise effectively

Small changes, like redirecting a vent or adding a return grille, can make a dramatic difference.

🔗 HVAC.com – Air Vent Placement Guide

⚖️ 4. Balancing Airflow: Dampers, Ducts & Static Pressure

Once your vents are properly placed, you need to balance airflow — so each room gets just the right amount.

The key concept here is static pressure, which measures resistance to airflow in your ducts. Think of it like water pressure in a hose: too high, and you strain your blower; too low, and airflow weakens.

Typical range for most Goodman systems: 0.5–0.8 in. WC (inches of water column).

🛠️ How to Adjust Airflow

Open all supply registers fully.
Measure temperature difference between rooms.
Gradually close dampers (small metal flaps in ducts) for over-cooled rooms.
Recheck temperatures after 15 minutes.

If you hear whistling or popping noises, your ducts might be undersized or unsealed.

🔗 ACHR News – Understanding Static Pressure

🧰 5. How I Tested My Airflow (The DIY Way)

I bought a simple digital anemometer online for under $50 — best HVAC tool I ever purchased.

Here’s how I tested my system:

Measured airflow velocity at each vent (in feet per minute).
Checked temperature at supply and return vents.
Calculated temperature split — the difference between supply and return air.

For cooling mode, you want around 18–22°F difference.
For heating, 35–45°F.

If numbers were off, I checked for:

Clogged filters
Blocked returns
Dirty coil or blower fan
Duct leaks (found two!)

🔗 Energy Vanguard – How to Measure Airflow in HVAC Systems

🌞❄️ 6. Managing Hot and Cold Spots

Hot or cold spots are the most common comfort complaint — and usually the easiest to fix once you know where to look.

Common Causes

Leaky or crushed ducts
Long runs from the air handler
Undersized returns
Closed doors restricting air circulation

Fixes That Work

✅ Seal Duct Leaks: Use foil-backed mastic (not duct tape).
✅ Add Transfer Grilles: Allow airflow between rooms with closed doors.
✅ Install Balancing Dampers: Adjust airflow manually by season.
✅ Upgrade to Variable-Speed Blower: Maintains steady comfort even as static pressure changes.

After sealing two small leaks in my return duct and adjusting dampers, my upstairs bedroom finally cooled evenly for the first time in years.

🔗 Energy Star – Improving Home Comfort & Airflow

🔥❄️ 7. Air Handler Placement for Dual-Fuel Systems

In dual-fuel systems like Goodman’s R-32 condenser + 96% AFUE furnace combo, airflow alignment is crucial.

These systems rely on perfect synchronization between airflow, coil temperature, and furnace output.

Ideal Setup

Vertical Coil + Upflow Furnace: Most efficient for basements and closets.
Horizontal Mount (Crawlspace): Saves space but needs level support.
Downflow (Attic): Works in warm climates — ensure condensation protection.

Sound Control Tips

Add rubber isolation pads under furnace base.
Use flexible connectors on duct joints.
Line return plenum with acoustic insulation.

🔗 Goodman Installation Manual – Furnace & Coil Positioning

🚫 8. Common Mistakes That Ruin Airflow

Even with a great system, airflow mistakes can sabotage comfort.
Here are the ones I’ve seen — and some I’ve made:

Blocking return vents with furniture or rugs.
Over-decorating vents with covers that restrict flow.
Neglecting filter changes — clogged filters choke your system.
Mismatched duct sizing (common after renovations).
Ignoring airflow noise — a whistle often means too much pressure.

In my home, just moving a bookshelf away from a return vent lowered static pressure by 0.15 in. WC — noticeable difference in system noise and comfort.

🛠️ 9. Quick DIY Upgrades for Better Airflow

You don’t need to tear apart your HVAC system to improve comfort.
Here are low-cost, high-impact upgrades any homeowner can handle:

Magnetic register covers: Redirect air to needed zones.
Smart vent systems: Automatically balance airflow per room.
Return air filter grilles: Easier access = more consistent maintenance.
Thermostat zoning kits: For multi-level homes, reduce upstairs heat buildup.

If you’re handy, consider adding booster fans for long duct runs — just make sure they’re pressure-sensing and not constantly on.

💡 10. Mike’s Takeaway: Comfort Is Engineered, Not Assumed

I used to think comfort came from buying the right brand or SEER rating.
Now I know it’s really about airflow design.

When air moves evenly, quietly, and efficiently, your entire system performs better — lowering your bills and extending its life.

“You can’t see airflow, but you can feel when it’s right.
Once I got my ducts balanced and my air handler positioned properly, every room finally felt the same temperature — even the one above the garage.”

So if you’ve installed a high-efficiency system but still struggle with uneven comfort, look to your air handler placement and duct layout.
Small adjustments can make a huge difference.
