Can a 40,000 BTU Furnace Heat an Entire Home? Layouts & Limitations

0 comments

🏠 Introduction: Why “One Size Fits All” Doesn’t Work

I can’t tell you how many times I’ve had a homeowner point to a furnace online and ask me:

👉 “Mark, is 40,000 BTUs enough to heat my whole house?”

It’s a good question — but it doesn’t have a one-size-fits-all answer. A 40,000 BTU gas furnace is often perfect for smaller homes, townhouses, and well-insulated spaces. But in the wrong house — say, an old drafty two-story up north — it’s like trying to heat your living room with a candle.

The truth is, whether a 40,000 BTU furnace can heat your entire home depends on four big factors:

Your climate zone
Your insulation and windows
Your home’s layout and levels
Your ductwork design

Let’s break each one down, then I’ll give you my installer take on when 40,000 BTUs is enough, when it’s not, and what to do if you’re on the borderline.

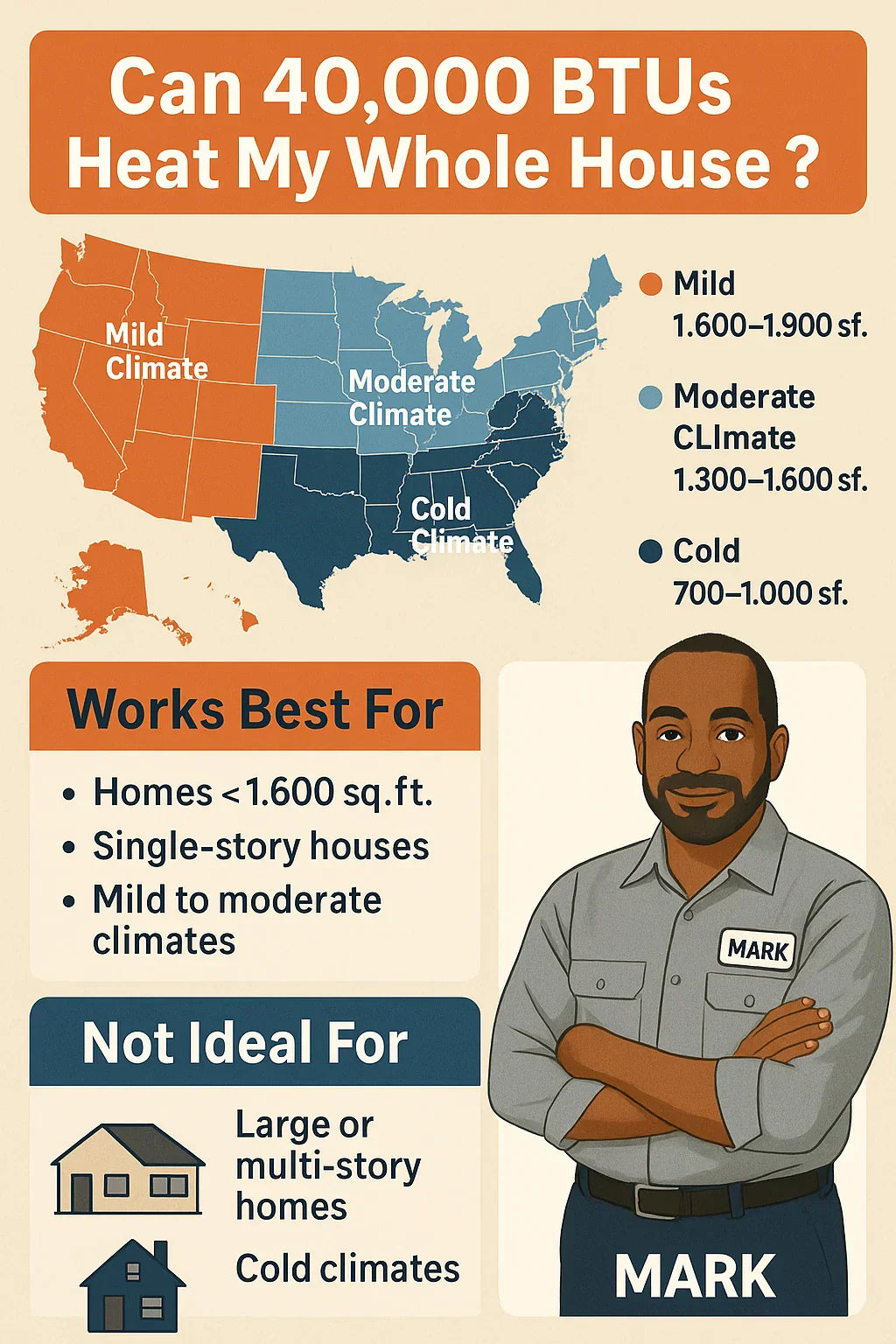

📏 How Much Space Can 40,000 BTUs Cover?

Let’s start with the math.

Furnace sizing is usually measured in BTUs per square foot of home space. The exact number depends on your climate:

Mild climate: 25–30 BTUs/sq. ft.
Moderate climate: 35–45 BTUs/sq. ft.
Cold climate: 50–60 BTUs/sq. ft.

That means:

A 40,000 BTU furnace covers 1,600–1,900 sq. ft. in mild climates.
In moderate climates, it handles 1,300–1,600 sq. ft.
In cold climates, only about 700–1,000 sq. ft.

📖 Reference: U.S. Department of Energy – Sizing Heating Systems

👉 Mark’s Tip: These numbers assume average insulation and efficiency. If your home is super-tight, you may need less. If it’s drafty, you’ll need more.

🌡️ Factor 1: Climate Zone

Climate is the first thing I look at when sizing a furnace.

Southern & West Coast States (Texas, California, Florida):
A 40,000 BTU furnace can easily heat an entire single-family home under 1,800 sq. ft.
Midwest (Ohio, Illinois, Michigan):
A 40,000 BTU furnace is usually good for 1,200–1,500 sq. ft. homes. Beyond that, it starts to struggle.
Northeast & Northern Plains (Minnesota, New York, Maine):
You’ll probably max out at 900–1,000 sq. ft. before needing to step up to a 60,000 BTU unit.

📖 Reference: ACCA – Manual J Load Calculations

👉 Example from the Field: I installed a 40,000 BTU R-32 furnace in a 1,400 sq. ft. ranch in North Carolina — it was perfect. Did the same size home in Minnesota? No chance. That one needed a 60,000 BTU.

🧱 Factor 2: Insulation & Windows

A furnace doesn’t just heat air — it fights heat loss.

Newer Homes

Double-pane windows
Sealed attic & wall insulation
Air-sealed envelope

👉 Result: A 40,000 BTU furnace can handle more square footage because less heat escapes.

Older Homes

Drafty single-pane windows
Poor attic insulation
Gaps around doors and chimneys

👉 Result: The same 40,000 BTU furnace might struggle even in a smaller space.

📖 Reference: ENERGY STAR – Seal and Insulate

👉 Mark’s Tip: I always check insulation before upsizing a furnace. Sometimes a $1,000 insulation upgrade is smarter than jumping from 40k to 60k BTUs.

🏗️ Factor 3: Layout & Levels

Layout matters just as much as size.

✅ Best Fits for 40,000 BTU Furnaces:

Single-story ranches under 1,600 sq. ft.
Townhomes or condos with shared walls
Compact apartments

⚠️ Challenging Layouts:

Two-story homes: Heat rises, so upstairs gets too warm while downstairs freezes.
Open-concept living rooms: Large vaulted ceilings eat up BTUs.
Finished basements: Add extra square footage that pushes the furnace past its limits.

📖 Reference: HVAC.com – Furnace Sizing by Home Layout

👉 Mark’s Story: I had a customer in Ohio with a 1,500 sq. ft. two-story. On paper, a 40,000 BTU furnace looked fine. In reality, the upstairs roasted while the downstairs never warmed up. We had to zone the system with dampers and add a supplemental heater.

🌀 Factor 4: Ductwork Design

Even the best furnace won’t help if the ducts are wrong.

Common Duct Issues I See:

Leaks in attic or crawlspace wasting 20–30% of heat.
Undersized ducts that choke airflow.
Long, uninsulated duct runs bleeding heat before it reaches rooms.

📖 Reference: DOE – Duct Sealing Guide

👉 Mark’s Tip: If your 40,000 BTU furnace seems underpowered, the ducts may be to blame, not the furnace. Seal and insulate them first.

🔧 When 40,000 BTUs Works Best

Here’s where I recommend a 40k furnace:

Homes under 1,600 sq. ft. in moderate climates.
Single-level layouts with good duct design.
Newer builds with tight insulation and double-pane windows.
Mild climate zones where winters aren’t severe.

Example: A 1,500 sq. ft. ranch in Tennessee with modern insulation? A 40,000 BTU furnace is perfect.

⚠️ When 40,000 BTUs Isn’t Enough

Here’s when I tell customers to size up:

Homes over 1,800 sq. ft. in any climate.
Cold-climate homes larger than 1,000 sq. ft.
Two-story homes without zoning.
Drafty older homes that bleed heat.

Example: A 1,400 sq. ft. two-story in Chicago with poor insulation? A 40k furnace will run all day and still leave you cold.

💡 Alternatives & Solutions

If you’re on the fence, here are the options I recommend:

1. Zoning Systems

Add dampers and multiple thermostats.
Let a 40k furnace heat different zones separately.

2. Supplemental Heat

Electric baseboards in problem rooms.
A gas fireplace for main living areas.

3. Upsize to 60,000 BTUs

If Manual J shows your load exceeds 40k, go up.
Better to have a furnace that can handle the load than one that runs constantly.

📖 Reference: Furnace Sizing & Costs

🏆 Mark’s Take: Size It Right, Not Big or Small

A furnace isn’t about bragging rights. Bigger isn’t always better — and smaller isn’t always cheaper. The right size is about balance.

Oversized furnaces short-cycle and die young.
Undersized furnaces run constantly and never keep you warm.

👉 The only way to know for sure: Manual J load calculation. Don’t guess. Don’t assume your old furnace size was right. Have it calculated properly.

📖 Reference: ACCA – Manual J Load Calculations
