🏠 Introduction: Don’t Panic, Diagnose
Picture this: it’s the first cold night of winter, you crank up the thermostat, and… nothing. No warm air, no comforting hum — just cold silence.
Before you panic and think your furnace has completely failed, let me put your mind at ease: most furnace problems aren’t catastrophic. In fact, 70% of the service calls I get in winter end up being simple fixes — things homeowners could have caught on their own.
With a 40,000 BTU furnace, the margin for error is even tighter. These smaller units are designed for efficiency, not brute force. That means little issues — a clogged filter, a tripped switch, a blocked vent — can quickly turn into “no heat” situations.
So let’s walk through the exact step-by-step troubleshooting process I use in the field.
🔌 Step 1: Check Thermostat & Power
The thermostat is the brain of your system, and if it’s not working right, your furnace won’t either.
What to Check:
-
Set to Heat: Make sure your thermostat is in Heat Mode (you’d be surprised how often it’s still on Cool).
-
Set Temperature: Set it at least 5 degrees above room temperature to trigger the furnace.
-
Batteries: Digital thermostats often die quietly when their batteries go out. Replace them annually.
-
Circuit Breaker: Go to your breaker panel — if the furnace breaker is tripped, reset it once.
📖 Reference: ENERGY STAR – Thermostat Settings
👉 Mark’s Tip: If your thermostat is older, upgrading to a programmable or smart thermostat can improve efficiency and prevent misfires.
🧽 Step 2: Inspect Air Filter
If I had a dollar for every furnace call that was just a dirty filter, I’d retire tomorrow.
Why It Matters:
-
A clogged filter chokes airflow.
-
Low airflow causes the furnace to overheat, triggering the limit switch to shut it off.
-
Smaller furnaces like 40,000 BTUs are especially sensitive to this.
What to Do:
-
Remove the filter and hold it up to the light.
-
If you can’t see light through it, replace it.
-
Standard recommendation: change every 1–3 months.
📖 Reference: U.S. DOE – Furnace Filter Maintenance
👉 Mark’s Tip: Always keep a spare filter on hand. I tell my customers to buy a year’s worth at once — it makes it much harder to “forget.”
🌬️ Step 3: Verify Airflow & Vents
Sometimes the furnace is working, but the air isn’t moving where it should.
What to Check:
-
Supply Registers: Make sure they aren’t blocked by rugs, furniture, or curtains.
-
Return Vents: Don’t block them with furniture. These are crucial for circulation.
-
Duct Leaks: If ducts are in an attic or crawlspace, inspect for loose connections.
-
Outdoor Vents (High-Efficiency Models): Look for snow, ice, or debris clogging intake/exhaust pipes.
📖 Reference: U.S. DOE – Duct Sealing
👉 Mark’s Tip: I once had a customer who thought closing half their vents would “push more heat” to the living room. Instead, it overheated the furnace and shut it down. Don’t close more than 10–15% of vents.
🔥 Step 4: Pilot Light & Ignition Issues
If your furnace has no flame, it’s not going to heat.
Older Furnaces (with pilot lights):
-
Open the access panel and check if the pilot flame is lit.
-
If it’s out, relight it according to the manufacturer’s instructions.
Modern Furnaces (electronic ignition):
-
Listen for the click of the igniter.
-
If it clicks but doesn’t light, the flame sensor may be dirty.
-
If nothing happens, the igniter itself could be faulty.
📖 Reference: HVAC.com – Furnace Ignition Issues
👉 Mark’s Tip: Don’t start swapping out igniters without testing. A dirty flame sensor can mimic ignition failure.
🛡️ Step 5: Safety Switches & Sensors
Modern furnaces have built-in safety features. If something is wrong, these switches shut the furnace down to prevent damage or danger.
Common Safety Devices:
-
Limit Switch: Shuts off furnace if it overheats (often from clogged filters).
-
Pressure Switch: Ensures venting system is clear.
-
Flame Sensor: Shuts down gas flow if no flame is detected.
👉 Homeowner Role:
-
You can reset the furnace once after checking filters and vents.
-
If it keeps tripping, don’t bypass or tape switches — that’s dangerous. Call a pro.
📖 Reference: ASHRAE – Furnace Safety Systems
🧯 Step 6: Gas Supply Check
No gas, no heat.
What to Check:
-
Gas Valve: Make sure it’s in the ON position (parallel to the pipe).
-
Other Gas Appliances: Test your stove or water heater — are they working?
-
Smell of Gas: If you smell rotten eggs, shut everything down, leave the house, and call your gas company.
📖 Reference: CDC – Gas Safety in Homes
👉 Mark’s Tip: I’ve walked into homes where the gas was shut off for summer renovations and nobody turned it back on before winter. Simple, but easy to miss.
🧰 Step 7: When to Call a Pro
Here’s the line I give my customers: if you’ve checked power, thermostat, filter, and vents, and it’s still not heating — call a pro.
Call an HVAC Tech If:
-
Furnace makes strange noises (banging, squealing).
-
Furnace runs but doesn’t heat enough.
-
Furnace cycles on and off constantly.
-
Furnace won’t ignite at all.
-
You suspect a cracked heat exchanger or CO issue.
📖 Reference: When to Call Furnace Repair
📊 Troubleshooting Summary Chart
| Problem | Likely Cause | Quick Fix | Call a Pro? |
|---|---|---|---|
| No heat at all | Thermostat off, tripped breaker | Reset settings | If unresolved |
| Weak airflow | Dirty filter, blocked ducts | Replace filter, open vents | If no improvement |
| Furnace cycles on/off | Overheating, dirty flame sensor | Replace filter | Yes |
| Igniter clicks but no flame | Dirty sensor, failed igniter | Clean sensor | Yes |
| Gas smell | Leak in line or valve | Leave immediately | Yes (utility) |
🏆 Mark’s Take: The Smart Way to Troubleshoot
I always tell homeowners: start with the simple stuff.
-
Thermostat working?
-
Power on?
-
Filter clean?
-
Vents clear?
Nine times out of ten, the fix is right there. If it’s not, don’t force it — furnaces have safety systems for a reason.
👉 A 40,000 BTU furnace is designed to be efficient and reliable, but it only stays that way if you treat it right and respond early to warning signs.

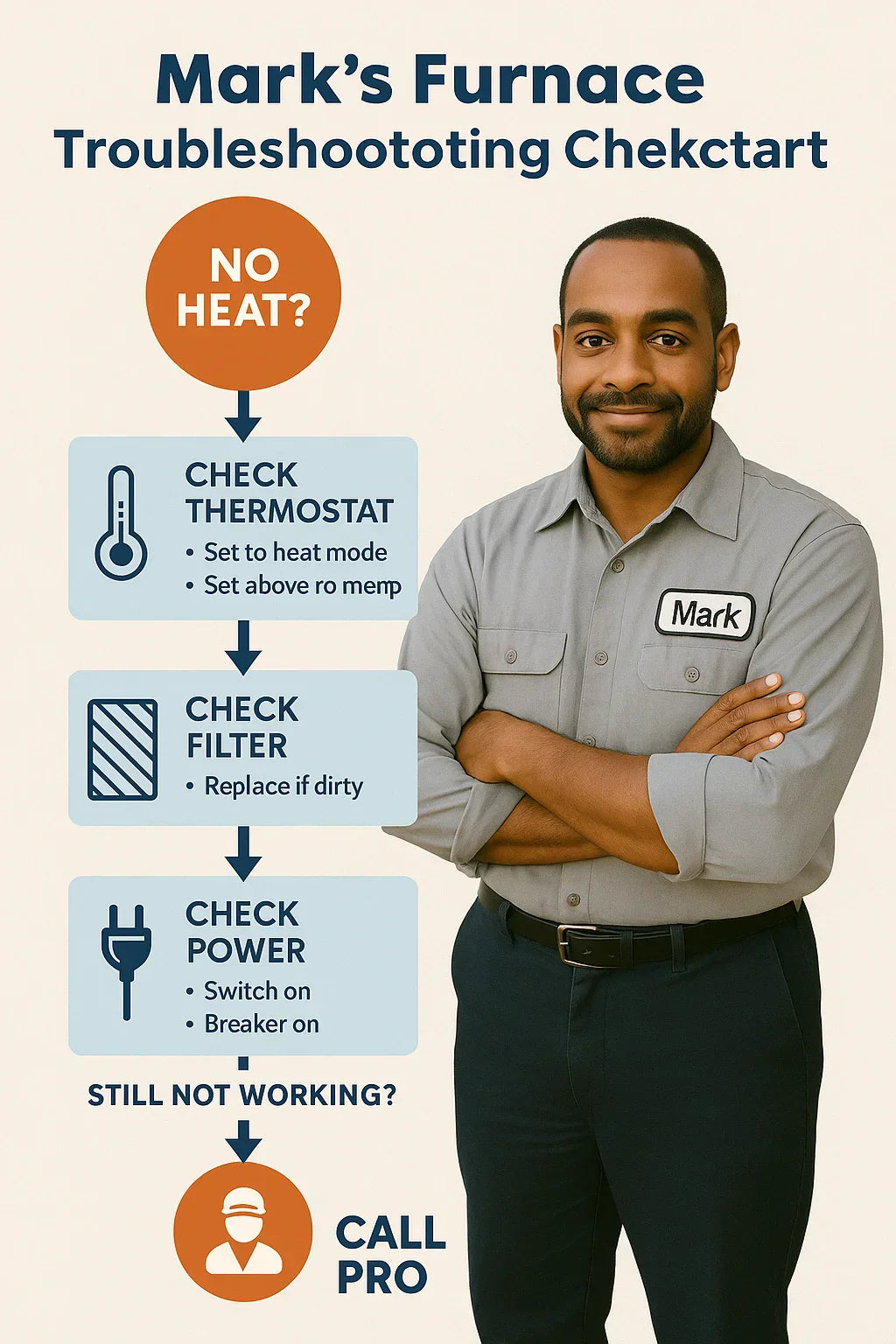

🎨 Infographic Idea: “Mark’s Furnace Troubleshooting Flowchart”
Visual flow showing:
-
No heat? → Check thermostat → Check filter → Check power → If still no heat → Call pro.
-
With Mark pointing to each step, keeping it simple and homeowner-friendly.
In the next topic we will know more about: Can a 40,000 BTU Furnace Heat an Entire Home? Layouts & Limitations
