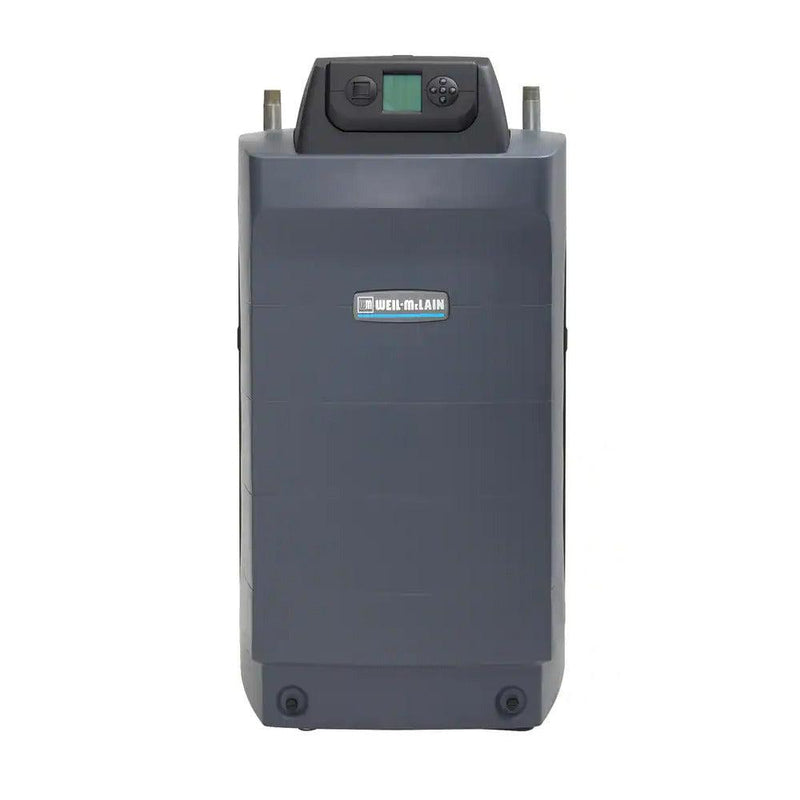

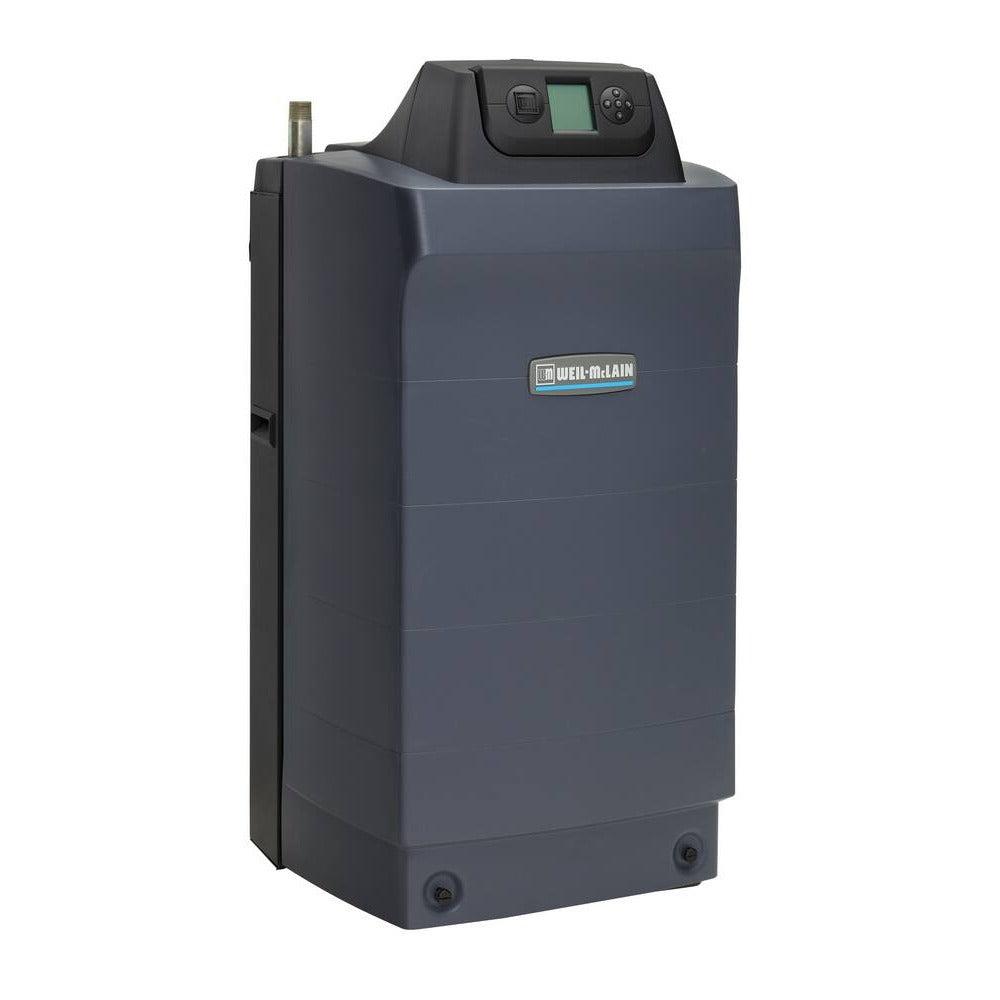

Weil-McLain Ultra Series 4 105,000 BTU Condensing Gas Boiler

Weil-McLain SKU: W383500734

Weil-McLain Ultra Series 4 105,000 BTU Condensing Gas Boiler

  • 0.82 Gallon Boiler Water Volume
  • 94% AFUE
  • 2" or 3" Vent Size
  • AHRI Certified
  • Energy Star Certified

Save $882.76
Weil-McLainSKU: W383500734

Ready to Ship - Average Delivery Time of 1.85 Days
Retail price:
Sale price$4,413.80 USD Regular price$5,296.56 USD

Description

Weil-McLain is a leading North American Brand of hydronic comfort heating systems for residential, commercial and institutional buildings, since 1881. Contractors, engineers, architects, homeowners, and facility managers alike rely on Weil-McLain boilers for their comfort heating needs. Installed in homes, offices, schools, restaurants, hotels, and other facilities throughout North America, the Weil-McLain brand is among the most trusted and often used in the building industry.

Features

  • Cast aluminum coated heat exchanger
  • Designed to operate in low temperature condensing applications
  • Outdoor reset and domestic hot water priority
  • Modulates with 5:1 turn-down ratio
  • High grade stainless steel burner features quiet operation
  • U-Control gives the power for easy set-up and maintenance
  • Multiple set-up and zone options
  • System sensing recognizes system and outdoor temperatures
  • Temperature management for up to three different set-points
  • Control multiple boilers from a single control panel
  • Standard screen messages provide service alerts and maintenance reminders

Warranty

In residential installations, this unit comes with a 12-year heat exchanger and 5-year parts limited manufacturer's warranty when the boiler is registered with Weil McLain. For commercial installations, this unit comes with a 10-year heat exchanger and 1-year parts limited manufactuer's warranty.

Specifications

General Information
Type
Boiler
Product Line
Ultra S4 Series
Medium
Hot Water
Fuel Type
Natural Gas
Combustion Type
Condensing
Vent Type
Direct Vent
DHW Production
No
Burner Type
Modulating
Mount Type
Floor
Assembly Type
Packaged
Includes Pump
Yes
LP Kit
Included
Performance
AFUE
0.94
Maximum Input Capacity
105000
Minimum Input Capacity
21000
DOE Heating Capacity
94000
AHRI Capacity
82000
Ultra Low Nox Emissions
Yes
Turndown Ratio
5:1
Electrical Details
Voltage
120 VAC
Phase
1
Frequency
60
Dimensions

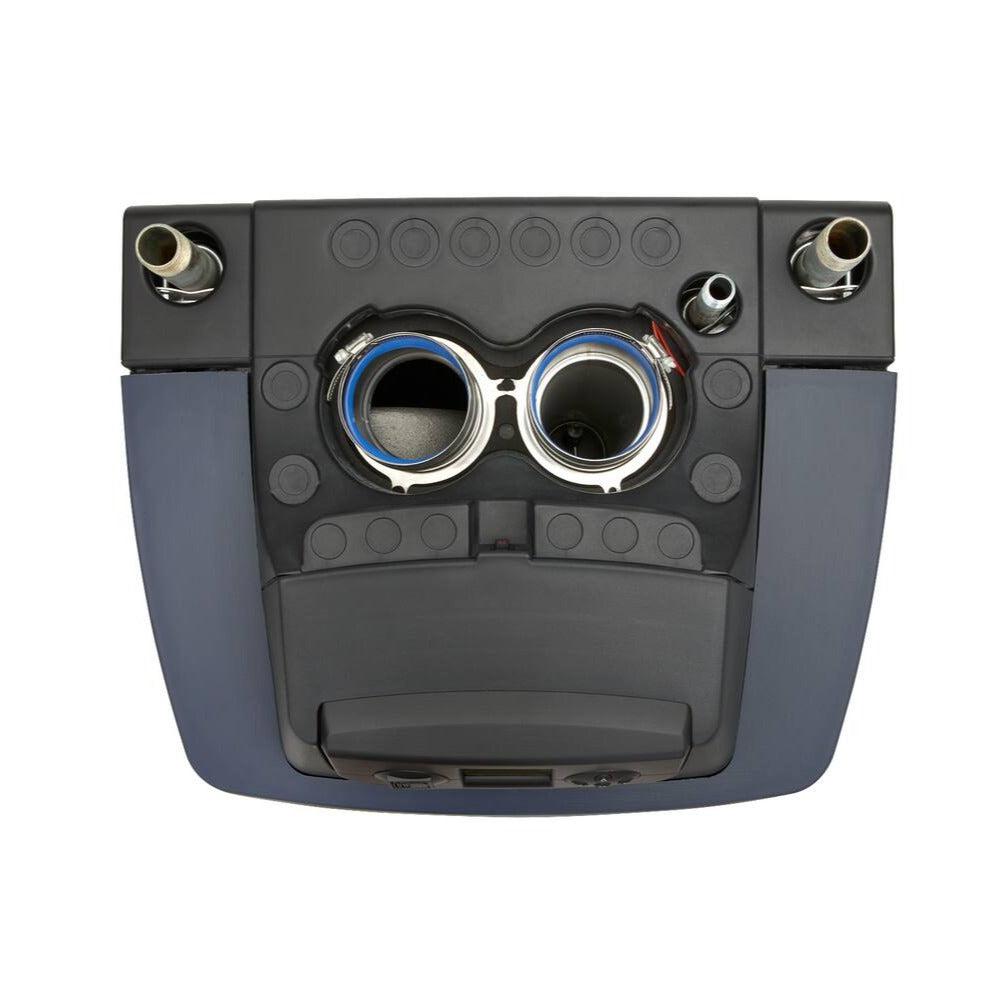

Flue Connection Size
2" or 3"
Gas Connection Size
1/2"
Boiler Supply/Return Connection Size
1"
Product Height
43-1/16"
Product Width
22-13/16"
Product Depth
19-15/16"
Product Weight
207
Certifications
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
5677846
Warranty
Parts Warranty
2-Year Residential Limited Warranty
Heat Exchanger Warranty
12-Year Heat Exchanger Limited Warranty
