Type
Gas
Product Line
PROLINE®
Medium
Hot Water
Fuel Type
Natural Gas
Storage Type
Tank
Description

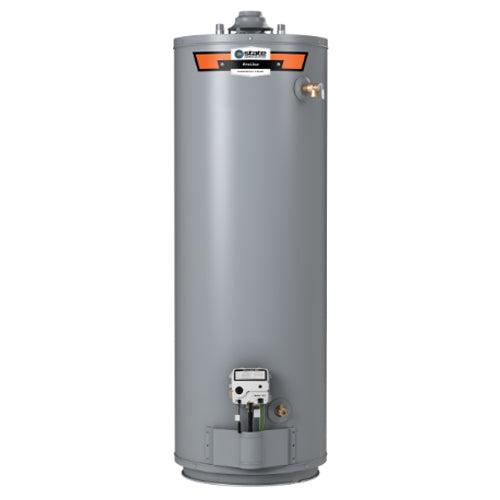

Formerly part of the State Select® water heater series, the new ProLine® Series gas water heater is designed to deliver an economical performance that can lower your energy bills and also provide long-lasting value. The internal microprocessor provides enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance. The unit uses a thermopile to generate the power needed to operate the electronic gas control without requiring an external power source. The electronic gas control incorporates an LED status indicator that monitors system operation and service diagnostics.
Features
- Intelligent control logic
- Self cleaning dip tube
- Coregard™ anode rod
- Push-button piezo igniter
- Enhanced-flow brass drain valve
- Heat trap nipples
- Blue Diamond® glass coating
Warranty
This unit carries a 6-year limited tank and parts warranty.
Specifications
General Information
Performance
First Hour Delivery
69 Gal
Uniform Energy Factor
29 Gal
Emission
0.75
Electrical Details
Voltage
240 V
Phase
1
Frequency
60 Hz
Dimensions
Storage Volume
29 Gal
Cold Water Inlet
0.75
Hot Water Outlet
0.75
Product Height
61.5
Product Width
16
Product Depth
16
Product Weight
123
Shipping Weight
123
Certifications
CSA Listed
CSA 4.1
Energy Star Listed
No
AHRI Certified
Yes
AHRI Reference Number
205287410
UL Listed
No
Warranty
Parts Warranty
6-year limited
Heat Exchanger Warranty
6-year limited
