Description

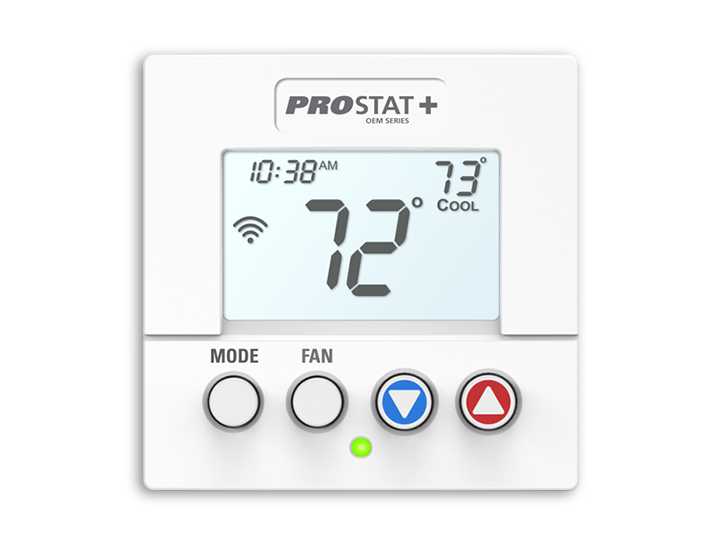

Upgrade your home comfort with the PSP2270, a versatile thermostat featuring 2 Heat/2 Cool settings and built-in Wi-Fi connectivity for seamless control. Designed for convenience and energy efficiency, this thermostat offers flexible 7-day, 5+1+1, or 1-day programming with up to 4 daily periods, allowing personalized temperature schedules.
Key Features:
- Smart Programming: Geofencing and Smart Recovery automatically adjust settings to fit your routine, ensuring comfort right on schedule.
- Vacation Mode: Easily manage energy use while away, reducing costs without sacrificing comfort.
- Advanced Staging Control: Independently adjustable deadbands and timers allow precise control for all heating and cooling stages, with turnoff adjustments for enhanced efficiency.
- Security Enhancements: Setpoint limiting, keypad locking, and secure API connectivity (HTTP or HTTPS) keep your settings safe and protected.
- Sensor Flexibility: Compatible with wireless remote sensors for accurate temperature readings and averaging capabilities.
- Alert System: To ensure system reliability, keep informed with dry contact inputs for timer integration, condensate overflow warnings, and Equipment Fault Detection (FDD) notifications.
Certification & Compatibility:
- Energy Efficient: Title 24 compliant and Energy Star certified, the PSP2270 meets rigorous standards for energy savings.
- Contractor-Ready: Features a complete terminal designation layout for easy setup, including fan relay, compressor relays, and dry contact options.
Take control of your home’s heating and cooling with the PSP2270 thermostat—intelligent, reliable, and tailored for comfort.
ProStat PSP2270 Details |
|
|---|---|
Terminal Designations |
|
| R | 24 VAC Return |
| G | Fan Relay |
| W1/O/B | 1st Stage Heat Circuit or reversing valve |
| W2 | 2nd Stage Heat Circuit |
| Y1 | 1st Stage Compressor Relay |
| Y2 | 2nd Stage Compressor Relay |
| C | 24 VAC Common |
| CK1 | Dry Contact |
Product Specifications |
|
| Electric Rating | 20 – 28 VAC, 5 VA max |
| Output Rating | Y1, Y2, G – 0.8A, all others 0.4A, 3A total max on all outputs |
| Control Range | 35° - 99° F (2° - 36° C) |
| Control Accuracy | +/- 2° F (+/- 1° C) |
| Inputs | Dry contact (condensate, twist timer, more) |
| Outputs | Y1, Y2, G, W1/O/B, W2 |
| Connectivity | Integrated 2.4 GHz b/g/n Wi-Fi radio |
ProStat PSP2270 Replaces |
|
Brand |
Model |
| Honeywell® Equivalent | TH6220WF*, TH6320WF* |
| Emerson® Equivalent | 1F86U-42WF |
| Pro1® Equivalent | T701i |
| Lux® Equivalent | GEO-WH, KONO Z, KONO SMART |
*Verify specific application requirements. All trademarks are the property of their respective owners.
