This product has been replaced with a newer version.
This product has been discontinued due to the mandatory shift to R32 refrigerant, as per the AIM Act, beginning January 1st, 2025. Manufacturers ceased production of equipment using the old R410A refrigerant, necessitating the use of the new R32 refrigerant for new installations. This transition aligns with regulations set forth by the Environmental Protection Agency and the United States Department of Energy.
We recognize the significance of this change in reducing environmental impact and ensuring compliance. For more information on these changes and to explore compliant equipment options, please visit the EPA website. You may also contact us directly with questions and concerns at 888-286-0211.
We appreciate your understanding and support during this transition.
Description

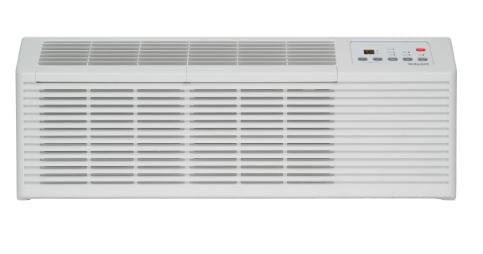

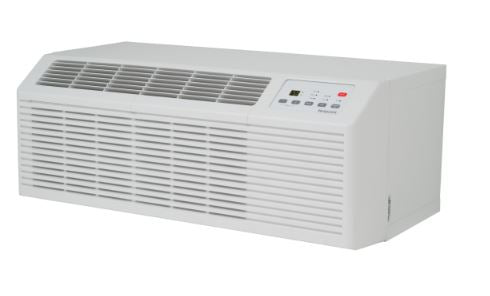

Hotpoint AHES12D3XXA PTAC Unit – 12,000 BTU Cooling | Electric Heat | 230/208V | 20A
Upgrade your space with the Hotpoint® AHES12D3XXA PTAC, a durable, easy-to-service packaged terminal air conditioner built for hotels, multi-family housing, senior living, offices, and commercial properties. This model delivers 12,400/12,200 BTU cooling and 3.5 kW electric resistance heat, providing reliable year-round comfort with a long-term, low-maintenance design.
Key Features
-
Cooling Capacity: 12,400 / 12,200 BTUh
-
Heating Type: Electric resistance heat (3.5 kW)
-
Voltage: 230/208V
-
Amperage: 20A
-
Plug Type: NEMA 3-20P (fixed power cord with LCDI)
-
Refrigerant: R32 (eco-friendly, low-GWP)
-
Fan Speeds: 2-speed cooling, heating & fan-only modes
-

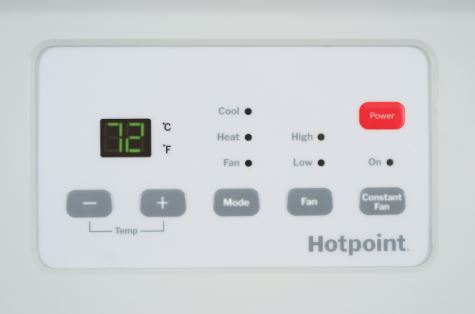

Display: Auto-dimming LED control panel
-
Fresh Air Intake: Optional with RAKVENTH kit
-
Thermostat Compatible: 24V wall thermostat capability with RAKDTKH kit
-
Defrost/Protection:
-
Automatic emergency heat
-
Freeze/frost protection
-
Overheat protection
-
Auto power recovery
-
-
Self-diagnostics for easy maintenance
-
Removable, washable filter
-
Mounting Sleeve & Grille sold separately
Performance Specs
(From Hotpoint PTAC Series A spec sheet)
Cooling
-
Capacity: 12,400 / 12,200 BTUh
-
Power Input: 1,190 / 1,160 W
-
EER: 10.4 / 10.5
-
Airflow: 600 / 530 CFM
-
Dehumidification: 2.85 pt/hr
-
Refrigerant Charge: 16.58 oz R32
Heating
-
Electric Heat Output: 3.5 kW
-
Fan Speeds: High & Low
Dimensions & Weight
-
Unit Size (with sleeve): 16" H × 42" W × 21" D
-
Shipping Weight: 102.09 lbs
-
Net Weight: 91.51 lbs
Accessories (Sold Separately)
-
Wall Sleeve: RAB42MW
-
Exterior Grille: RAG70
-
Fresh Air Kit: RAKVENTH
-
24V Thermostat Interface Kit: RAKDTKH
-
Replacement Filters (2-pack): RAA71H
-
Sub-Base Options: RAK204D20H
-
Disconnect Switch Kit: RAK204SW
(See accessory images on page 4 of the spec sheet.)
Warranties
-
1-Year Full Parts & Labor
-
2–5 Year Limited Warranty
