This product has been replaced with a newer version.
This product has been discontinued due to the mandatory shift to R32 refrigerant, as per the AIM Act, beginning January 1st, 2025. Manufacturers ceased production of equipment using the old R410A refrigerant, necessitating the use of the new R32 refrigerant for new installations. This transition aligns with regulations set forth by the Environmental Protection Agency and the United States Department of Energy.
We recognize the significance of this change in reducing environmental impact and ensuring compliance. For more information on these changes and to explore compliant equipment options, please visit the EPA website. You may also contact us directly with questions and concerns at 888-286-0211.
We appreciate your understanding and support during this transition.
Description
Elevate guest comfort and energy savings with the Hotpoint AHHS12D3XXA—an all-in-one packaged terminal air conditioner offering efficient cooling, heat-pump heating, and backup electric heat in a sleek, slide-in chassis.
🏷️ Main Features
-
12,400 BTU cooling / 11,000 BTU reversing heat-pump performance — ideal for spaces up to ~450–550 ft²
-
R‑32 refrigerant: lower global warming potential and improved eco‑efficiency
-
3.5 kW electric-resistance backup heat — automatic emergency heat when outside temps dip
-
Variable airflow control: 2-speed fan with “SmartFan”, constant‑fan mode, and hidden vent setting
-

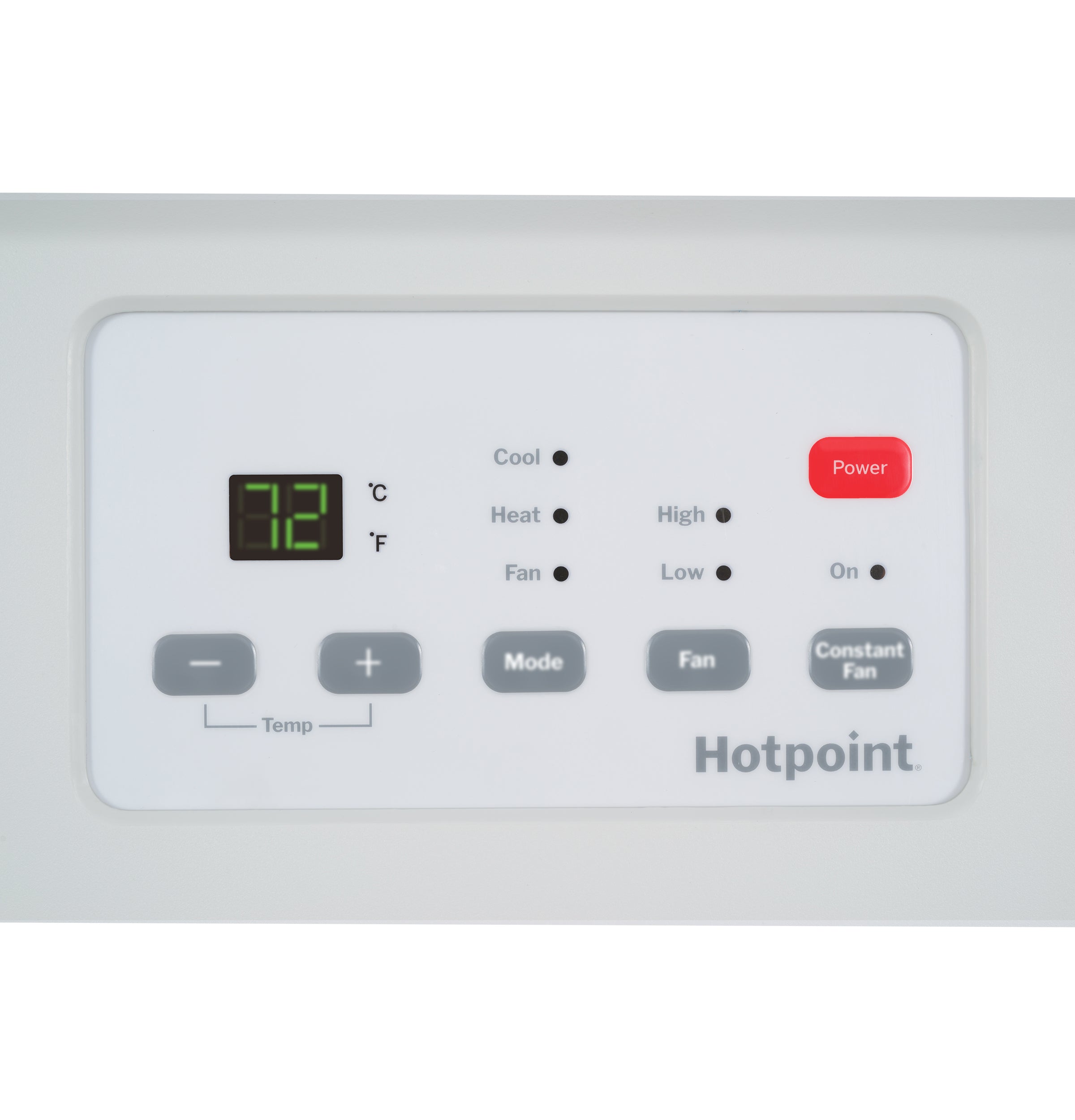

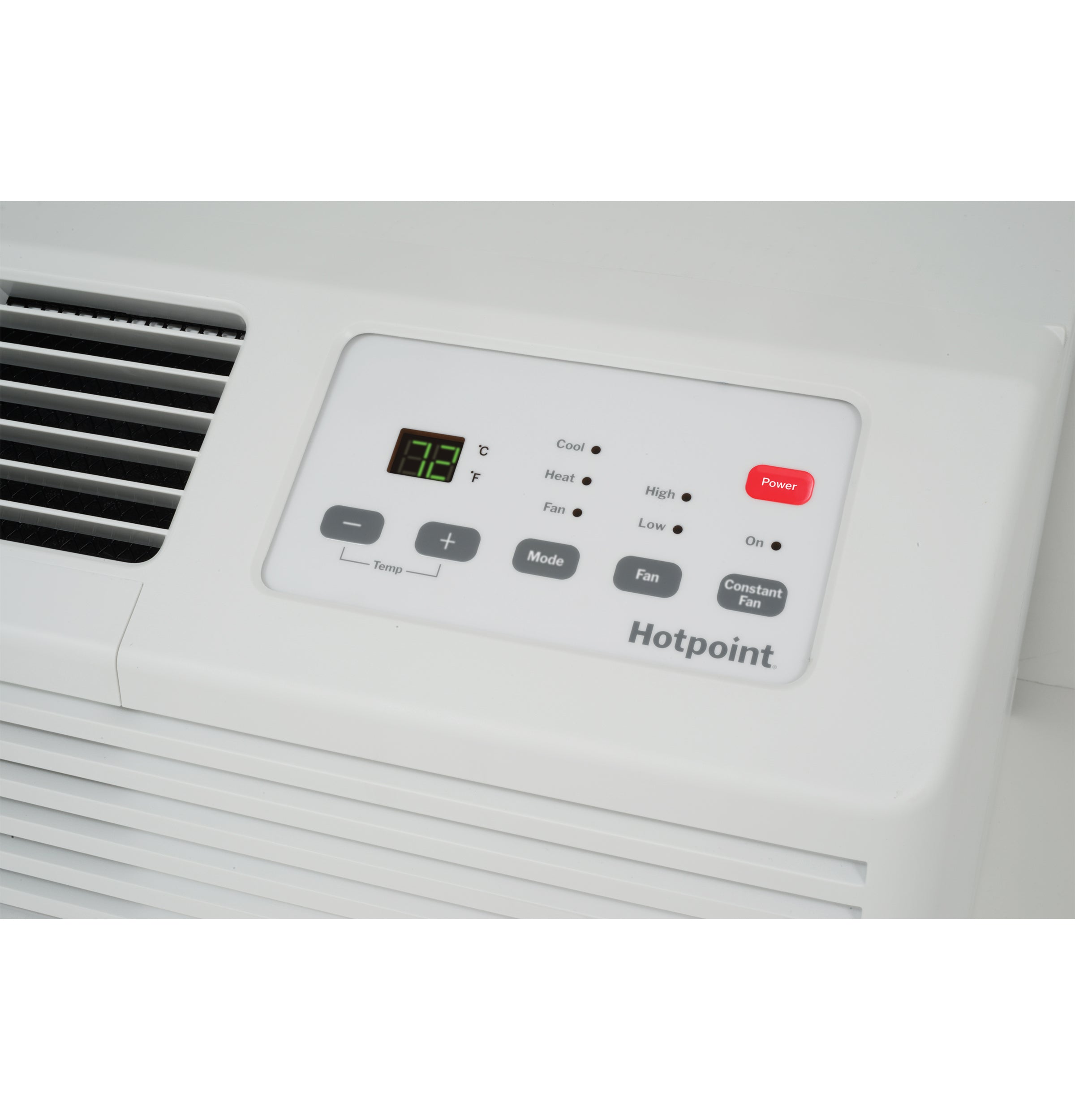

User-friendly digital controls: coverless auto-dimming display, 4 temperature-limit settings, self-diagnostics
-
Durability & protection: freeze/frost and overheat sensors, auto power recovery, slinger‑ring condensate removal
-
Standard drop-in chassis (16″ H × 42.4″ W × 20.9″ D) with power cord; remote thermostat-ready
📊 Quick Specs
| Feature | Specification |
|---|---|
| Cooling Capacity | 12,400 BTU (max), 10.5 EER |
| Heat-Pump Heating | 11,000 BTU (reverse‑cycle) |
| Electric Backup Heat | 3.5 kW (20 Amp @ 208–230 V) |
| Refrigerant Type | R‑32 |
| Fan Modes | 2-speed, constant fan, SmartFan, hidden vent |
| Power Requirements | 208–230 V, 20 Amp, includes LCDI cord |
| Dimensions | 42.4″ W × 16″ H × 20.9″ D; net ~95 lb, ship ~105 lb |
| Warranty | 1 yr parts & labor; 5 yr sealed‑system |
🎯 Ideal Applications
-
Hotels, condos, senior living—dependable year-round climate control.
-
Retrofit-ready—fits existing 42″ PTAC sleeves for seamless replacements
-
Eco‑conscious properties—R‑32 refrigerant reduces environmental impact.
-
Heavy‑use zones—self-diagnostics and robust protection reduce service calls.
🛠️ Installation & Support
Simple slide-in installation with included 20 A power cord—just add sleeve & grille if needed . Easily upgrade later with an optional remote-thermostat kit. Backed by GE/Hotpoint support and a 5‑year sealed-system warranty
✅ Why Choose AHHS12D3XXA?
-
Up to ~50% energy savings via heat-pump COP of 3.2 and 10.5 EER efficiency
-
Fewer service interruptions thanks to auto power recovery & diagnostics
-
Comfortable, whisper-quiet operation for mid-size rooms
-
Green compliance with next-gen refrigerant
-
Seamless maintenance and retrofitting for property managers
- AHRI Certified 215415935
