Type
Gas Furnace
Product Line
GD9T96 Series
Fuel Type
Gas
Vent Type
PVC Pipe
Gas Valve Configuration
Two Stage
Blower Motor
9 Speed ECM
Cabinet Configuration
Downflow/Horizontal
Gas Conversion Kit
LPM-34
Description
The Goodman GD9T96 is a reliable, energy-efficient furnace designed to keep your home warm and comfortable during the coldest months. Built with durable construction and advanced heating technology, it delivers consistent performance while helping to reduce energy costs. Its quiet operation and compact design make it an excellent choice for ensuring a cozy home environment without any disruptions. Perfect for winter, this furnace provides the dependable comfort and efficiency homeowners need to stay warm.

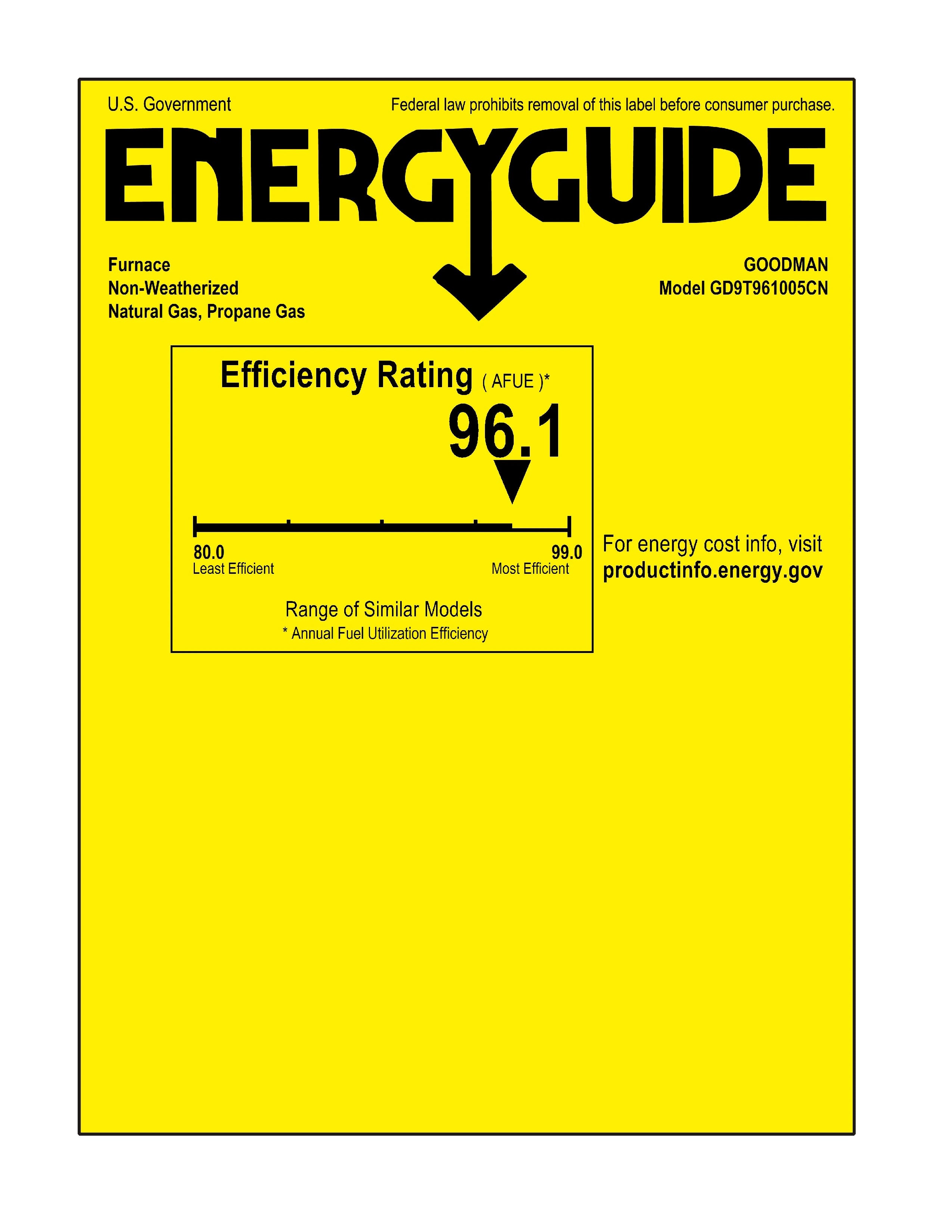

Unlock the full potential of your GD9T96 Furnace by checking its certified performance on the AHRI Directory and mastering Energy Guide labels with the FTC’s Consumer Guide for optimized energy efficiency and savings.
This Furnace Replaces the Following Models:
GC9C961005CNA, GCEC961005CNA
Warranty
Goodman offers a 10-year parts limited warranty when installed by a qualifying technician and then registered on the manufacturer's website.
Standard Features
- Energy-efficient, multi-speed ECM blower motor
- Heavy-duty, aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Two-stage gas valve provides quiet, economical heating
- Durable Silicon Nitride igniter
- Quiet two-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a LED
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Low continuous fan speed options offer quiet air circulation
- All models comply with California 40 ng/J Low NOx emissions standard
- Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
- AHRI Certified; ETL Listed
Cabinet Features
- Designed for multi-position installation — GD9T96: downflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) ≤ 2%
- Heavy-gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Specifications
General Information
Performance
AFUE
96%
Heating Capacity (BTU/h)
100,000
High Fire Input (BTU/h)
100,000
High Fire Output (BTU/h)
96,000
Low Fire Input (BTU/h)
70,000
Low Fire Output (BTU/h)
67,200
Maximum Air Flow (CFM)
2000 CFM
Electrical Details
Voltage (VAC)
115
Phase
Single Phase
Frequency (Hz)
60 Hz
Minimum Circuit Ampacity (A)
14.4
Recommended Breaker Size (A)
25
Dimensions
Flue Connection Size
2" - 3"
Cabinet Width
21"
Product Height
34.5"
Product Width
21"
Product Depth
28.75"
Product Weight (lbs.)
140
Shipping Weight (lbs.)
140
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
215225022
Warranty
Parts Warranty
10-Year Parts Limited Warranty
Heat Exchanger
Lifetime Limited Warranty
