Efficient Year-Round Comfort for Larger Homes

Upgrade to high-efficiency heating and cooling with this Goodman 3 Ton 15.2 SEER2 R-32 HVAC system, designed for homes ranging from 1,600 to 2,200 sq. ft. This complete system includes the GLXS4BA3610 R-32 air conditioner condenser, CAPTA3626C3 vertical coil, and the GR9T961005CN 96% AFUE 100,000 BTU natural gas furnace—everything you need for powerful performance and long-lasting reliability.

Whether you're replacing an outdated unit or installing a new system, this combo delivers consistent indoor comfort with reduced energy costs and a lower environmental impact, thanks to R-32 refrigerant and advanced Goodman engineering.

Goodman AC and furnace systems offer energy-efficient heating and cooling to keep your home comfortable in any season. This split system provides consistent airflow, quiet operation, and reliable performance. The high-efficiency air conditioner ensures cooling during summer, while the gas furnace delivers warmth in colder months. With a focus on affordability and long-term durability, Goodman systems are a trusted choice for home climate control.

HVAC professionals selected these components to maximize their performance and efficiency. This central air conditioning system is certified under AHRI# 214859726 to give you 15.2 SEER2

This HVAC split system incluedes the following:

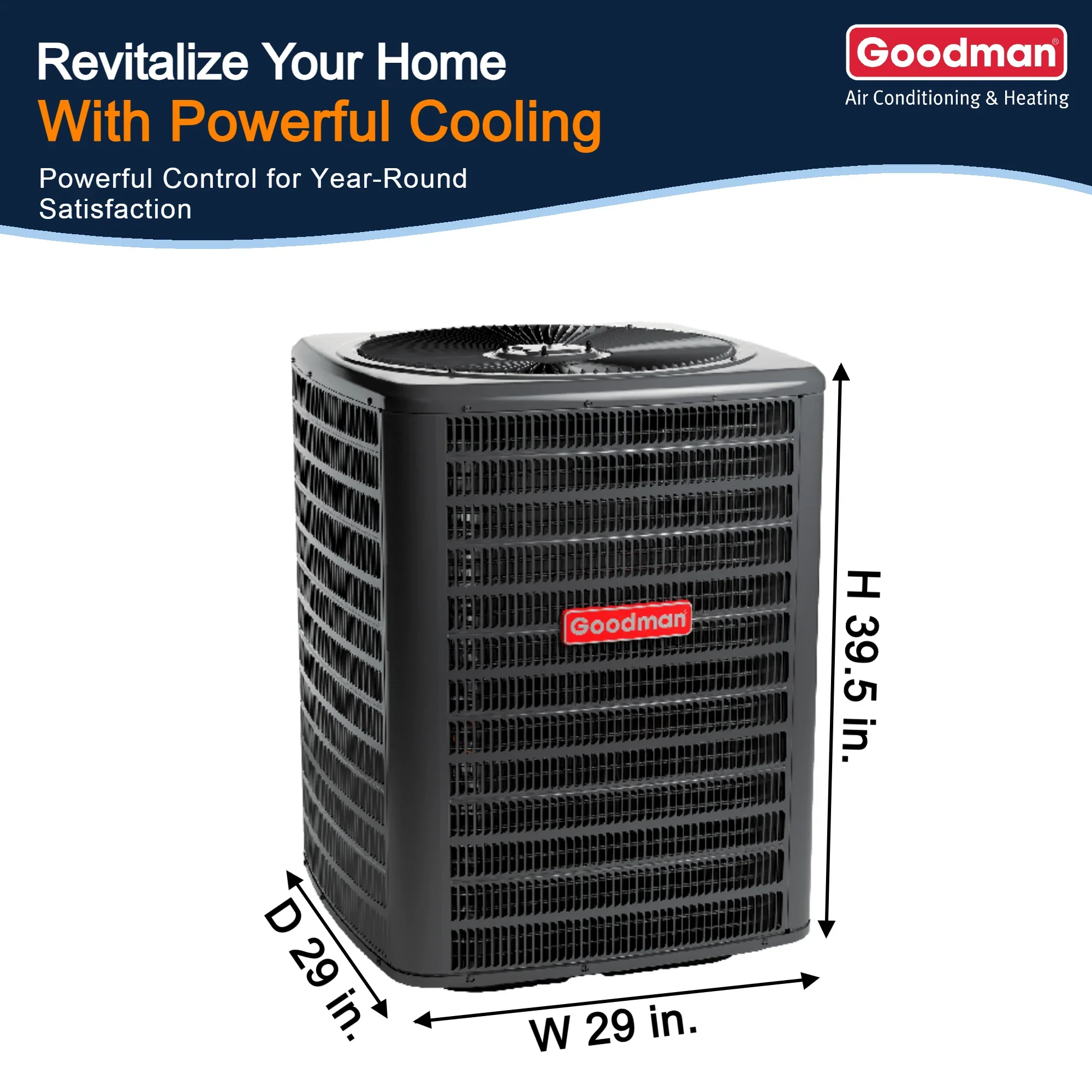

3 Ton Up to 15.2 SEER2 Goodman Air Conditioner Condenser - GLXS4BA3610

100,000 BTU 96% AFUE Upflow/Horizontal Two Stage Goodman Gas Furnace - GR9T961005CN

3 Ton Upflow/Downflow Goodman Cased Coil with Built-in TXV - CAPTA3626C3

Warranty

Goodman offers a 10-year parts limited warranty when installed by a qualifying technician and then registered on the manufacturer's website.

AC Features

Standard Features

• High-efficiency energy-efficient compressor
• High-density foam compressor
• Advanced Copeland® technology
• Fully charged for 15' of tubing length
• Copper tube/enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Furnace Features

Standard Features

• Energy-efficient, multi-speed ECM blower motor
• Heavy-duty, aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Two-stage gas valve provides quiet, economical heating
• Durable Silicon Nitride igniter
• Quiet two-speed induced draft blower
• Self-diagnostic control board with constant memory fault code history output to a LED
• Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
• Low continuous fan speed options offer quiet air circulation
• All models comply with California 40 ng/J Low NOx emissions standard
• Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified; ETL Listed

Cabinet Features

• Designed for multi-position installation — GR9T96: upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Coil Features

Standard Features

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• CAPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
• CAPTA models include single front access panel
• Standardized copper suction tube stub length
• Vertical and horizontal models available
• 21" depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified; ETL listed

Why Choose This 15.2 SEER2 R-32 Goodman System?

• 🌎 Eco-Friendly R-32 Refrigerant – With a lower global warming potential (GWP) than R-410A, R-32 is the next-gen refrigerant of choice for energy-conscious homeowners.

• 🔥 96% AFUE Furnace – Delivers near-total efficiency, converting almost all fuel into heat for your home.

• 📦 Packaged for Easy Installation – With a vertical coil and slide-out chassis, this system fits most modern HVAC setups.

• 💸 Save on Utility Bills – The 15.2 SEER2 rating exceeds many regional efficiency standards, helping you reduce long-term energy costs.

Perfect for Homes That Need:

• A reliable 3 ton AC and furnace combo

• A complete heating and cooling system upgrade

• Support for energy rebate programs

• Quiet operation for bedrooms and family areas

• Lower carbon footprint with R-32 refrigerant

Frequently Asked Questions

Q: What is the benefit of R-32 refrigerant in this AC system?
A: R-32 is more energy efficient and has a significantly lower environmental impact compared to older refrigerants like R-410A.

Q: How big of a home will a 3 ton, 100,000 BTU system cover?
A: This setup is ideal for homes between 1,600 to 2,200 sq. ft., depending on insulation and climate zone.

Q: Is this system compatible with Wi-Fi thermostats?
A: Yes. You can pair this Goodman system with most smart or Wi-Fi-enabled thermostats for better control and efficiency.

Is This System Right for Your Home?

✅ You want powerful cooling for 1,600–2,200 sq. ft.
✅ You prefer eco-friendly refrigerants (R-32)
✅ You live in a region with cold winters and need 96% AFUE gas heating
✅ You're replacing an older 10–13 SEER system and want energy savings
✅ You want to qualify for rebates with high-efficiency equipment

Why Buy from The Furnace Outlet?

• 🔧 Expert-Approved Systems – Every HVAC system is handpicked by certified technicians.

• 🚚 Fast, Free Shipping – Most orders ship same or next business day.

• 📞 Real Tech Support – Call, chat, or email with licensed HVAC professionals.

• 🔐 Secure Checkout + Financing – Easy financing available for qualified customers.

• ⭐ Thousands of Happy Homeowners – Trusted across the U.S. for reliable comfort.

🔧 Tech Tip: “This is one of our most popular setups for 2,000 sq. ft. homes in northern climates. R-32 refrigerant runs cooler, and the 96% furnace means major fuel savings.”
— Tony, Certified HVAC Technician, The Furnace Outlet
