Goodman AC and furnace systems offer energy-efficient heating and cooling to keep your home comfortable in any season. This split system provides consistent airflow, quiet operation, and reliable performance. The high-efficiency air conditioner ensures cooling during summer, while the gas furnace delivers warmth in colder months. With a focus on affordability and long-term durability, Goodman systems are a trusted choice for home climate control.

HVAC professionals selected these components to maximize their performance and efficiency. This central air conditioning system is certified under AHRI# 214859821 to give you 15.2 SEER2

This HVAC split system incluedes the following:

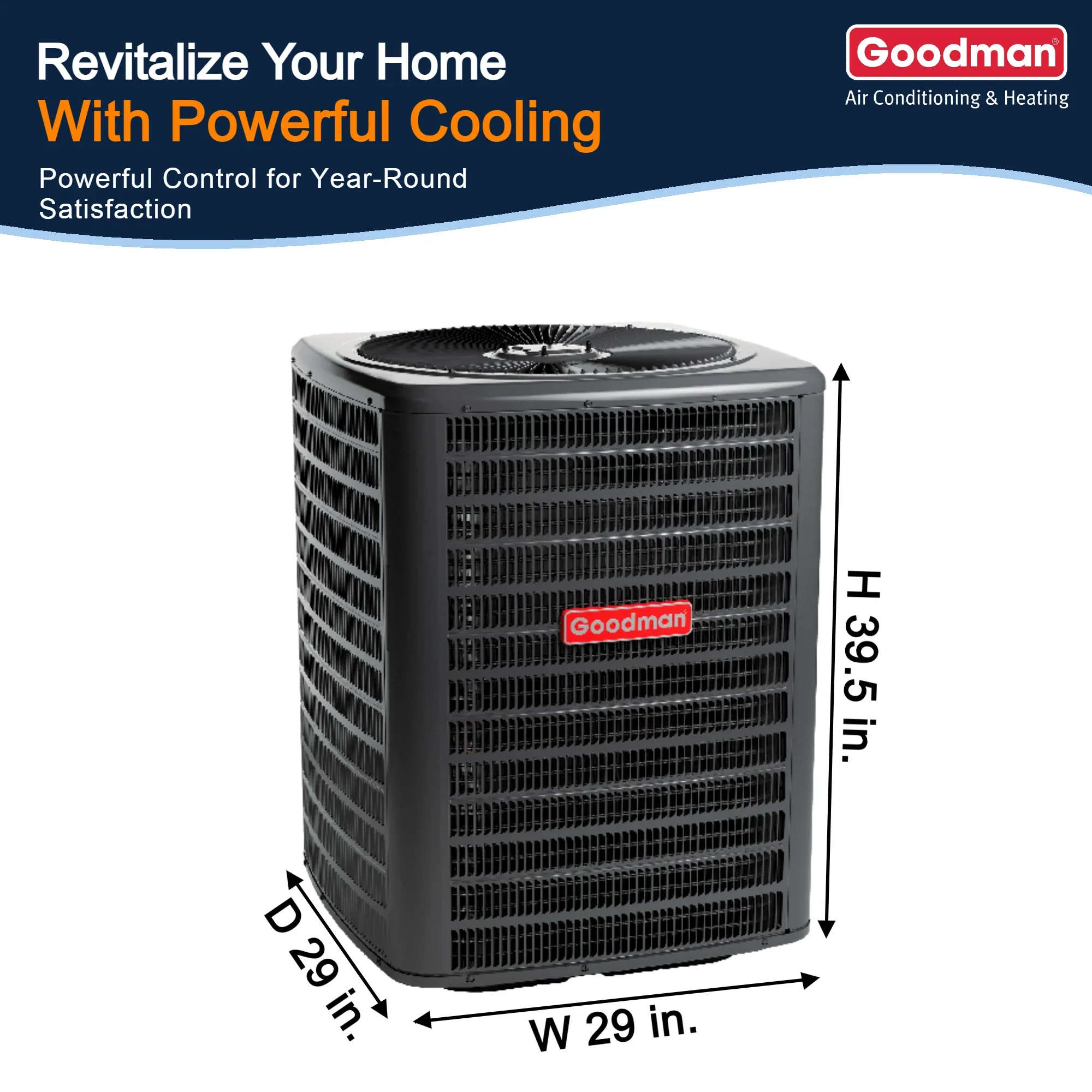

3 Ton Up to 15.2 SEER2 Goodman Air Conditioner Condenser - GLXS4BA3610

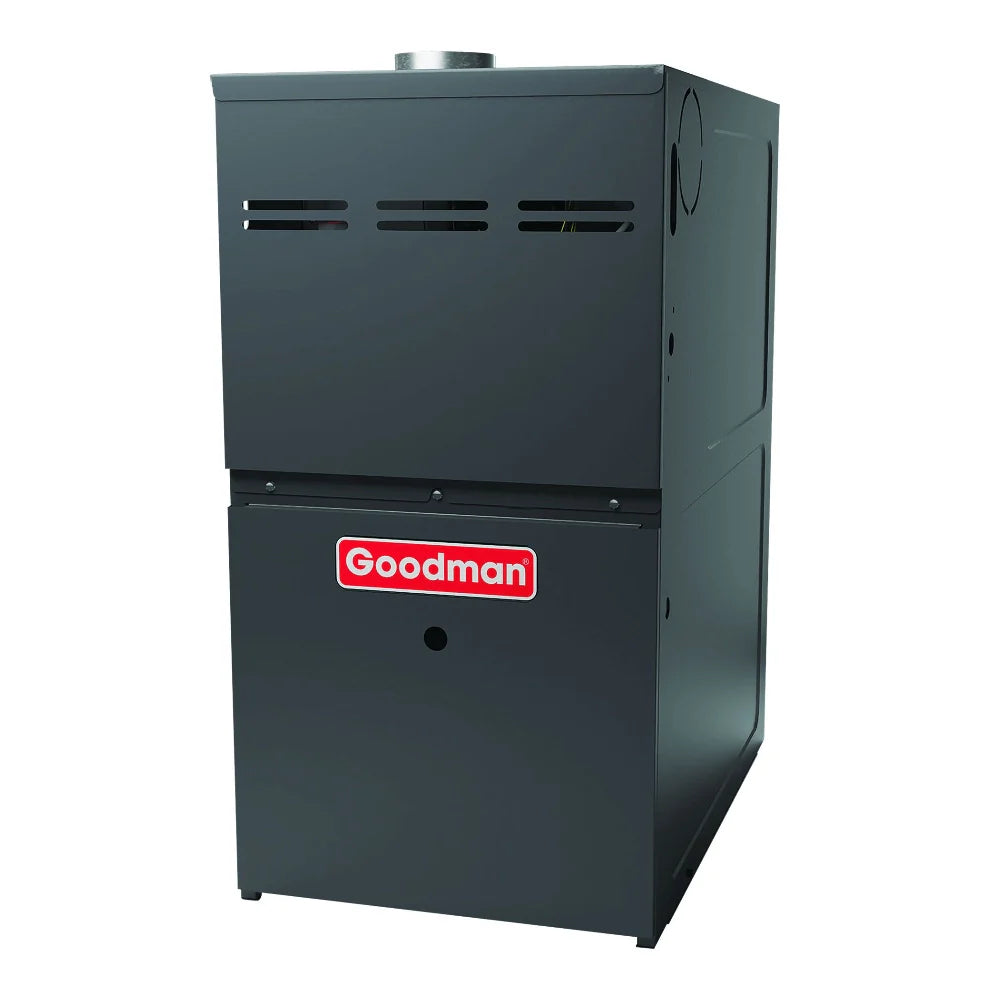

80,000 BTU 80% AFUE Upflow/Horizontal Single Stage Goodman Gas Furnace - GR9S800804BN

3 Ton Horizontal Goodman Cased Coil with Built-in TXV - CHPTA363B3

Warranty

Goodman offers a 10-year parts limited warranty when installed by a qualifying technician and then registered on the manufacturer's website.

AC Features

Standard Features

• High-efficiency energy-efficient compressor
• High-density foam compressor
• Advanced Copeland® technology
• Fully charged for 15' of tubing length
• Copper tube/enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Furnace Features

Standard Features

• Heavy-duty aluminized-steel dual-diameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, single-speed draft induced
• Self-diagnostic control board
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor
• California Low NOx emissions models available
• Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified; ETL Listed

Cabinet Features

• Installation: GR9S80 - upflow, horizontal left or right
• Convenient left or right connection for gas and electrical service
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Foil faced insulated heat exchanger

Coil Features

Standard Features

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• CHPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
• CHPTA include single front access panel
• Standardized copper suction tube stub length
• Vertical and horizontal models available
• 21" depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified; ETL listed
