3 Ton 13.8 SEER2 100,000 BTU 96% AFUE Goodman Upflow Air Conditioner System - GLXS3BN3610, CAPTA3626C3, GR9S961005CN

Goodman SKU: GLXS3BN3610,CAPTA3626C3,GR9S961005CN

3 Ton 13.8 SEER2 100,000 BTU 96% AFUE Goodman Upflow Air Conditioner System - GLXS3BN3610, CAPTA3626C3, GR9S961005CN

Save $948.60
GoodmanSKU: GLXS3BN3610,CAPTA3626C3,GR9S961005CN

Ready to Ship - Average Delivery Time of 1.85 Days
Retail price:
Sale price$4,743.00 USD Regular price$5,691.60 USD

Description

Goodman AC and furnace systems offer energy-efficient heating and cooling to keep your home comfortable in any season. This split system provides consistent airflow, quiet operation, and reliable performance. The high-efficiency air conditioner ensures cooling during summer, while the gas furnace delivers warmth in colder months. With a focus on affordability and long-term durability, Goodman systems are a trusted choice for home climate control.

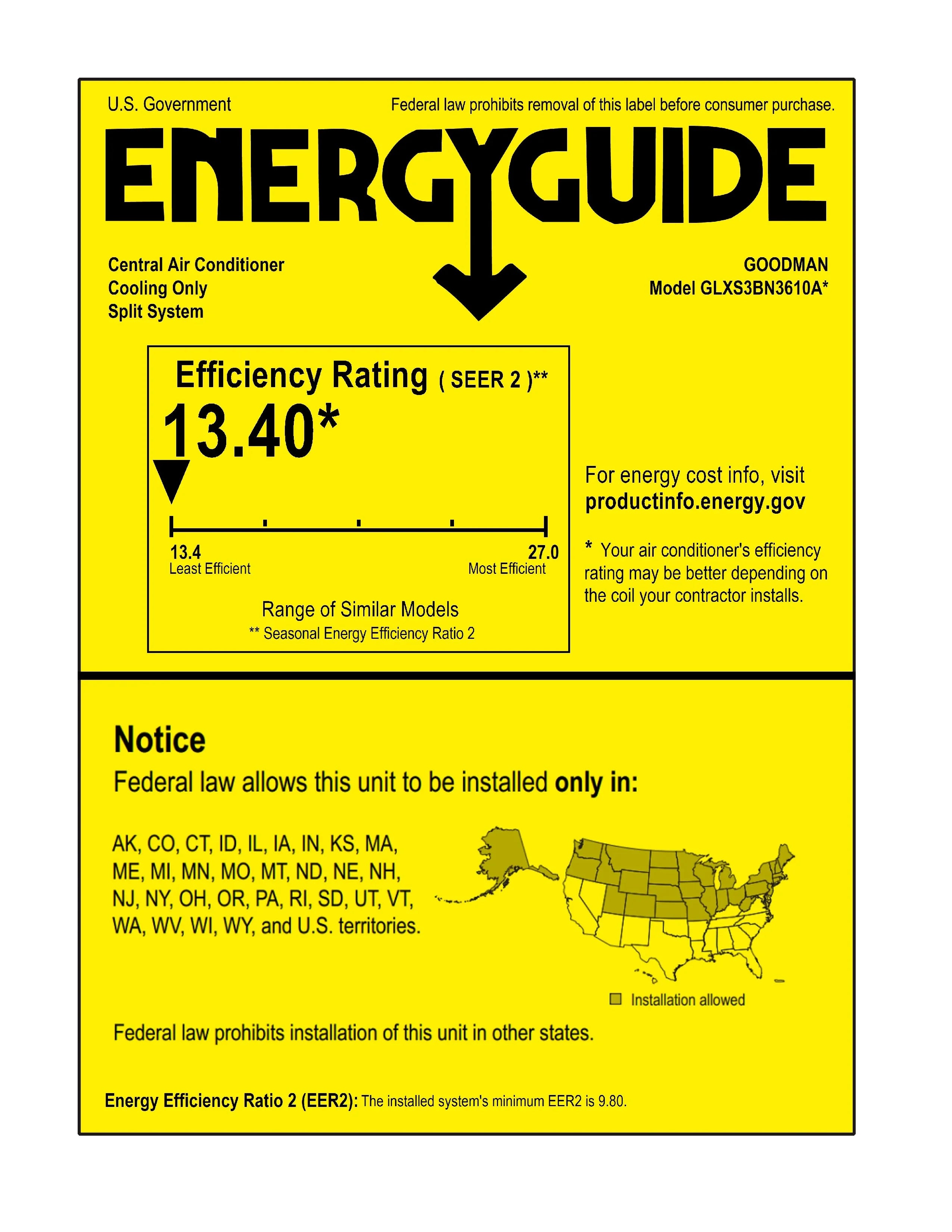

HVAC professionals selected these components to maximize their performance and efficiency. This central air conditioning system is certified under AHRI# 215277429 to give you 13.8 SEER2

This HVAC split system incluedes the following:

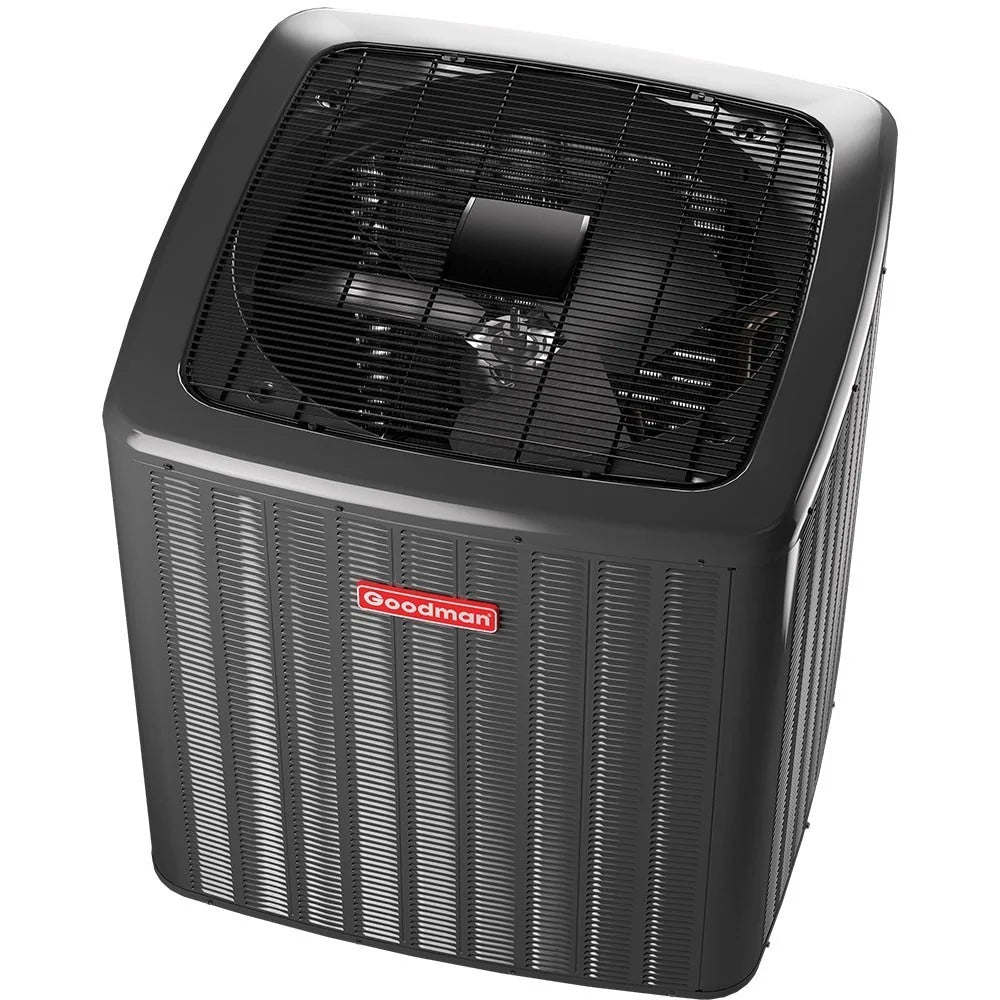

3 Ton Up To 15 SEER2 Goodman Air Conditioner Model - GLXS3BN3610

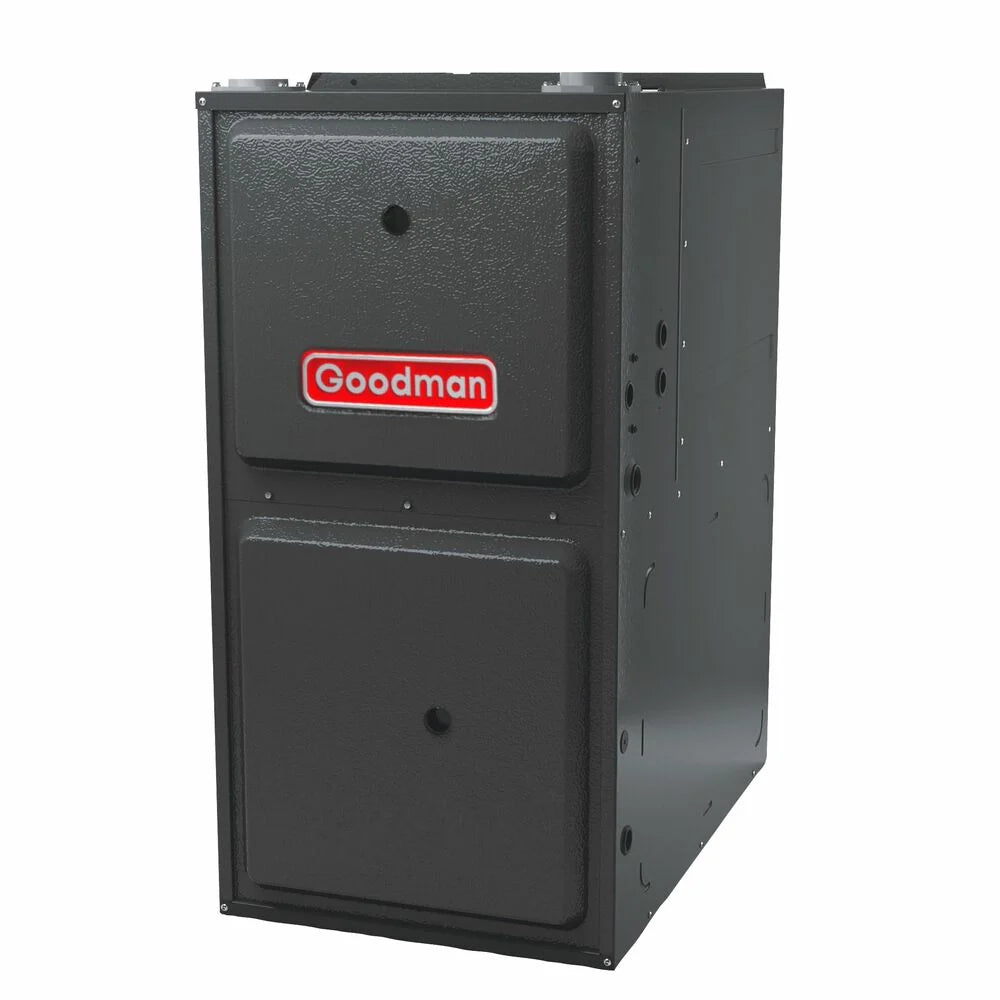

100,000 BTU 96% AFUE Upflow/Horizontal Single Stage Goodman Gas Furnace - GR9S961005CN

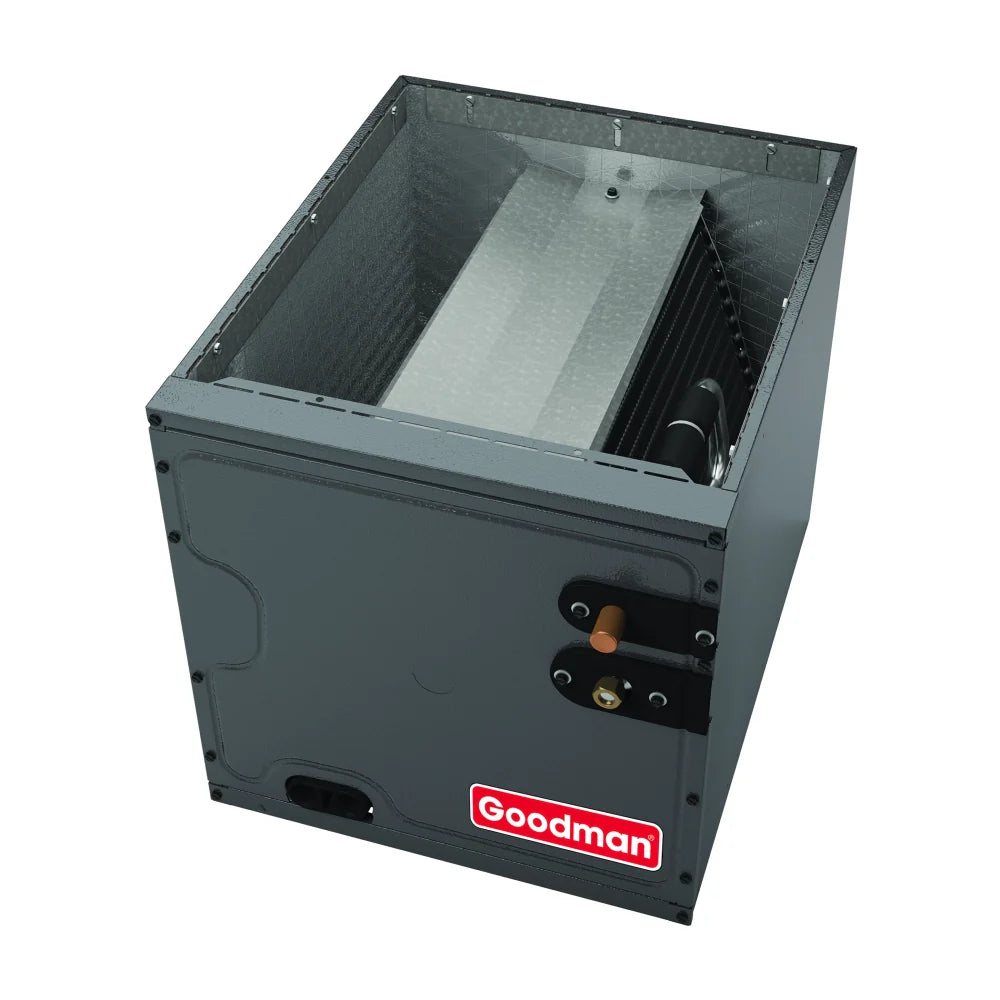

3 Ton Upflow/Downflow Goodman Cased Coil with Built-in TXV - CAPTA3626C3

Warranty

Goodman offers a 10-year parts limited warranty when installed by a qualifying technician and then registered on the manufacturer's website.

AC Features

Standard Features

  • Energy-efficient compressor
  • Factory-installed filter drier
  • Copper tube/aluminum fin coil
  • Service valves with sweat connections and easy-access gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed

Cabinet Features

  • Heavy-gauge galvanized-steel cabinet with louvered sound-control top
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Steel louver coil guard
  • Single-panel access to controls with space provided for field-installed accessories

Furnace Features

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board with constant memory fault code history output to a LED
  • All models comply with California 40 ng/J Low NOx emissions standard
  • Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
  • AHRI Certified; ETL Listed

Cabinet Features

  • Designed for multi-position installation — GR9S96: upflow, horizontal left or right
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) ≤ 2%
  • Heavy-gauge steel cabinet with durable finish
  • Fully insulated heat exchanger and blower section
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Coil Features

Standard Features

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • CAPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
  • CAPTA models include single front access panel
  • Standardized copper suction tube stub length
  • Vertical and horizontal models available
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified; ETL listed

Specifications

Air Conditioner (GLXS3BN3610)
General Information
Type
AC Condenser
Product Line
GLXS3B-R-32
Refrigerant Type
R32
Installation Location
Outdoor Unit
Compressor Stages
Single-Stage
DOE Regional Compliance
North
Performance
Capacity (Tons)
3
Cooling Capacity (BTU/h)
36,000
SEER2
15-16
Electrical Details
Voltage (VAC)
208/230
Phase
1
Frequency (Hz)
60
Minimum Circuit Ampacity (A)
17.5
Recommended Breaker Size (A)
30
Dimensions
Suction Connection Size
3/4"
Liquid Connection Size
3/8"
Product Height
32.5"
Product Width
26"
Product Depth
26"
Product Weight (lbs.)
136
Shipping Weight (lbs.)
151
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty
Parts Warranty
10-Year Parts Limited Warranty

Coil (CAPTA3626C3)
General Information
Type
Cased A Coil
Product Line
CAPTA Series
Refrigerant Type
R-32
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
Performance
Capacity (Tons)
3
Dimensions
Suction Connection Size
7/8"
Liquid Connection Size
3/8"
Cabinet Width
21"
Product Height
26"
Product Width
21"
Product Depth
21"
Product Weight
51
Shipping Weight (lbs.)
51
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty
Parts Warranty
10-Year Parts Limited Warranty

Furnace (GR9S961005CN)
General Information
Type
Gas Furnace
Product Line
GR9S96 Series
Fuel Type
Gas
Vent Type
PVC Pipe
Gas Valve Configuration
Single Stage
Blower Motor
9 Speed ECM
Configuration
Upflow/Horizontal
Gas Conversion Kit
LPM-33
Performance
AFUE
96%
Heating Capacity (BTU/h)
100,000
High Fire Input (BTU/h)
0
High Fire Output (BTU/h)
0
Low Fire Input (BTU/h)
0
Low Fire Output (BTU/h)
0
Maximum Air Flow (CFM)
2000 CFM
Low NOx Emissions
0
Electrical Details
Voltage (VAC)
115
Phase
Single Phase
Frequency (Hz)
60 Hz
Minimum Circuit Ampacity (A)
16.7
Recommended Breaker Size (A)
25
Dimensions
Flue Connection Size
2" - 3"
Cabinet Width
21"
Product Height
34.5"
Product Width
21"
Product Depth
28.75"
Product Weight (lbs.)
144
Shipping Weight (lbs.)
144
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
215224976
Warranty
Parts Warranty
10-Year Parts Limited Warranty
Heat Exchanger
Lifetime Limited Warranty
