Goodman AC and furnace systems offer energy-efficient heating and cooling to keep your home comfortable in any season. This split system provides consistent airflow, quiet operation, and reliable performance. The high-efficiency air conditioner ensures cooling during summer, while the gas furnace delivers warmth in colder months. With a focus on affordability and long-term durability, Goodman systems are a trusted choice for home climate control.

HVAC professionals selected these components to maximize their performance and efficiency. This central air conditioning system is certified under AHRI# 215277392 to give you 13.8 SEER2

This HVAC split system incluedes the following:

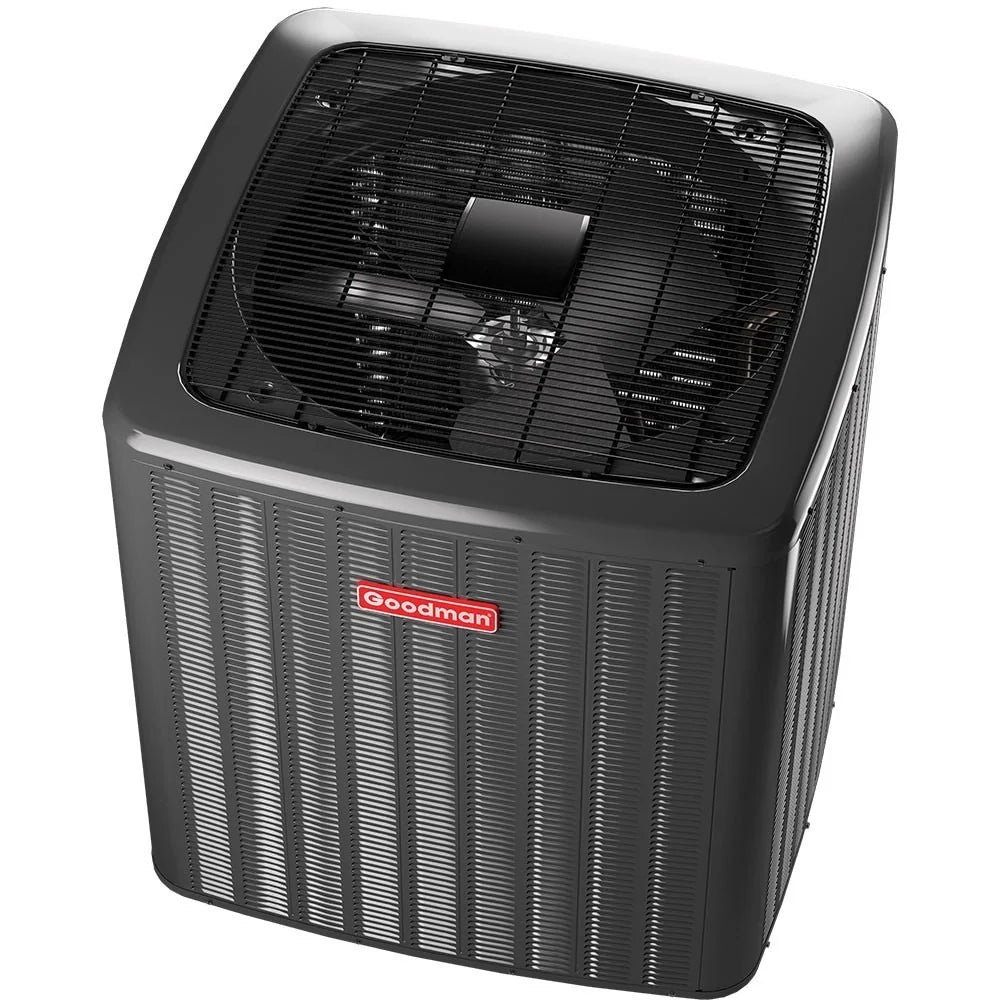

3 Ton Up To 15 SEER2 Goodman Air Conditioner Model - GLXS3BN3610

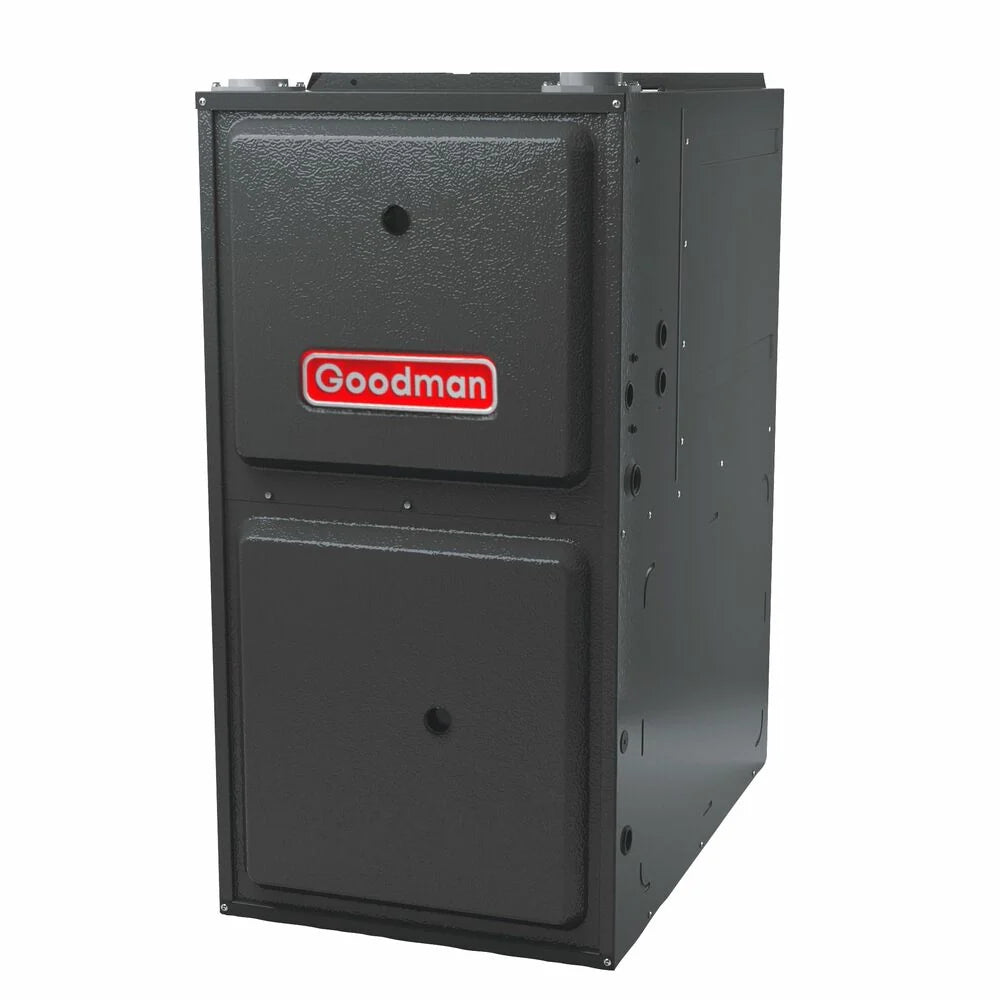

100,000 BTU 96% AFUE Upflow/Horizontal Two Stage Goodman Gas Furnace - GR9T961005CN

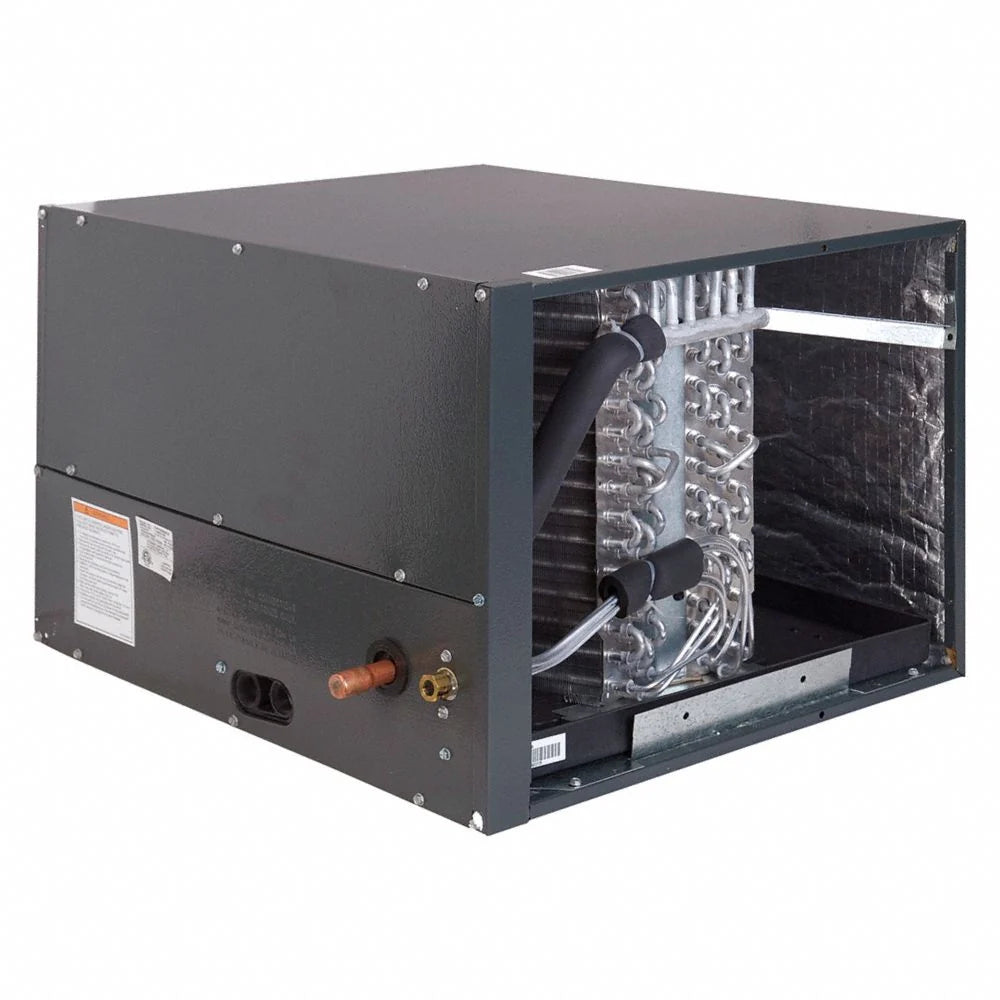

3.5 Ton Horizontal Goodman Cased Coil with Built-in TXV - CHPTA423C3

Warranty

Goodman offers a 10-year parts limited warranty when installed by a qualifying technician and then registered on the manufacturer's website.

AC Features

Standard Features

• Energy-efficient compressor
• Factory-installed filter drier
• Copper tube/aluminum fin coil
• Service valves with sweat connections and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed

Cabinet Features

• Heavy-gauge galvanized-steel cabinet with louvered sound-control top
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories

Furnace Features

Standard Features

• Energy-efficient, multi-speed ECM blower motor
• Heavy-duty, aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Two-stage gas valve provides quiet, economical heating
• Durable Silicon Nitride igniter
• Quiet two-speed induced draft blower
• Self-diagnostic control board with constant memory fault code history output to a LED
• Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
• Low continuous fan speed options offer quiet air circulation
• All models comply with California 40 ng/J Low NOx emissions standard
• Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified; ETL Listed

Cabinet Features

• Designed for multi-position installation — GR9T96: upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Coil Features

Standard Features

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• CHPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
• CHPTA include single front access panel
• Standardized copper suction tube stub length
• Vertical and horizontal models available
• 21" depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified; ETL listed
