Experience year-round indoor comfort and significant energy savings with the Goodman 3.5 Ton Ultra Low NOx Heat Pump System, a premium HVAC solution that combines dependable heating and cooling performance with exceptional efficiency and environmentally friendly operation. This all-in-one Goodman system bundle includes a high-efficiency heat pump condenser, a precision-engineered evaporator coil, and a high-performance gas furnace, making it ideal for residential homeowners seeking long-term comfort, value, and compliance with strict emission standards.

HVAC professionals selected these components to maximize their performance and efficiency. This central Heat Pump system is certified under AHRI # 215811926 to give you 15.2 SEER2.

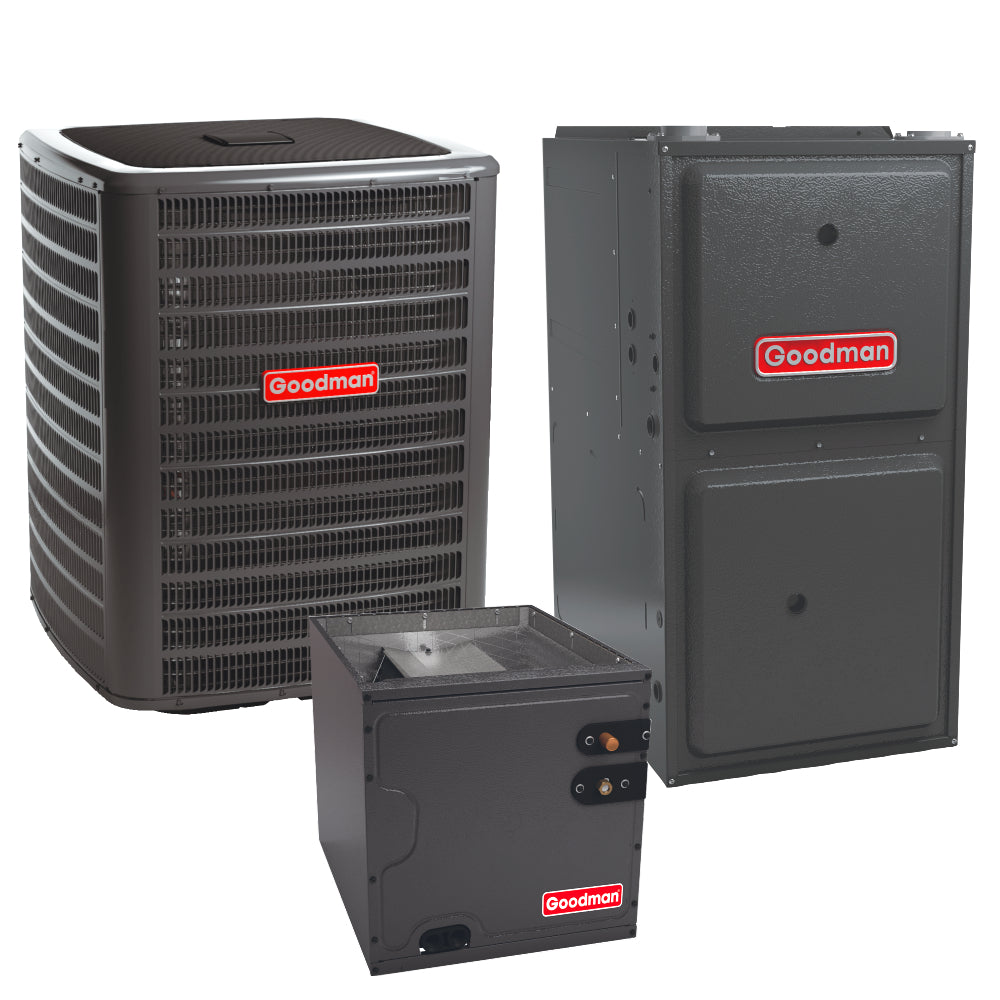

This HVAC split system includes the following:

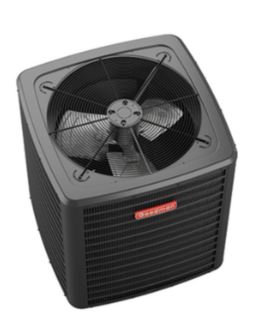

3.5 Ton Up To 14.4 SEER2 Goodman Heat Pump Condenser - GLZS4BA4210

3.5 Ton Upflow/Downflow Goodman Cased Coil with Built-in TXV - CAPTA4230C3

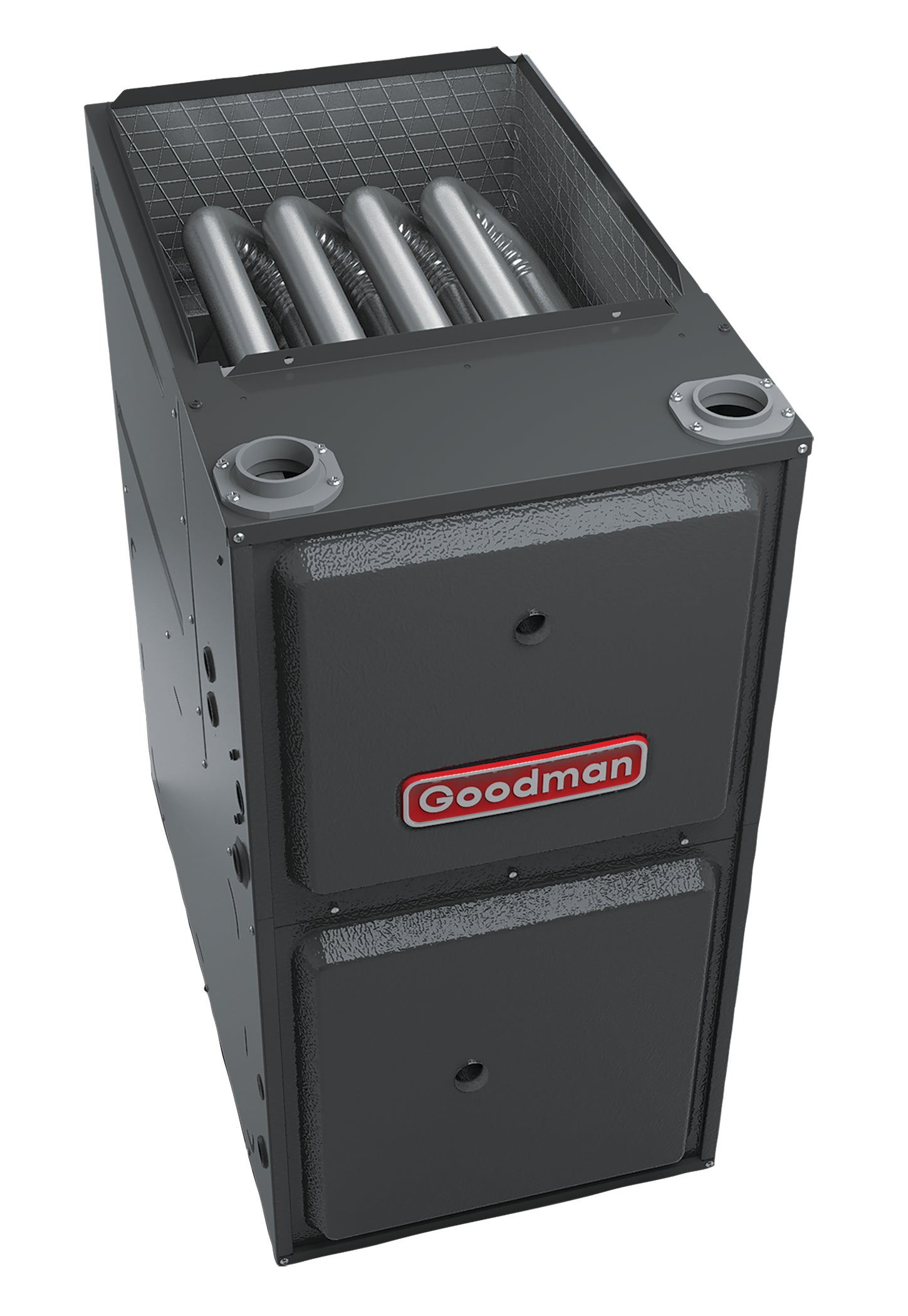

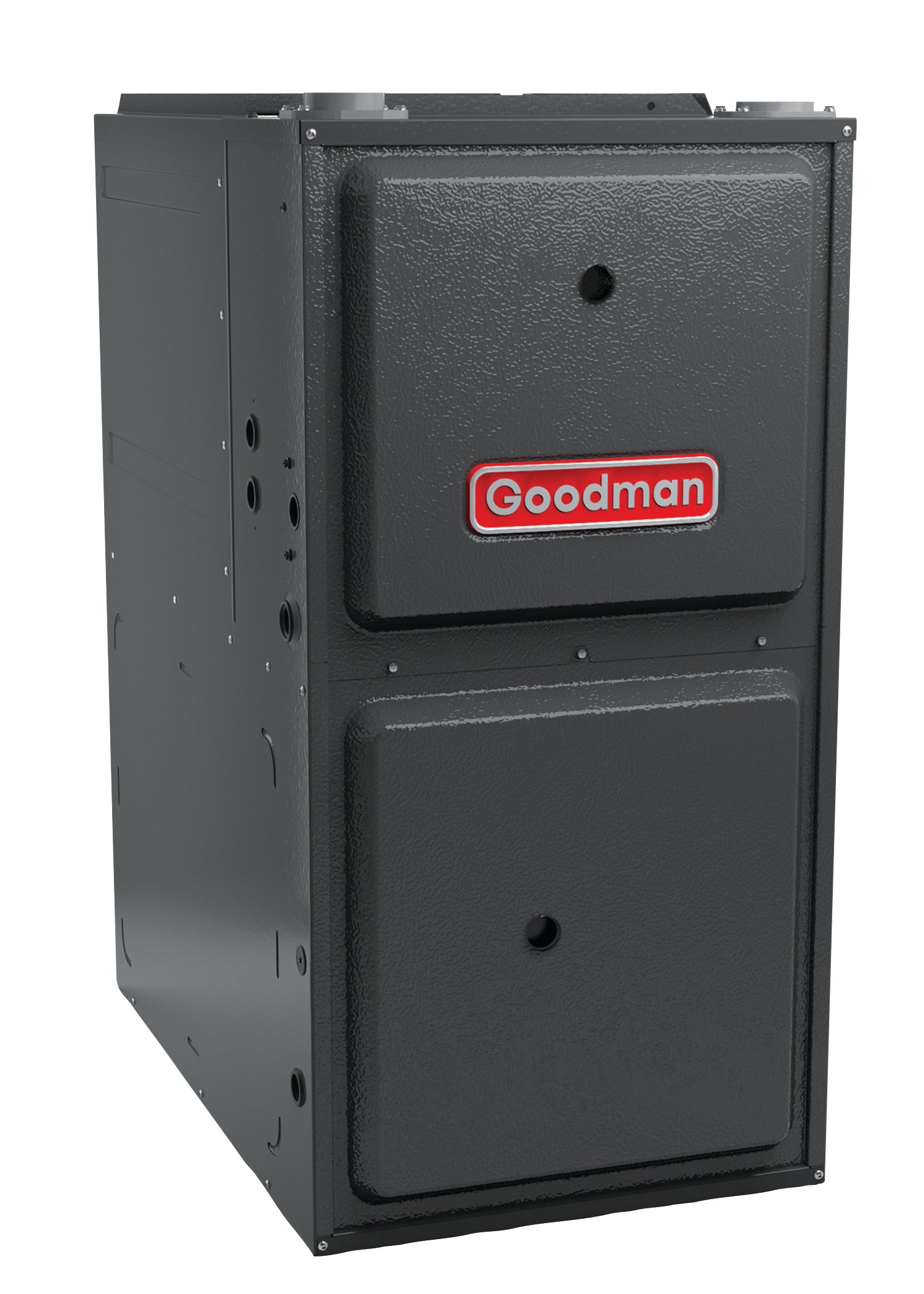

80,000 BTU 96% AFUE Upflow/Horizontal Single Stage Ultra Low NOx Goodman Gas Furnace - GR9S960805CU

✅ Heat Pump Features ✅

Standard Features:

• High-efficiency compressor
• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
• Single-speed PSC condenser fan motor
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Fully charged for 15’ of tubing length
• Fully enclosed contactor with lug connection
• Ground lug connection
• Capacitors with extended life
• AHRI Certified; ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

✅ Coil Features ✅

Standard Features:

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant, including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• CAPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
• CAPTA models include single front access panel
• Standardized copper suction tube stub length
• Vertical and horizontal models available
• 21" depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified; ETL listed

✅ Furnace Features ✅

Standard Features:

• Heavy-duty stainless-steel tubular heat exchanger
• Super-ferritic Stainless-steel secondary heat exchanger
• Single-stage gas valve
• Durable Silicon Nitride igniter
• Quiet multi-speed induced draft blower
• Self-diagnostic control board with constant memory fault code history output to a LED
• Eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVUAPCD). This furnace complies with the 14 ng/J NOx emission limit in SCAQMD Rule 1111 and SJVUAPCD Rule 4905.
• AHRI Certified; ETL Listed

Cabinet Features:

• Designed for multi-position installation — GR9S96-U: upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting — GR9S96-U: upflow models only
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 1.4%
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty

Goodman offers a 10-year parts limited warranty when installed by a qualifying technician and then registered on the manufacturer's website.
