Goodman 2.5 Ton 15.2 SEER2 System: GLXS4BA3010 Air Conditioner Condenser & AWST30LU1308 Wall-Mounted Air Handler with 8 kW Heater

GOODMAN SKU: GLXS4BA3010,AWST30LU1308

Goodman 2.5 Ton 15.2 SEER2 System: GLXS4BA3010 Air Conditioner Condenser & AWST30LU1308 Wall-Mounted Air Handler with 8 kW Heater

  • New R32 Freon,  meets the 2025 refrigerant change guidelines.
  • Pre-charged for a 15 foot line set
  • May require additional accessories sold separately.
  • Please check with your qualified installer to ensure you are getting everything needed for your application.
  • Shipping factory direct, please provide most accurate  contact information for your order.
Save $451.86
GOODMANSKU: GLXS4BA3010,AWST30LU1308
Factory Direct
Retail price:
$2,259.30 USD $2,711.16 USD

Description

AHRI Certified Match: 215214934

Goodman 2.5 Ton 15.2 SEER2 R32 Air Conditioner Condenser, Model GLXS4BA3010

Standard Features

  • High efficiency Energy-efficient compressor
  • High-density foam compressor
  • Advanced Copeland® Technology
  • Fully charged for 15' of tubing length
  • Copper tube/ enhanced aluminum fin coil-5mm diameter
  • Factory-installed filter drier
  • Sweat connection service valves with easy access to gauge ports
  • Enclosed contactor
  • High-pressure switch
  • Ground lug connection
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed

Cabinet Features

  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

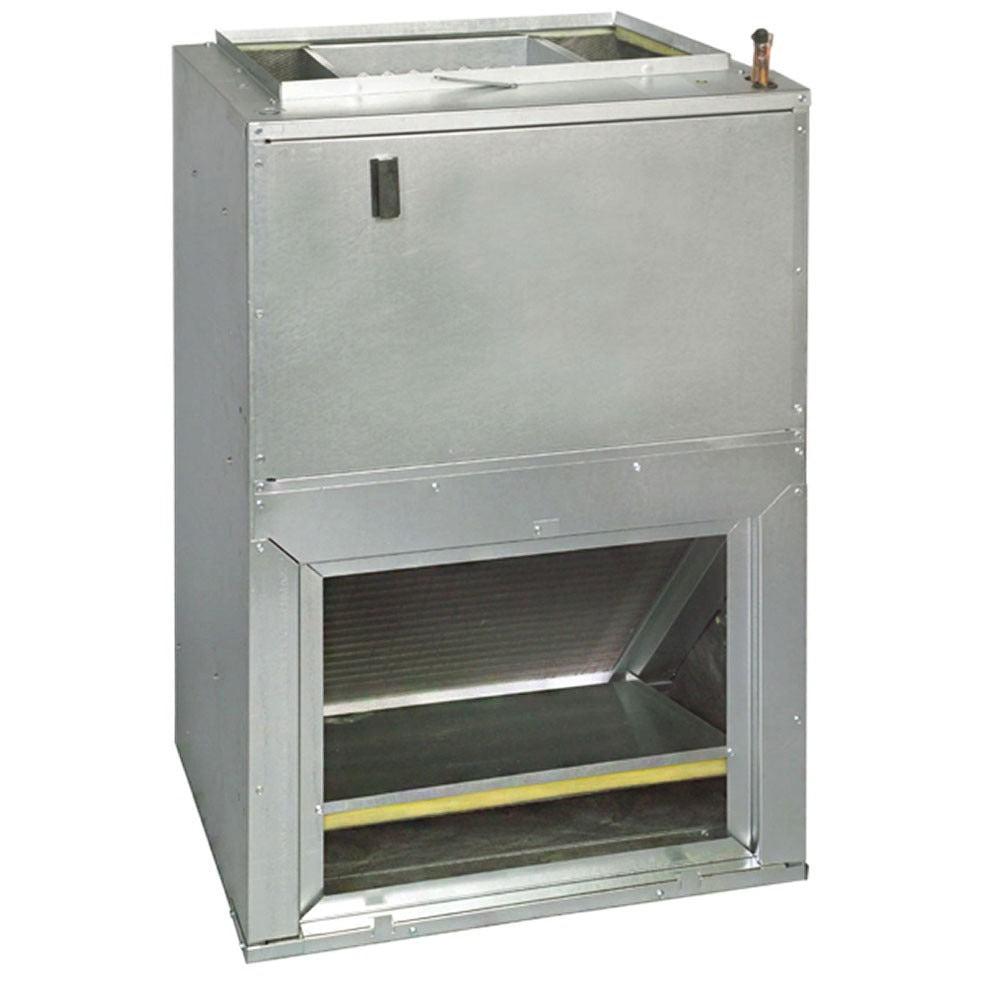

Goodman 2.5 Ton R32 Compatible Wall Mounted Air Handler with Built-in Thermal Expansion Valve, 208/230V, 1 Phase, 60Hz electrical, 8 kW heater 20.2 in. wide Unpainted Cabinet, Model AWST30LU1308

Product Features

  • AWST Models: Equipped with a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • UL 60335 2-40 Compliant
  • Factory installed R-32 sensor designed for the lifespan of the coil
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units) – front return only
  • Small chassis (1½- and 2-ton units) – front or bottom return
  • Wall-hanging bracket provided
  • AHRI Certified; ETL Listed
