Type
Split System Air Conditioner
Product Line
GSXC7
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoors
Compressor Stages
Two-Stage
DOE Regional Compliance
Nationwide
This product has been replaced with a newer version.
This product has been discontinued due to the mandatory shift to R32 refrigerant, as per the AIM Act, beginning January 1st, 2025. Manufacturers ceased production of equipment using the old R410A refrigerant, necessitating the use of the new R32 refrigerant for new installations. This transition aligns with regulations set forth by the Environmental Protection Agency and the United States Department of Energy.
We recognize the significance of this change in reducing environmental impact and ensuring compliance. For more information on these changes and to explore compliant equipment options, please visit the EPA website. You may also contact us directly with questions and concerns at 888-286-0211.
We appreciate your understanding and support during this transition.
Description
The Goodman brand provides energy-efficient, reliable, cost-effective heating and cooling services to millions of customers. Goodman prides itself on providing peace of mind to its customers by offering strong warranties and products tested numerous times.

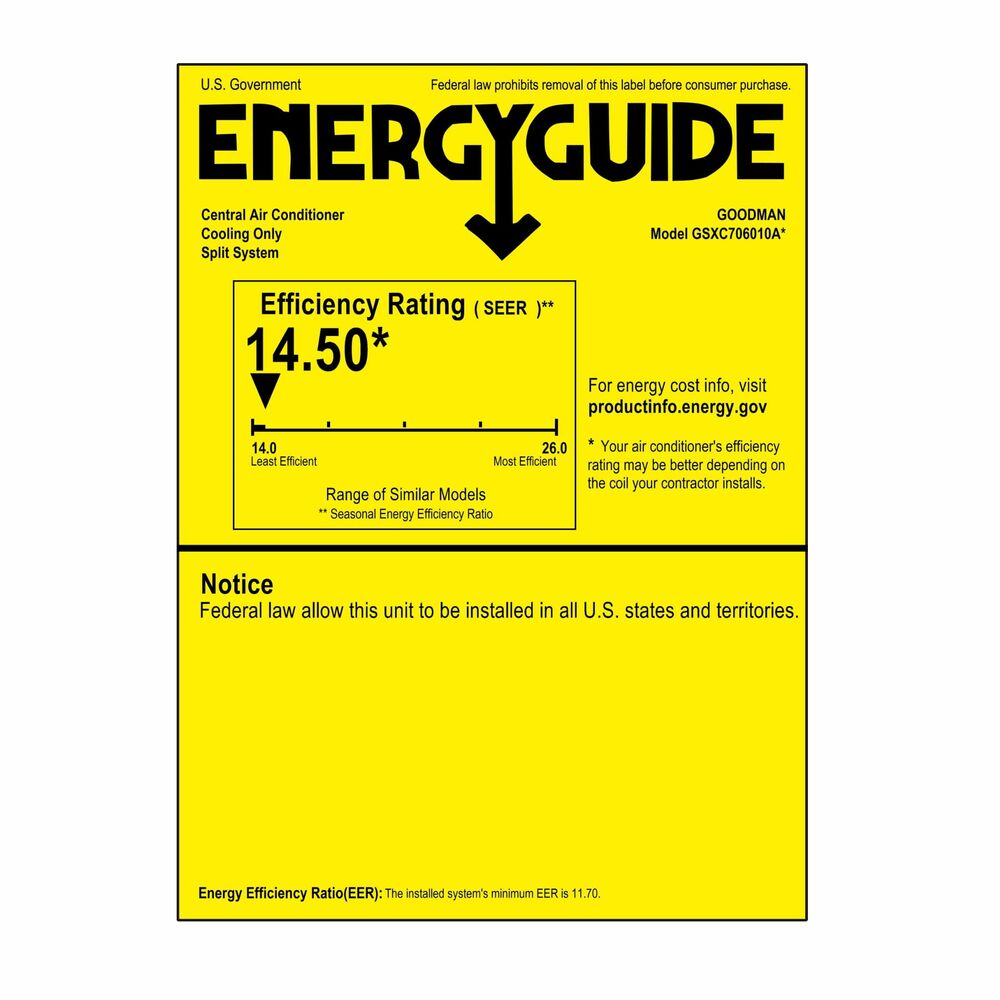

HVAC professionals selected these components to maximize their performance and efficiency. This central air conditioning system is certified under AHRI # 208683882 to give you 15.2 SEER2.
This HVAC split system includes the following:
Goodman 96% AFUE 120,000 BTU 2-Stage Gas Furnace - GCVC961205DN
Goodman All-Aluminum Cased Evaporator Coil - CAPT4961D4
Goodman 5 Ton 17.2 SEER2 Air Conditioner - GSXC706010
Warranty
Goodman offers a 10-year parts limited warranty when installed by a qualifying technician and then registered on the manufacturer's website.
Specifications

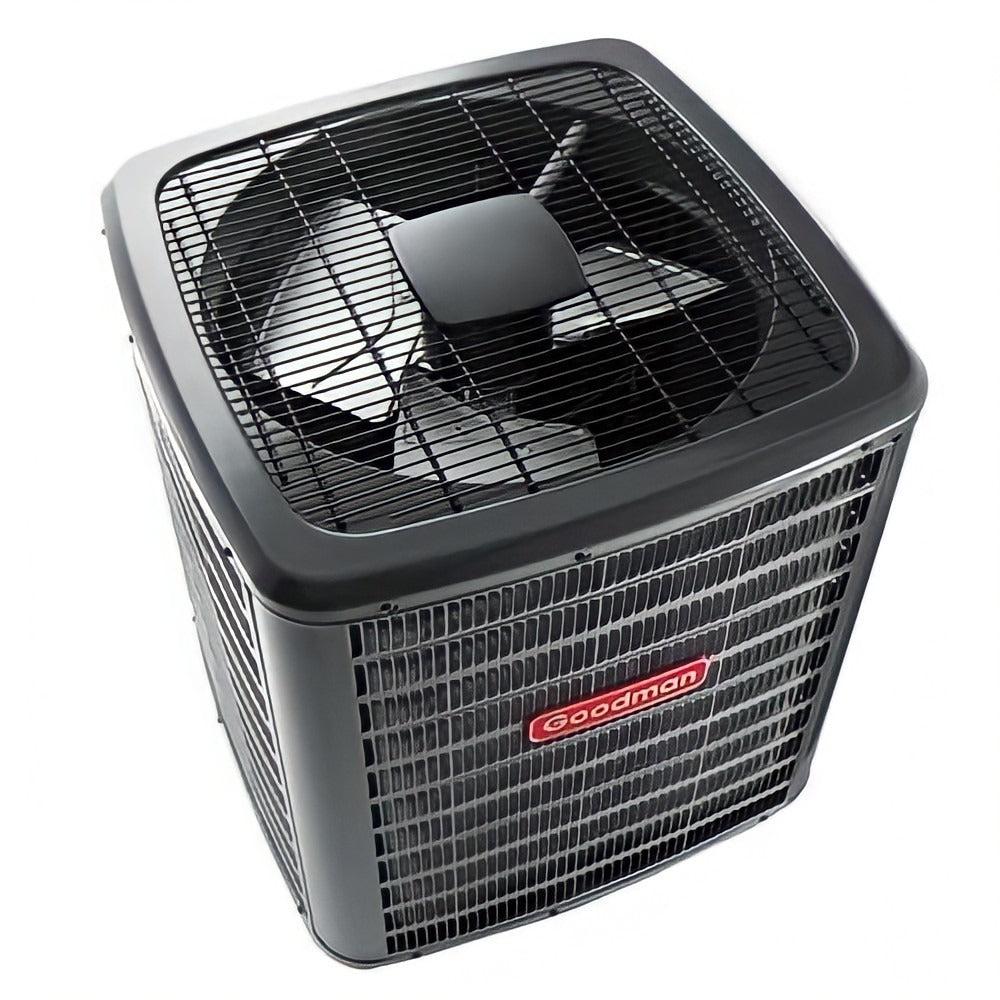

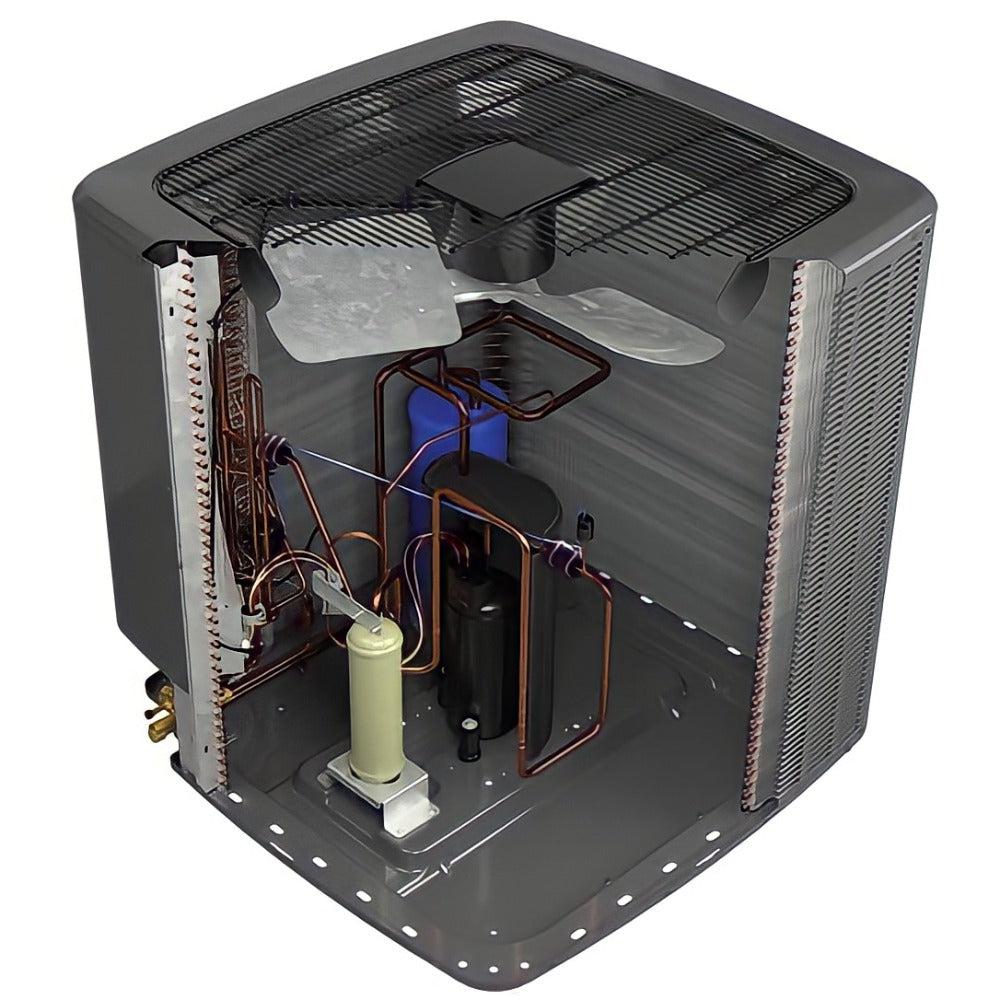

Air Conditioner (GSXC706010)General InformationPerformanceCapacity (Tons)5Cooling Capacity (BTU/h)60,000Maximum Sound Level (dB)75Electrical DetailsVoltage (VAC)208/230Phase1Frequency (Hz)60Minimum Circuit Ampacity (A)34.8Recommended Breaker Size (A)60DimensionsSuction Connection Size7/8"Liquid Connection Size3/8"Product Height41-5/8"Product Width35-1/2"Product Depth35-1/2"Product Weight (lbs.)283Shipping Weight (lbs.)305CertificationsETL ListedYesAHRI CertifiedYesWarrantyParts Warranty10-Year Parts Limited Warranty
General Information
Performance
Capacity (Tons)
5
Cooling Capacity (BTU/h)
60,000
Maximum Sound Level (dB)
75
Electrical Details
Voltage (VAC)
208/230
Phase
1
Frequency (Hz)
60
Minimum Circuit Ampacity (A)
34.8
Recommended Breaker Size (A)
60
Dimensions
Suction Connection Size
7/8"
Liquid Connection Size
3/8"
Product Height
41-5/8"
Product Width
35-1/2"
Product Depth
35-1/2"
Product Weight (lbs.)
283
Shipping Weight (lbs.)
305
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty
Parts Warranty
10-Year Parts Limited Warranty

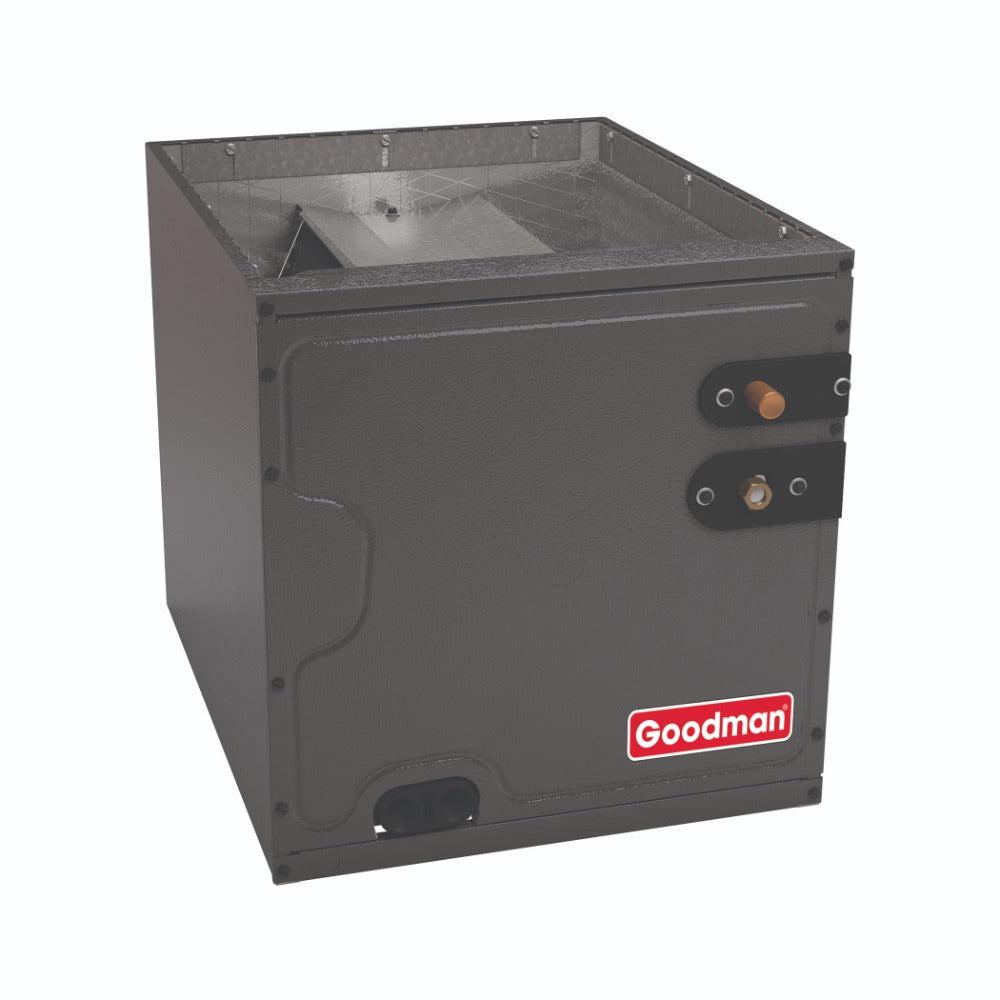

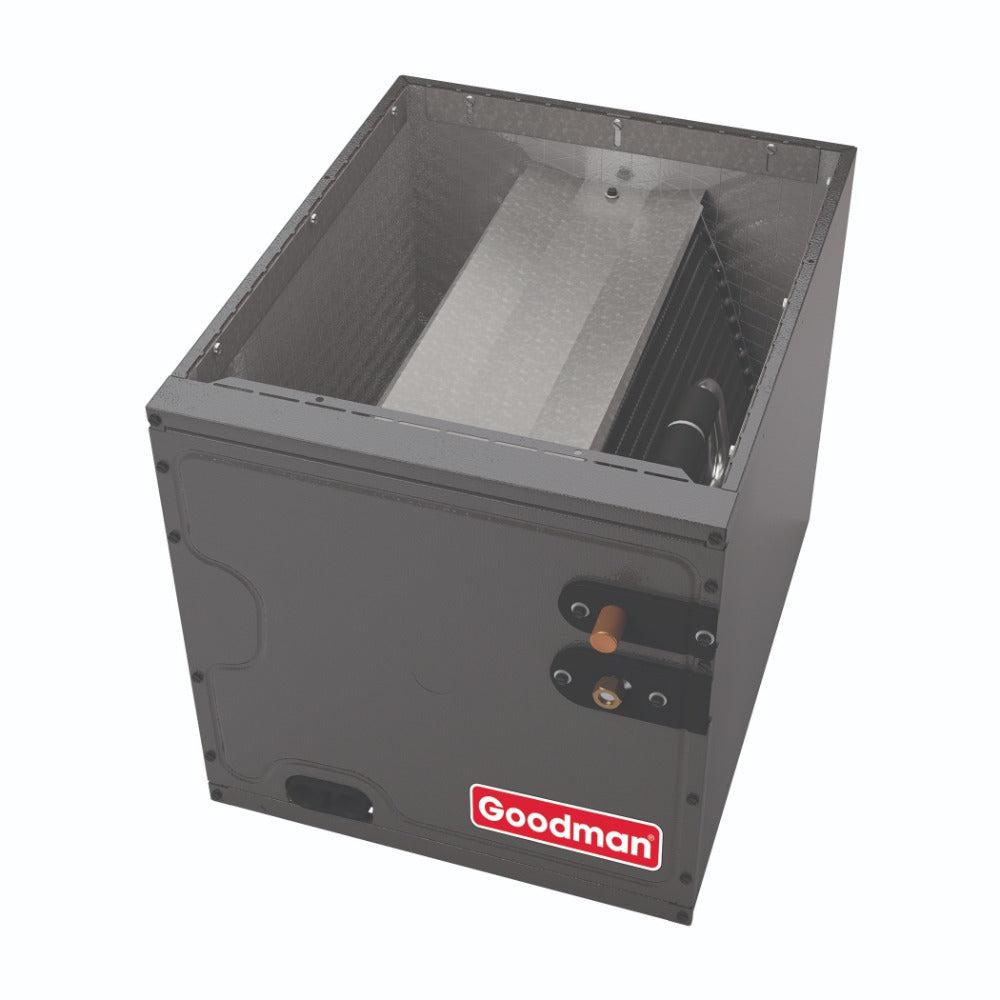

Coil (CAPT4961D4)General InformationTypeUpflow/Downflow Cased CoilProduct LineCAPT SeriesRefrigerant TypeR-410ACasingCasedStyleA CoilConfigurationUpflow/DownflowPerformanceCapacity (Tons)4-5DimensionsSuction Connection Size7/8"Liquid Connection Size3/8"Cabinet Width24-1/2"Product Height30"Product Width24-1/2"Product Depth21"Shipping Weight (lbs.)76CertificationsETL ListedYesAHRI CertifiedYesWarrantyParts Warranty10-Year Parts Limited Warranty
General Information
Type
Upflow/Downflow Cased Coil
Product Line
CAPT Series
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
Performance
Capacity (Tons)
4-5
Dimensions
Suction Connection Size
7/8"
Liquid Connection Size
3/8"
Cabinet Width
24-1/2"
Product Height
30"
Product Width
24-1/2"
Product Depth
21"
Shipping Weight (lbs.)
76
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty
Parts Warranty
10-Year Parts Limited Warranty

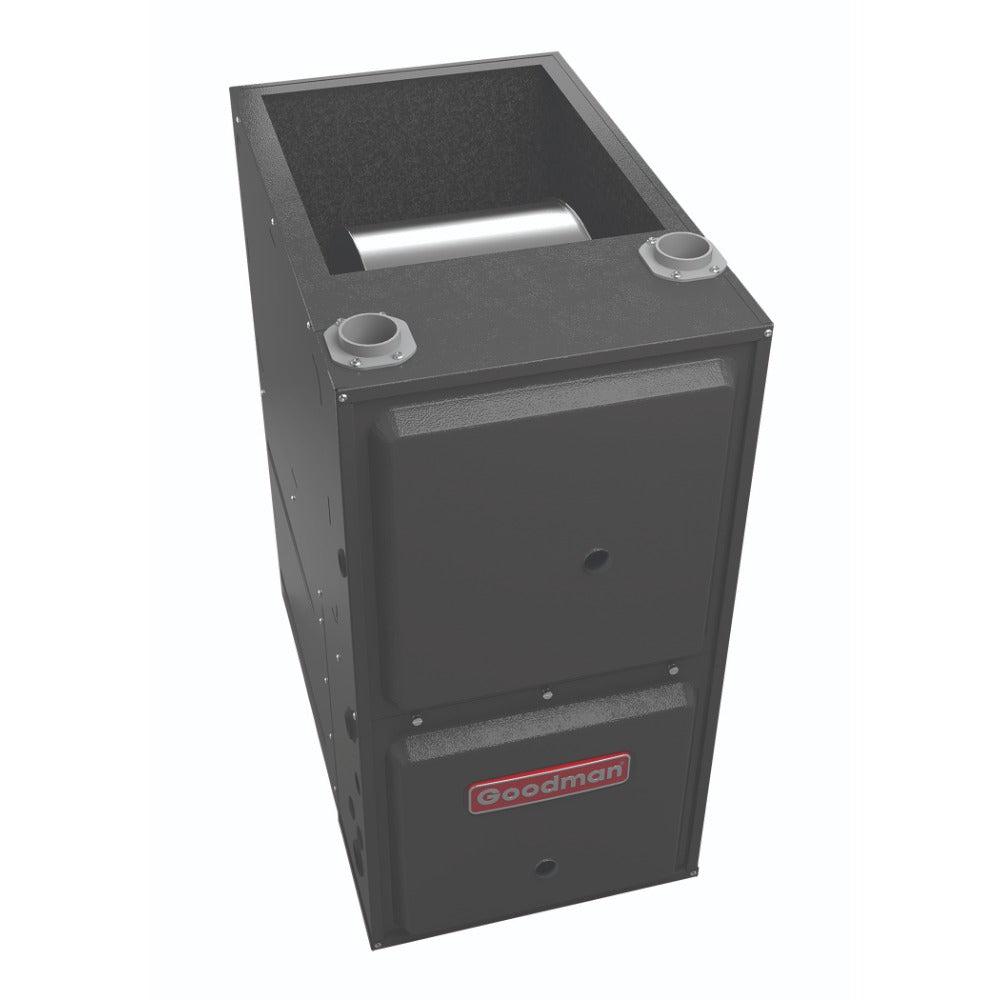

Furnace (GCVC961205DN)General InformationTypeGas FurnaceProduct LineGCVC96 SeriesFuel TypeNatural GasVent TypePVC PipeGas Valve ConfigurationTwo-StageBlower MotorVariable-Speed ECMConfigurationDownflow/HorizontalGas Conversion KitLPM-08PerformanceAFUE96%Heating Capacity (BTU/h)120,000High Fire Input (BTU/h)120,000High Fire Output (BTU/h)115,200Low Fire Input (BTU/h)84,000Low Fire Output (BTU/h)80,640Maximum Air Flow (CFM)2,000Ultra Low NOx EmissionsNoLow NOx EmissionsNoElectrical DetailsVoltage (VAC)115Phase1Frequency (Hz)60Minimum Circuit Ampacity (A)14.4Recommended Breaker Size (A)20DimensionsFlue Connection Size2"-3"Cabinet Width24-1/2"Product Height34-1/2"Product Width24-1/2"Product Depth28-3/4"Shipping Weight (lbs.)158CertificationsETL ListedYesAHRI CertifiedYesISO CertifiedYesAHRI Reference Number7368845WarrantyParts Warranty10-Year Parts Limited WarrantyHeat ExchangerLifetime Limited Warranty
General Information
Type
Gas Furnace
Product Line
GCVC96 Series
Fuel Type
Natural Gas
Vent Type
PVC Pipe
Gas Valve Configuration
Two-Stage
Blower Motor
Variable-Speed ECM
Configuration
Downflow/Horizontal
Gas Conversion Kit
LPM-08
Performance

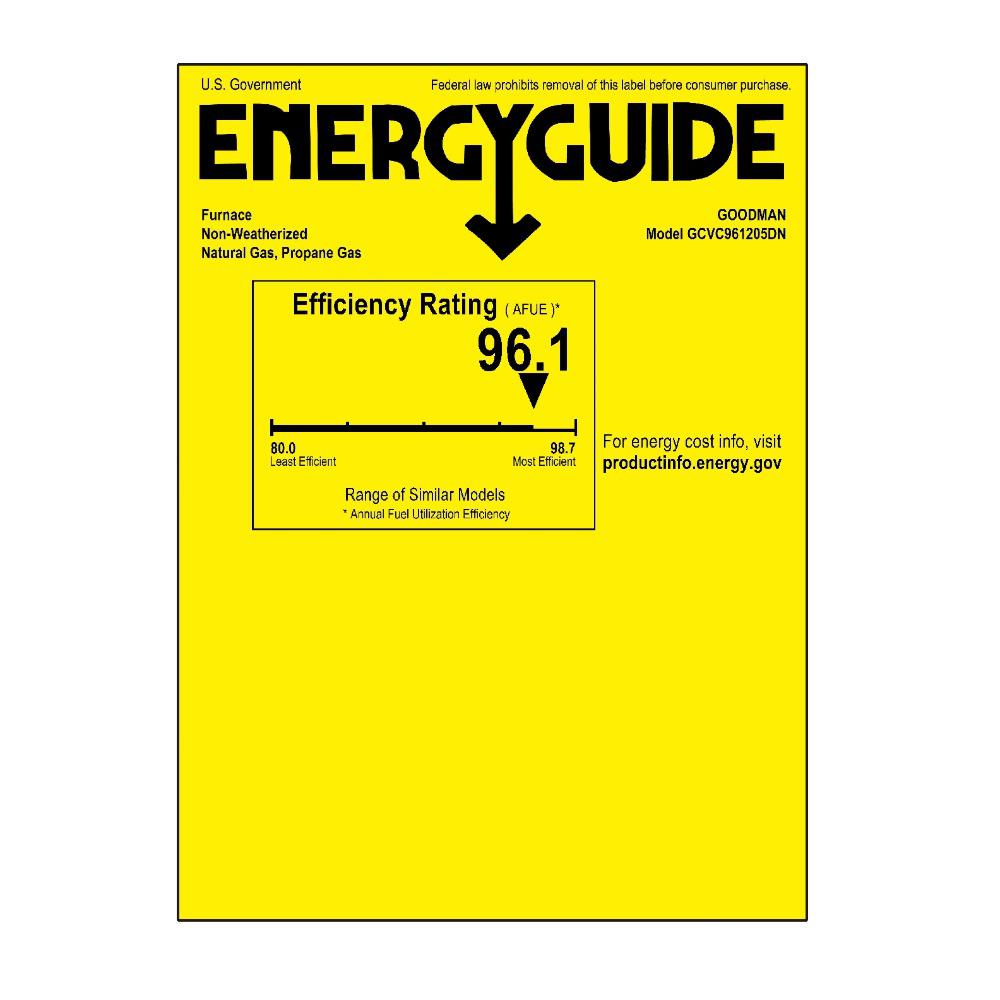

AFUE
96%
Heating Capacity (BTU/h)
120,000
High Fire Input (BTU/h)
120,000
High Fire Output (BTU/h)
115,200
Low Fire Input (BTU/h)
84,000
Low Fire Output (BTU/h)
80,640
Maximum Air Flow (CFM)
2,000
Ultra Low NOx Emissions
No
Low NOx Emissions
No
Electrical Details
Voltage (VAC)
115
Phase
1
Frequency (Hz)
60
Minimum Circuit Ampacity (A)
14.4
Recommended Breaker Size (A)
20
Dimensions
Flue Connection Size
2"-3"
Cabinet Width
24-1/2"
Product Height
34-1/2"
Product Width
24-1/2"
Product Depth
28-3/4"
Shipping Weight (lbs.)
158
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7368845
Warranty
Parts Warranty
10-Year Parts Limited Warranty
Heat Exchanger
Lifetime Limited Warranty
