Type
Split System Air Conditioner
Product Line
GSXH5 Series
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoors
Compressor Stages
Single-Stage
DOE Regional Compliance
Nationwide
This product has been replaced with a newer version.
This product has been discontinued due to the mandatory shift to R32 refrigerant, as per the AIM Act, beginning January 1st, 2025. Manufacturers ceased production of equipment using the old R410A refrigerant, necessitating the use of the new R32 refrigerant for new installations. This transition aligns with regulations set forth by the Environmental Protection Agency and the United States Department of Energy.
We recognize the significance of this change in reducing environmental impact and ensuring compliance. For more information on these changes and to explore compliant equipment options, please visit the EPA website. You may also contact us directly with questions and concerns at 888-286-0211.
We appreciate your understanding and support during this transition.
Description
The Goodman brand provides energy-efficient, reliable, cost-effective heating and cooling services to millions of customers. Goodman prides itself on providing peace of mind to its customers by offering strong warranties and products tested numerous times.

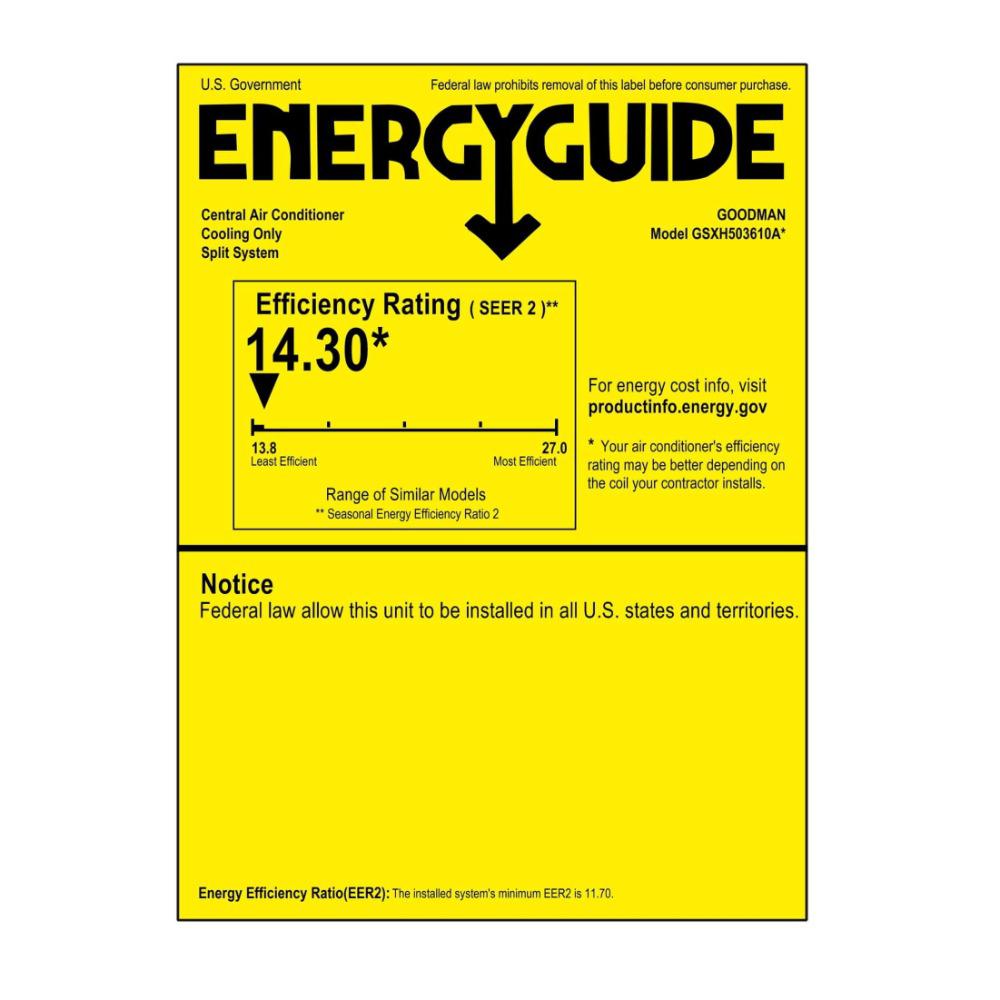

HVAC professionals selected these components to maximize their performance and efficiency. This central air conditioning system is certified under AHRI # 208152518 to give you 14.5 SEER2.
This HVAC split system includes the following:

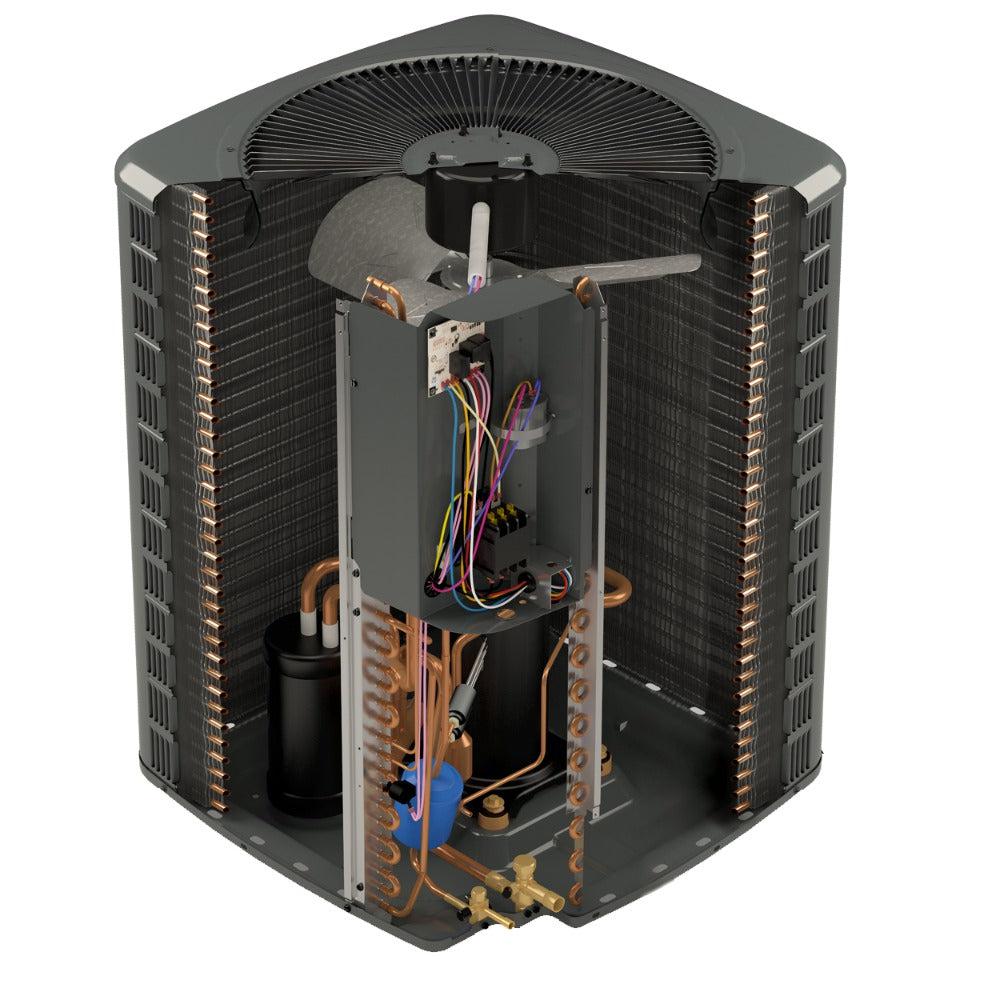

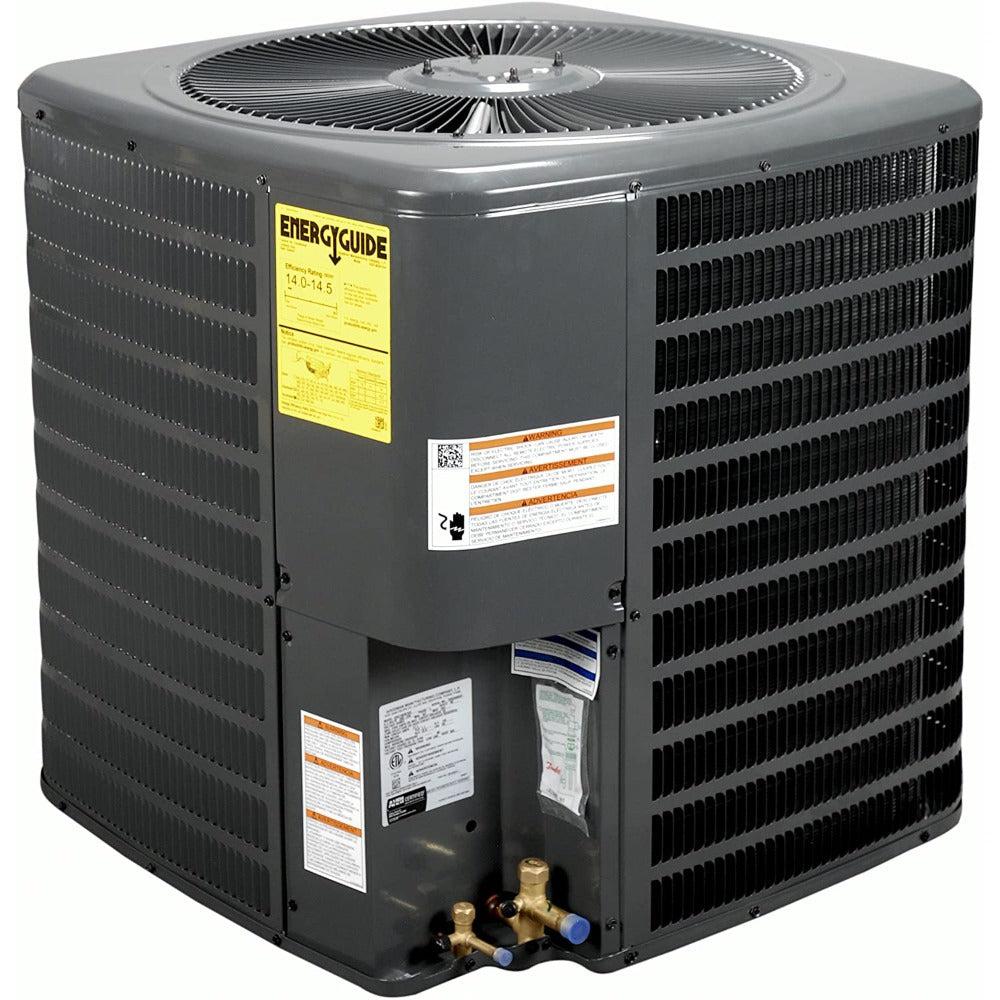

Goodman 3 Ton 15.2 SEER2 Air Conditioner - GSXH503610

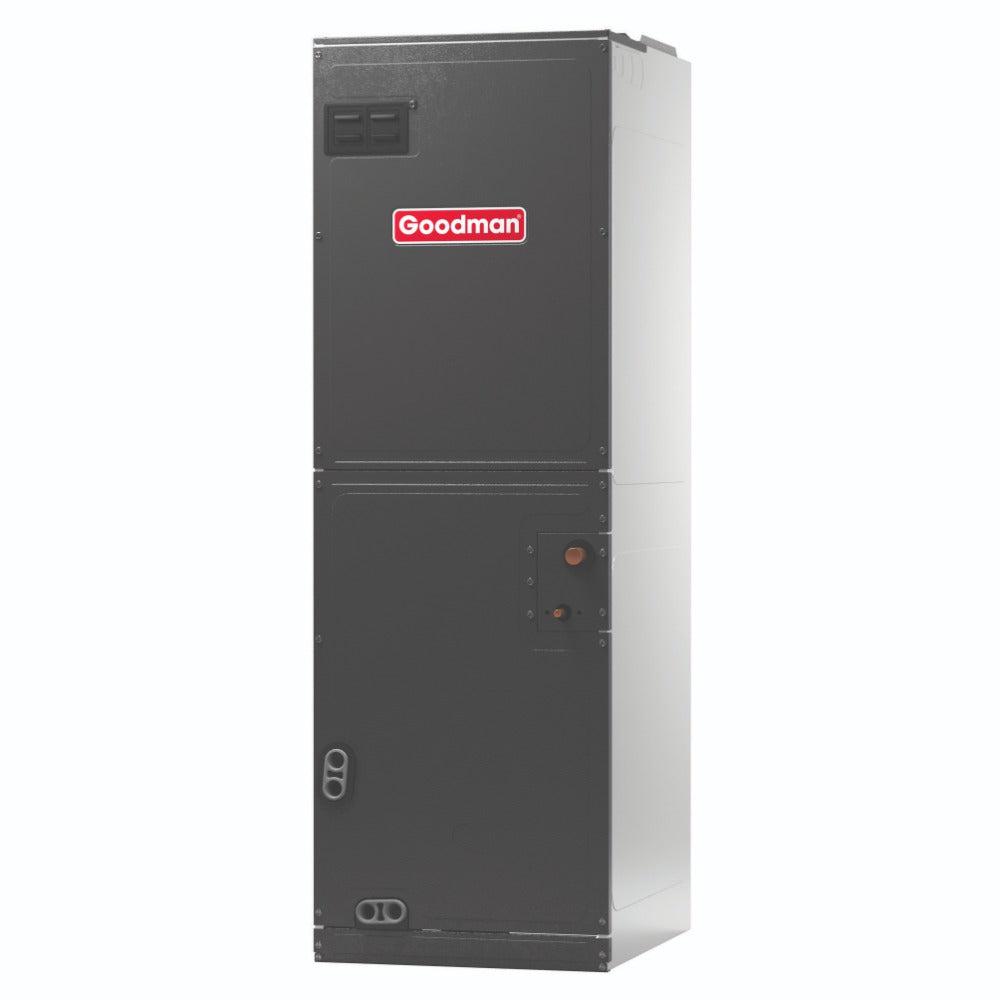

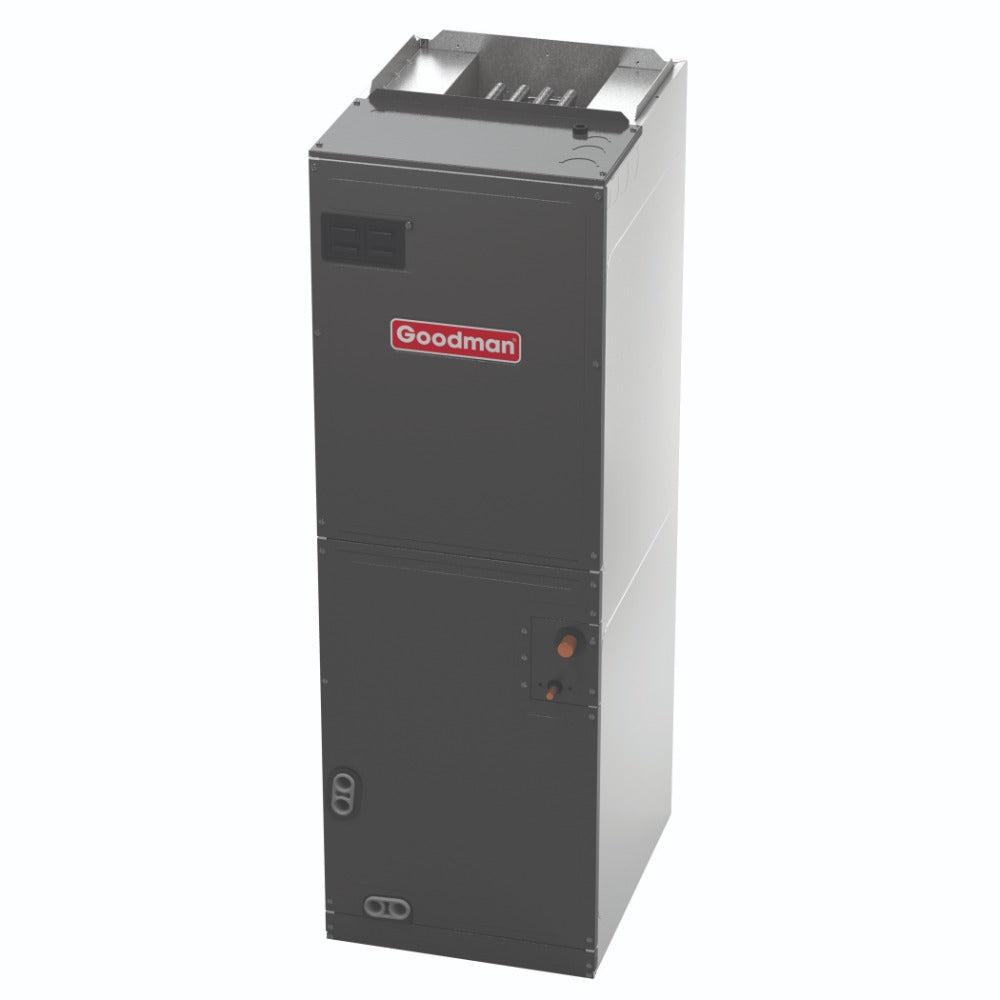

Goodman 3 Ton Multi-Position Air Handler - AMST36CU1400
Warranty
Goodman offers a 10-year parts limited warranty when installed by a qualifying technician and then registered on the manufacturer's website.
Specifications
Air Conditioner (GSXH503610)General InformationPerformanceCapacity (Tons)3Cooling Capacity (BTU/h)36,000SEER214.5Maximum Sound Level (dB)75Electrical DetailsVoltage (VAC)208/230Phase1Frequency (Hz)60Minimum Circuit Ampacity (A)18.6Recommended Breaker Size30DimensionsSuction Connection Size7/8"Liquid Connection Size3/8"Product Height39-1/2"Product Width35-1/2"Product Depth35-1/2"Product Weight (lbs.)202Shipping Weight (lbs.)224CertificationsETL ListedYesAHRI CertifiedYesAHRI Reference Number208152518WarrantyParts Warranty10-Year Parts Limited Warranty
General Information
Performance
Capacity (Tons)
3
Cooling Capacity (BTU/h)
36,000
SEER2
14.5
Maximum Sound Level (dB)
75
Electrical Details
Voltage (VAC)
208/230
Phase
1
Frequency (Hz)
60
Minimum Circuit Ampacity (A)
18.6
Recommended Breaker Size
30
Dimensions

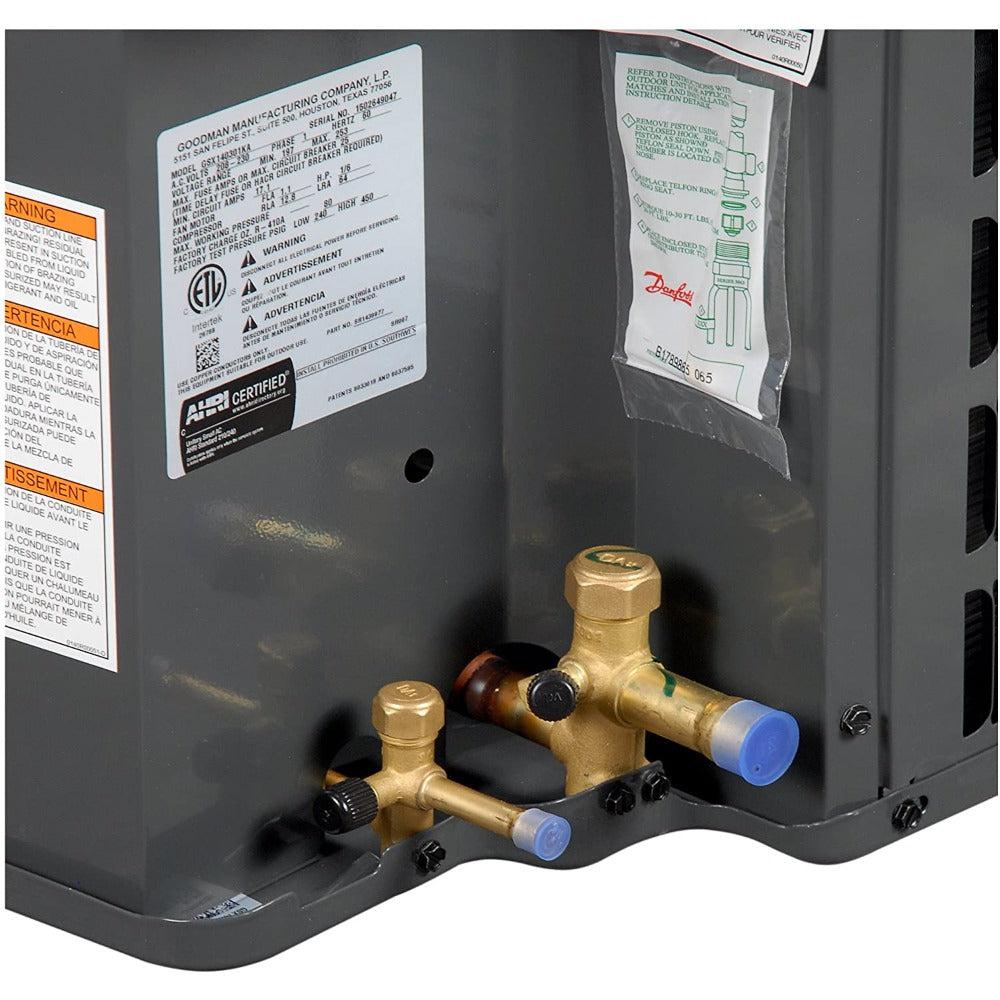

Suction Connection Size
7/8"
Liquid Connection Size
3/8"
Product Height
39-1/2"
Product Width
35-1/2"
Product Depth
35-1/2"
Product Weight (lbs.)
202
Shipping Weight (lbs.)
224
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208152518
Warranty
Parts Warranty
10-Year Parts Limited Warranty
Air Handler (AMST36CU1400)General InformationTypeMulti-Position, Multi-Speed Air HandlerProduct LineAMST SeriesRefrigerant TypeR-410ABlower MotorDirect Drive, Multi-Speed ECMConfigurationMulti-PositionPerformanceCapacity (Tons)3Cooling Capacity (BTU/h)36,000Maximum Air Flow (CFM)1,830Minimum Air Flow (CFM)610Electrical DetailsVoltage (V)208/230Phase1Frequency (Hz)60Minimum Circuit Ampacity (A)7.1Recommended Breaker Size (A)15DimensionsSuction Connection Size3/4"Liquid Connection Size3/8"Drain Outlet Diameter3/4"Product Height49"Product Width21"Product Depth21"Shipping Weight (lbs.)153CertificationsCountry of OriginUSAETL ListedYesAHRI CertifiedYesWarrantyParts Warranty10-Year Parts Limited Warranty
General Information
Type
Multi-Position, Multi-Speed Air Handler
Product Line
AMST Series
Refrigerant Type
R-410A
Blower Motor
Direct Drive, Multi-Speed ECM
Configuration
Multi-Position
Performance
Capacity (Tons)
3
Cooling Capacity (BTU/h)
36,000
Maximum Air Flow (CFM)
1,830
Minimum Air Flow (CFM)
610
Electrical Details
Voltage (V)
208/230
Phase
1
Frequency (Hz)
60
Minimum Circuit Ampacity (A)
7.1
Recommended Breaker Size (A)
15
Dimensions
Suction Connection Size
3/4"
Liquid Connection Size
3/8"
Drain Outlet Diameter
3/4"
Product Height
49"
Product Width
21"
Product Depth
21"
Shipping Weight (lbs.)
153
Certifications
Country of Origin
USA
ETL Listed
Yes
AHRI Certified
Yes
Warranty
Parts Warranty
10-Year Parts Limited Warranty
