Type
Split System Air Conditioner
Product Line
GSXH5
Operating Mode
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoors
Compressor Stages
Single-Stage
DOE Regional Compliance
Nationwide
This product has been replaced with a newer version.
This product has been discontinued due to the mandatory shift to R32 refrigerant, as per the AIM Act, beginning January 1st, 2025. Manufacturers ceased production of equipment using the old R410A refrigerant, necessitating the use of the new R32 refrigerant for new installations. This transition aligns with regulations set forth by the Environmental Protection Agency and the United States Department of Energy.
We recognize the significance of this change in reducing environmental impact and ensuring compliance. For more information on these changes and to explore compliant equipment options, please visit the EPA website. You may also contact us directly with questions and concerns at 888-286-0211.
We appreciate your understanding and support during this transition.
Description
The Goodman brand provides energy-efficient, reliable, cost-effective heating and cooling services to millions of customers. Goodman prides itself on providing peace of mind to its customers by offering strong warranties and products tested numerous times.
HVAC professionals selected these components to maximize their performance and efficiency. This central air conditioning system is certified under AHRI # 208142686 to give you 15.2 SEER2.

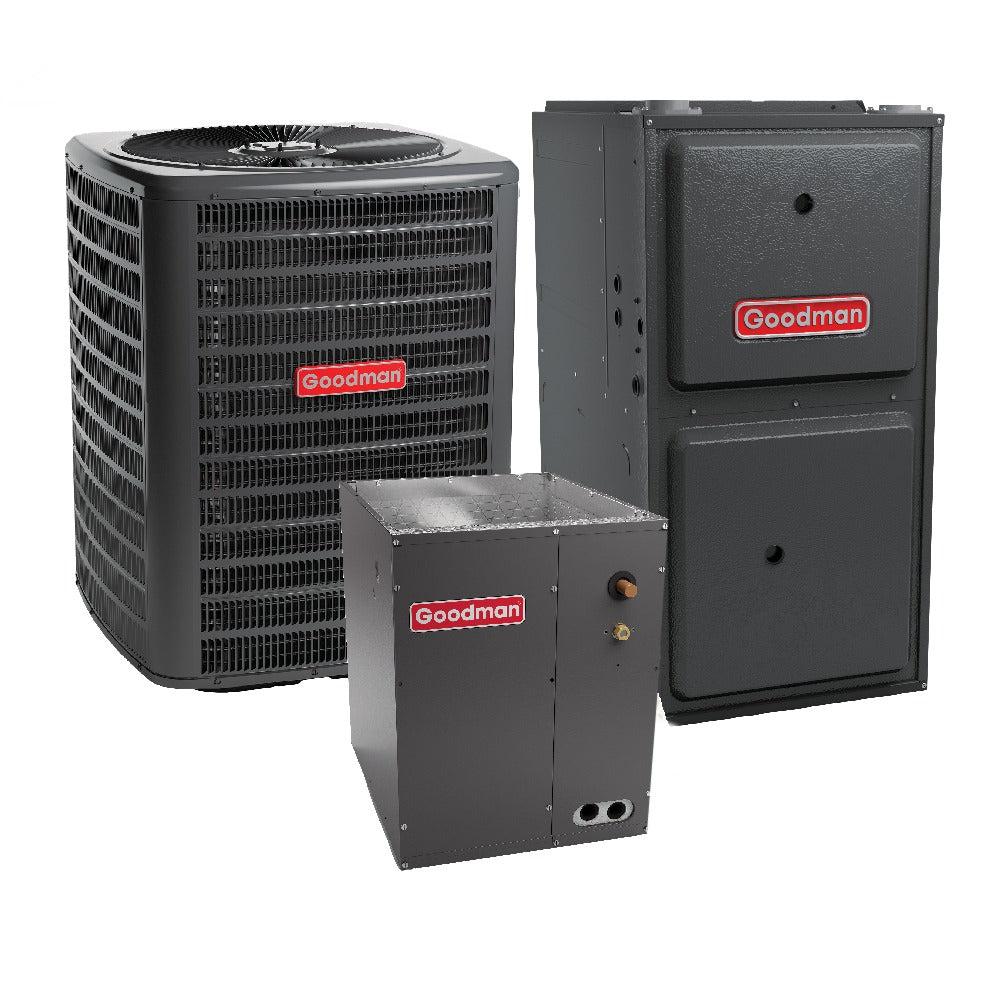

This HVAC split system includes the following:

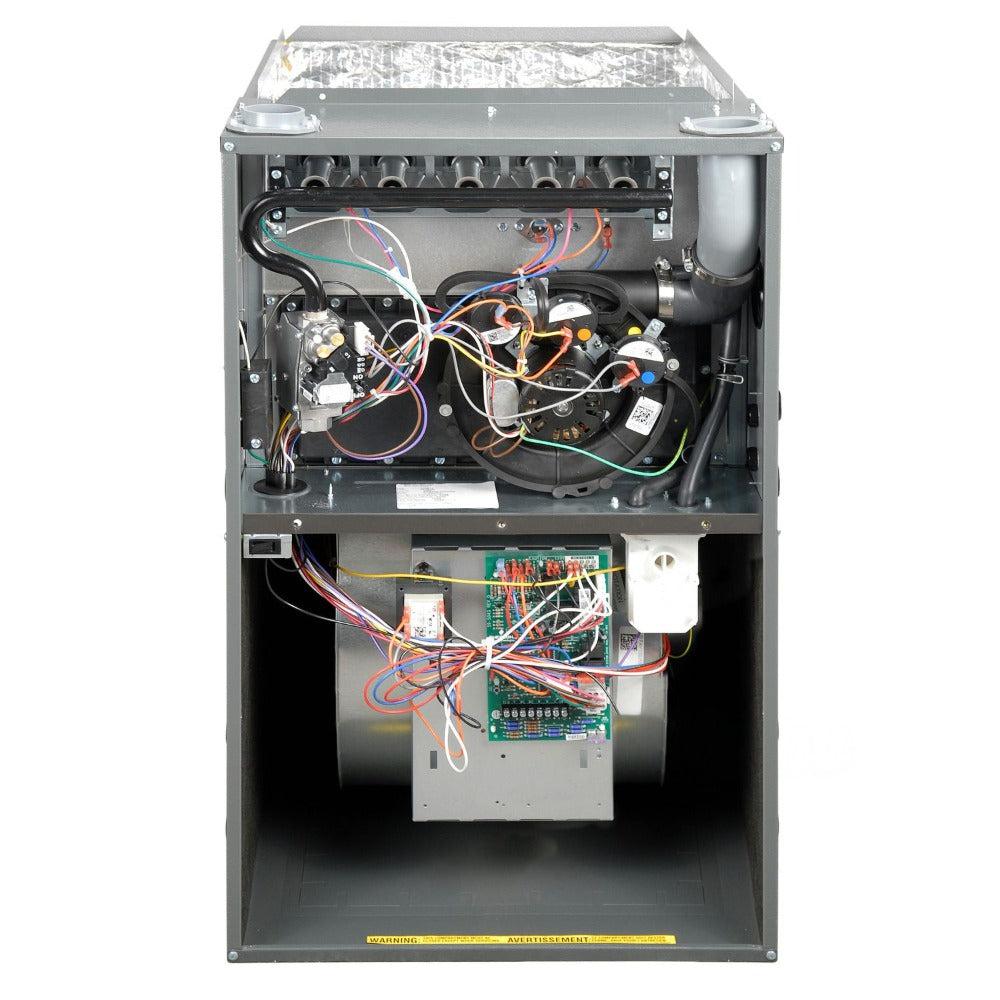

Goodman 92% AFUE 60,000 BTU Single-Stage Gas Furnace - GM9S920603BN

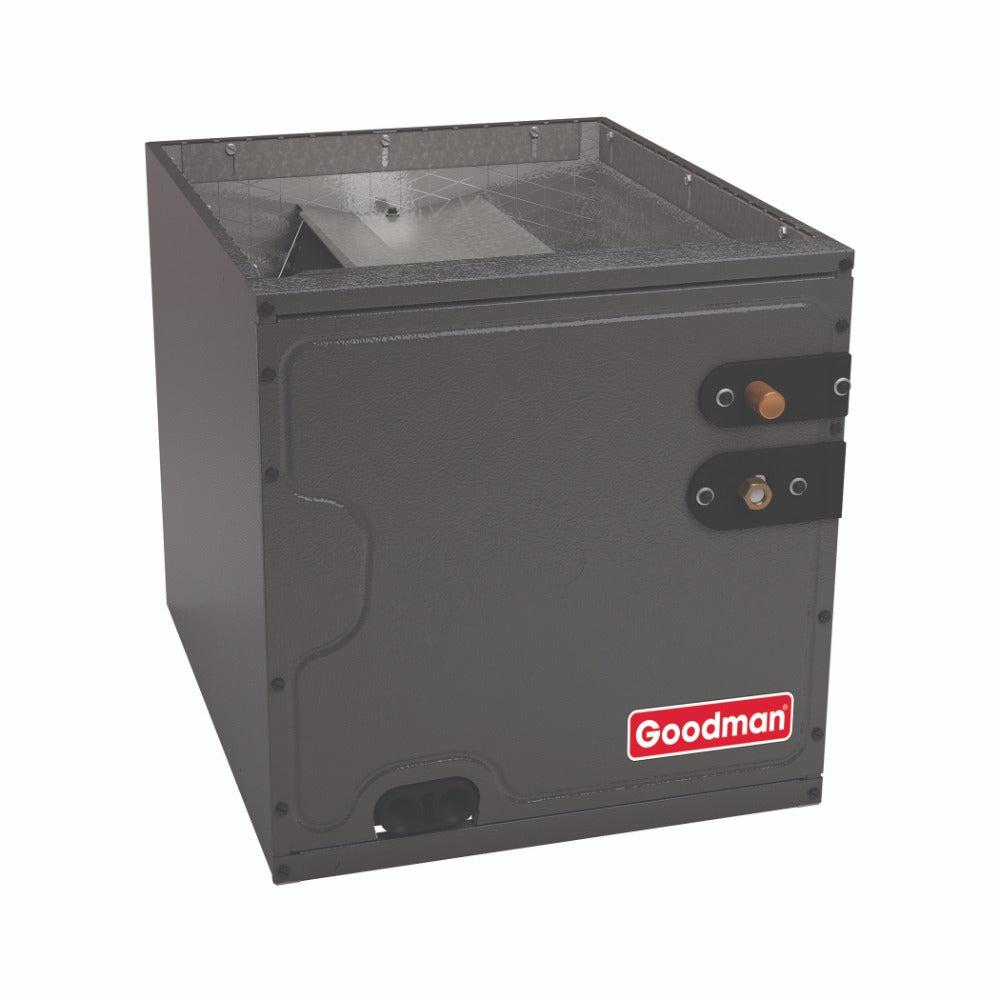

Goodman All-Aluminum Cased Evaporator Coil - CAPTA1818B4

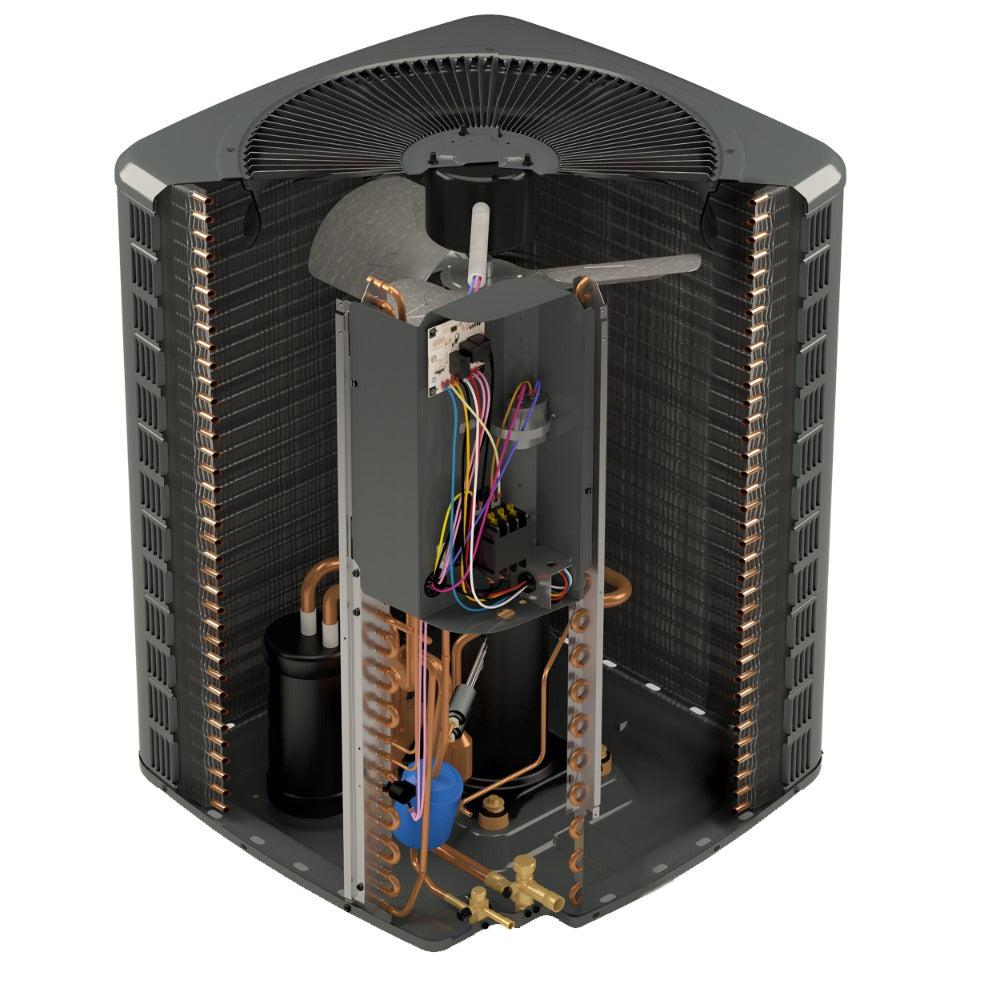

Goodman 1.5 Ton 15.2 SEER2 Air Conditioner - GSXH501810
Warranty
Goodman offers a 10-year parts limited warranty when installed by a qualifying technician and then registered on the manufacturer's website.
Specifications
Air Conditioner (GSXH501810)General InformationPerformanceCapacity (Tons)1.5Cooling Capacity (BTU/h)18,000Maximum Sound Level (dB)72Electrical DetailsVoltage (VAC)208/230Phase1Frequency (Hz)60Minimum Circuit Ampacity (A)11.9Recommended Breaker Size (A)20DimensionsSuction Connection Size3/4"Liquid Connection Size3/8"Product Height27"Product Width26"Product Depth26"Product Weight (lbs.)126Shipping Weight (lbs.)144CertificationsETL ListedYesAHRI CertifiedYesWarrantyParts Warranty10-Year Parts Limited Warranty
General Information
Performance
Capacity (Tons)
1.5
Cooling Capacity (BTU/h)
18,000
Maximum Sound Level (dB)
72
Electrical Details
Voltage (VAC)
208/230
Phase
1
Frequency (Hz)
60
Minimum Circuit Ampacity (A)
11.9
Recommended Breaker Size (A)
20
Dimensions
Suction Connection Size
3/4"
Liquid Connection Size
3/8"
Product Height
27"
Product Width
26"
Product Depth
26"
Product Weight (lbs.)
126
Shipping Weight (lbs.)
144
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty
Parts Warranty
10-Year Parts Limited Warranty

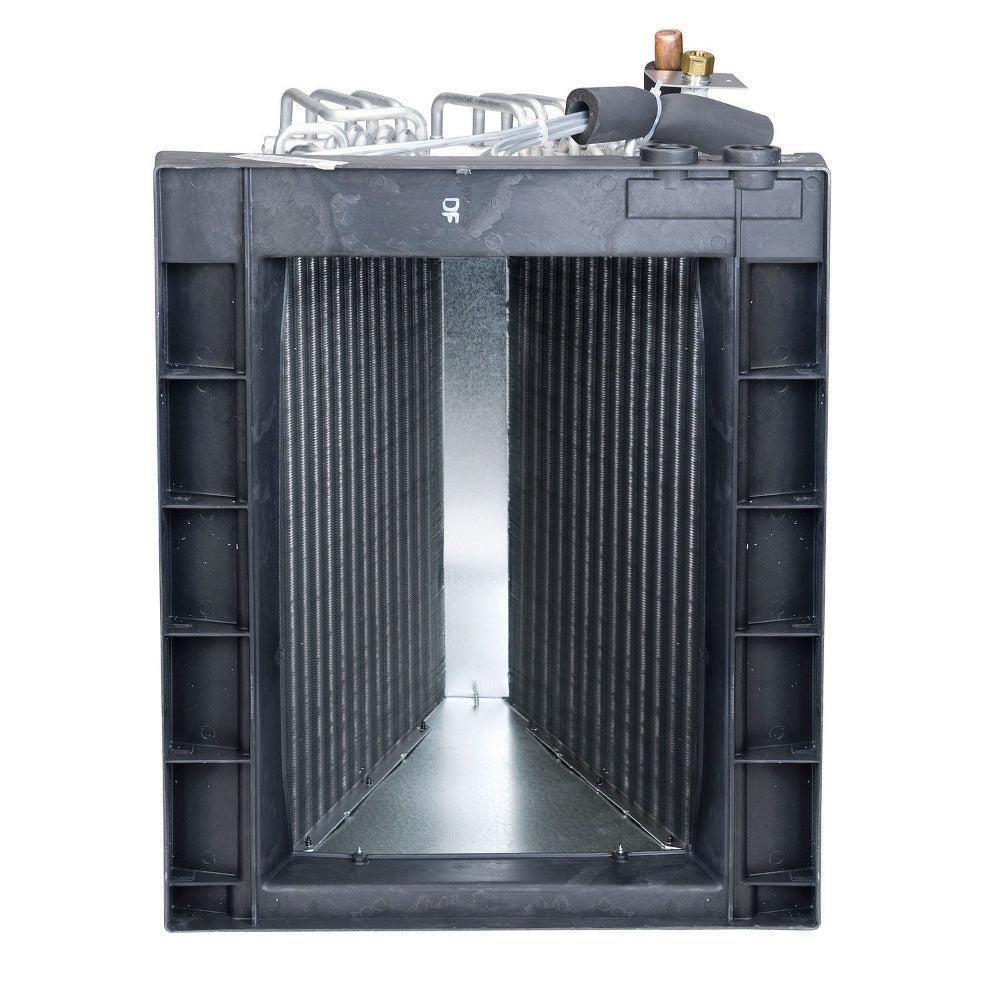

Coil (CAPTA1818B4)General InformationTypeUpflow/Downflow Cased CoilProduct LineCAPTA SeriesRefrigerant TypeR-410ACasingCasedStyleA CoilConfigurationUpflow/DownflowPerformanceCapacity (Tons)1.5DimensionsSuction Connection Size3/4"Liquid Connection Size3/8"Cabinet Width17-1/2"Product Height18"Product Width17-1/2"Product Depth21"Shipping Weight (lbs.)41CertificationsETL ListedYesAHRI CertifiedYesWarrantyParts Warranty10-Year Parts Limited Warranty
General Information
Type
Upflow/Downflow Cased Coil
Product Line
CAPTA Series
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Upflow/Downflow
Performance
Capacity (Tons)
1.5
Dimensions
Suction Connection Size
3/4"
Liquid Connection Size
3/8"
Cabinet Width
17-1/2"
Product Height
18"
Product Width
17-1/2"
Product Depth
21"
Shipping Weight (lbs.)
41
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty
Parts Warranty
10-Year Parts Limited Warranty
Furnace (GM9S920603BN)General InformationTypeGas FurnaceProduct LineGM9S92 SeriesFuel TypeNatural GasVent TypePVC PipeGas Valve ConfigurationSingle-StageBlower MotorMulti-Speed ECMConfigurationUpflow/HorizontalGas Conversion KitLPM-07PerformanceAFUE92%Heating Capacity (BTU/h)60,000High Fire Input (BTU/h)60,000High Fire Output (BTU/h)55,260Maximum Air Flow (CFM)1,200Ultra Low NOx EmissionsNoLow NOx EmissionsNoElectrical DetailsVoltage (VAC)115Phase1Frequency (Hz)60Minimum Circuit Ampacity (A)10.3Recommended Breaker Size (A)15DimensionsFlue Connection Size2"-3"Cabinet Width17-1/2"Product Height34-1/2"Product Width17-1/2"Product Depth28-3/4"Shipping Weight (lbs.)114CertificationsETL ListedYesAHRI CertifiedYesISO CertifiedYesAHRI Reference Number207349184WarrantyParts Warranty10-Year Parts Limited WarrantyHeat ExchangerLifetime Limited Warranty
General Information
Type
Gas Furnace
Product Line
GM9S92 Series
Fuel Type
Natural Gas
Vent Type
PVC Pipe
Gas Valve Configuration
Single-Stage
Blower Motor
Multi-Speed ECM
Configuration
Upflow/Horizontal
Gas Conversion Kit
LPM-07
Performance
AFUE
92%
Heating Capacity (BTU/h)
60,000
High Fire Input (BTU/h)
60,000
High Fire Output (BTU/h)
55,260
Maximum Air Flow (CFM)
1,200
Ultra Low NOx Emissions
No
Low NOx Emissions
No
Electrical Details
Voltage (VAC)
115
Phase
1
Frequency (Hz)
60
Minimum Circuit Ampacity (A)
10.3
Recommended Breaker Size (A)
15
Dimensions
Flue Connection Size
2"-3"
Cabinet Width
17-1/2"
Product Height
34-1/2"
Product Width
17-1/2"
Product Depth
28-3/4"
Shipping Weight (lbs.)
114
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
207349184
Warranty
Parts Warranty
10-Year Parts Limited Warranty
Heat Exchanger
Lifetime Limited Warranty
