🏠 Introduction: Why I Started Thinking About Duct Smoke Detectors
When I first upgraded my HVAC system, I thought about efficiency, cost, and comfort. Fire safety? Honestly, it wasn’t on my radar. Like many homeowners and even small business operators, I assumed my standard smoke alarms were enough.
But then I learned about duct smoke detectors. These aren’t your everyday hallway alarms—they’re specialized devices that monitor the air moving through your HVAC ducts, detecting smoke where it travels fastest. And trust me, once I understood what they do, I realized every serious HVAC setup should have one.
Daikin Duct-Mounted Smoke Detector - D4120
In this guide, I’ll break down what duct smoke detectors are, how they work, why codes require them, and how they can save lives and property.

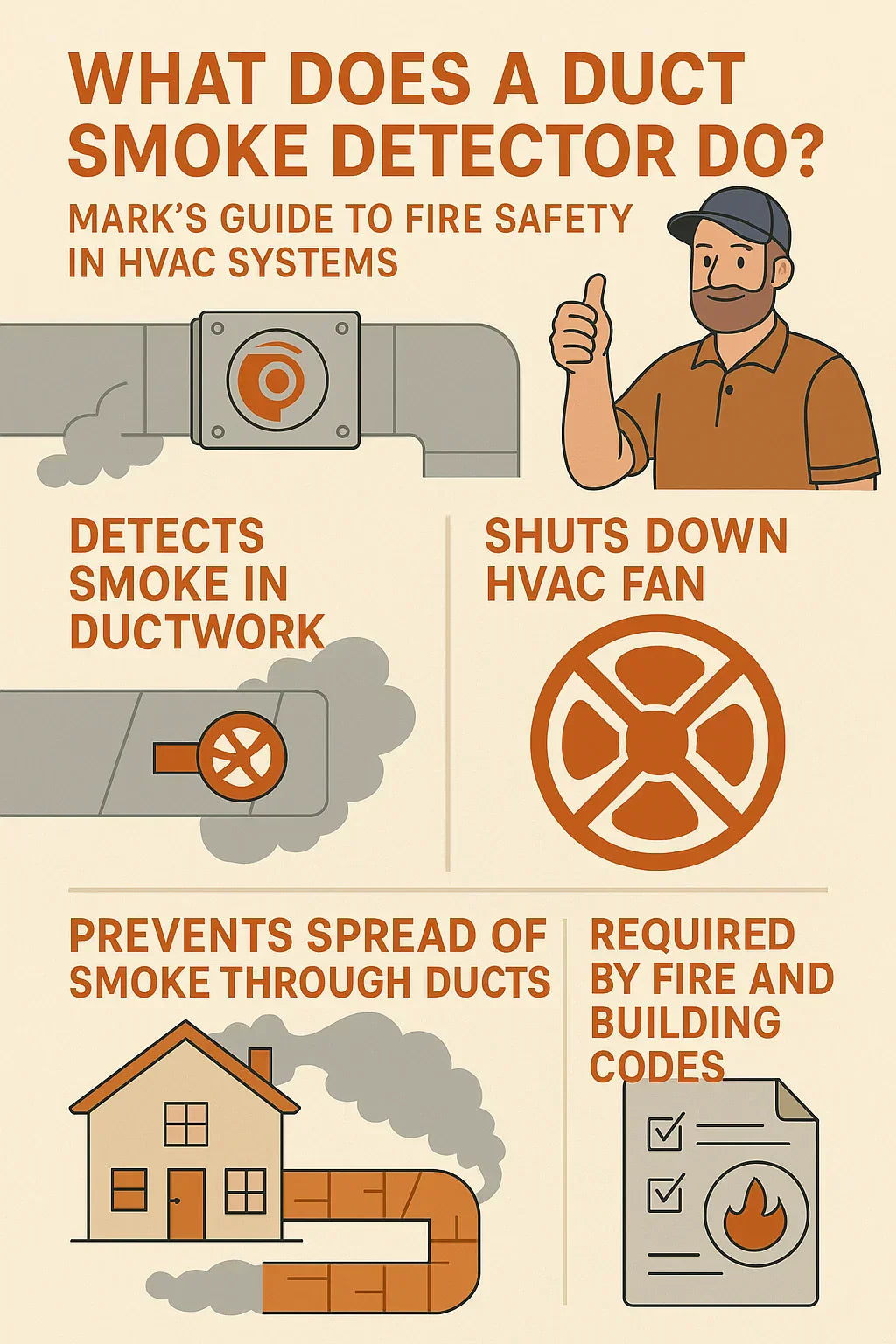

🔧 What Is a Duct Smoke Detector?
A duct smoke detector is a device installed inside or across the air ducts of an HVAC system. Unlike your standard smoke alarm, which detects smoke in a room, this one detects smoke inside the ductwork—the very system circulating air throughout the building.
Why does that matter? Because in a fire:
-
HVAC ducts act like highways for smoke.
-
If unchecked, they spread toxic fumes throughout the house or building.
-
A duct smoke detector catches smoke early and can shut down the fan/air handler, slowing spread.
Think of it as an “early warning system” embedded directly in your heating and cooling system.
👉 Official definition: The NFPA (National Fire Protection Association) describes duct smoke detectors as devices designed to detect smoke and initiate control of HVAC systems to prevent smoke recirculation (NFPA 72).
⚙️ How Does a Duct Smoke Detector Work?
Here’s the process in plain English:
-
Air Sampling Tubes pull a sample of air from inside the duct.
-
The detector chamber analyzes the air for smoke particles.
-
If smoke is detected, the detector triggers:
-
An alarm signal (to fire panel or monitoring system).
-
A shutdown command to the HVAC fan/blower.
-
Sometimes activation of smoke control systems (e.g., dampers).
-
The System Sensor D4120 (the model Daikin uses) is a great example. It has:
-
Photoelectric detection technology.
-
Compatibility with building automation systems.
-
Options for remote test/reset stations.
For commercial setups, these detectors are usually wired into the fire alarm control panel. For residential or small business systems, they may operate stand-alone or with accessories.
For more technical details, you can check the System Sensor D4120 datasheet.
🚨 Why Are Duct Smoke Detectors Important?
When I first heard about these, I wondered: “Why not just rely on regular smoke alarms?”
Here’s the deal:
-
Room smoke alarms detect smoke when it reaches the room.
-
Duct smoke detectors detect smoke inside the HVAC system before it spreads.
Without one, a fire starting in a single room could spread smoke to every zone of the building in seconds. That’s not just dangerous—it’s deadly.
According to the U.S. Fire Administration, smoke inhalation is the leading cause of death in residential fires, more than burns themselves. A duct detector can help cut down the spread dramatically.
📜 Codes & Standards: When Are Duct Smoke Detectors Required?
This was the part that really opened my eyes: duct smoke detectors aren’t optional in many cases—they’re required by law.
🔹 Key Standards & Codes:
-
NFPA 90A (Standard for the Installation of Air-Conditioning and Ventilating Systems) requires duct smoke detectors on supply/return air systems over 2,000 CFM.
-
NFPA 72 (National Fire Alarm Code) governs how detectors integrate with alarm systems.
-
International Mechanical Code (IMC) and International Fire Code (IFC) also mandate usage in certain commercial and multifamily systems.
👉 Translation: If you own or operate a commercial building (or even some large residences), you likely must have duct smoke detectors installed to pass inspection.
For example, the ICC Fire Code clearly states that detectors must be installed where return air enters an air handler of more than 2,000 CFM.
So even if you’re not worried for safety (though you should be), you’ll need them to stay compliant.
🧪 Types of Duct Smoke Detectors
Not all duct detectors are created equal. Here are the two main types:
1. Photoelectric (Most Common)
-
Detects smoke using a light beam inside the chamber.
-
Great for smoldering fires and general applications.
-
Example: Daikin/System Sensor D4120.
2. Ionization (Less Common in Ducts)
-
Uses ionized air particles to detect smoke.
-
More sensitive to flaming, fast fires.
-
Not as widely used in duct systems today.
Many modern detectors use photoelectric because they balance reliability and fewer false alarms.
🏢 Where Are Duct Smoke Detectors Installed?
Placement matters. Install them wrong, and you’ll get nuisance alarms—or worse, they won’t catch smoke in time.
Typical placement rules (per NFPA 90A):
-
Return side of ducts – before the air handler or filters.
-
Supply side – in some designs, especially large systems.
-
After filters but before mixing with outdoor air.
For big systems, you might need multiple detectors on different duct sections.
🛠️ Installation: Mark’s Personal Take
I considered installing one myself, but after reading the fine print, I realized:
-
Wiring into a fire alarm control panel isn’t a simple DIY job.
-
Placement requires code knowledge.
-
Testing requires specialized tools (smoke test kits).
So while I handled the basic mounting and tube setup, I left the wiring and final testing to a licensed technician. It was worth the peace of mind knowing it would pass inspection.
🧹 Maintenance: Don’t Skip This Step
A duct smoke detector isn’t a “set it and forget it” device.
Routine care includes:
-
Testing at least annually (NFPA recommends functional tests).
-
Cleaning the sensing chamber (dust in ducts = false alarms).
-
Verifying airflow through sampling tubes.
For homeowners: set a reminder every 6 months to test. For businesses: schedule it as part of your fire alarm inspection.
⚠️ Common Problems & False Alarms
I’ve dealt with a couple of false alarms myself, and here’s what I found:
-
Dusty ducts = detector thinks it’s smoke.
-
Poor airflow in sampling tubes = unreliable detection.
-
Loose wiring = nuisance alarms.
-
Improper placement = wrong readings.
Solution: Regular testing and cleaning. If the detector trips repeatedly, call a pro.
💵 How Much Does a Duct Smoke Detector Cost?
This was one of my biggest questions as a budget-conscious guy.
Here’s the breakdown:
-
Detector unit: Around $150–$250 (the Daikin D4120 is typically in this range).
-
Accessories: $50–$150 (remote test stations, sampling tubes).
-
Professional installation: $300–$800 depending on complexity.
All-in, you might spend $500–$1,000 for a properly installed and tested detector.
📊 Real-World Scenario: Why Mark Installed One
Last year, my buddy’s restaurant had a small electrical fire in the kitchen. The fire itself was contained quickly, but the smoke spread through the HVAC ducts into the dining area, forcing a full evacuation and thousands in cleanup costs.
If they’d had a duct smoke detector tied to their HVAC system, the fans would have shut down, limiting smoke damage to one area. That story sealed it for me.
🌍 Environmental & Safety Benefits
Besides saving lives, duct smoke detectors help:
-
Limit smoke exposure to occupants.
-
Prevent toxic fume spread (plastics, insulation, etc.).
-
Reduce damage cleanup costs after a fire.
-
Support green building codes that emphasize safety.
✅ Key Takeaways
-
A duct smoke detector monitors HVAC ducts for smoke, stopping fans to prevent spread.
-
They’re required by codes in most commercial systems over 2,000 CFM.
-
The Daikin/System Sensor D4120 is one of the most reliable models.
-
Maintenance and testing are critical—don’t skip them.
-
Cost is minor compared to the risk of unchecked smoke circulation.
📝 Final Word from Mark
I used to think fire safety was “already covered” by regular smoke alarms. Now, I see duct smoke detectors as the hidden heroes of HVAC safety. They don’t just meet code—they can protect families, tenants, and businesses from the invisible killer: smoke circulation.
If you’re upgrading your HVAC system, don’t skip this piece of the puzzle. You’ll sleep better knowing your ducts aren’t just moving air—they’re keeping you safe.
