PTAC Drainage 101 Understanding How Your Unit Handles Moisture

🏠 Introduction: Why Drainage Matters

Hey folks, Tony here. If you’ve ever lived with or managed a PTAC (Packaged Terminal Air Conditioner), you already know they’re hardworking units. They cool and heat individual rooms efficiently, which is why you see them everywhere—from hotels and apartments to senior living centers and even home additions.

But here’s something many people overlook: drainage. Every PTAC produces water while it’s running. If that water isn’t handled properly, you’re in for leaks, stains, musty odors, and even costly repairs.

GE Zoneline PTAC Condensate Internal/External Drain Kit RAD10

I’ll never forget one of my first PTAC installs. I thought the built-in drain pan would be plenty. Three months later, the property manager called me back—water stains under the unit, mildew creeping along the carpet. That was my wake-up call: understanding PTAC drainage isn’t optional—it’s essential.

This guide is your crash course in PTAC drainage:

  • Where the water comes from

  • How units are designed to manage it

  • What can go wrong

  • The role of sleeves and drain kits

  • How to tell if your drainage is working

  • Pro tips to keep it running smoothly

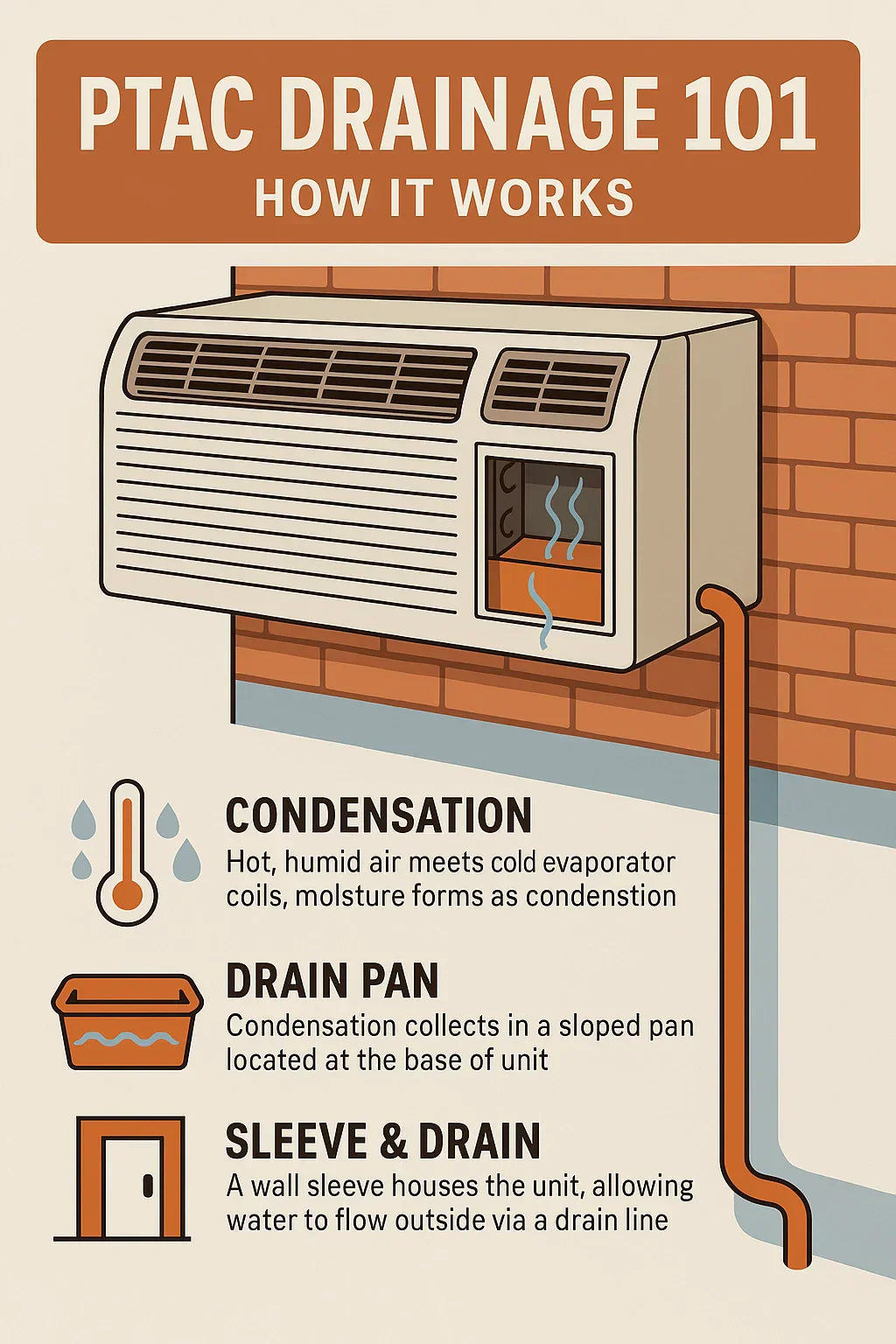

🌡️ Section 1: Where Does the Water Come From?

Air conditioners don’t just cool air—they remove humidity. That humidity turns into condensate water.

🔹 The Science of Condensation

  • Warm indoor air passes over cold evaporator coils.

  • Moisture in the air condenses into water droplets.

  • These droplets fall into a drain pan at the base of the PTAC.

👉 Energy Star explains that PTACs dehumidify as they cool, making drainage a built-in necessity.

🔹 How Much Water Are We Talking?

It depends on:

  • Room humidity (humid climates = gallons per day).

  • Unit run time (hot summer days mean more condensate).

  • Coil efficiency (colder coils pull more moisture).

Even in drier climates, a PTAC can produce several pints per day. In humid areas? Multiple gallons.

Tony’s Tip: If you think it’s just a trickle, you’ll be surprised when you see the pan filling up on a muggy day.


🌀 Section 2: Standard Drainage Methods

PTAC units come with built-in features to manage this water—but they’re not always foolproof.

🔹 Gravity Drain Slits

Small openings at the bottom of the drain pan let water trickle out by gravity.

🔹 Slinger Ring Design

Some PTACs use the condenser fan’s slinger ring to pick up condensate and fling it onto the hot condenser coil. This improves efficiency by re-evaporating water.

🔹 Overflow Channels

If the pan fills too high, excess water spills through channels into the sleeve or outside.


⚠️ Section 3: What Can Go Wrong Without Proper Drainage

Here’s where problems creep in. When built-in drainage falls short, you get:

🔻 Leaks & Puddles

  • Water escapes indoors.

  • Damages drywall, insulation, and flooring.

🔻 Stains & Discoloration

  • Walls below the unit get ugly brown streaks.

  • Paint bubbles and peels.

🔻 Mold & Musty Odors

  • Standing water is mold’s best friend.

  • Leads to health issues and costly remediation.

👉 EPA warns that even small moisture problems can escalate into mold infestations if left unchecked.

🔻 Reduced PTAC Lifespan

  • Corrosion eats away at pans and coils.

  • Electrical components get compromised.

👉 Beckett reports that condensate issues are one of the top causes of early HVAC failure.

Tony’s Take: I’ve seen $50 drain kits save people from $5,000 drywall repairs. Don’t wait for the stains to show before you take drainage seriously.


🛠️ Section 4: The Role of Wall Sleeves & Drain Kits

🔹 Wall Sleeves

Every PTAC slides into a wall sleeve—a metal or insulated housing that holds the unit, protects the wall, and helps manage airflow. Many sleeves include channels or knockouts for drainage.

👉 GE Appliances designs sleeves with insulated panels that reduce noise and provide a path for condensate.

🔹 Drain Kits (like GE RAD10)

This is where the real protection comes in. A drain kit connects directly to the sleeve’s drain outlet and provides a sealed, reliable path for water.

  • Internal setup: Routes water to a plumbing drain.

  • External setup: Routes water outside, away from the wall.

👉 The Furnace Outlet emphasizes that adding a drain kit is the simplest way to prevent leaks and callbacks.

Tony’s Tip: Don’t confuse “optional accessory” with “unnecessary.” A drain kit is cheap insurance.


✅ Section 5: How to Tell If Your Drainage Is Working

You don’t need fancy tools to check your PTAC’s drainage.

🔹 Quick Test

  • Pour a cup of water into the drain pan.

  • Watch to see if it flows smoothly out of the drain.

🔹 Signs of Good Drainage

  • No water pooling inside the pan.

  • Water exits cleanly without leaks at fittings.

  • No musty odors in the room.

🔹 Signs of Trouble

  • Water takes more than a few seconds to drain.

  • Drips show up inside the wall.

  • Water stains or mold spots appear near the unit.

👉 Quality Home Air Care recommends testing and flushing PTAC drains every few months to avoid blockages.


💬 Section 6: Tony’s Pro Tips

After years of installs and repairs, here are my golden rules for PTAC drainage:

  • Slope it right → External lines should drop at least ¼ inch per foot.

  • Flush regularly → Vinegar + warm water clears algae.

  • Keep it sealed → Always check gaskets around fittings.

  • Don’t rely on the sling ring in humid areas—add a drain kit.

  • Inspect yearly → Replace worn gaskets and reseat fittings.

👉 Amana PTAC recommends annual gasket checks to prevent leaks.

Tony’s Take: Drain kits aren’t maintenance-free, but a few minutes a season keeps you dry and stress-free.


🏁 Conclusion: Drainage = Protection

So, what’s the bottom line?

  • Every PTAC creates water—it’s part of the cooling process.

  • Built-in drainage methods are okay, but not always reliable in the real world.

  • Without proper drainage, you’re looking at stains, odors, mold, and costly repairs.

  • Wall sleeves help, but drain kits like the GE RAD10 are the real safeguard.

Tony’s Bottom Line: Don’t let water be the silent killer of your PTAC. A little planning today saves you thousands tomorrow.


In the next topic we will know more about: What Does a PTAC Drain Kit Do? Why Tony Installed One
