By Mark – homeowner, small business owner, and guy who learned duct smoke detectors aren’t “set it and forget it” devices.
🏠 Introduction: Why Maintenance Matters
When I first installed my Daikin D4120 duct smoke detector, I thought I was done. I cut into the duct, mounted the housing, installed the sampling tubes, even hired a pro for the wiring. I tested it once, saw the fan shut down, and thought: “Great—this will keep me safe.”
Then came my first false alarm. It was a Sunday morning, no fire, no smoke, but the HVAC system shut down and the alarm panel lit up. The culprit? A layer of dust clogging the sampling tube. That’s when I learned a valuable lesson: duct smoke detectors require regular maintenance to do their job properly.
In this guide, I’ll share exactly what I’ve learned about maintaining a Daikin duct smoke detector (model D4120). Whether you’re a DIYer like me or running a small business, these tips will help you keep your detector reliable, compliant, and ready when it matters most.
🧹 Step 1 – Regular Cleaning
Ductwork is a magnet for dust, lint, and debris. Since a duct smoke detector samples air from inside those ducts, it’s inevitable that dirt will make its way into the sensing chamber.
🔹 What to Do
-
Vacuum the sampling tubes and detector housing every 6 months.
-
Use a soft cloth to wipe the cover.
-
If needed, remove the sampling tube to blow out accumulated dust.
🔹 Mark’s Experience
The first false alarm I had was entirely my fault—I hadn’t cleaned the detector since installation. When I pulled the sampling tube, it was coated in dust. After vacuuming it out and reinstalling, the problem disappeared.
📌 Mark’s Tip: Never spray cleaning chemicals directly on the detector. Use a damp cloth for the exterior only—moisture can damage the sensor.
🧪 Step 2 – Functional Testing
A detector isn’t doing its job if it can’t actually recognize smoke. That’s where functional testing comes in.
🔹 NFPA Guidance
The NFPA 72 Fire Alarm Code requires functional testing at least annually.
🔹 How to Test
-
Turn on the HVAC fan.
-
Insert the aerosol smoke test spray into the sampling tube test port.
-
Confirm the following happen:
-
The detector alarm LED lights up.
-
The HVAC fan shuts down.
-
The fire alarm system (if connected) receives a signal.
-
-
Press reset once conditions are verified.
🔹 Mark’s Habit
I make testing part of my spring maintenance routine—right before cooling season starts. That way, I know the system is reliable when it’s running most often.
📌 Mark’s Tip: Buy an aerosol smoke test canister. Matches or candles don’t work properly for duct detectors.
📅 Step 3 – Scheduled Inspections
Cleaning and testing are great, but scheduled inspections make sure you’re staying compliant and catching problems you can’t see.
🔹 Residential vs. Commercial
-
Homeowners: Do a DIY test twice a year, and schedule a professional inspection once every 2–3 years.
-
Commercial properties: Must follow NFPA 72 and NFPA 90A, which generally require semiannual or annual professional inspections.
🔹 Mark’s Method
I put a reminder in my calendar for April and October. April = spring test and cleaning, October = fall inspection before heating season.
📌 Mark’s Tip: Treat it like changing your HVAC filter. Make it a calendar item you can’t forget.
🌬️ Step 4 – Airflow Verification
Here’s something I didn’t realize at first: duct smoke detectors depend on proper airflow through the sampling tube. No airflow = no detection.
🔹 How to Verify
-
Check that sampling tube holes face into the airflow.
-
Use a small piece of tissue at the end of the exhaust tube—if it doesn’t flutter, airflow may be blocked.
-
Inspect for insulation or debris inside ducts.
🔹 Mark’s Lesson
During one inspection, my detector failed the airflow test. Turns out a piece of duct insulation had shifted and partially blocked the sampling tube holes. Once I cleared it, the detector worked fine again.
📌 Mark’s Tip: If airflow is weak, the detector may need to be repositioned on a straighter duct section.
🛠️ Step 5 – Battery & Power Source Checks
Most duct smoke detectors like the Daikin D4120 are powered by your HVAC or fire alarm system, but many also include battery backups.
🔹 Checklist
-
Verify main power is connected.
-
If batteries are used: replace them annually.
-
Test backup power (if tied to a fire alarm panel).
🔹 Mark’s Routine
Every fall, I check the detector’s power just like I do with my regular smoke alarms. It takes 5 minutes and could save hours of hassle later.
📌 Mark’s Tip: Don’t assume hardwired = maintenance-free. Power surges and loose connections happen.
🧑🔧 Step 6 – Professional Servicing
Some things are DIY-friendly. Others? Not so much.
🔹 When to Call a Pro
-
Wiring into fire alarm systems.
-
Failed inspections or repeated false alarms.
-
Commercial compliance requirements.
-
Recalibration needs.
🔹 Mark’s Perspective
I can clean and test on my own, but once a year I have a licensed technician do a professional check. They have airflow meters, calibration tools, and knowledge of UL fire detection standards.
📌 Mark’s Tip: If your detector is connected to a fire alarm panel, professional inspection isn’t optional—it’s mandatory.
📜 Documentation & Labeling
Maintenance only helps if you keep track of it. Inspectors love paperwork, and future-you will too.
🔹 How I Do It
-
Label the detector with install date and last inspection date.
-
Keep a maintenance log in a binder with my HVAC documents.
-
Record test results, cleaning, and battery changes.
📌 Mark’s Tip: Even for homeowners, a maintenance log proves you’re serious about safety. And if you ever sell your home, it shows buyers the system is well-maintained.
⚠️ Common Issues & Fixes
From my experience and from what pros have told me, here are the biggest issues:
-
Dust = False Alarms
-
Fix: Clean sampling tubes regularly.
-
-
Blocked Airflow
-
Fix: Verify orientation and duct clearance.
-
-
Loose Wiring
-
Fix: Have a pro check connections.
-
-
Aging Units
-
Fix: Replace detectors every 10 years per manufacturer guidelines.
-

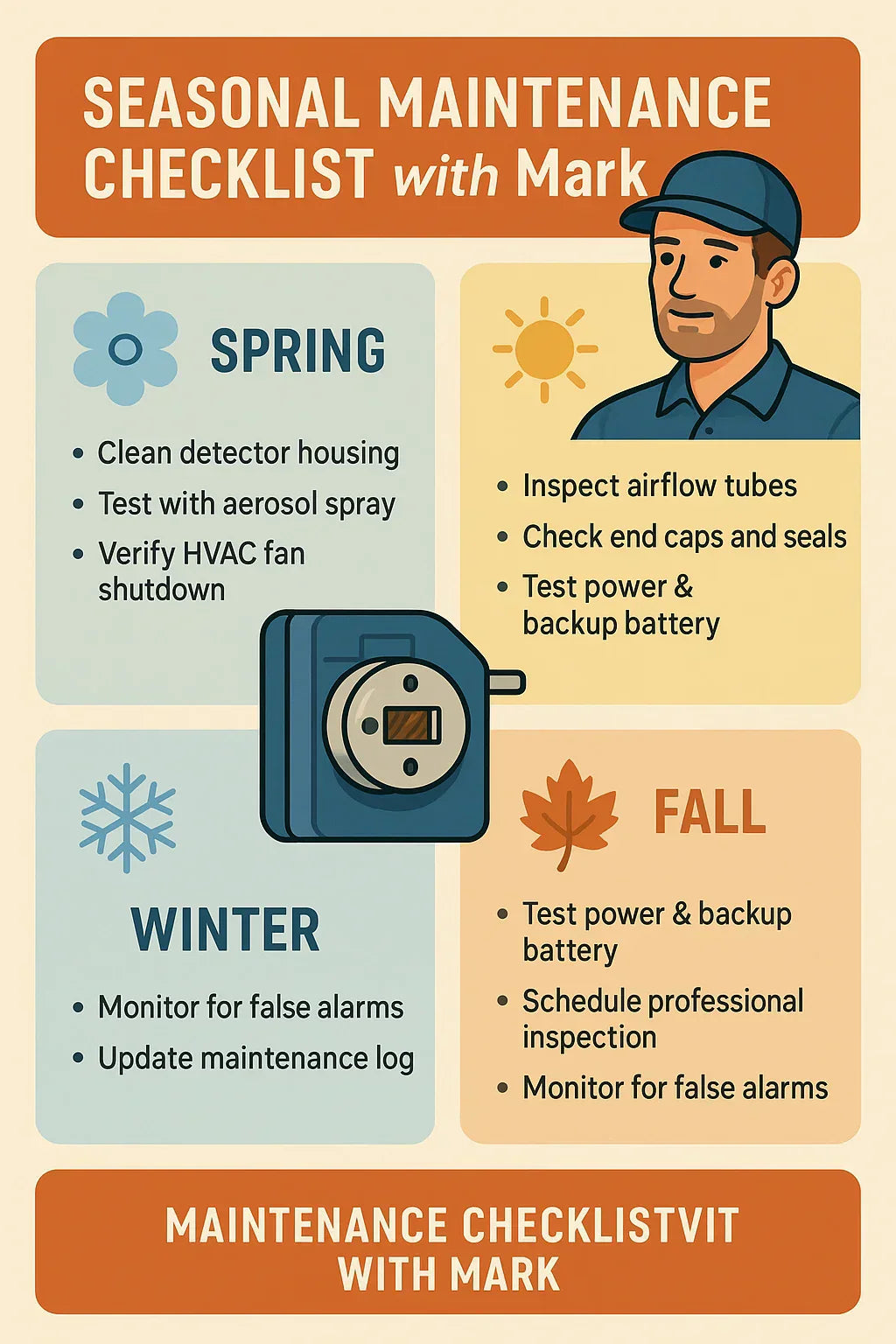

📊 Seasonal Maintenance Checklist (Mark’s Routine)
Here’s the system I use to keep on schedule:
🌸 Spring
-
Clean detector housing.
-
Test with aerosol spray.
-
Verify HVAC fan shutdown.
☀️ Summer
-
Inspect airflow tubes.
-
Check end caps and seals.
🍂 Fall
-
Test power and backup batteries.
-
Schedule professional inspection.
❄️ Winter
-
Monitor for false alarms.
-
Update maintenance log.
📌 Mark’s Tip: Tie these steps to other seasonal tasks (like swapping furnace filters) so you never forget.
💵 Cost of Maintenance
You don’t need to spend much to maintain a duct smoke detector, but here’s what I’ve spent:
-
Aerosol test spray: $15–$20 (lasts multiple tests).
-
Replacement sampling tubes: $20–$40 if damaged.
-
Pro inspection: $150–$300 annually (commercial systems may cost more).
-
Battery replacement: $10 per year (if applicable).
Compare that to the cost of fire damage cleanup (average $25,000+ per NFPA data), and maintenance is a no-brainer.
✅ Key Takeaways
-
A duct smoke detector like the Daikin D4120 is only effective if maintained regularly.
-
Cleaning, testing, airflow checks, and inspections are essential.
-
Follow NFPA 72 and 90A standards for compliance.
-
Keep a maintenance log and label your unit.
-
Know when to DIY and when to call a pro.
📝 Final Word from Mark
Owning a duct smoke detector gave me peace of mind, but maintaining it keeps that peace real. These devices aren’t flashy, and most of the time they just sit quietly in your ductwork. But when you need them, you’ll be glad you spent the extra 20 minutes a season keeping them in top shape.
As I always remind myself: “A little maintenance now beats a failed system when it matters most.”
In the next topic we will know more about: Troubleshooting Guide: What to Do If Your Daikin Smoke Detector Keeps Alarming
