How to Choose the Right Power Cord Amperage for Your GE Zoneline

🏠 Introduction: Why Amperage Matters for Your PTAC

If you’ve ever unboxed a GE Zoneline PTAC (Packaged Terminal Air Conditioner), you might be surprised to learn that it doesn’t always come with a power cord. Instead, you’re expected to purchase a separate cord kit—and not just any cord, but the right amperage cord.

This detail often confuses first-time buyers. After all, a cord looks like a cord, right? But here’s the catch: choosing the wrong amperage can mean:

  • Your PTAC won’t turn on.

  • The breaker will trip repeatedly.

  • Worse, your cord or outlet could overheat, creating a safety hazard.

That’s why understanding how to choose the right amperage (15A, 20A, or 30A) is so important. In this guide, we’ll explain everything you need to know, walk you through Mark’s (our practical homeowner persona) real-world example, and provide charts and references so you can make the right decision the first time.

GE Zoneline 230/208V 30A Universal Power Cord Kit RAK330P


🔌 What Is Amperage and Why Does It Matter?

Before diving into GE’s power cord options, let’s clarify what amperage (amps) means in this context.

  • Amperage measures how much electrical current flows through a circuit.

  • The higher the amperage rating, the more electricity can safely flow without overheating the wires.

For PTACs:

  • A small unit may only need 15 amps.

  • A mid-range unit may require 20 amps.

  • A large-capacity PTAC with higher cooling/heating output may need 30 amps.

Think of it like plumbing: amperage is the size of the pipe. If you try to push too much water (current) through a small pipe (cord), it will overflow (trip the breaker or melt the cord).

đź“– Reference: Electrical Safety Foundation International (ESFI)

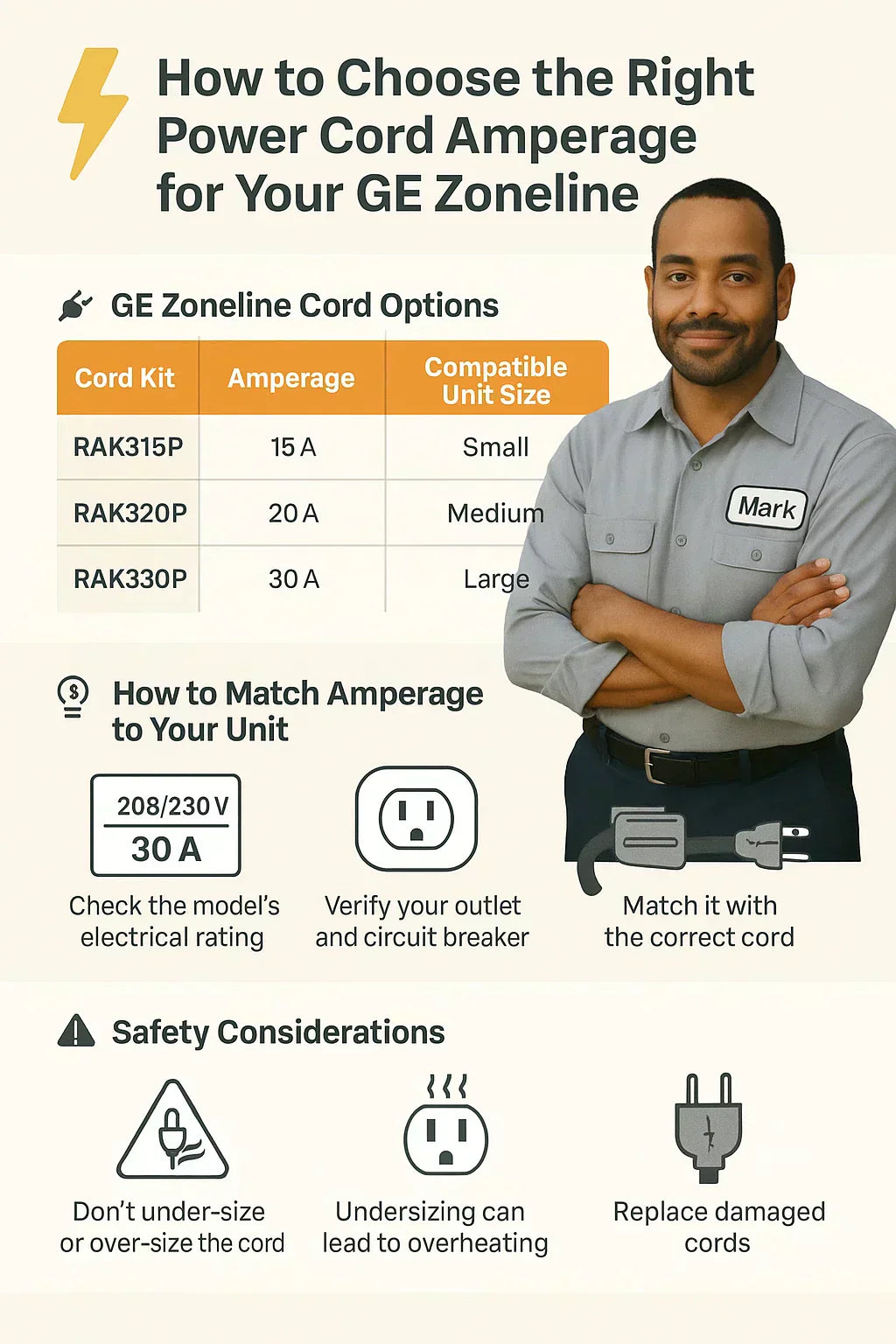

📏 The Three GE Zoneline Cord Options

GE simplifies the process by offering three main universal power cord kits:

  1. RAK315P – 15A Cord Kit

    • Designed for smaller Zoneline models.

    • Usually for residential homes or light-duty applications.

  2. RAK320P – 20A Cord Kit

    • Common in mid-range units.

    • Often installed in hotels or small apartments.

  3. RAK330P – 30A Cord Kit

    • Heavy-duty cord for larger capacity Zoneline units.

    • Required when units run on full electric heat.

Each cord has a different plug design, so you can’t accidentally connect a 30A cord into a 15A outlet. This design prevents mismatches and keeps your system safe.

📖 Reference: GE Appliances – Zoneline PTAC Accessories


🔍 How to Match Amperage to Your Zoneline

So, how do you know which cord you need? Here’s a step-by-step method Mark used:

Step 1: Check the PTAC’s Nameplate

Every Zoneline PTAC has an electrical rating label (usually found on the side or inside the unit cover). Look for:

  • Voltage (115V or 230/208V)

  • Amperage requirement

  • Recommended circuit breaker size

Step 2: Verify Your Electrical Outlet

Your home or property must have the correct outlet and breaker size to support the cord. For example:

  • A 15A cord requires a 15A outlet and breaker.

  • A 30A cord requires a 30A outlet and breaker.

Step 3: Match with the Correct Cord Kit

Once you know your PTAC’s requirements and outlet type, pick the corresponding cord.

📖 Reference: Family Handyman – How to Read Appliance Electrical Labels


⚠️ Safety Considerations When Choosing

Undersized Cord (Too Small)

  • Risks overheating and fire.

  • Unit may draw more power than cord can safely handle.

Oversized Cord (Too Large)

  • Won’t fit your outlet.

  • Wasted money—can’t be used unless you rewire your outlet and breaker.

The golden rule: Always match the cord amperage to both the unit’s needs and the breaker size.

📖 Reference: Energy.gov – Electrical Safety Tips


🏨 Residential vs. Commercial Installations

🏡 Home Installations

  • Typically use 15A or 20A cords.

  • Smaller units are common for single rooms or apartments.

🏨 Hotels & Multi-Unit Buildings

  • Frequently use 20A or 30A cords.

  • Larger units run more often and require more capacity, especially with electric heat options.

  • Property managers often standardize cords across all rooms for easier maintenance.

📖 Industry Insight: Hospitality Net – HVAC in Hotels


👨🔧 Mark’s Story: DIY vs. Professional Help

When Mark installed his GE Zoneline PTAC, he thought a universal cord meant one-size-fits-all. He bought a 20A cord, but his PTAC was a 30A unit. The result?

  • The unit wouldn’t power on.

  • His breaker tripped every time he tried.

After a quick check of the nameplate, he realized his mistake. He swapped to a RAK330P (30A cord), and the system worked perfectly.

💡 Mark’s takeaway: “Universal doesn’t mean one-size-fits-all. Always check your label before buying.”


🔄 Troubleshooting Wrong Cord Issues

If your PTAC isn’t working, your cord may be the culprit.

Common Symptoms:

  • Unit won’t power on → wrong cord or loose connection.

  • Breaker trips frequently → under-sized cord.

  • Burning smell → overheating cord (dangerous—replace immediately).

  • Heating doesn’t activate → mismatched cord amperage.

Quick Fixes:

  • Double-check the unit’s electrical label.

  • Verify the cord amperage matches both the unit and breaker.

  • Replace with the correct cord kit if mismatched.

đź“– Support Guide: GE Zoneline PTAC Support


đź’µ Cost Breakdown

Cord Cost

  • 15A Cord: $60–$80

  • 20A Cord: $70–$90

  • 30A Cord: $80–$100

Installation Cost

  • DIY: $0 (if outlet already exists)

  • Electrician: $150–$500 (if new outlet/dedicated line needed)

Mark spent $250 for an electrician to confirm his 30A outlet wiring. While it added cost, it gave him peace of mind that his unit was safe and code-compliant.


📊 Mark’s Cheat Sheet: Quick Reference Chart

Cord Kit Amperage Common Use Outlet Needed Typical Setting
RAK315P 15A Small PTACs 15A outlet Homes, small apartments
RAK320P 20A Mid-range 20A outlet Hotels, rental units
RAK330P 30A Large PTACs 30A outlet Hotels, large rooms, units with electric heat

âś… Conclusion: Choose Once, Install Right

Choosing the right GE Zoneline power cord amperage isn’t complicated—but it’s critical. The wrong choice can leave your system powerless or even create a hazard.

For Mark, the lesson was simple: always check your PTAC’s electrical label and match it with the correct cord and breaker size. Whether you DIY or hire a pro, taking the time upfront saves money, stress, and ensures your PTAC runs safely for years.


In the next topic we will know more about: DIY Installation Guide: How to Connect Your GE Zoneline with the RAK330P Power Cord Kit
