⚡ Introduction: Why the Power Cord Matters
If you’ve purchased a GE Zoneline PTAC (Packaged Terminal Air Conditioner), you might have noticed something unusual: it doesn’t come with a power cord pre-installed. Instead, GE sells the cord separately, giving you the option to choose the right amperage cord kit based on your electrical setup.
For higher-capacity Zoneline units, the required accessory is the RAK330P Universal Power Cord Kit, which is rated at 230/208V and 30 amps.
At first glance, this may feel like a small accessory, but it’s really the lifeline of your PTAC—without it, your system won’t run at all. Installing it correctly ensures safety, efficiency, and long-term performance.
GE Zoneline 230/208V 30A Universal Power Cord Kit RAK330P
This detailed guide will walk you step by step through installing the RAK330P cord, highlight tools you’ll need, cover important safety practices, troubleshoot common mistakes, and explain when to call in a pro. Along the way, you’ll get practical insights from Mark, a DIY-minded homeowner who prefers to do things himself when possible—but also knows when to get expert help.
🧰 Tools & Materials You’ll Need
Before you start, gather the necessary tools. Having everything on hand will make the process smooth:
-
✅ RAK330P Power Cord Kit (30A, 230/208V)
-
✅ Phillips screwdriver (for removing/replacing the PTAC cover and securing cord)
-
✅ Flathead screwdriver (optional, for prying panels if needed)
-
✅ Voltage tester or multimeter (to confirm power is off before connecting)
-
✅ Safety gloves (protect hands when handling electrical parts)
-
✅ Flashlight (to see inside unit if room lighting is limited)
-
✅ Zip ties or clips (to keep cord neat and out of the way)
📖 Reference: Family Handyman – Electrical Tools for Homeowners
🔒 Safety First: Pre-Installation Checklist
Electricity is nothing to take lightly. Even a simple cord installation requires respect for safety protocols. Here are steps to take before touching your Zoneline:
-
🛑 Turn off the breaker controlling the outlet you’ll use.
-
🔌 Confirm outlet amperage (must be a 30A outlet for the RAK330P).
-
⚡ Test the outlet with a voltage tester to ensure no live power is flowing.
-
🏷️ Double-check PTAC nameplate (on the side or inside the unit) to confirm it requires a 30A cord.
-
🧯 Keep a fire extinguisher nearby (especially if working in a hotel or apartment setting).
💡 Mark’s Tip: “I always test the outlet with my voltage tester, even after flipping the breaker. Peace of mind is worth the extra 30 seconds.”
📖 Reference: Electrical Safety Foundation International (ESFI)

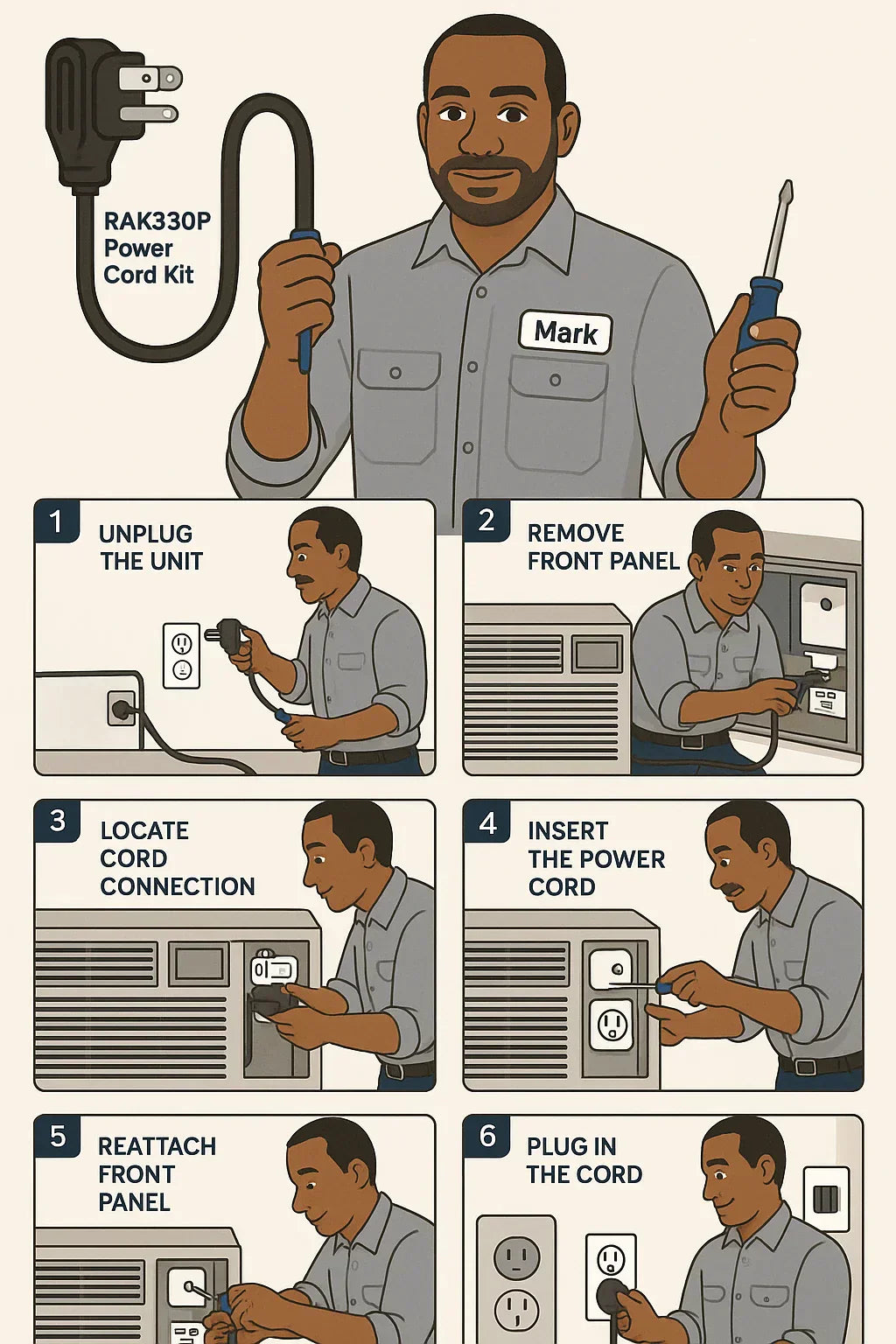

🛠️ Step-by-Step Installation Guide
Now that you’re ready, let’s dive into the actual installation.
Step 1: Unpack the Cord Kit
-
Open the RAK330P package.
-
Inside, you’ll find the power cord, securing screws, and sometimes a strain relief bracket (depending on model).
Step 2: Remove the PTAC Front Cover
-
Using a screwdriver, remove screws holding the front cover.
-
Pull the cover forward gently—it may snap out of place.
-
Set aside in a safe location.
Step 3: Locate the Power Connection Compartment
-
Inside the PTAC (bottom left or right corner), you’ll see a compartment for the power cord.
-
Remove the small metal or plastic cover plate.
Step 4: Insert the RAK330P Cord
-
Align the plug connector end with the PTAC’s internal socket.
-
Push firmly until it clicks into place.
-
Secure the cord with screws or clips provided.
Step 5: Route the Cord Safely
-
Run the cord through the designated opening.
-
Use a strain relief bracket or clamp to prevent tugging on the connector.
-
Mark’s Tip: “I use a couple of zip ties to keep the cord neat and away from the PTAC fan area.”
Step 6: Plug into Wall Outlet
-
Plug the cord into your 30A wall outlet.
-
Make sure the outlet is dedicated (nothing else on the circuit).
Step 7: Reattach PTAC Front Cover
-
Carefully align the cover and screw it back in place.
-
Ensure no wires or cord sections are pinched.
Step 8: Restore Power
-
Flip the breaker back on.
-
Test the outlet with your voltage tester—should now show live power.
✅ Testing Your Installation
After connecting the cord, test your PTAC:
-
Power On → Fan should start running immediately.
-
Cooling Mode → Compressor kicks in after a few seconds, delivering cold air.
-
Heating Mode → If your unit uses electric resistance heat, it should activate without tripping the breaker.
💡 Mark’s Trick: “I let mine run for 10 minutes in both heating and cooling just to be sure everything is stable before calling it done.”
🔄 Troubleshooting Common Issues
Even with careful installation, hiccups happen. Here’s a guide:
-
❌ Unit won’t turn on → Breaker off, cord not fully seated, or wrong cord amperage.
-
❌ Breaker keeps tripping → Undersized cord, damaged cord, or overloaded circuit.
-
❌ Heating doesn’t activate → Some Zoneline models require 30A cord to enable electric heat.
-
❌ Burning smell → Immediately shut down. Cord may be defective or not seated properly.
📖 Reference: GE Zoneline PTAC Support
👨🔧 DIY vs. Professional Help
When should you do it yourself, and when should you call in a pro?
✅ Good for DIY
-
Outlet already installed (30A dedicated).
-
You’re comfortable handling appliance panels.
-
You’ve worked safely with electrical components before.
👷 Best for Pros
-
No existing 30A outlet (needs new wiring).
-
Breaker is undersized.
-
Local electrical code compliance required (common in hotels/apartments).
Mark’s Example:
-
He installed the cord himself, but paid an electrician $250 to confirm the outlet wiring and breaker size were correct. That balance gave him confidence.
💵 Cost Breakdown
-
Cord kit (RAK330P): $80–$100
-
DIY Install: Free if outlet is ready
-
Professional Install: $150–$500 (if outlet/circuit needs upgrade)
Long-term savings: Doing it right upfront prevents equipment damage that could cost $500–$1,500 to repair or replace.
📖 Reference: HomeAdvisor – Electrical Outlet Installation Costs
📊 Quick Reference: Mark’s DIY Checklist
✔️ Confirm PTAC requires 30A cord (check label).
✔️ Turn breaker off before working.
✔️ Remove front cover, insert cord, secure it.
✔️ Route cord neatly with strain relief.
✔️ Plug into dedicated 30A outlet.
✔️ Reattach cover, restore power, and test both cooling and heating.
🧾 Conclusion: Simple, Safe, and Essential
The RAK330P Universal Power Cord Kit may seem like a small accessory, but it’s the backbone of your Zoneline PTAC’s operation. With the right tools and steps, installation is straightforward for a DIYer like Mark—provided the outlet and breaker are already in place.
If not, don’t hesitate to bring in a professional. The key is doing it right the first time so your PTAC operates safely and reliably for years.
In the next topic we will know more about: RAK330P vs. Other GE Power Cord Kits: What’s the Difference?
